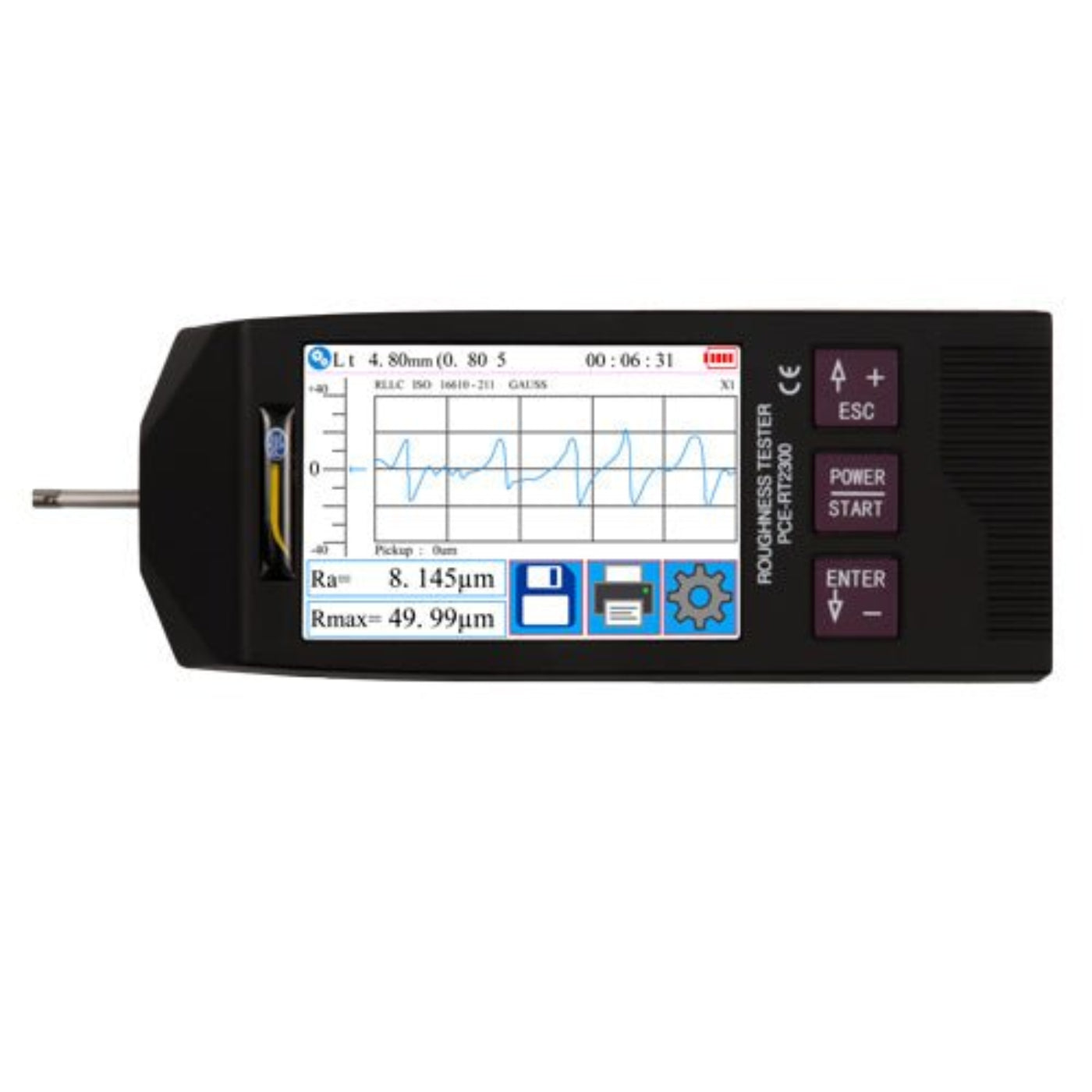

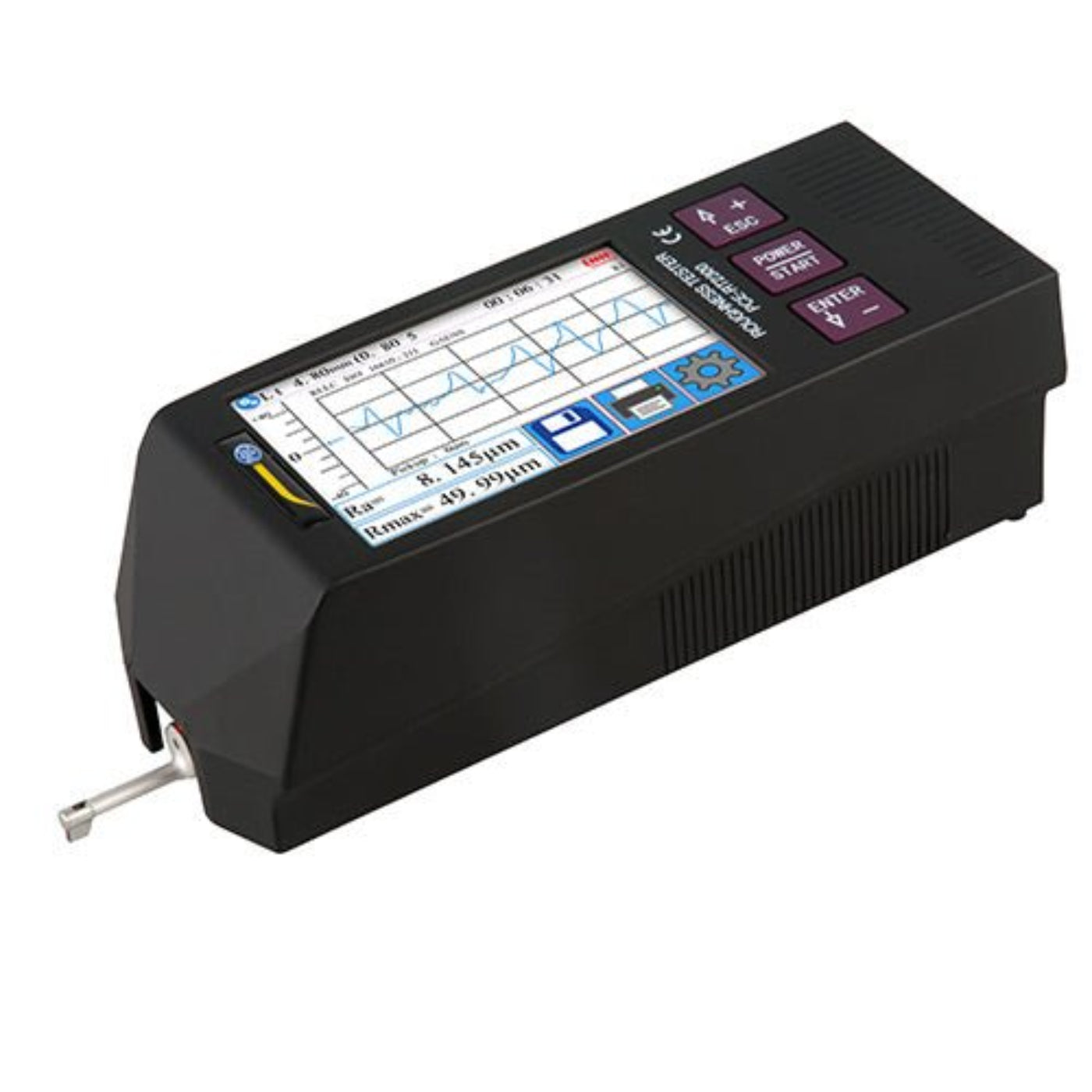

The PCE RT 2300 23 Parameter Profilometer Surface Roughness Tester is used to measure the roughness of surfaces. It has a removable motorized sensor which makes it possible to determine the surface profile roughness even on small or narrow profiles. The measured values ??are displayed on a large LCD display of the profilometer. The device is powered by an internal battery or it can be powered by a conventional USB power adapter.

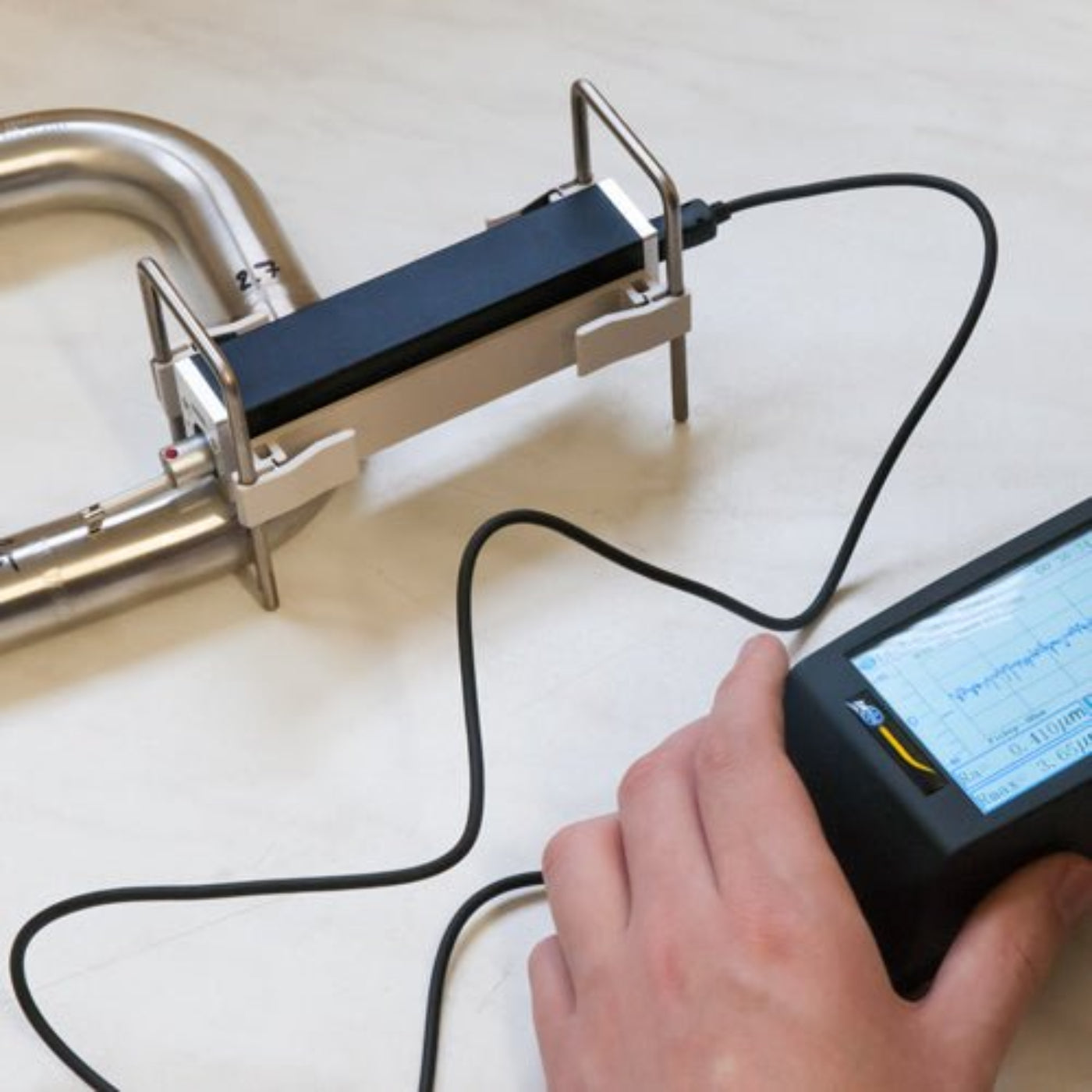

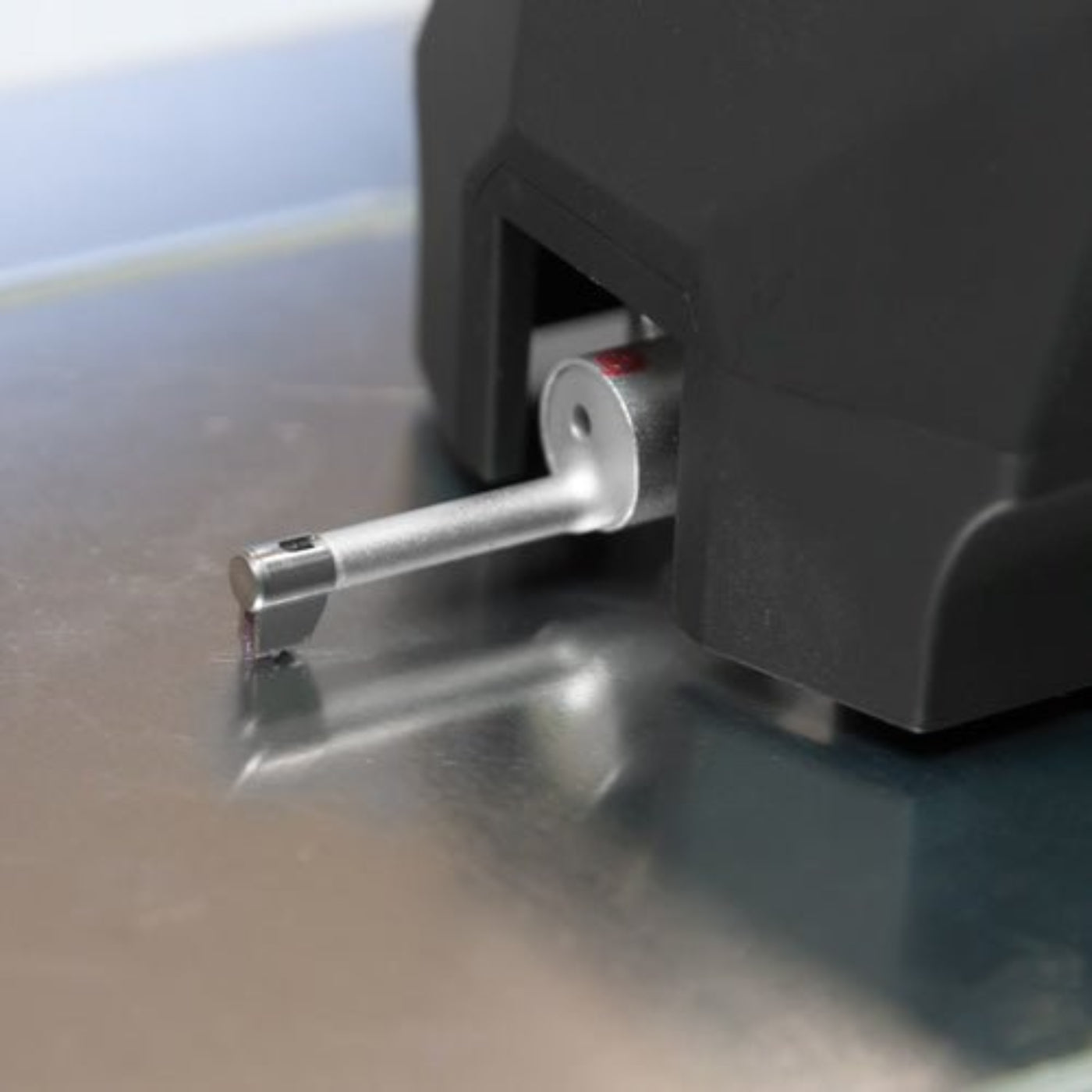

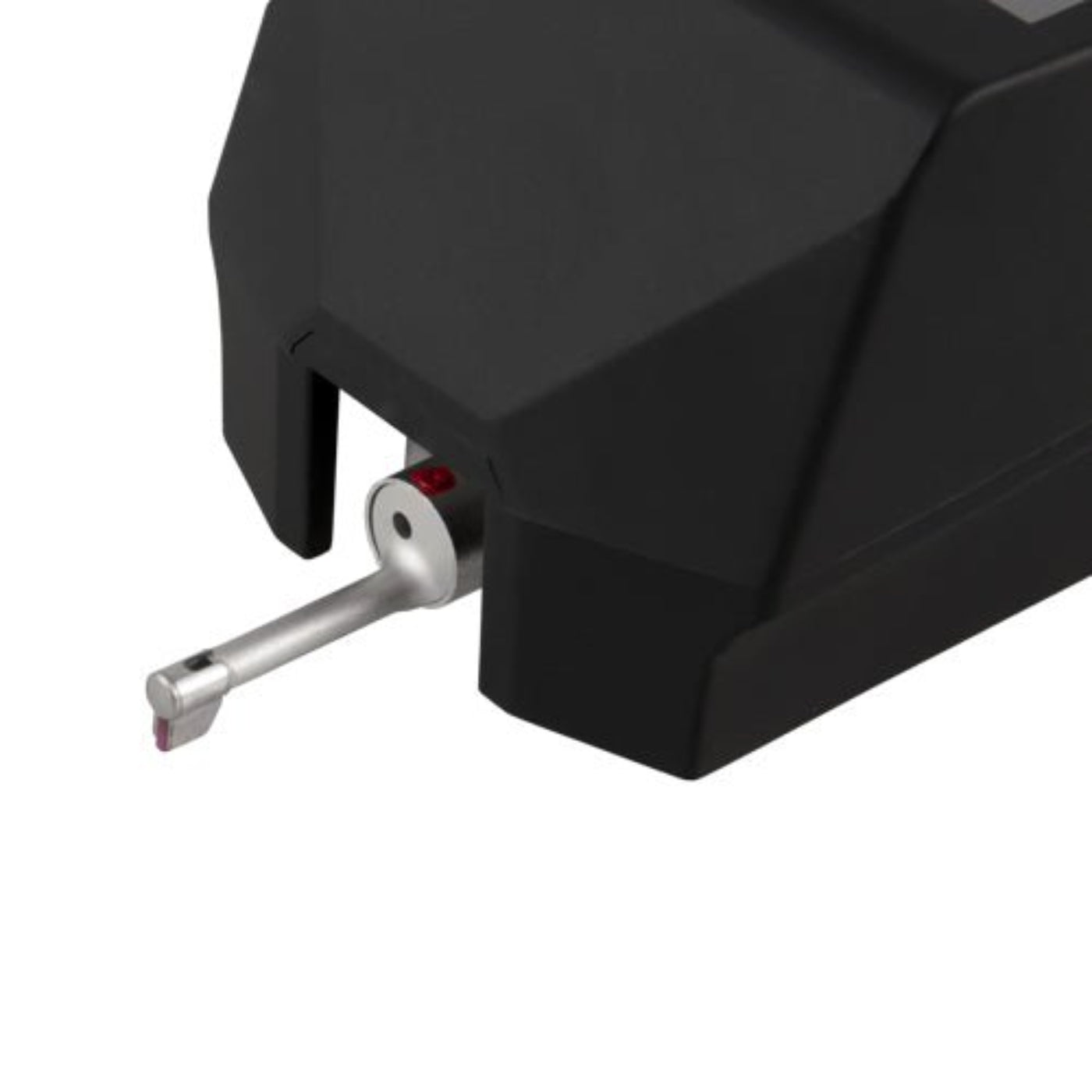

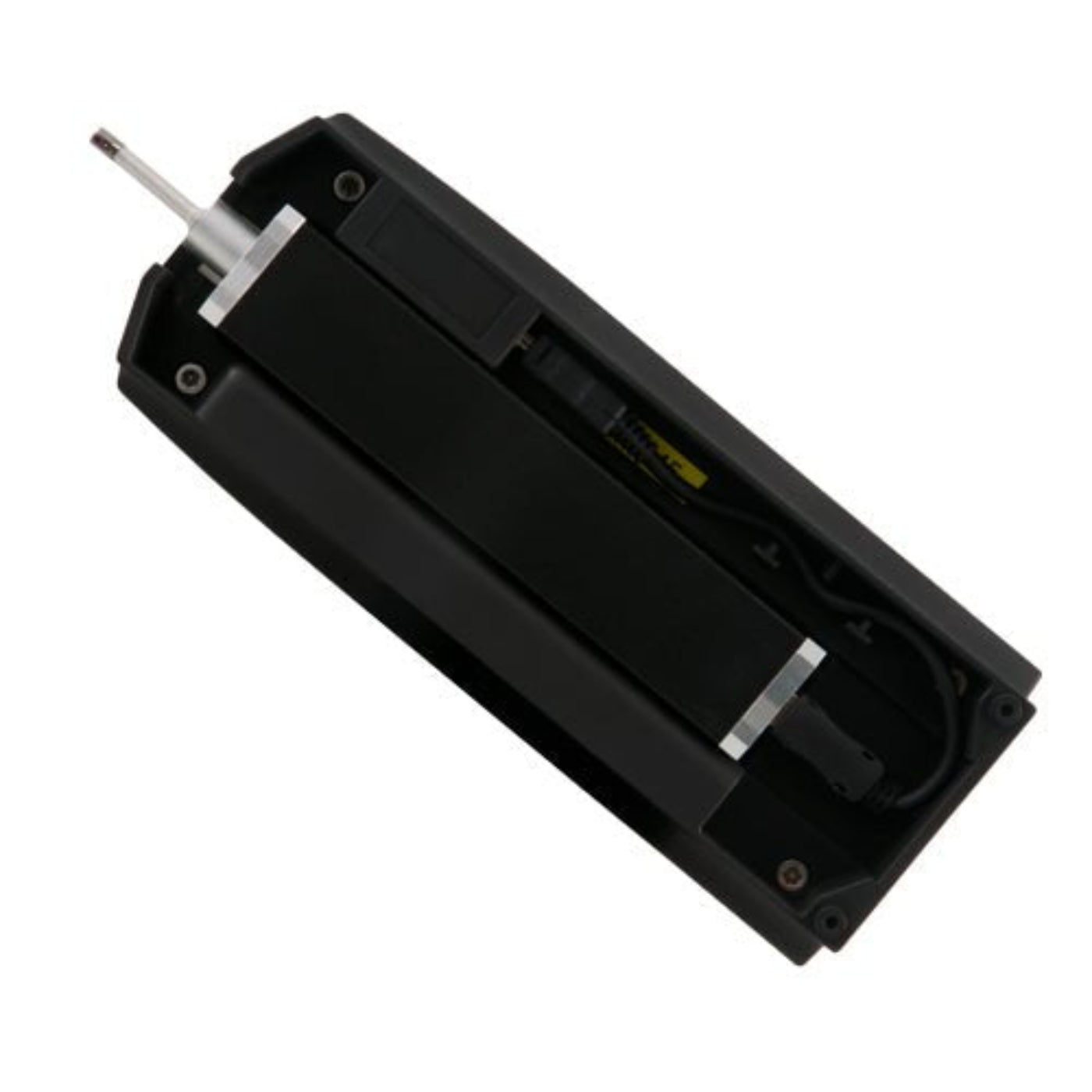

The detachable motorized sensor is connected by a cable to the main unit of the profilometer gauge. The diamond stylus is installed in the motorized sensor. This presses with a maximum force of 4 mN on the surface from which the roughness profile is to be measured. The profilometer measures according to the valid ISO, ANSI and JIS standards for profilometer measuring instruments.

Highlights

• Portable
• Material tester for the rapid detection of roughness (Ra, Rz, Rq, Rt and many more)
• Detachable motor unit

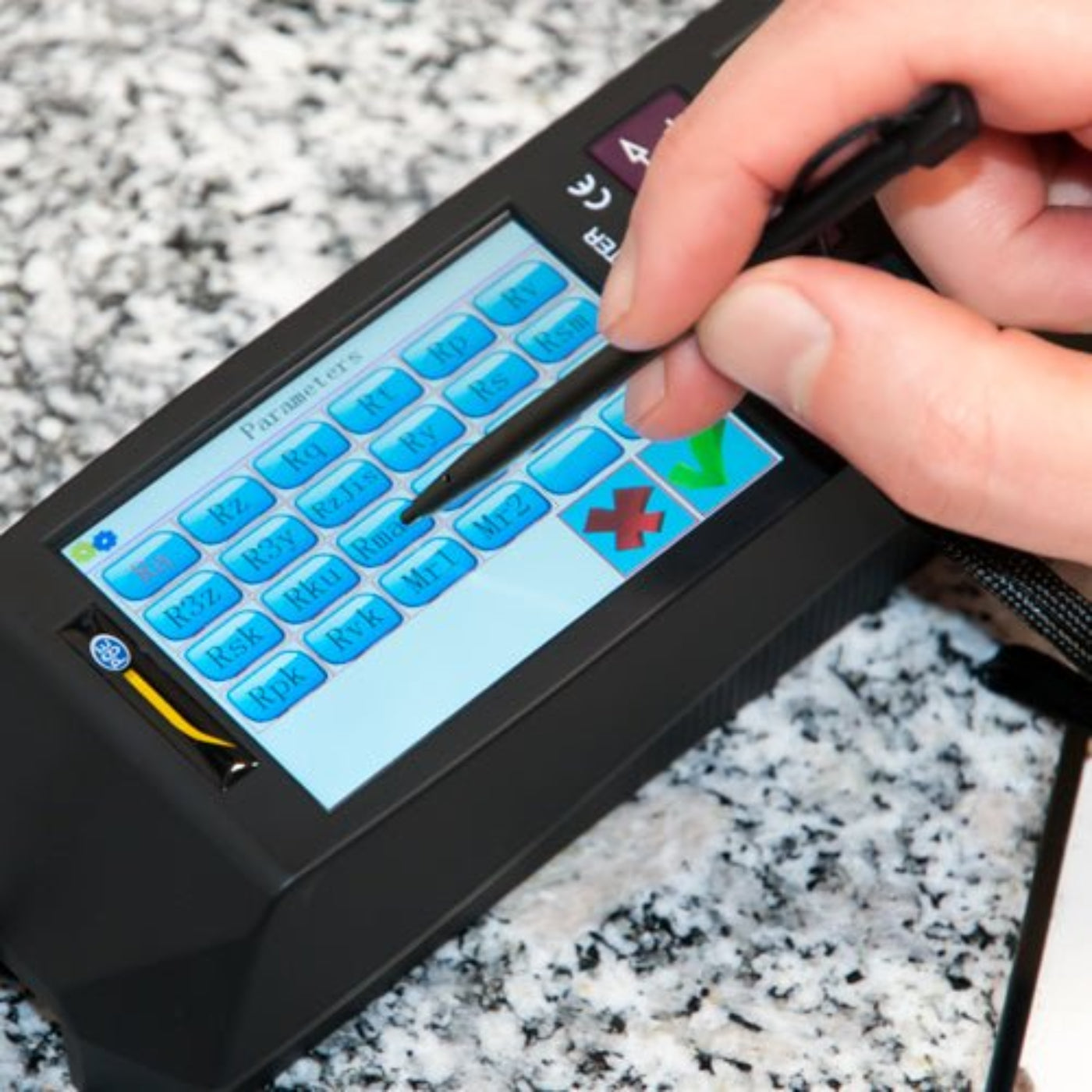

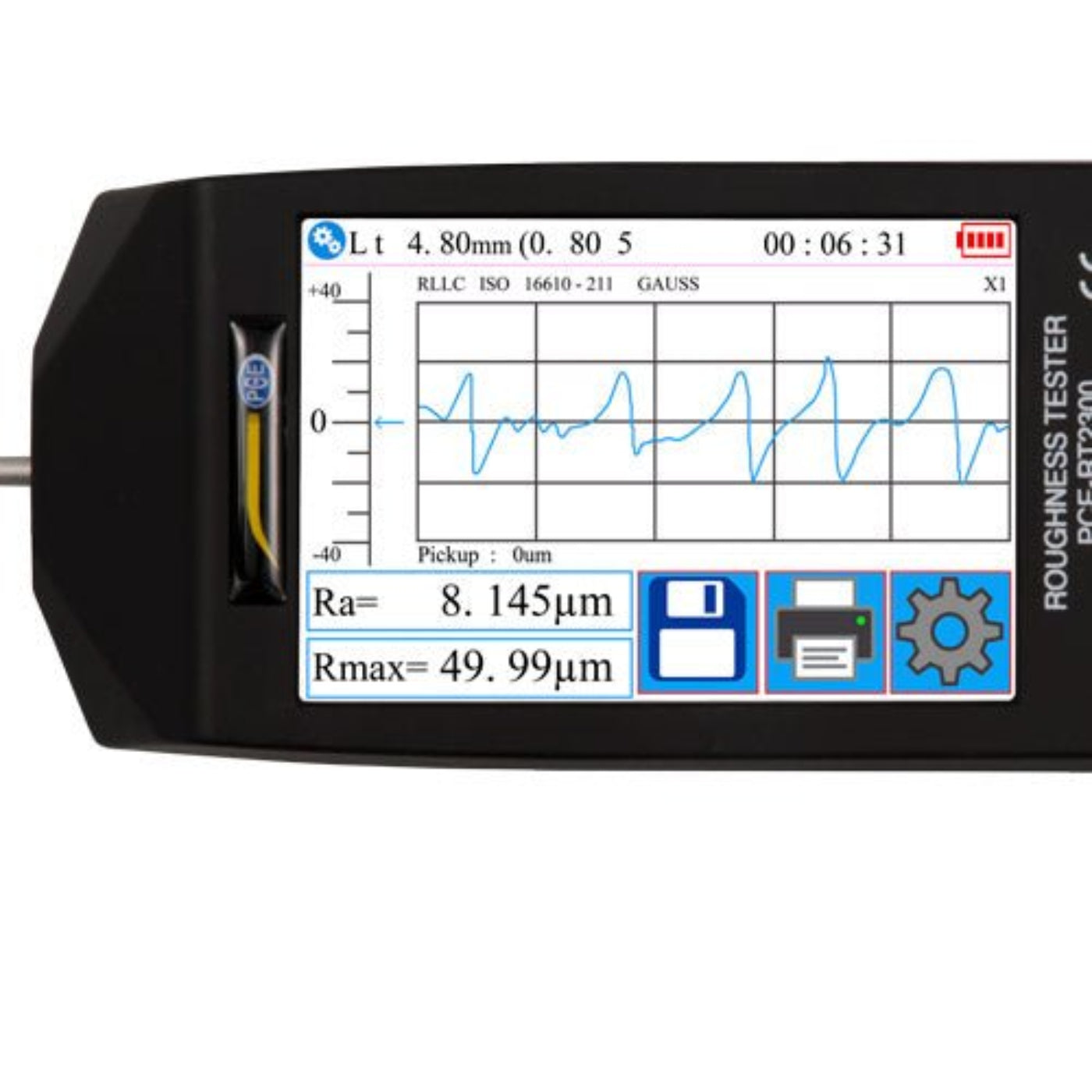

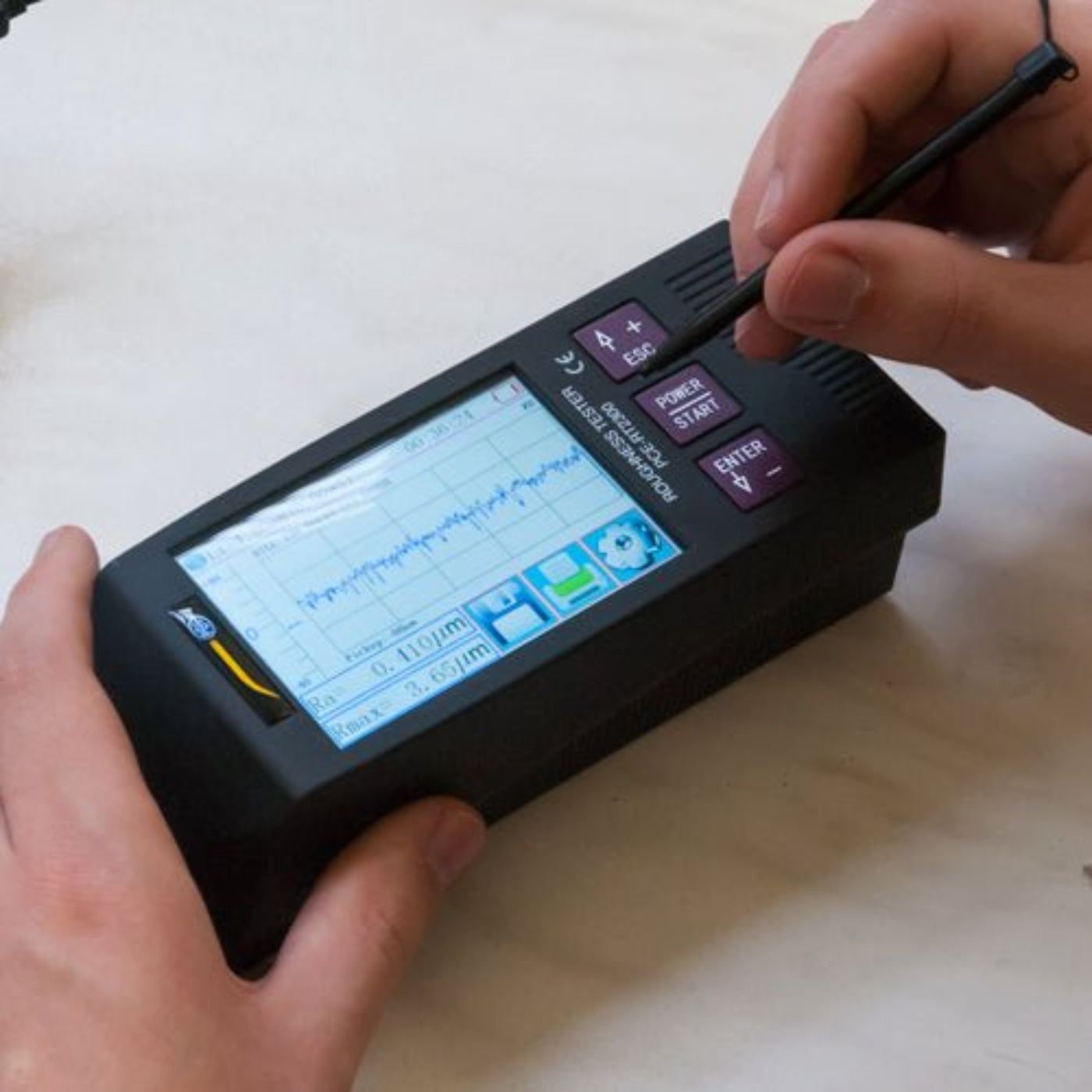

• Touch screen Interface
• Range of 320 µm or 12.6 mil

Features

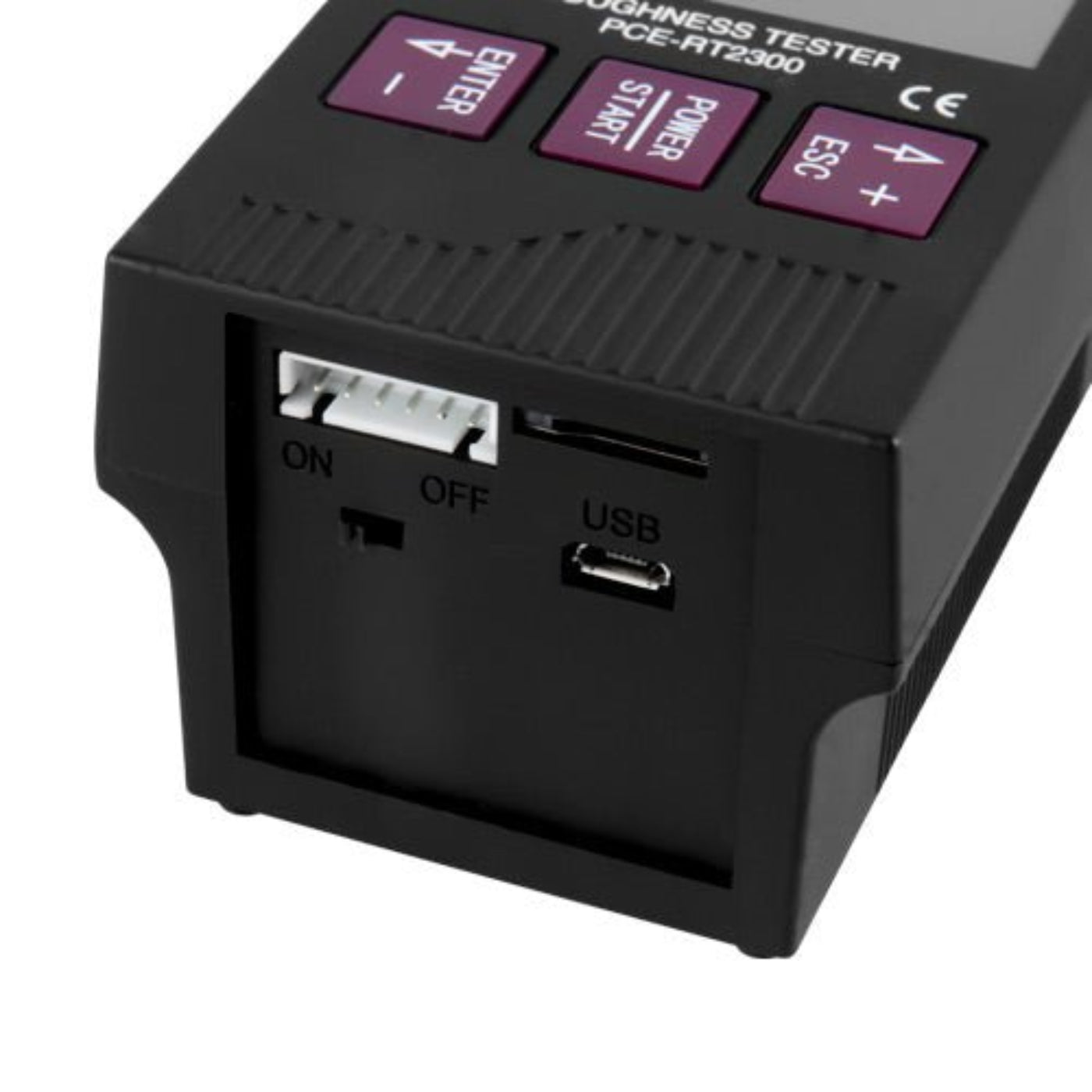

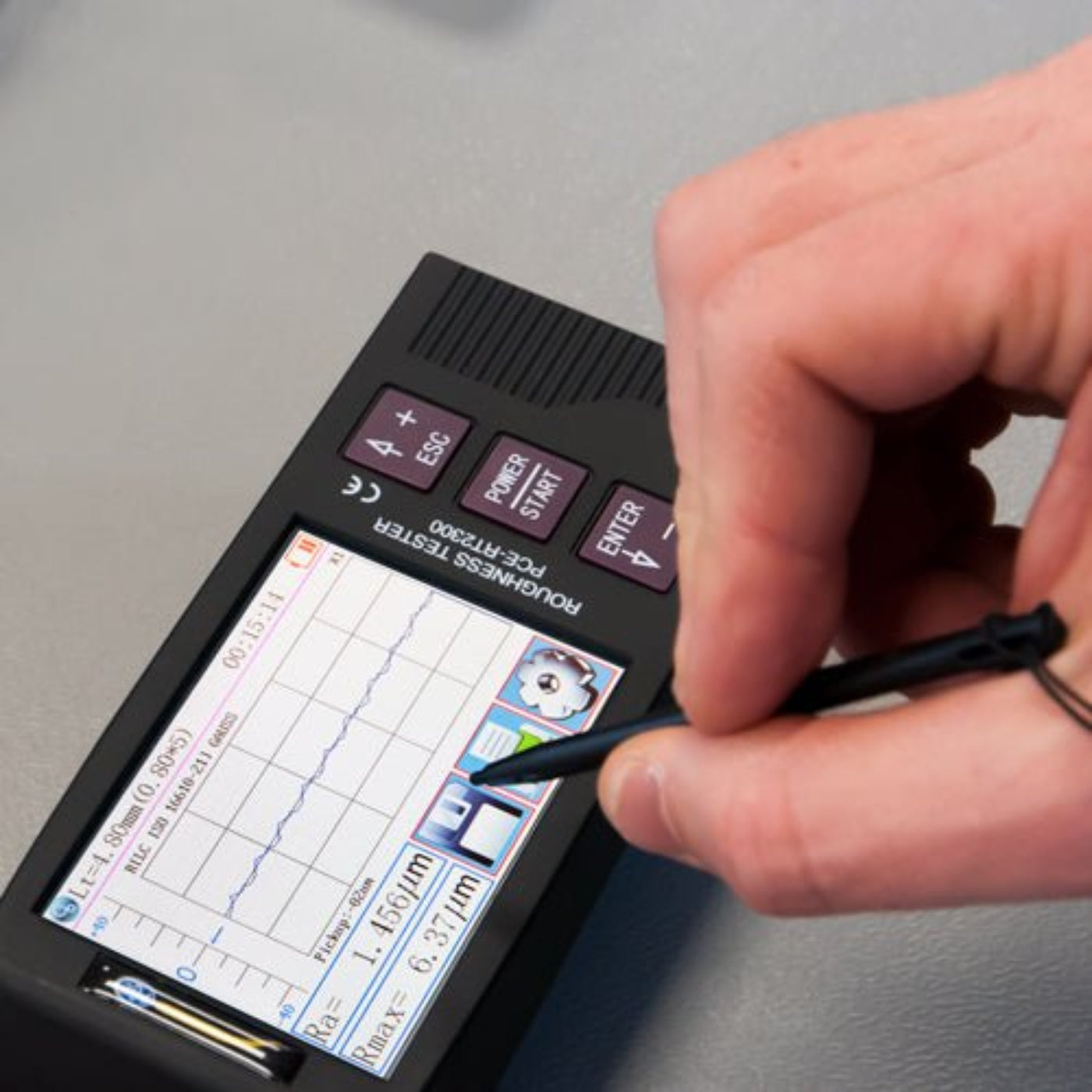

• Touchscreen interface and PC connection
• Measurement of all roughness profile values
• Battery and mains operation
• Different filters adjustable
• Diamond test head

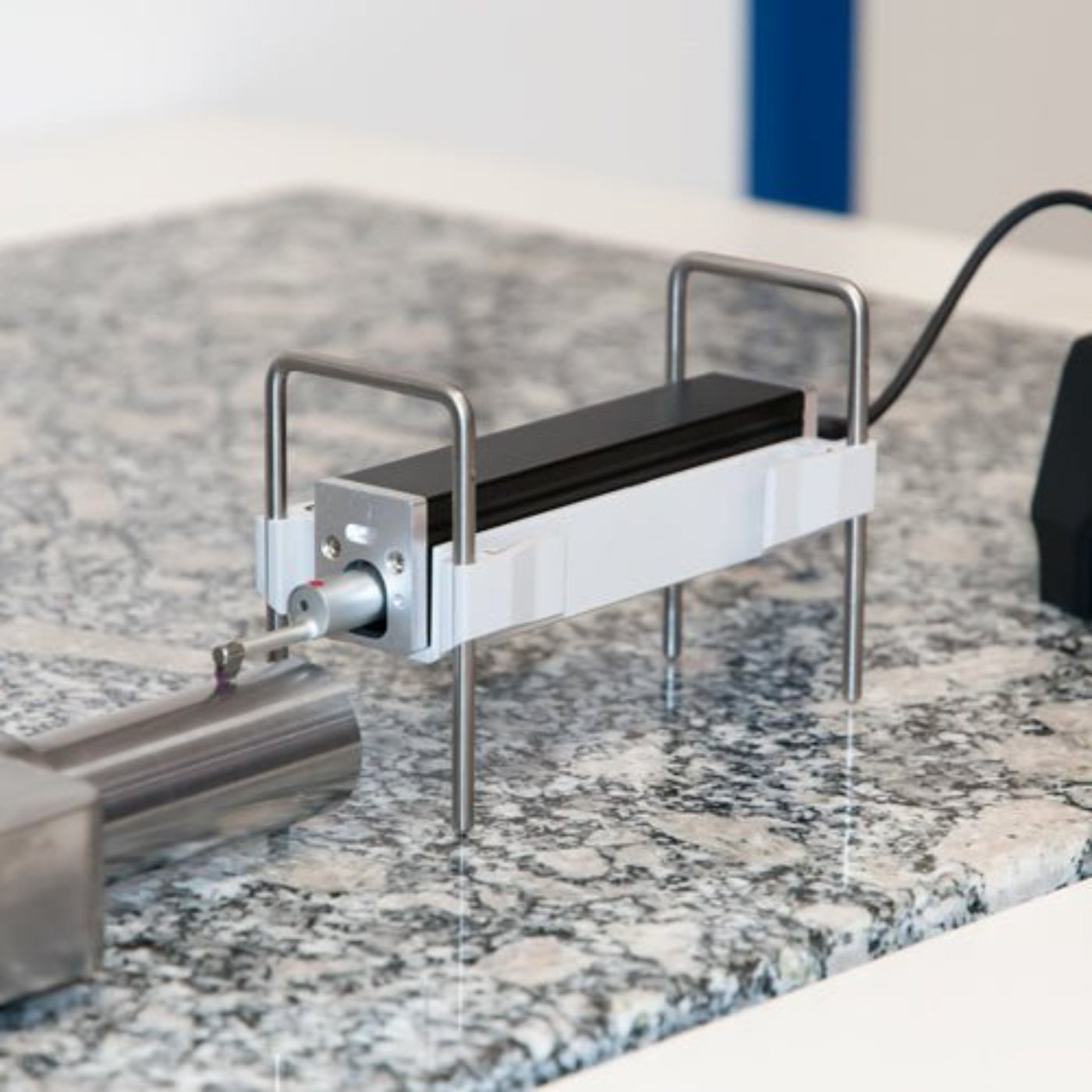

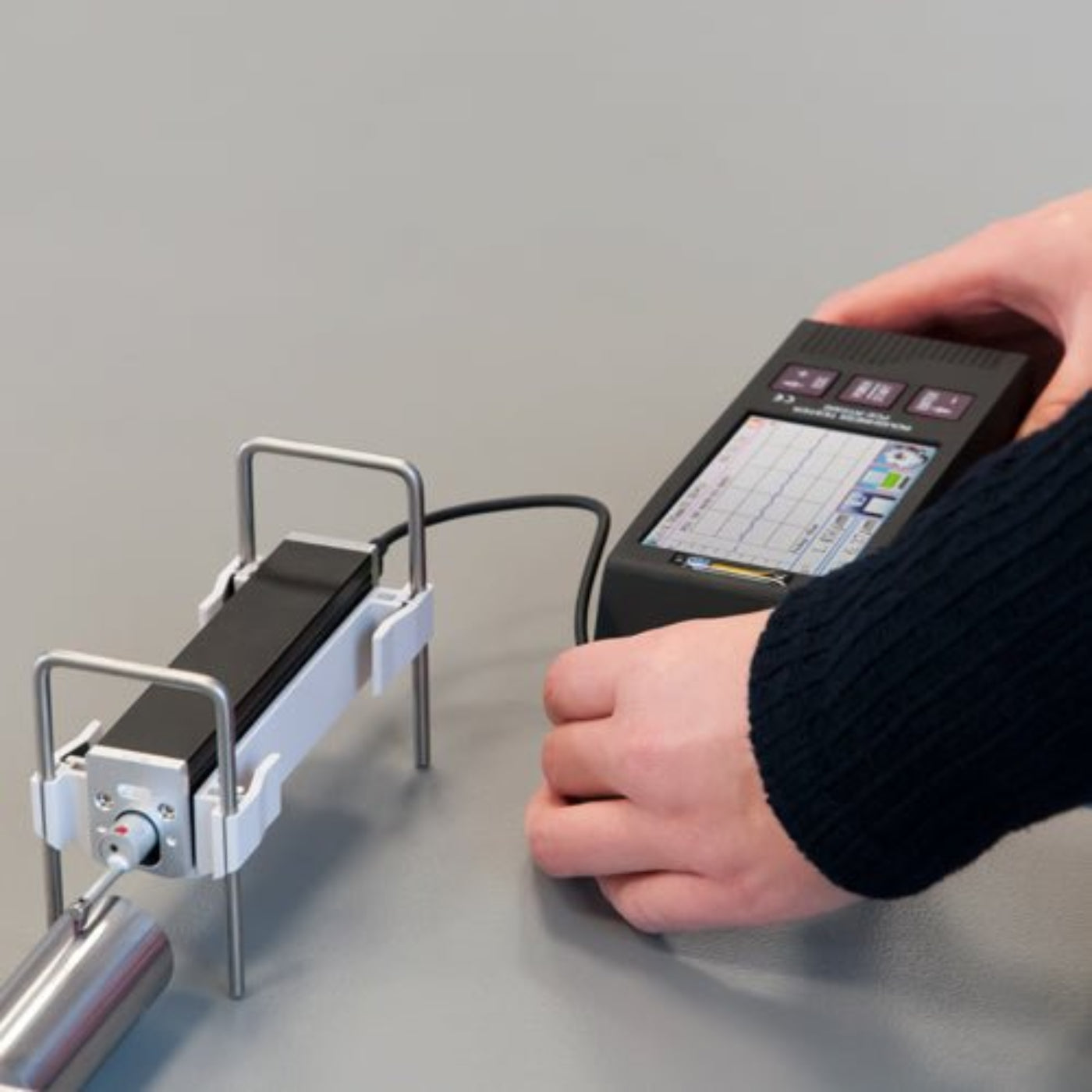

• Removable motorized sensor
• Large measuring range: Rz: 0.02 µm - 320 µm; Ra, Rq: 0.005 µm - 32 µm

Specifications

• Measuring range: Rz: 0.02 µm ... 320 µm; Ra, Rq: 0.005 µm ... 32 µm, Rz = 320µm (-160µm~160µm) / 12600µin (-6300µin~+6300µin)
• Accuracy: ± 10%
• Repeatability: ± 6%
• Resolution:
• ± 20 µm: 0.01 µm
• ± 40 µm: 0.02 µm
• ± 80 µm: 0.04 µm
• Measurement Parameters: Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
• Measurement Standards: ISO4287, ANSI b46.1, DIN4768, JISb601
• Graphic:
• Primary profile (roughness + waviness)
• Roughness profile (roughness)
• Loading curves
• Measuring filter: RC, PC-RC, Gaus, DP
• Measuring section (Cut Off): 0.25 mm, 0.8 mm, 2.5 mm
• Measuring length: 1 ... 5* measuring path. Max. 17.5 mm (including pre- and post-run)
• Sensor: Diamond probe tip 90° cone angle. 5 µm
• Contact force sensor: <4 mN
• Feed rate:
• 0.25 mm: 0.135 mm / s
• 0.8 mm: 0.5 mm / s
• 2.5 mm: 1 mm / s
• Display: 3.5" LCD screen
• Power supply: 3.7V Li-Ion Battery. 5V / 800-mA USB Power Adapter
• Operating time: 50 h
• Operating conditions: -20 ... 40°C / -4 ... 104°F, max. 90% rh
• Storage conditions: -40 ... 60°C / -40 ... 140°F, max. 90% rh
• Dimensions:
• Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in
• Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in
• Weight: About 500 g / 1.1 lbs

What’s included

• 1 x Profilometer PCE-RT 2300
• 1 x Microprobe
• 1 x Removable motorized sensor
• 2 x Connection cable for motor unit
• 1 x Charger
• 1 x Interface cable

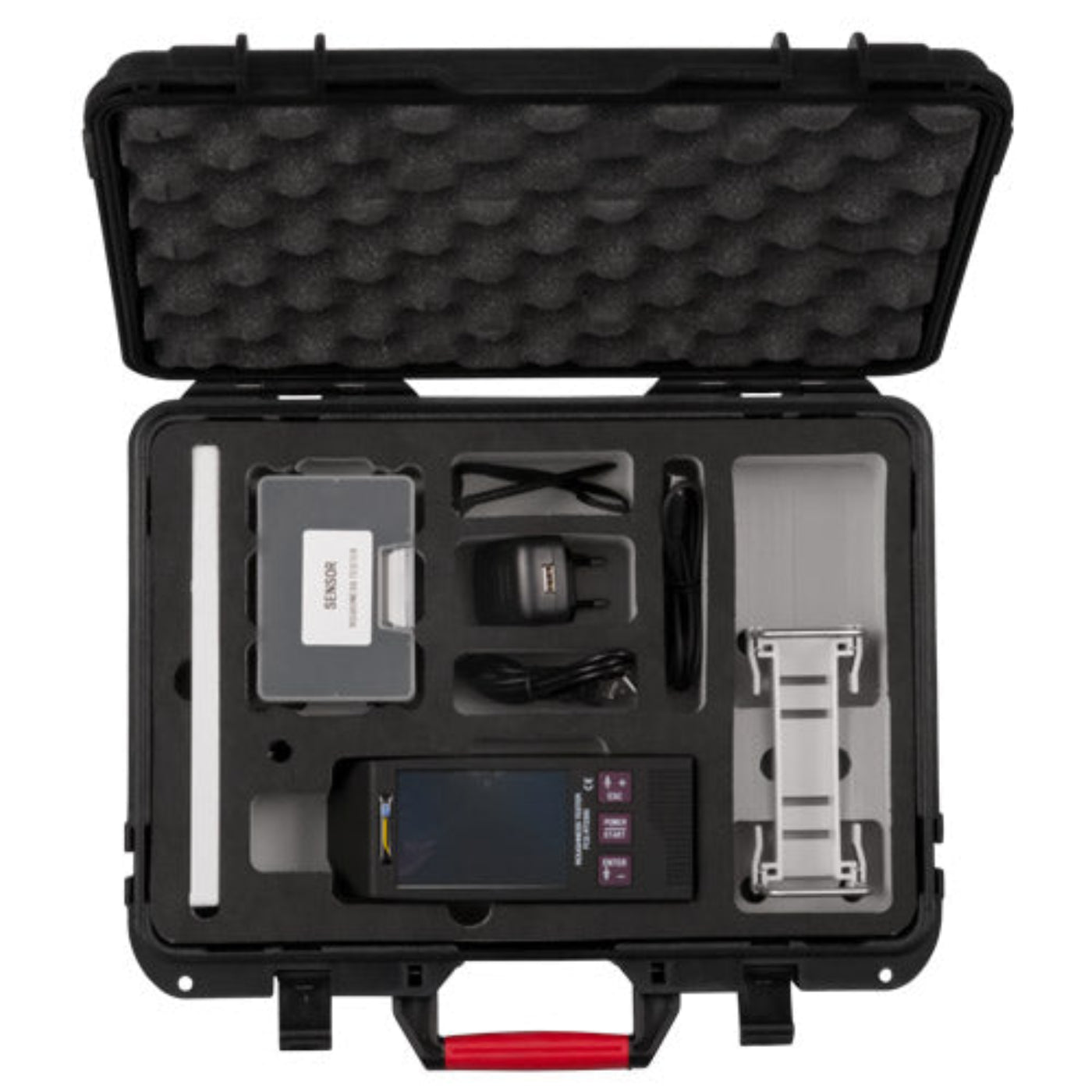

• 1 x Transport case
• 1 x Manual

Manual

PCE-RT 2300 User Manual

PCE-RT 2300 Data Sheet
