PCE RVI 10 Viscometer Viscosity Tester - PCE-RVI 10

PCE RVI 10 Viscometer Viscosity Tester - PCE-RVI 10

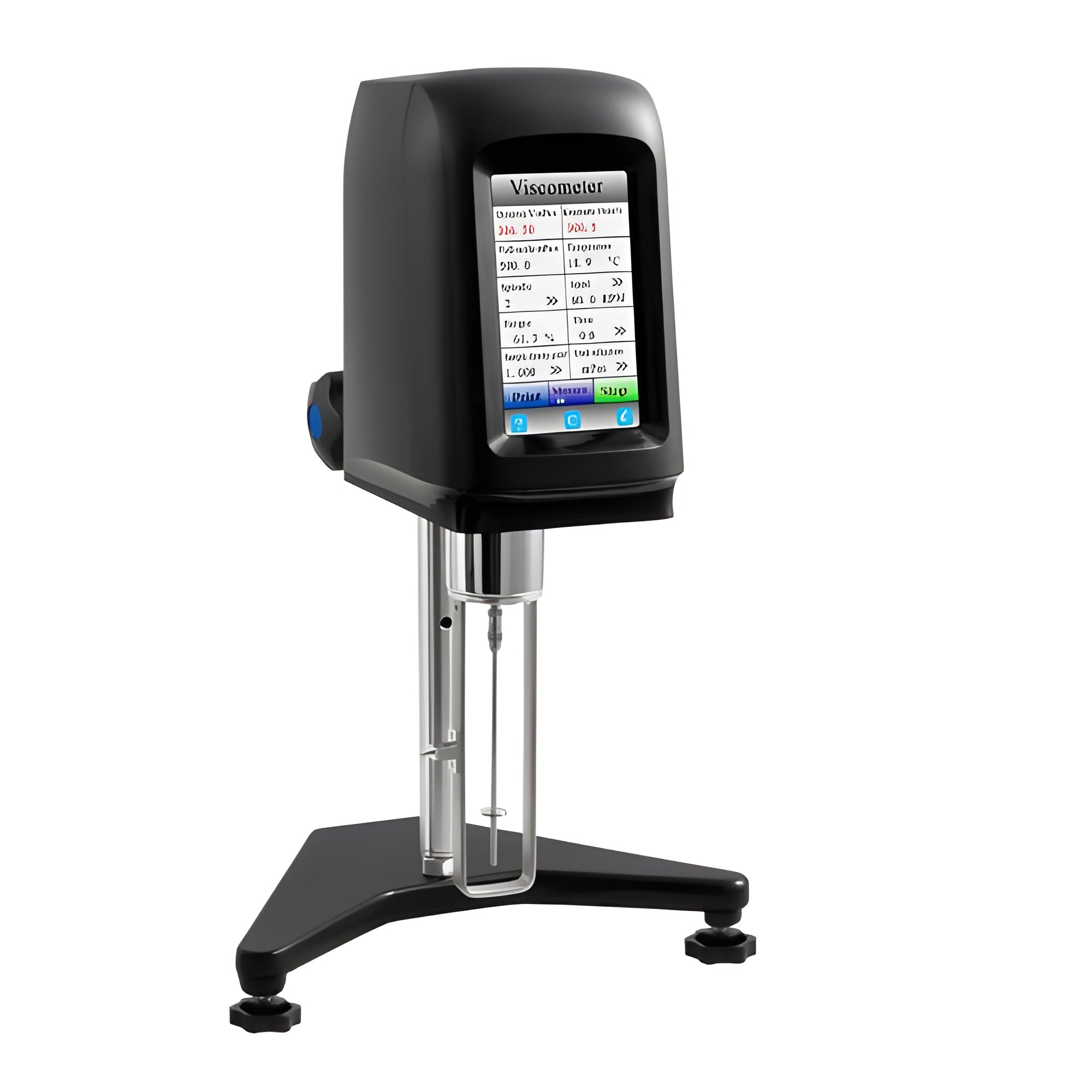

The PCE RVI 10 Viscometer Viscosity Tester measures viscosity by detecting the mechanical resistance of a liquid that opposes the rotational movement of a spindle. This resistance creates a torque, which the viscometer recognizes and converts into a viscosity value. With an accuracy of ±1.0%, the rotary viscometer offers high precision across a wide measuring range of 10 - 2,000,000 cP or mPa*s. Additionally, the device is equipped with an immersion resistance temperature sensor that allows for temperature measurement of liquids between 0 and 100 °C (32 to 212 °F)

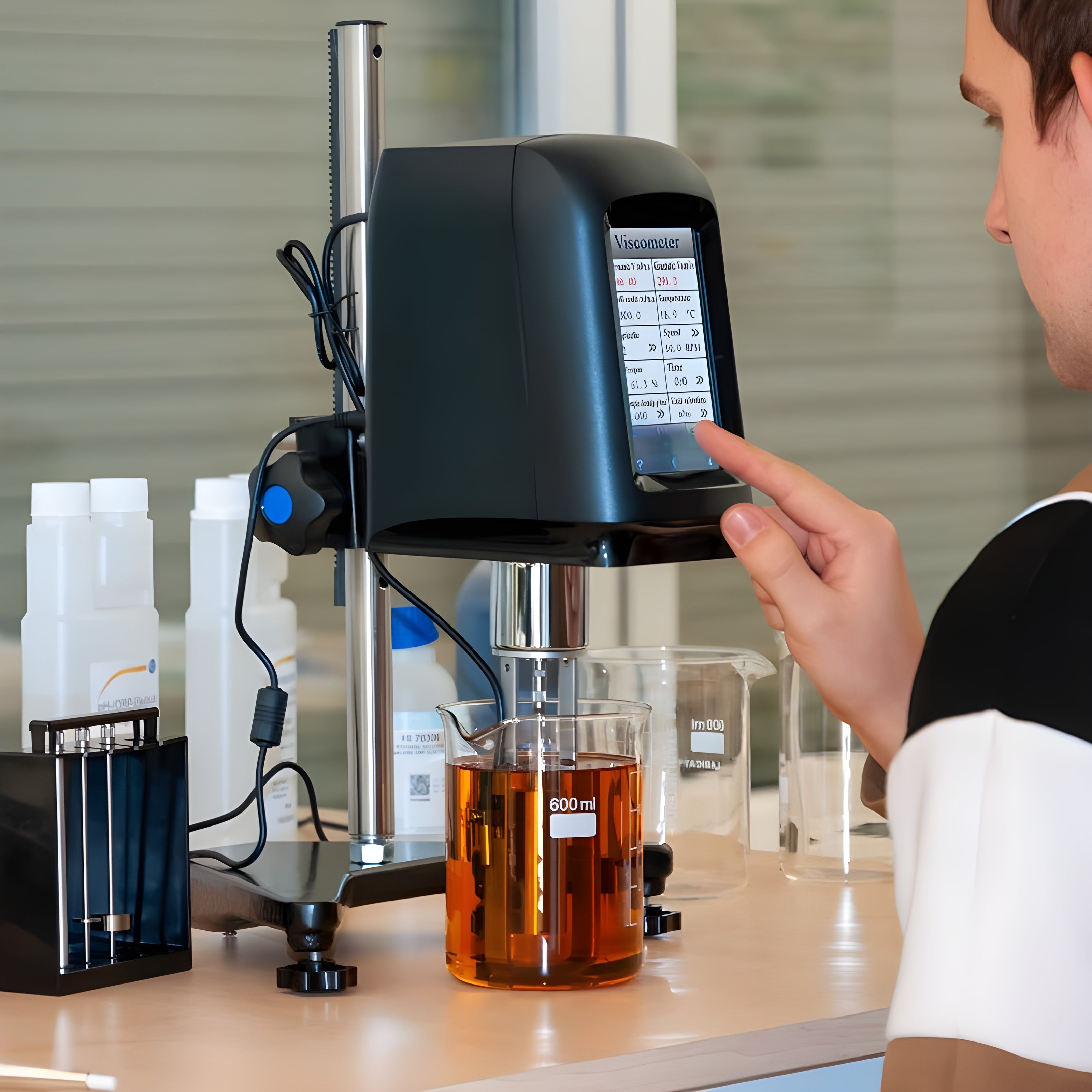

This viscometer is often used in the quality control of oils. Many oils change their viscosity depending on the temperature. Thanks to the timer function, the rotary viscometer can work independently for the period set by the operator. In the meantime, the measurement data is transferred from the rotary viscometer to a PC via the RS232 interface. Software for the rotary viscometer can then display the temperature profile and also the viscosity profile graphically and in tabular form. An optional printer can also be connected directly to the viscometer in order to print out the respective measured value.

The viscometer can be adapted to a wide variety of environments. The viscometer can be leveled using the height-adjustable feet so that the measuring spindle is always vertical in the medium to be measured. To help with this, there is a bubble level on the head of the rotary viscometer. The height of the test device can also be adjusted by approx. 25 cm from the viscometer in order to position the spindle appropriately.

Highlights

• 5" touchscreen
• Temperature sensor
• Laboratory stand
• Measuring range up to 2,000,000 cP
• 4 different attachable spindles
• For measuring the viscosity of liquids
• RS232 interface

Features

• Viscosity measuring range: 10 - 2,000,000 cP (various units can be displayed)
• Accuracy: ± 1% of full scale (with Newtonian liquid)
• Rotation speeds: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm

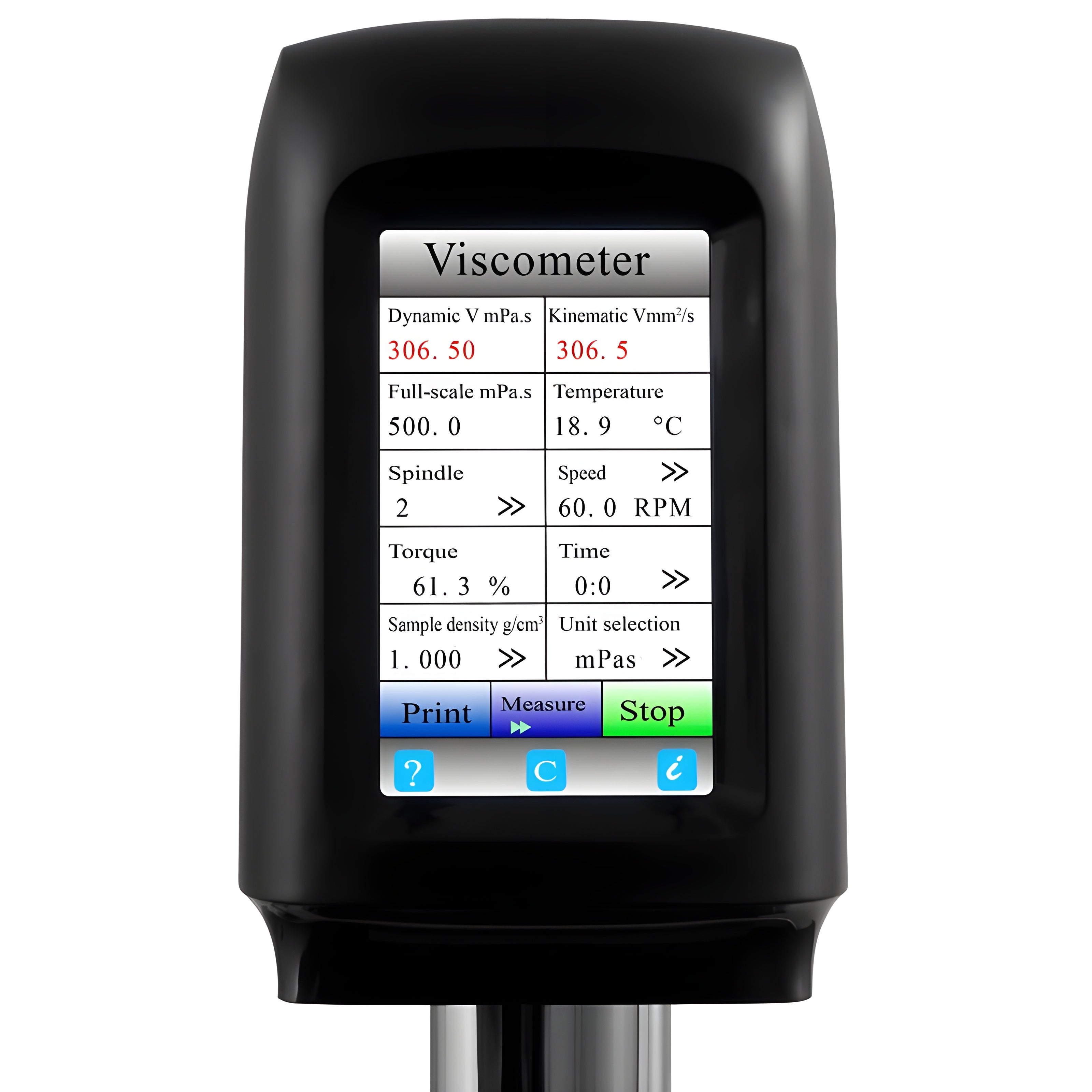

• 5" touch screen with simple interface
• Immersion temperature sensor up to 100 °C or 212 °F

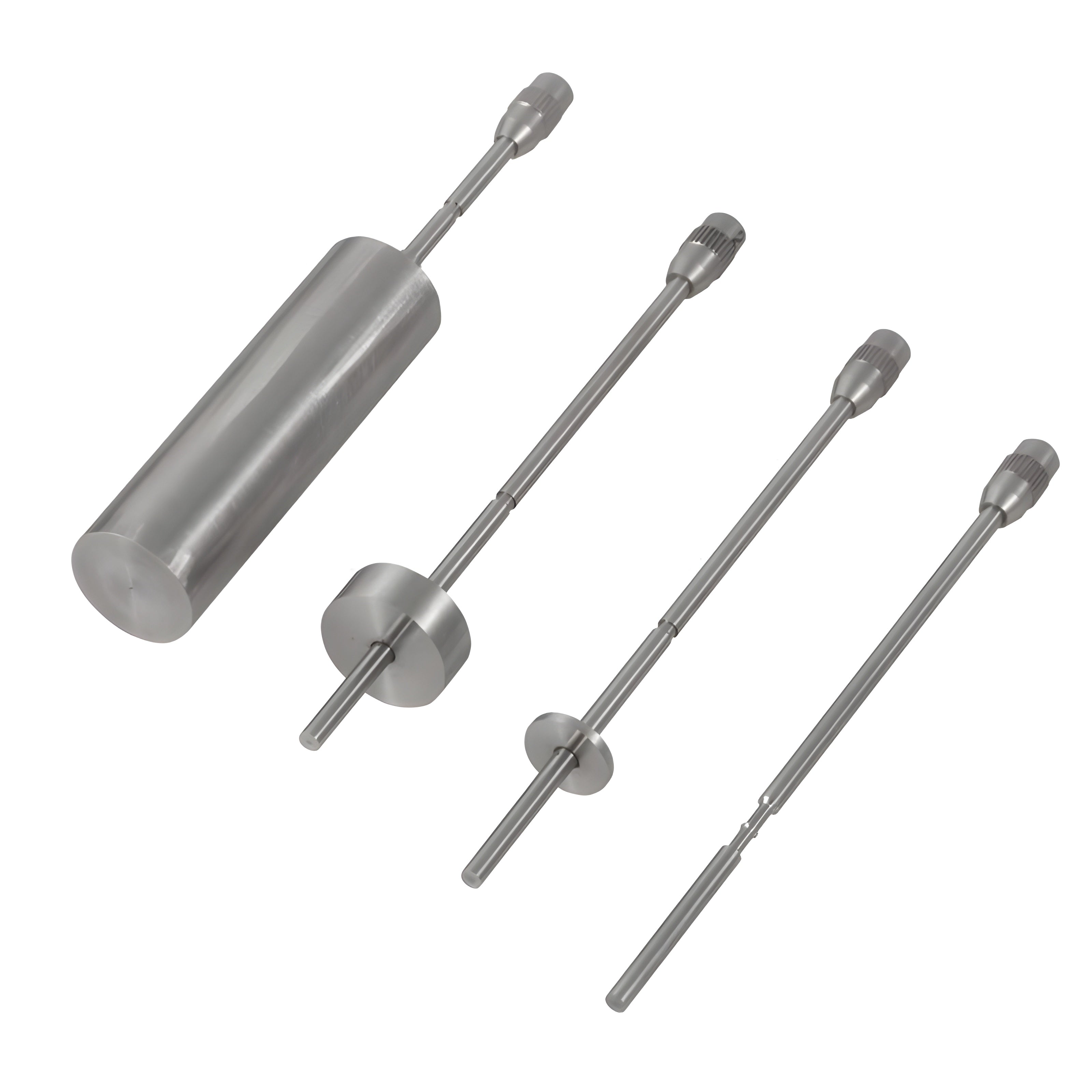

• Spindle set consisting of L1, L2, L3, L4
• Height adjustable approx. 25 cm
• Built-in bubble level for leveling
• Optional L0 spindle down to 1 cP

Specifications

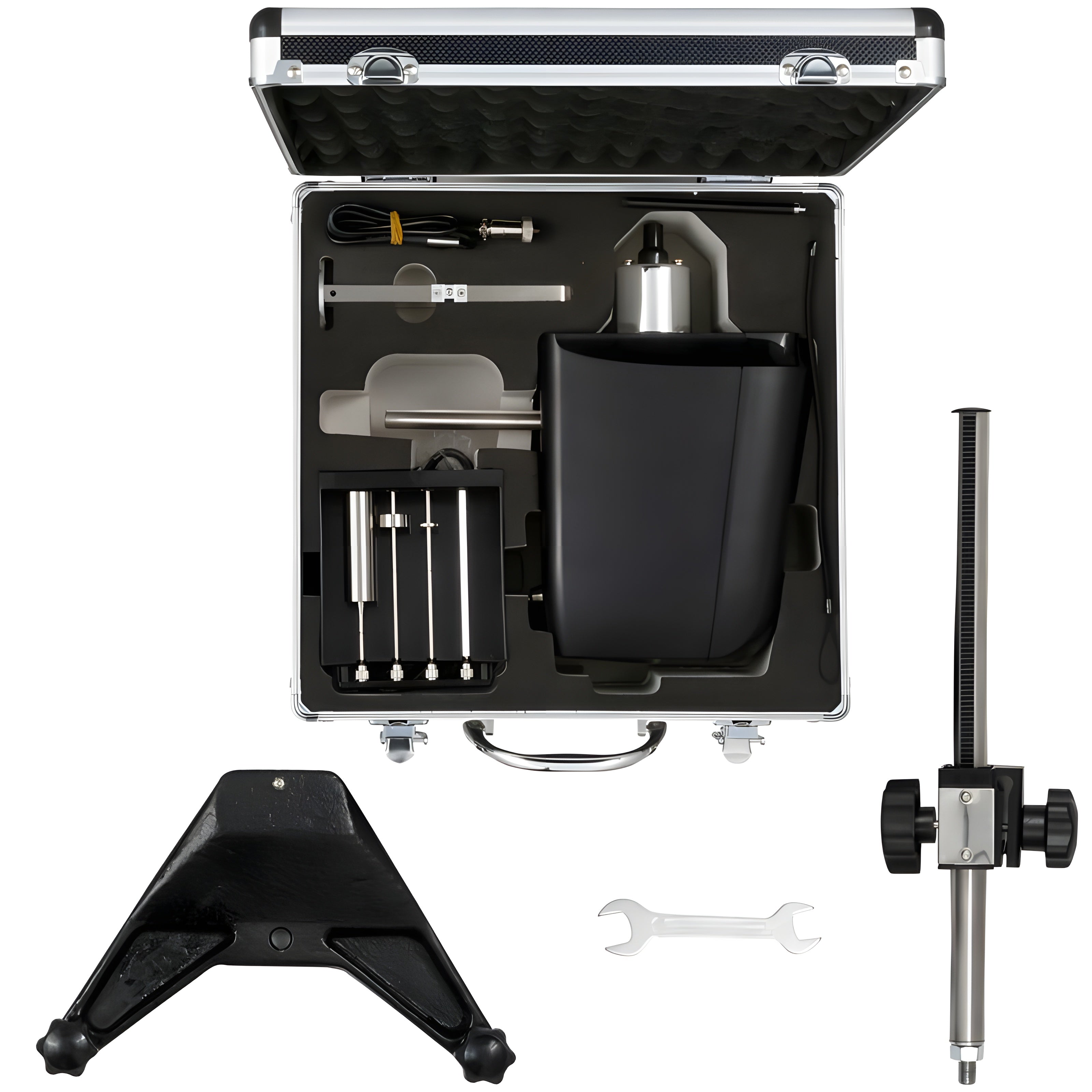

What’s included

• 1 x Viscometer PCE-RVI 10
• 1 x Temperature sensor
• 1 x Double open-end wrench
• 1 x Spindle set consisting of spindles L1, L2, L3, L4
• 1 x Hard transport case
• 1 x Power supply
• 1 x Instruction manual

Manual

PCE-RVI 10 User Manual

PCE-RVI 10 Data Sheet

What Our Experts Think

• Exceptional Precision: Provides high-accuracy viscosity readings with a tolerance of ±1.0%, perfect for critical testing.

• Wide Measuring Range: With a range of 10 - 2,000,000 cP or mPa*s, it accommodates both low and high viscosity liquids, making it versatile across industries.

• Mechanical Resistance Measurement: Uses spindle torque to detect viscosity, offering reliable and repeatable results for various liquid samples.

• Integrated Temperature Measurement: Equipped with an immersion resistance temperature sensor to monitor liquid temperatures from 0 to 100°C (32 to 212°F), ensuring accurate readings under different conditions.

• User-Friendly Operation: Intuitive design makes setup and measurement easy, suitable for both experienced professionals and new users.

• Ideal for Various Applications: Perfect for testing the viscosity of paints, coatings, chemicals, food products, and more in labs and production environments.

Q&A

Q: What is the PCE RVI 10 Viscometer used for?
A: It is used to measure the viscosity of liquids by detecting mechanical resistance that opposes the rotation of a spindle.

Q: What is the accuracy and measuring range of the PCE RVI 10?
A: It offers an accuracy of ±1.0% and measures viscosity within a range of 10 - 2,000,000 cP or mPa*s.

Q: How does the PCE RVI 10 measure viscosity?
A: It detects torque created by the mechanical resistance of the liquid, converting this into an accurate viscosity value.

Q: Can the PCE RVI 10 measure temperature?
A: Yes, it includes an immersion resistance temperature sensor that measures liquid temperatures between 0 and 100°C (32 to 212°F).

Q: What industries benefit from the PCE RVI 10?
A: It is ideal for industries such as food, cosmetics, pharmaceuticals, and chemicals where precise viscosity control is essential.

Maintenance Tips

• Clean the spindle and sample container after each use to prevent contamination.

• Avoid liquid ingress into the motor unit to protect internal components.

• Calibrate regularly with certified viscosity standards to maintain precision.

• Check for spindle wear or damage and replace if necessary.

• Inspect the immersion temperature sensor for accuracy and cleanliness.

• Store the device in a dry, dust-free area to protect from environmental damage.

• Use the recommended operating speeds to ensure optimal performance.
