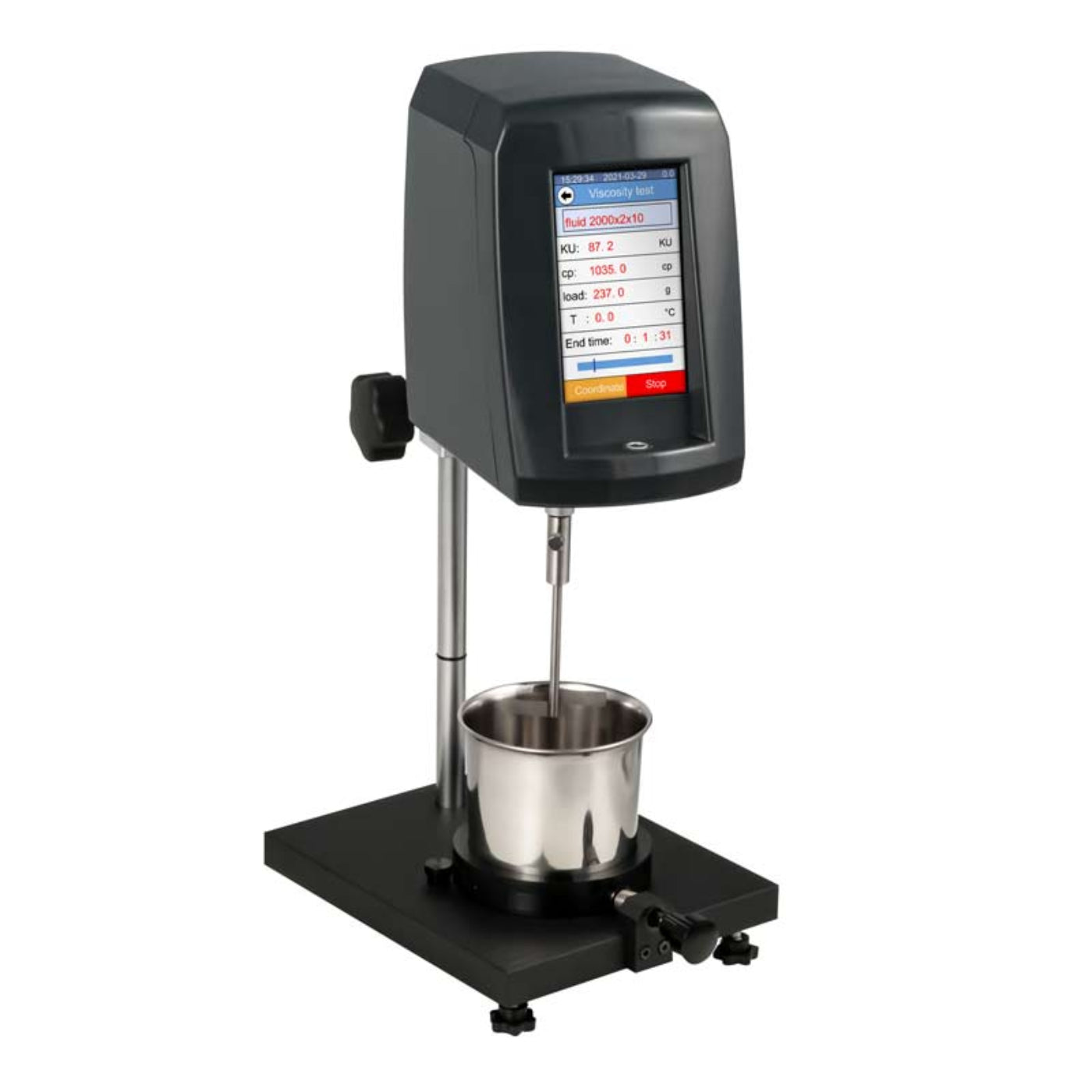

PCE RVI 8 Viscometer Viscosity Tester - PCE-RVI 8

PCE RVI 8 Viscometer Viscosity Tester - PCE-RVI 8

The PCE RVI 8 Viscometer Viscosity Tester offers a measurement range of 27 to 5250 cp with an accuracy of ±1% of the measuring range. It is commonly used in quality control during production processes and in various laboratory settings. Thanks to its broad measurement range, it allows for precise viscosity testing of paints, oils, and other liquids, making it suitable for a wide array of applications.

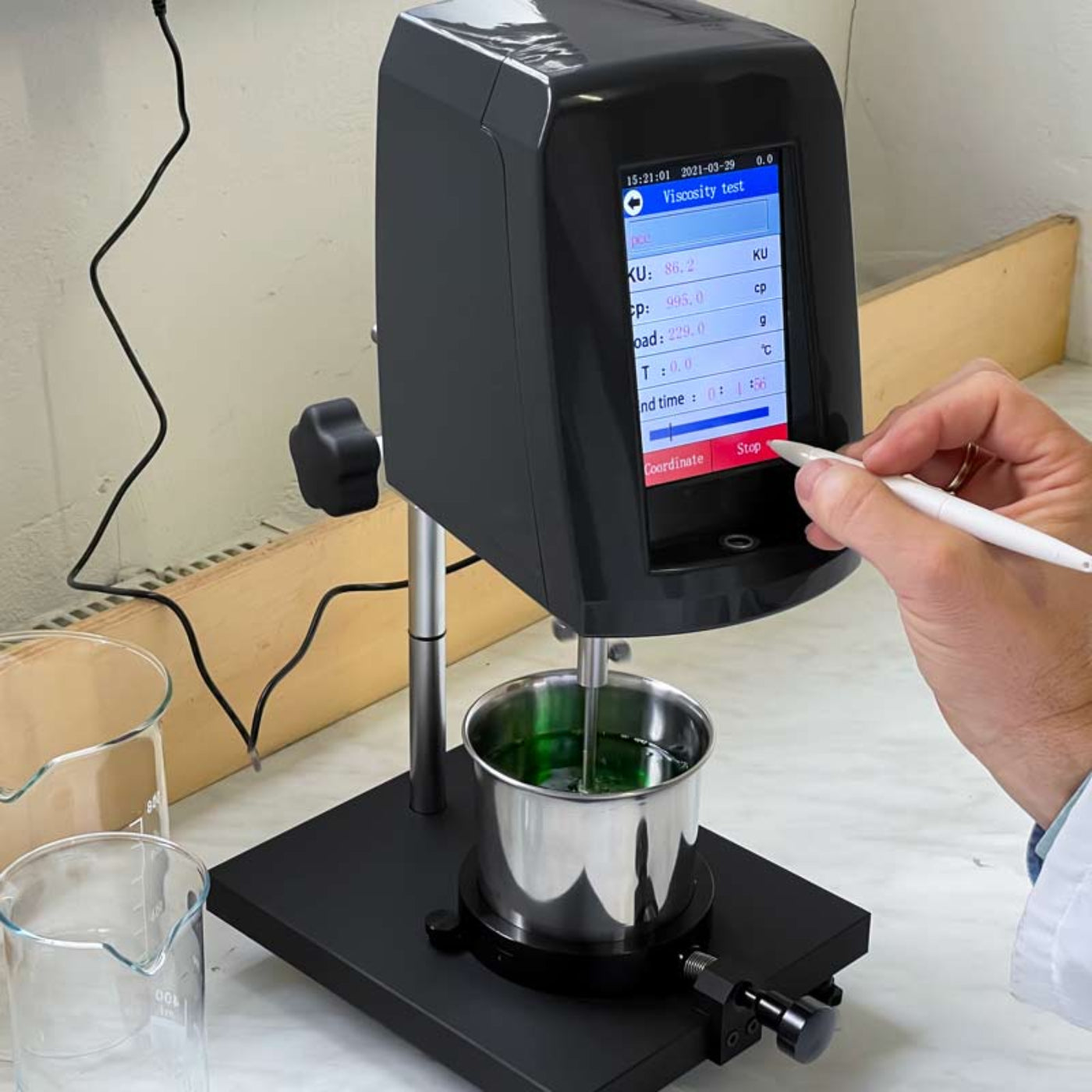

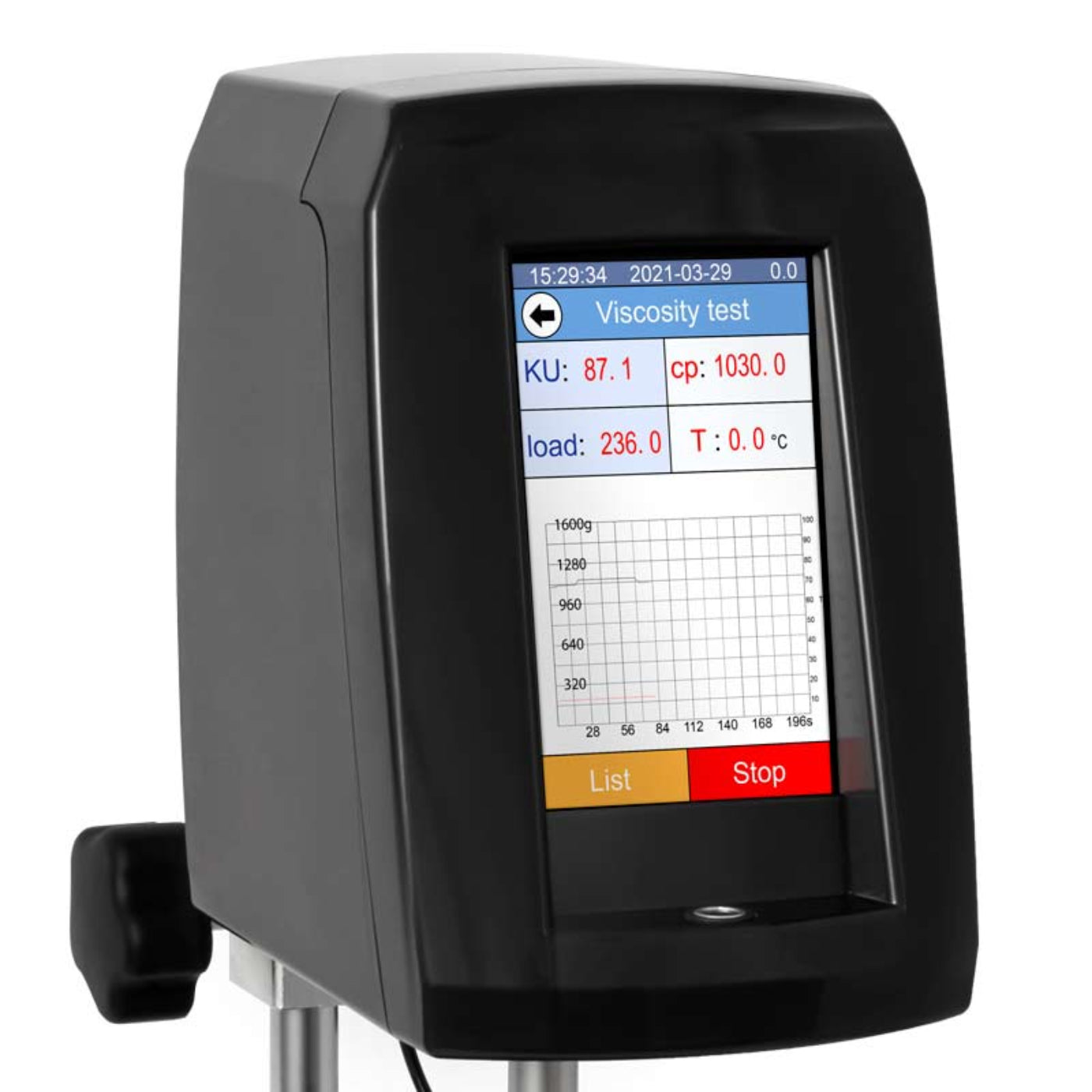

The 5" LCD touchscreen enables easy operation of the viscometer. The measured values ??from the viscometer are displayed during the measurement. At the same time, the measured values ??are graphically displayed on the viscometer in order to obtain a course of the viscosity.

The external temperature sensor on the viscometer can be used to ensure that the sample is at the correct temperature. This allows the measurement results to be compared with other samples, since the temperature has an influence on the viscosity. Thus, the temperature measurement is an essential part of the determination of the viscosity.

With the optional software, the viscometer can be connected to a PC. The software displays the measured values ??from the viscometer live during a measurement. The individual measuring points are displayed in a table as well as graphically. The recorded measured values ??can be exported as a .csv file for further processing.

Highlights

• With PC interface
• Optional ISO factory certificate
• Touchscreen
• Measuring units KU, cP, g
• Measuring range 40.2 - 141 KU
• Height-adjustable stand mount
• For measuring the viscosity of liquids
• Overload protection
• Optional software

Features

• Measuring range 27 - 5250 cp
• Automatic shutdown in case of overload
• Fixed rotation speed of 200 RPM
• Optional software for live viewing

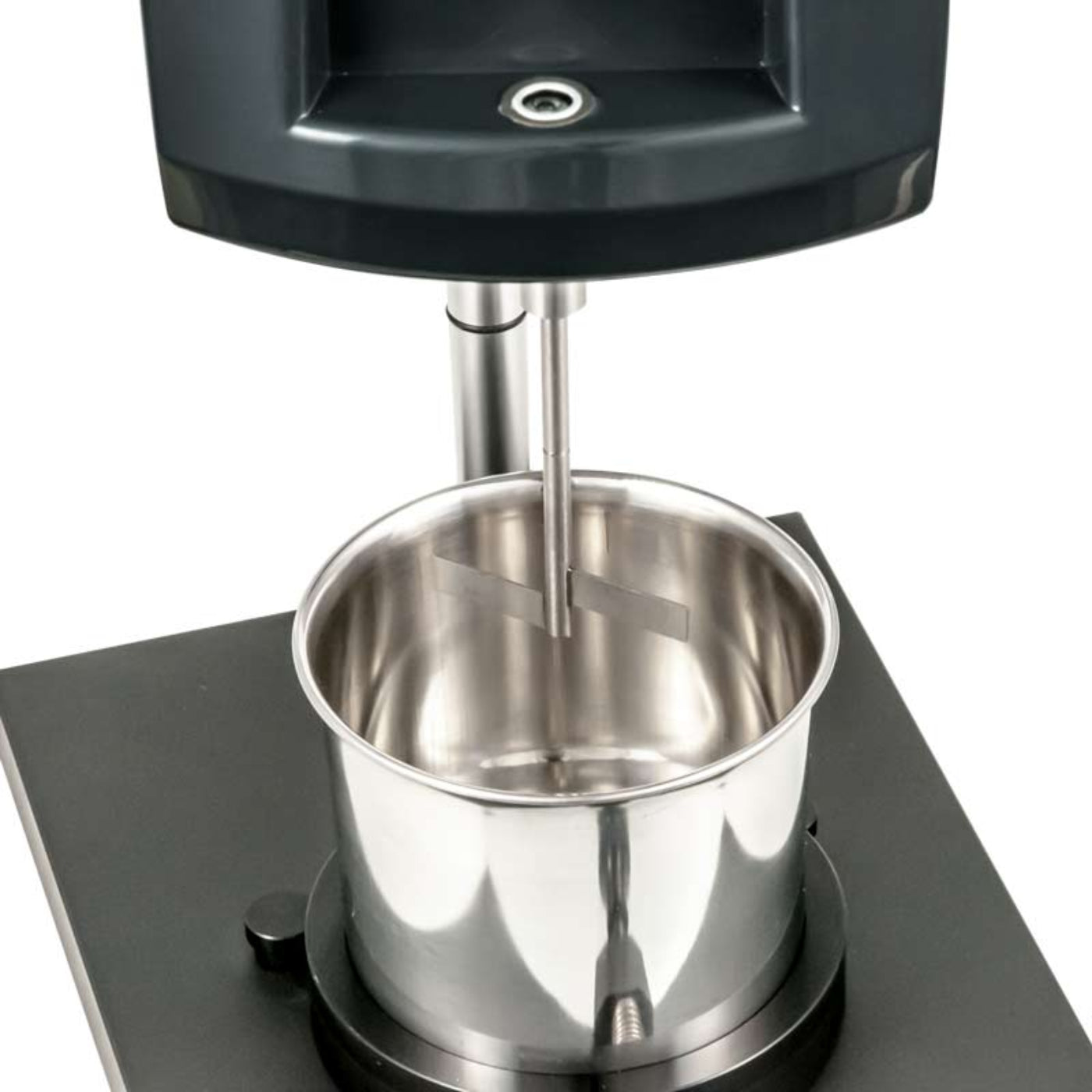

• KU1 spindle included in delivery
• Large touch screen for easy operation

Specifications

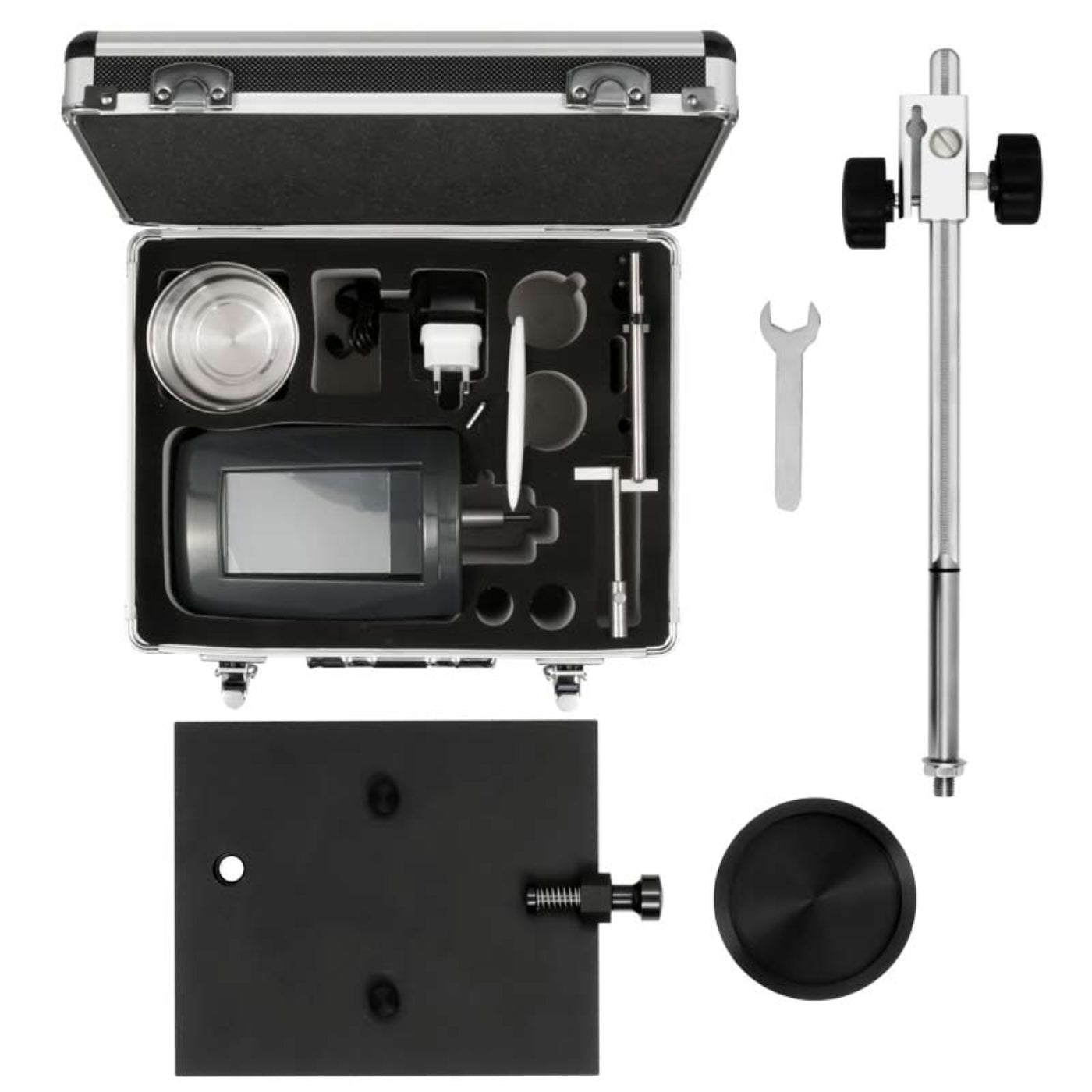

What’s included

• 1 x Viscometer / Viscosity Meter PCE-RVI 8
• 1 x Sample pan
• 1 x Height adapter
• 1 x Spindle KU1
• 1 x Temperature sensor
• 1 x Stand
• 1 x Touchscreen pen
• 1 x Transport case
• 1 x Mains power adapter
• 1 x Instruction manual

Manual

PCE-RVI 8 User Manual

PCE-RVI 8 Data Sheet

What Our Experts Think

• High Accuracy: Delivers precise results with ±1% accuracy—ideal for reliable viscosity control in production and lab settings.

• Broad Measuring Range: Covers 27 to 5250 cP, accommodating various fluids like paints, oils, and chemicals.

• Quality Control Essential: Frequently used in manufacturing environments to ensure product consistency and performance.

• Lab & Production Friendly: Suitable for both industrial quality assurance and research applications.

• User-Centric Design: Simple operation and fast setup make it an accessible tool for technicians and engineers alike.

• Versatile Use Cases: Great for sectors including coatings, lubricants, pharmaceuticals, and food processing.

Q&A

Q: What does the PCE RVI 8 measure?
A: It measures the viscosity of liquids such as paints, oils, and other substances.

Q: What is the measurement range and accuracy of the PCE RVI 8?
A: It measures viscosity from 27 to 5250 cP with an accuracy of ±1% of the measuring range.

Q: Where is the PCE RVI 8 typically used?
A: It is commonly used in quality control, production environments, and laboratory testing.

Q: What types of products can be tested with the PCE RVI 8?
A: It’s suitable for testing the viscosity of paints, oils, and various industrial liquids.

Q: Why is the PCE RVI 8 ideal for quality control?
A: Its precision and broad measurement range ensure accurate results, helping maintain product consistency.

Maintenance Tips

• Clean the spindle thoroughly after each test to avoid cross-contamination.

• Avoid submerging the motor unit or exposing it to liquids.

• Calibrate regularly using certified viscosity standards.

• Inspect the spindle for wear or damage before use.

• Store the device upright in a clean, dry area.

• Operate within the recommended range for optimal accuracy and longevity.
