Pioneer 24,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - UYB024GMFILCAD-50

Pioneer 24,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - UYB024GMFILCAD-50

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

Features

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 24,000 BTU/H with 20.0 SEER/12.5 EER efficiency
• Heating capacity: 24,000 BTU/H with 11.2 HSPF/3.66 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

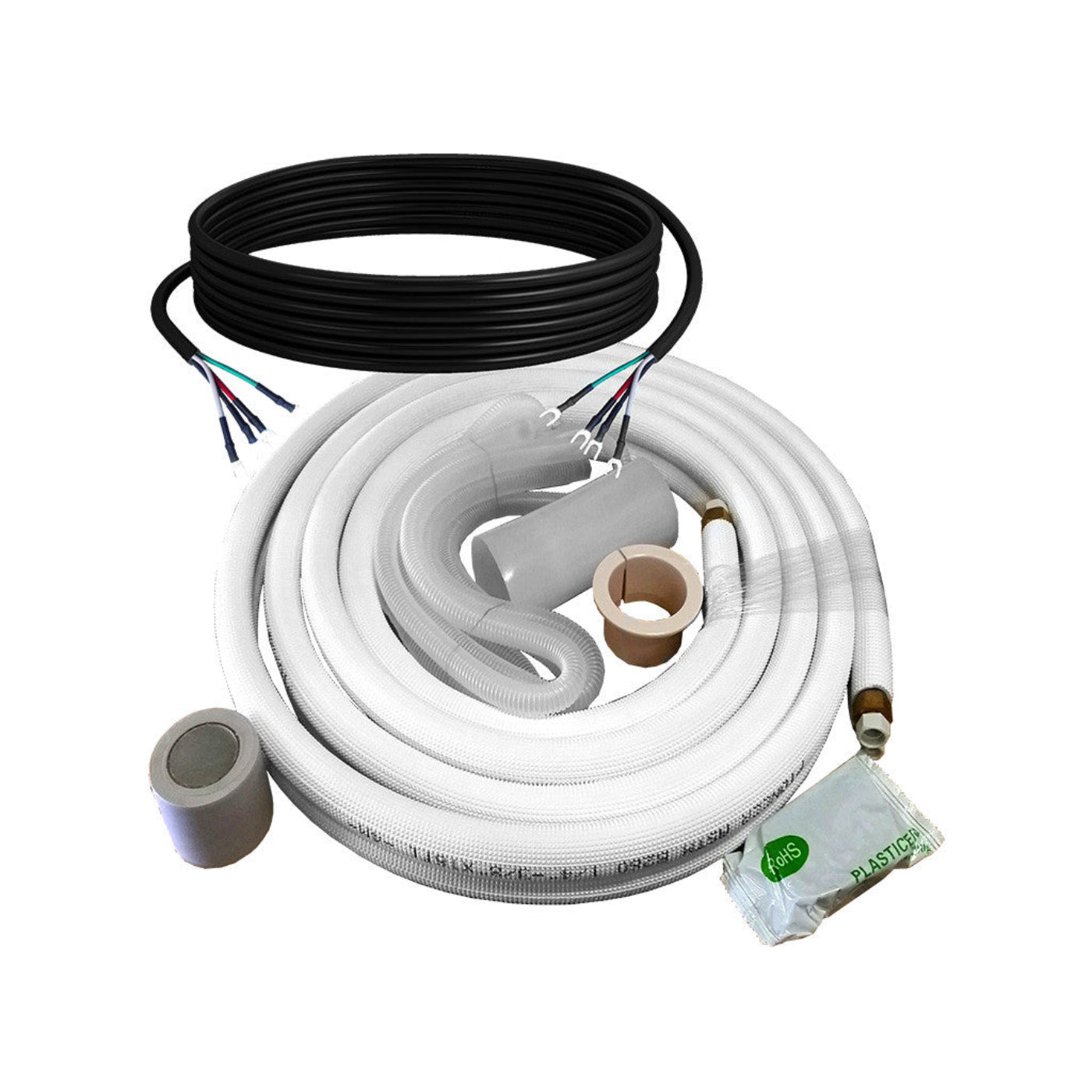

• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $158.00
• Heating: $453.00
• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.

• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management

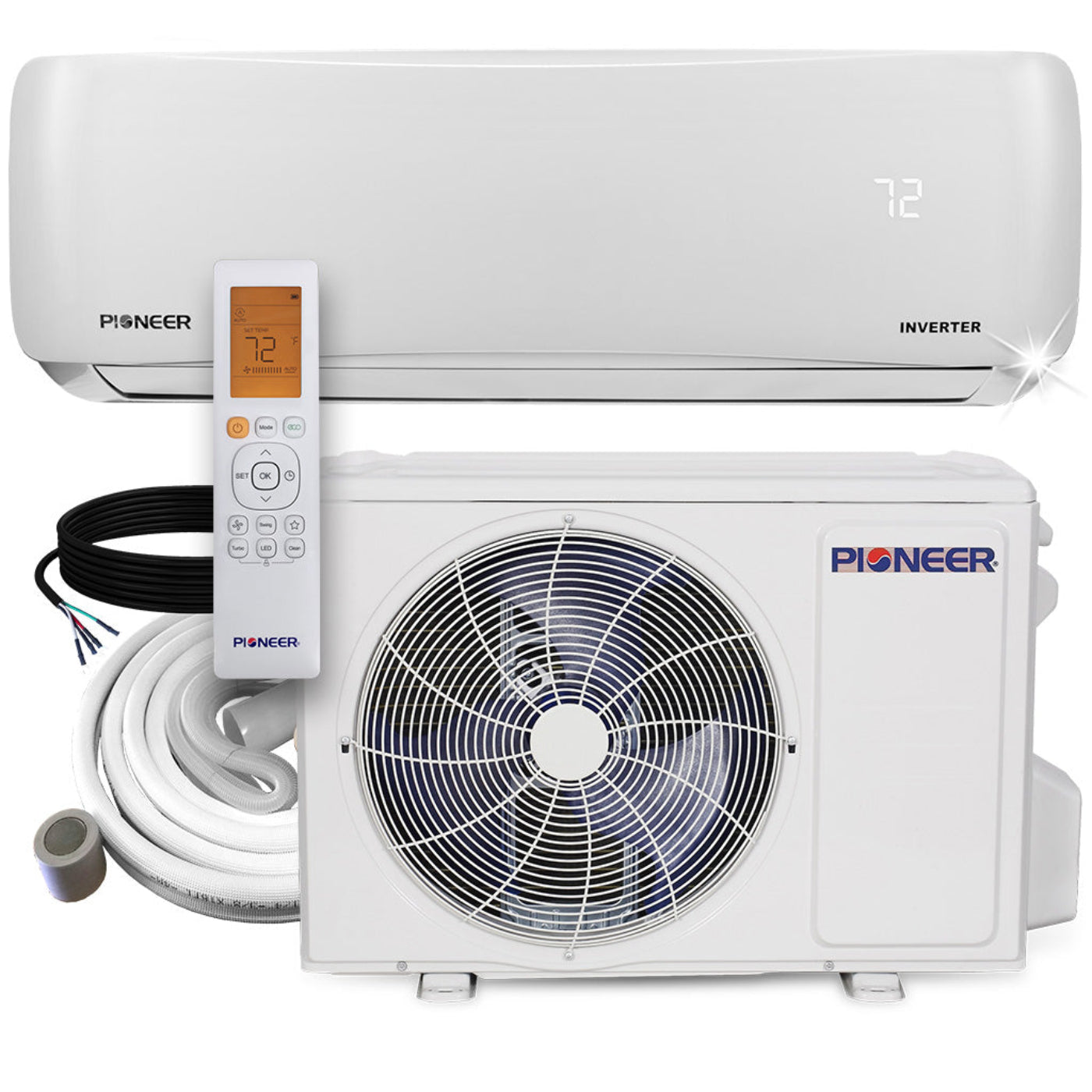

What's Included

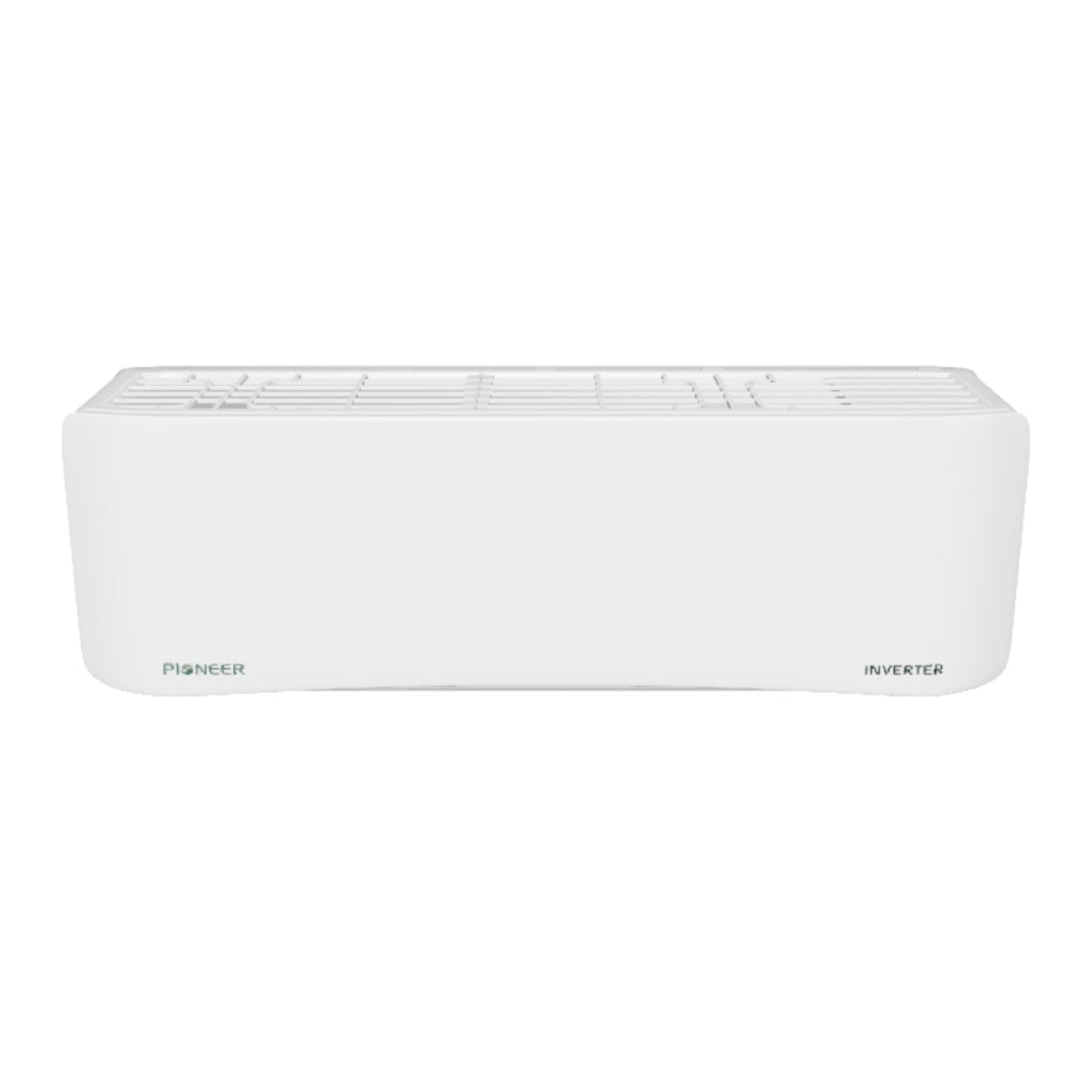

• Indoor Unit

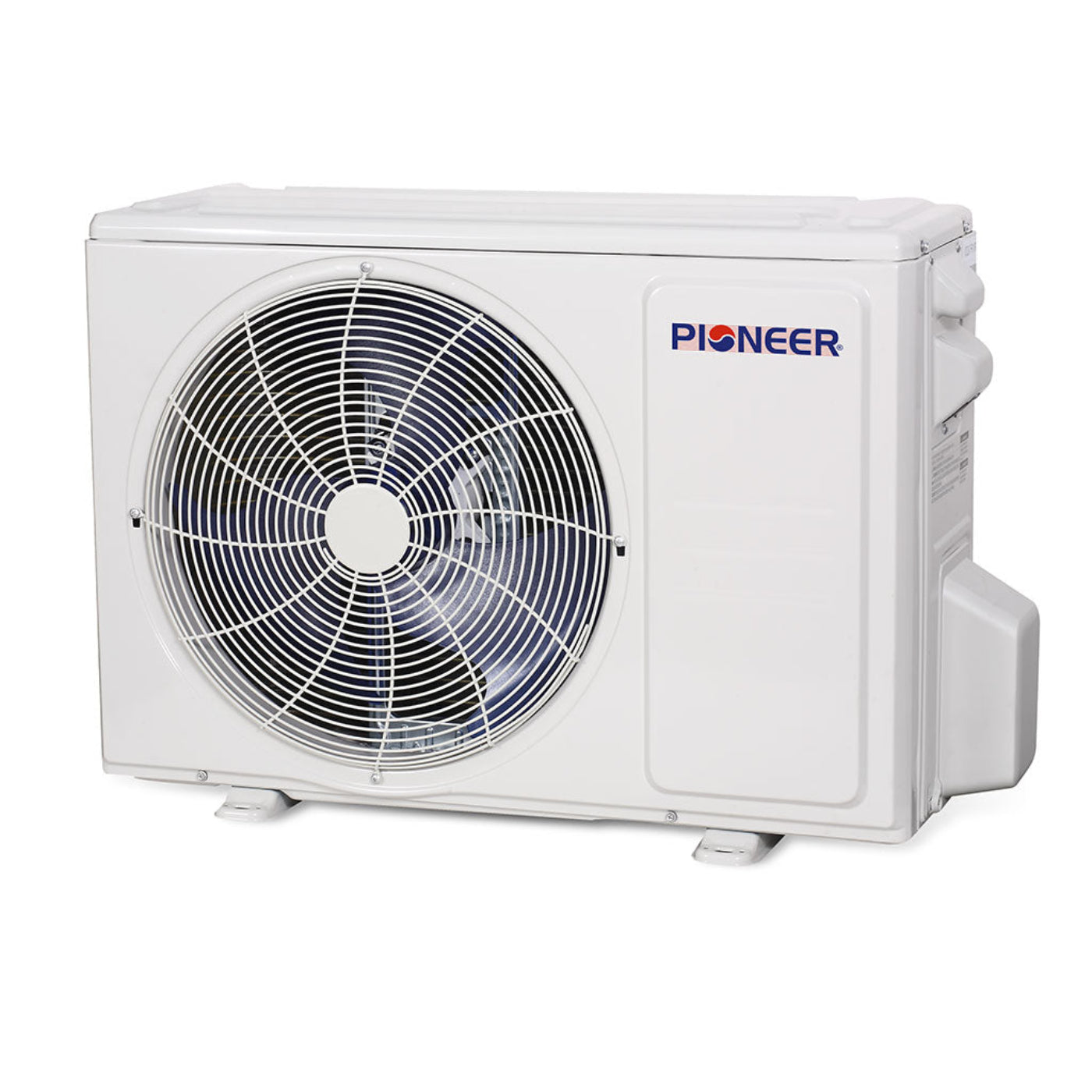

• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Series Technical Brochure

• Series User Manual
• Series Installation Manual
• Series Service Manual

What Our Experts Think

• High-Capacity Performance: 24,000 BTU with a 20 SEER rating provides efficient cooling and heating for larger spaces, ensuring optimal temperature control year-round.
• Floor/Ceiling Mount Flexibility: This system’s versatile design allows it to be mounted either on the floor or ceiling, providing more installation options for different room layouts.
• Powerful Airflow Distribution: Ensures even airflow across the entire room, eliminating hot and cold spots, and maintaining consistent comfort in large areas.
• Inverter Technology: Offers precise temperature control by dynamically adjusting the compressor speed, enhancing energy efficiency and overall system performance.
• Extended Line Set Length: With 50 ft. line sets, this system provides flexibility for installations in larger spaces or where the indoor and outdoor units need to be positioned farther apart.
• Quiet Operation: Equipped with noise-reduction technology, this system runs quietly, making it ideal for living rooms, offices, or commercial spaces where minimal noise disruption is important.

Q&A

Q: What is the Pioneer 24,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System?
A: This system provides both cooling and heating with a 20 SEER rating. It features a floor/ceiling design for flexible installation and comes with 50 ft. line sets, offering versatility in room setup and installation.

Q: How does the floor/ceiling design improve installation options?
A: The floor/ceiling design allows for installation in various orientations, making it adaptable to different room layouts, whether mounted on the floor or ceiling.

Q: What room size is this system suitable for?
A: This system is ideal for large rooms, efficiently cooling and heating spaces up to 1,000 sq. ft.

Q: Is this system suitable for residential or commercial use?
A: Yes, it is suitable for both residential and light commercial applications, providing powerful and efficient climate control.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure optimal performance and proper setup with the included 50 ft. line sets.

Maintenance Tips

• Clean Filters Regularly – Wash or replace filters every 2-4 weeks to ensure proper airflow and avoid dust buildup, which can decrease system efficiency.
• Inspect and Clean Coils Annually – Clean the evaporator and condenser coils once a year to prevent dirt buildup that can reduce cooling and heating performance.
• Check Refrigerant Levels – Make sure the refrigerant levels are at optimal levels. If they are low, contact a technician for a refill.
• Clear the Condensate Drain – Inspect and clean the condensate drain regularly to prevent clogs and mold growth that can cause water damage.
• Keep the Outdoor Unit Clear – Remove leaves, dirt, and debris from the outdoor unit to ensure proper airflow and avoid overheating.
• Schedule Annual Professional Maintenance – Have a technician perform a yearly inspection and service to ensure the system operates efficiently and prevent potential issues.
