Pivot Shuttle SL 29 Ebike - Ride SLX/XT - Desert Sage Green - 2022 - GM021723-31

FREE SHIPPING
CLEARANCE SALE
80 Peoples are also watching.
Brand: Pivot
SKU: GM021723-31
$6,750.00
$8,999.00
$6,750.00
Color: Desert Sage Green
Size: Large
Subtotal: $6,750.00
clearance sale ends in
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial +1 (888) 575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Items are brand New,

Never used.

Popular Add-Ons

$200.00

$70.00

$100.00

$30.00

Add-Ons Bundle

$200.00

$70.00

$100.00

$30.00

Bundle Offer

$300.00

$100.00

Recently Viewed Products

Pivot Shuttle SL 29 Ebike - Ride SLX/XT - Desert Sage Green - 2022 - GM021723-31

Flipping the script that most e-bike builders are following, we decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on light weight, refined suspension, crisp handling, and game-changing performance.

FAZUA RIDE 60 DRIVE UNIT:

  • Torque: 60 nm
  • Maximum Power: 450 Watts
  • Battery Capacity:     430 Wh
  • Motor Weight:    4.3 lb / 1.96 kg
  • Battery Weight: 4.85 lb / 2.2 kg

Get everything you need to know about the Shuttle SL:

  • Sleek Full Carbon Hollow Core Frame
  • Seamless Integrated FAZUA Ride 60 Drive System
  • Progressive Trail Geometry
  • Flip Chip Geometry Customization
  • Size Specific Chainstay Lengths
  • 132mm Travel DW-Link Suspension
  • Trunnion Mounted Float X
  • 150mm Fox 36 Grip 2 with custom eMTB Tune
  • Trail gripping Maxxis Dissector Tires
  • Full-size water bottle fits inside the front triangle
  • Pivot's Cable Port System
  • 60 Nm of Torque/ 450 Watts Peak Power
  • Integrated 430 Watt/Hour Battery
  • Superlight System 9.25lbs (4.2kg)
  • 3 Assist Levels + Boost Mode
  • Drag-free pedaling without assist

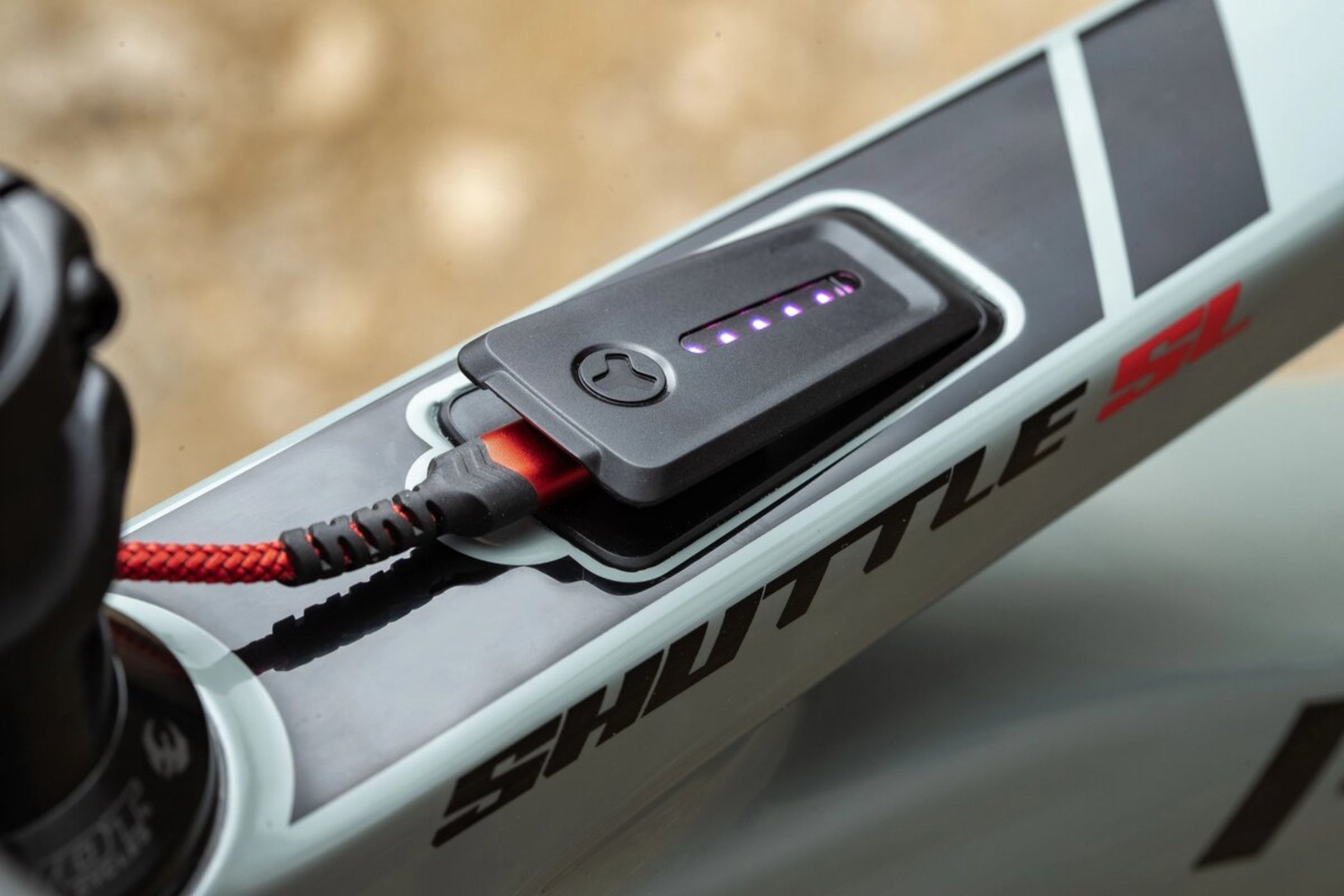

  • Magnetic Charging Port & Cover
  • World Cup Build starting at 36.25 pounds (sub 17kg)
Video




Specifications
Frame Hollow Core carbon front & rear triangles; molded chainstay, seatstay & down tube protection
Fork FOX FLOAT 36 Performance E-MTB, GRIP damper, 44mm offset
Rear Shock FOX FLOAT X Performance, trunnion mount, 185mm x 55mm

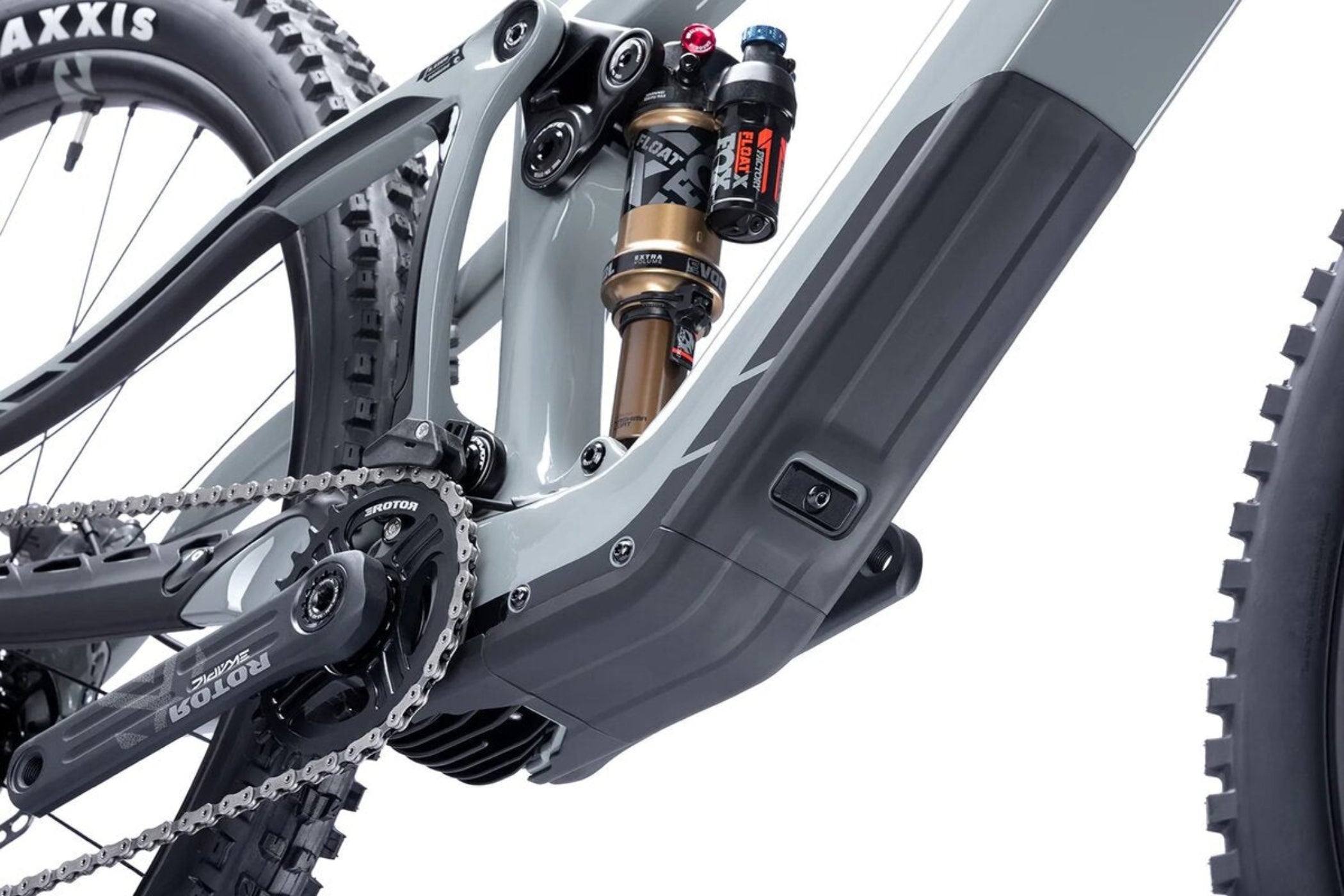

Motor FAZUA RIDE 60, 43V, 60 Nm max torque, 250W continuous, 450W max power
Battery Integrated, non-removable unless motor is removed; optional 210 Wh range extender available
Wheel Size 29"
Hubs DT Swiss 370: 15x110mm Boost (front), 12x157mm SuperBoost (rear) with MICRO SPLINE driver
Rims DT Swiss M1900
Tires Maxxis Dissector, 3C MaxxTerra, EXO casing, TR, 29" x 2.4” WT
Crankset Praxis ETOR E-MTB
Rear Derailleur Shimano Deore XT M8100, 12-speed, SGS cage
Shifter Shimano SLX M7100, 12-speed, I-SPEC EV
Chain Shimano SLX M7100, 12-speed
Brakes Shimano SLX M7120 4-piston w/ Galfer rotors: 203mm (F), 180mm (R)
Handlebar Phoenix Race Low Rise Aluminum, 780mm width
Grips Phoenix Factory, lock-on
Stem Phoenix Team Enduro/Trail
Seatpost e*thirteen Vario dropper, 31.6mm
Drop: 150-180mm (SM/MD), 180-210mm (LG/XL)
Saddle WTB Volt Race (Pivot/Phoenix spec), medium width
Headset Pivot Precision, sealed cartridge bearings: ZS44 (upper), ZS56 (lower)

What Our Experts Think
  • Motor & Battery: Equipped with the FAZUA Ride 60 system, delivering 60 Nm torque and 450W peak power, paired with a 430Wh integrated battery for impressive range and smooth assist.

  • Suspension: Features a 150mm Fox Performance 36 GRIP2 fork and 132mm rear travel with a trunnion-mounted Fox Float X shock, designed to handle rough trails and provide comfort over technical terrain.

  • Drivetrain & Brakes: Outfitted with Shimano SLX/XT 12-speed drivetrain (10-51t cassette, 32t Praxis crankset) and Shimano SLX M7120 4-piston brakes for responsive shifting and powerful stopping power.

  • Wheels & Tires: Mounted on DT Swiss M1900 wheels with DT Swiss 370 hubs, wrapped in Maxxis Dissector 29" x 2.4" WT tires for excellent grip and durability on a variety of surfaces.

  • Geometry & Frame: Lightweight full carbon Hollow Core frame with progressive trail geometry, featuring a 65° head angle and 76° seat angle, and adjustable via a flip-chip system to fine-tune handling.

  • Weight: Approximately 36.25 lbs (16.4 kg), offering a lightweight yet durable build that enhances climbing and trail performance.

  • Price: Starting at $8,299 USD.

Q&A

Q: What is the Pivot Shuttle SL 29 Ride SLX/XT?

The Pivot Shuttle SL 29 Ride SLX/XT is a high-performance electric mountain bike designed for trail and all-mountain riding. It features a lightweight carbon frame, advanced suspension, and a powerful motor for smooth and responsive performance on various terrains.

Q: How much travel does the Shuttle SL 29 Ride SLX/XT offer?

The front fork offers 150mm of travel, and the rear shock provides 132mm of rear travel, making it perfect for aggressive riding and technical trails.

Q: What is the weight of the Shuttle SL 29 Ride SLX/XT?

The Shuttle SL 29 Ride SLX/XT weighs approximately 19.5 kg (43 lbs).

Q: What sizes are available for the Shuttle SL 29 Ride SLX/XT?

It is available in Small, Medium, Large, and Extra Large sizes to suit different rider heights.

Q: How much does the Pivot Shuttle SL 29 Ride SLX/XT cost?

The bike is priced around $8,999 USD.

Q: Is this bike suitable for aggressive mountain biking?

Yes, the Pivot Shuttle SL 29 Ride SLX/XT is built for aggressive trail and all-mountain riding, providing exceptional suspension and power for challenging terrains.

Maintenance Tips
  • Battery Care: Regularly charge the battery and store it in a cool, dry place when not in use.

  • Suspension Maintenance: Service the suspension components as per the manufacturer's recommendations to ensure optimal performance.

  • Brake System: Check brake pads for wear and replace them as needed to maintain stopping power.

  • Tire Pressure: Maintain the recommended tire pressure to ensure optimal traction and prevent flats.
