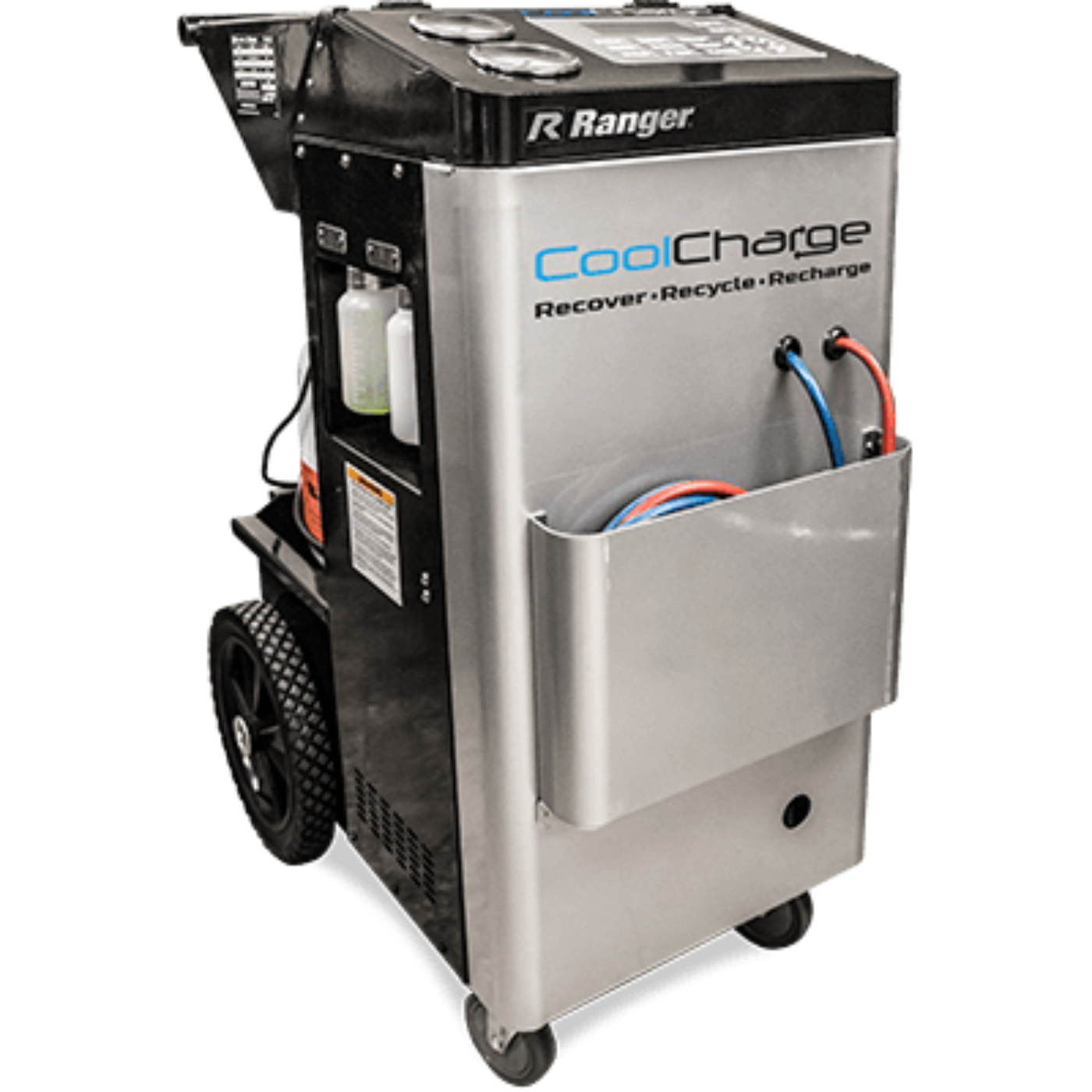

Ranger makes vehicle A/C recovery, recycling and recharging faster and easier than ever. The easy-to-use AC-134 CoolCharge machine evacuates and recovers 95% of old coolant and recharges vehicle A/C systems within +/- 0.5 oz. of the desired charge.
Ranger AC-134 CoolCharge: Program, Connect, Done
There's nothing easier than programming your A/C settings and walking away to let the machine do its job. The same intuitive thinking that Ranger has brought to more shops worldwide than arguably any other name in the garage equipment business is proud to offer an A/C charging machine to match your needs and busy lifestyle. Especially during the summer months, vehicles are going to need A/C service. Older vehicles will need this performed more regularly, due to leaks and system inefficiencies. That's why you need a fast, reliable way to recharge those drained systems. While the machine works, your techs can perform other inspections and truly provide the best possible customer care in your region. It all starts with Ranger!

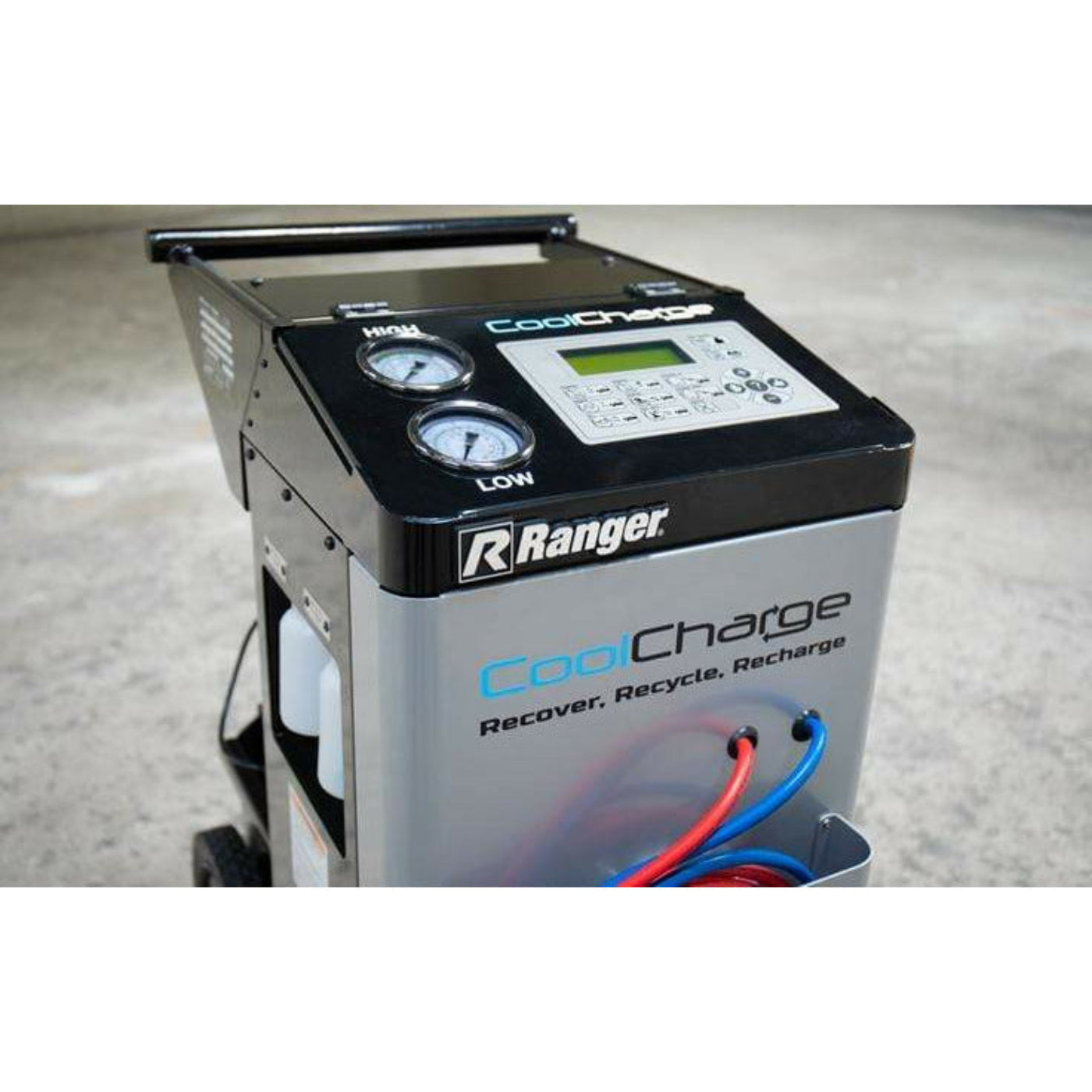

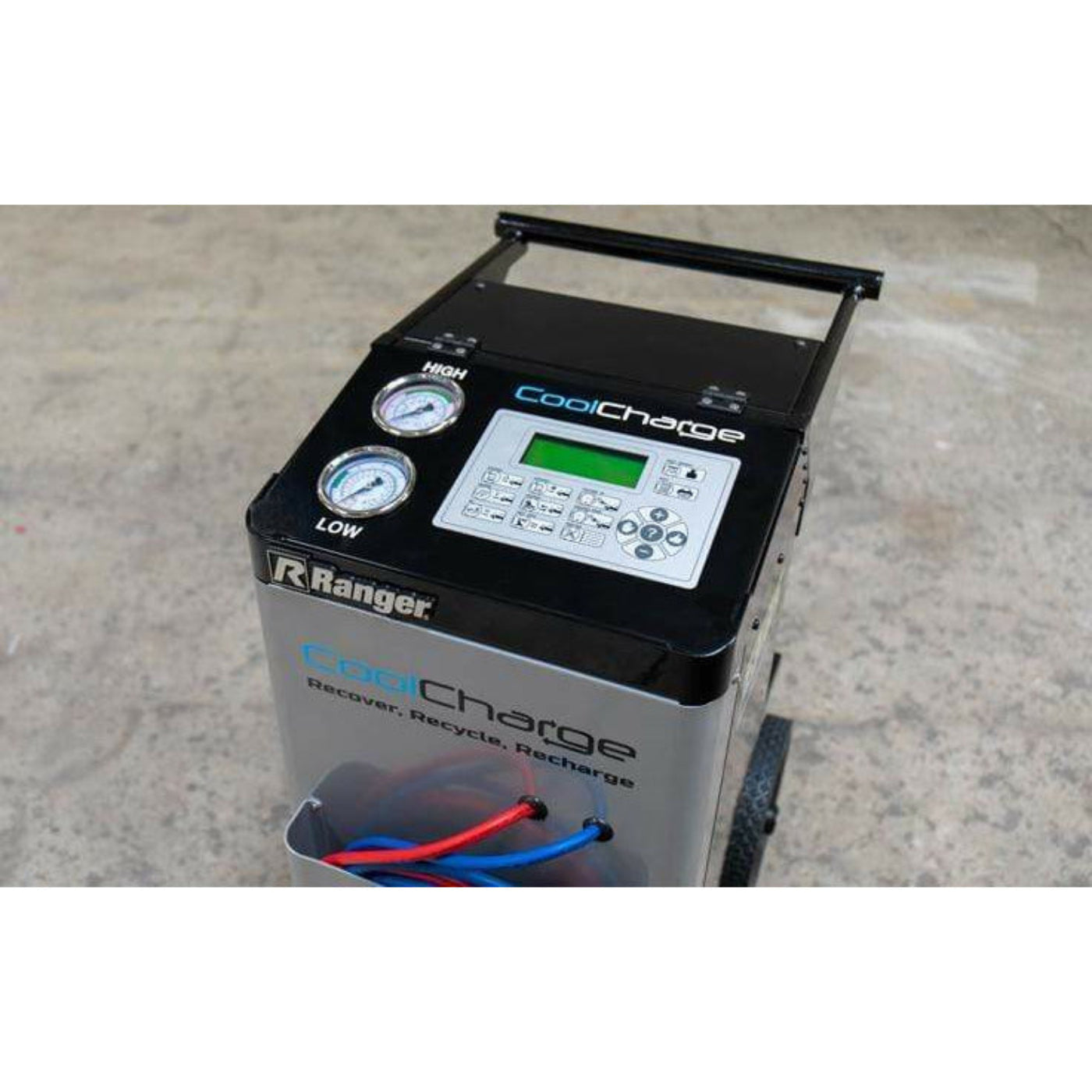

The fully automatic AC-134 CoolCharge lets you do just that. This premium A/C machine recovers, recycles and recharges air conditioning better faster, safer and more completely than other brands. Since user convenience is key, a large display faces upright on the machine and an optional print features lets you provide results for both you and your customers.

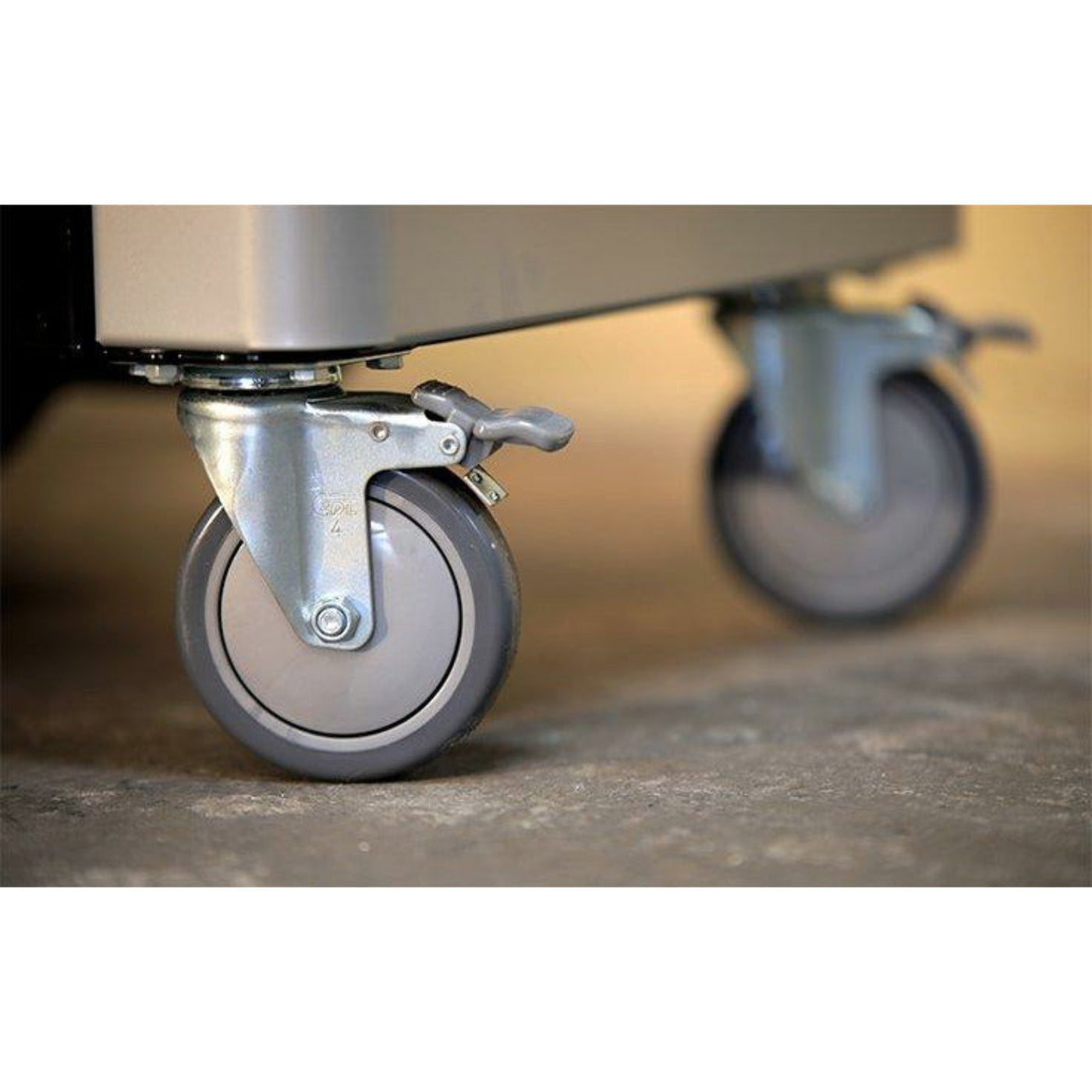

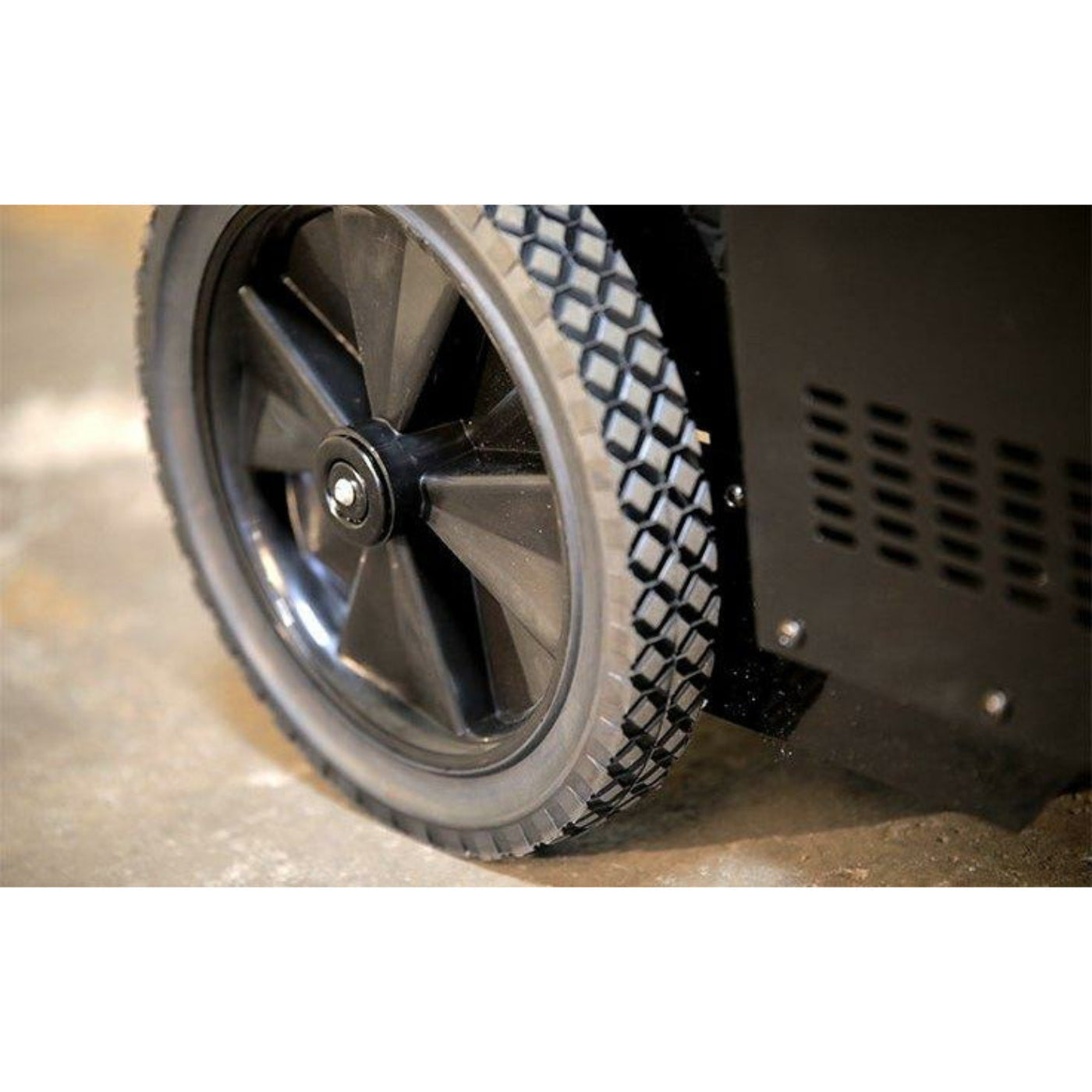

The automatic CoolCharge is 100% programmable, so there's no standing over and babysitting the automated recharge and recovery process. Oil that is drained during operation is stored internally in a container, and the simple LCD display will indicate how much needs to be returned to the vehicle system. The filter quality and refrigerant levels are also automatically monitored by the machine. Functions will cease in the event the filter is too dirty or the refrigerant level becomes too low to service the vehicle. One shop might only need a single A/C machine because the unit is completely portable. Massive 12" back wheels and lockable 4" front casters allow you to easily maneuver the machine virtually anywhere in seconds flat and conveniently lock it in place with a foot-activated switch.
Don't waste time with inferior recovery machines that waste resources, inefficiently recover coolant and cost you more to use in the long run. Ranger's AC-134 CoolCharge is the only A/C machine your business will ever need to service most cars, trucks, SUVs and buses (hybrid vehicles excluded).
Compressor Flow Rate | 1/3 HP / 12 cc |
---|---|
Vacuum Pump | 70 L/min / 0.05 mbar / Dual Stage |
Filter Drier | 710 cc / Double |
Tank Capacity | 50 lbs. (23 kg) |
Hose Length | 9’ (2.75 m) |
Manometers | 3.5" (80 mm) Pulse-free Class 1 |

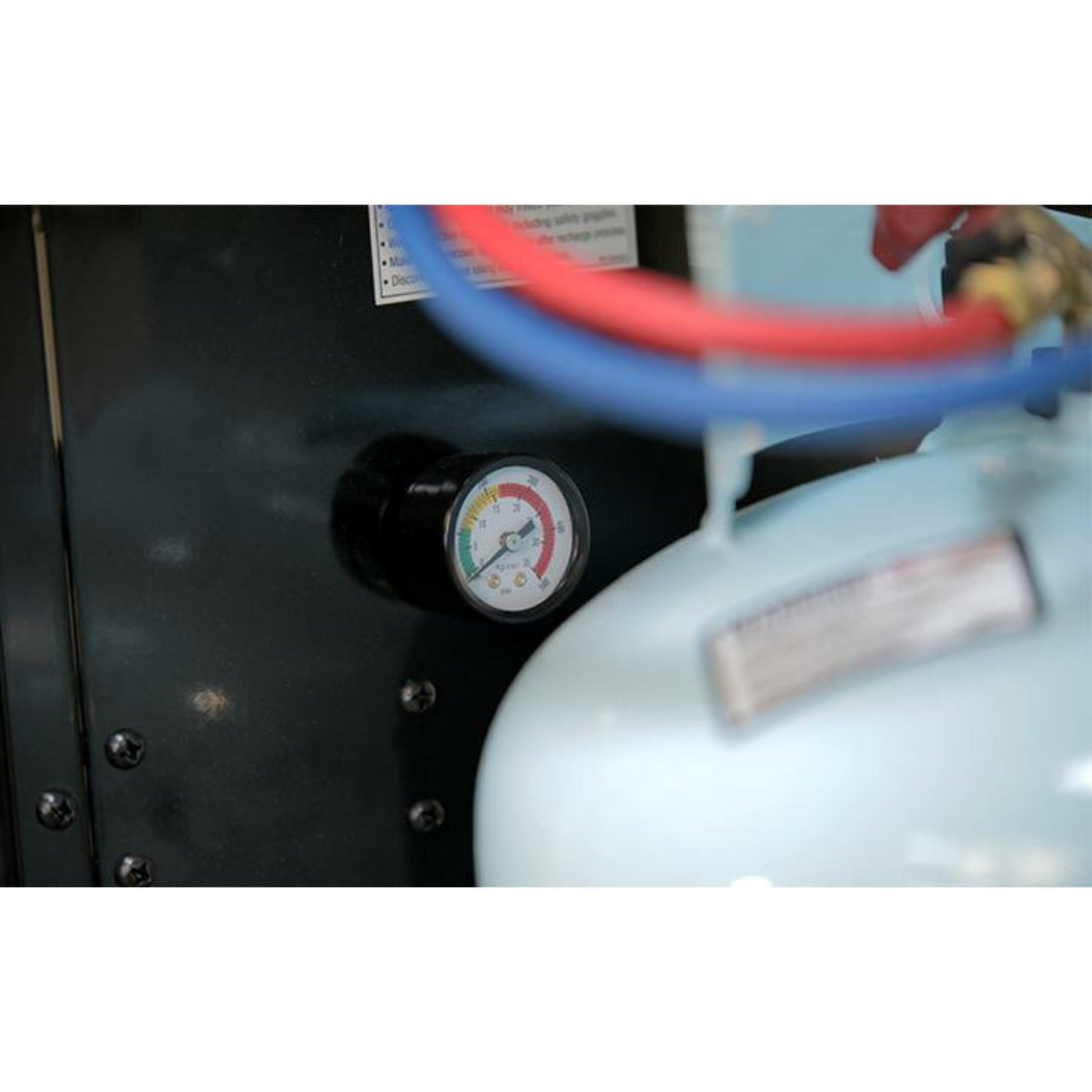

Tank Manometers | 1.5" (38 mm) |
HP & LP Pressure Transducers | No |
Pump Oil | 50H |
Display | 4" x 1.5" (102 mm x 38 mm) LCD |
Front Wheels | 4" (102 mm) Casters with Locks |
Rear Wheels | 12" (305 mm) Rubber Tread |
Unit Height | 38" (965 mm) |
Unit Width | 18" (457 mm) |
Unit Depth | 30" (762 mm) |
Unit Weight | 221 lbs. (100 kg) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Languages | English, French, Spanish, Chinese |
Voltage | 110 VAC / 60 Hz |
Shipping Weight | 276 lbs. (125 kg) |
Shipping Dimensions | 20" x 32" x 44" (558 mm x 812 mm x 1,117 mm) |
Ranger CoolCharge AC-134A User Manual
Ranger CoolCharge AC-134A Sales Sheet
High Efficiency: Recovers up to 95% of old coolant and recharges A/C systems within ±0.5 oz. of the desired charge.
Comprehensive Compatibility: Suitable for servicing most cars, trucks, SUVs, and buses (excluding hybrid vehicles).
Robust Performance: Equipped with a 1/3 HP compressor and a dual-stage vacuum pump operating at 70 L/min.
User-Friendly Interface: Features a 4" x 1.5" LCD display for clear operation.
Mobility and Stability: Designed with 12" rear wheels and lockable 4" front casters for easy maneuverability and secure positioning.
Q: What is the Ranger CoolCharge AC-134A used for?
A: It's an automatic A/C machine for recovering, recycling, and recharging R-134A refrigerant in vehicles.
Q: Does this machine meet safety and industry standards?
A: Yes, it meets UL 1963 and SAE J2788 standards for performance and safety.
Q: Is the vacuum pump included?
A: Yes, a high-performance vacuum pump is included for fast and efficient service.
Q: Is the CoolCharge AC-134A fully automatic?
A: Yes, it offers fully automatic operation for recovery, recycling, evacuation, and recharging.
Q: What types of vehicles can it service?
A: It is compatible with most automotive A/C systems using R-134A refrigerant.
Handle with Care: When moving the AC-134A, avoid shaking it and always keep it upright to prevent internal damage.
Indoor Use Only: Operate the machine exclusively indoors to ensure optimal performance and longevity.

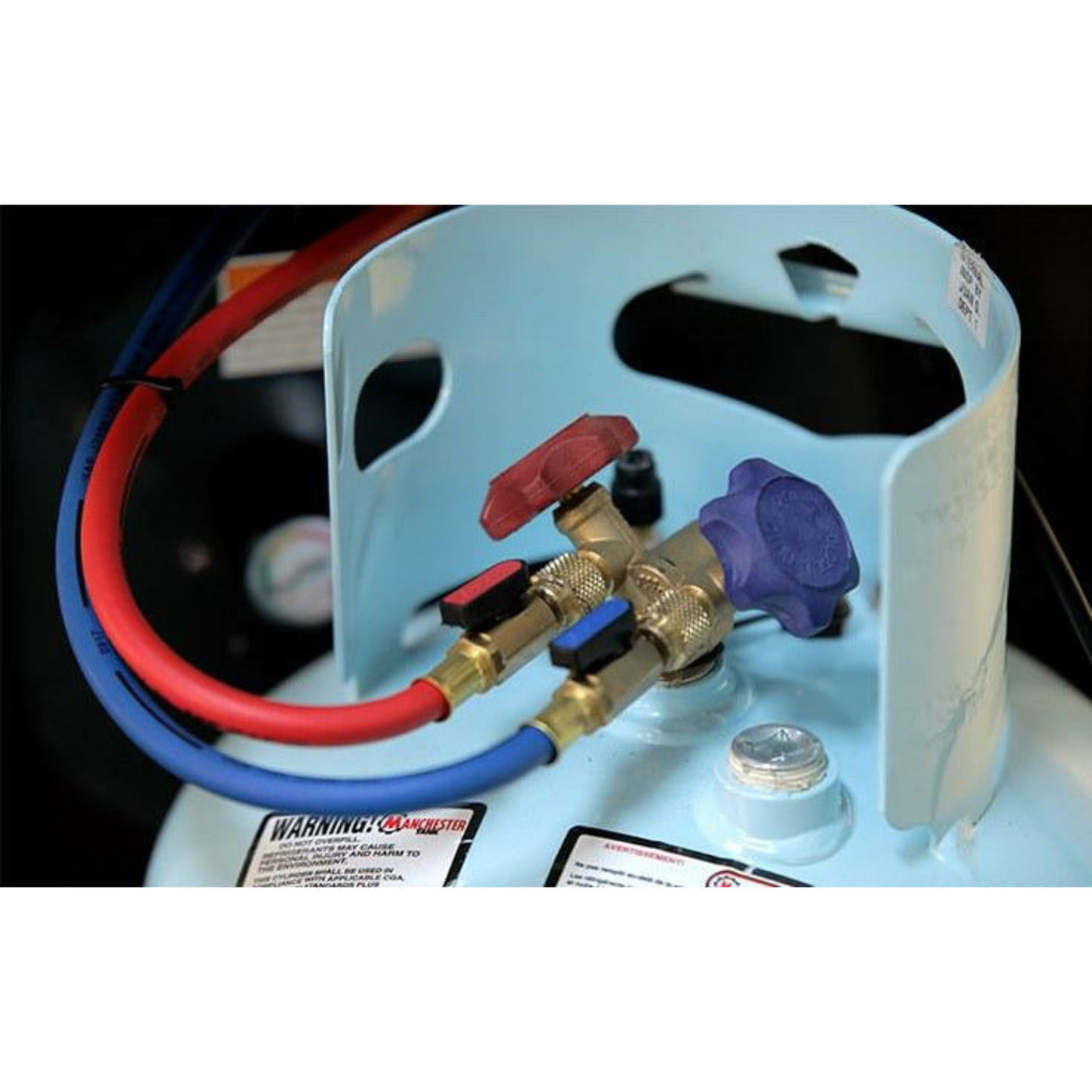

Use Approved Cylinders: Utilize only BendPak Ranger-approved storage cylinders with the AC-134A to maintain safety and functionality.
Refrigerant Compatibility: Use only R-134a refrigerant with this machine. Using other refrigerants like R-12 or R-1234yf can cause damage.
Avoid Electric/Hybrid Vehicles: Do not service electric or hybrid vehicles with the AC-134A, as it is not designed for such applications.
Use Correct PAG Oil: Only use Polyalkylene Glycol (PAG) oil compatible with the vehicle's compressor. Using incorrect oil types or viscosities can harm the vehicle's AC system.
Ensure Proper Ventilation: Operate the machine in well-ventilated areas to prevent the accumulation of potentially harmful gases.
Regular Inspections: Before each use, inspect the AC-134A for any signs of damage. Do not operate if damage is detected; instead, arrange for repairs.
Power Management: Always use the main power On/Off switch on the back of the unit for powering the machine on and off. Ensure the current program has ended before turning off to prevent refrigerant leakage.
Monitor Consumables: Regularly check the vacuum pump oil and filter drier. Replace the vacuum pump oil every 50 hours of operation and the filter drier after filtering 68 kg of refrigerant
