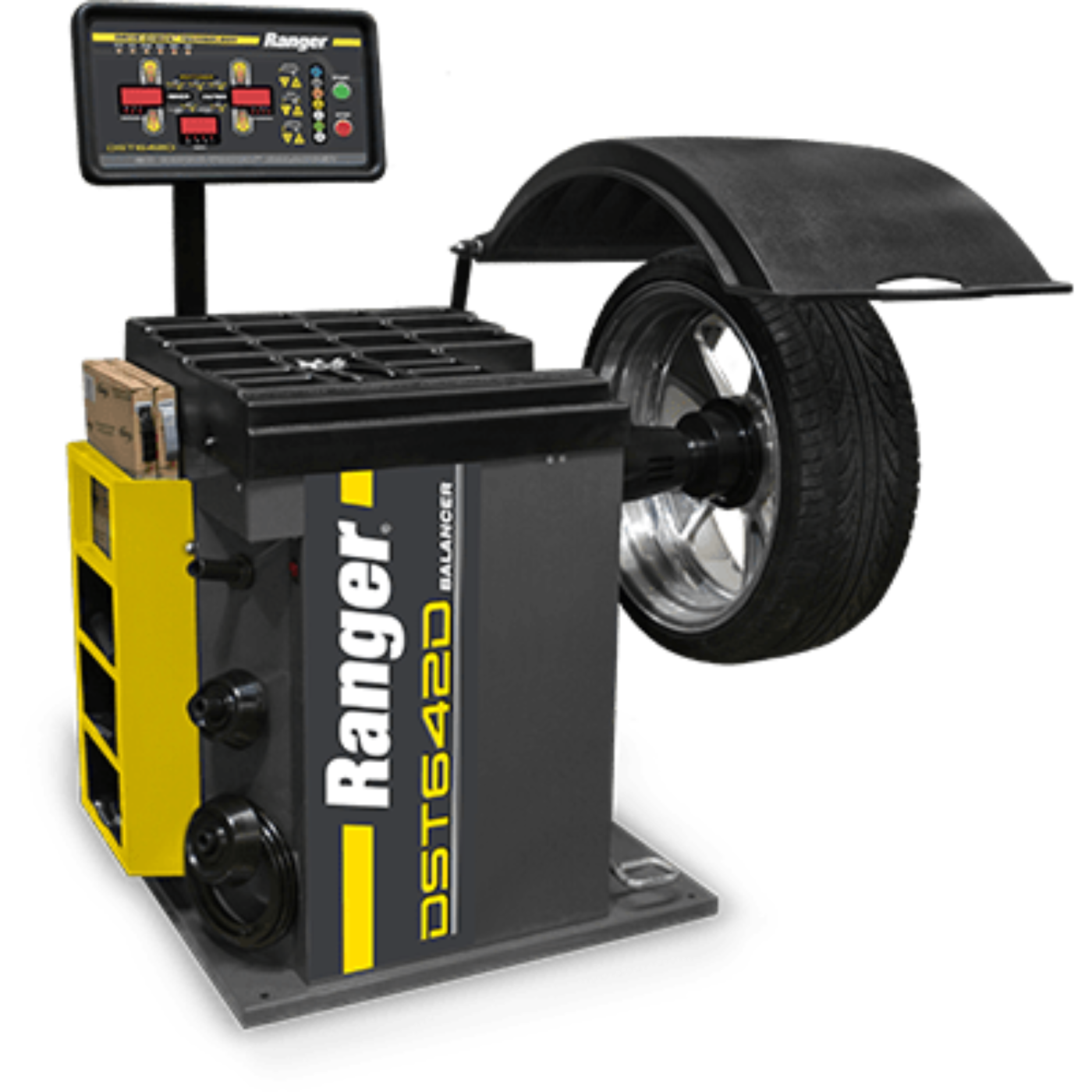

Ranger DST642D 2-D Quick-Touch Wheel Balancer Drive-Check 36mm Shaft Gray-Yellow - 5140153

Ranger DST642D 2-D Quick-Touch Wheel Balancer Drive-Check 36mm Shaft Gray-Yellow - 5140153

The DST642D offers some of the fastest floor times of any wheel balancer machine ever made. Our exclusive Drive-Checktechnology automatically measures imbalances, so you can confidently ensure minimal weight placements will be used to achieve a perfect balance on the first spin.

Get Drive-Check™ and 2D Quick-Touch™ Wheel Balancer Technology

Ranger Drive-Check technology makes it easier to automatically measure rotational imbalances. The Drive-Check program activates a driving simulation during all balancing modes, measuring imbalances through simulated real-world road conditions. This means our wheel balancer technology prepares operators to perfectly balance the tire and wheel assembly with absolute confidence that the wheel balancer will get it right the first time.

Highly precise digital sensor technology

Our Digital Sensor Technology is the “DST” in DST642D, and it’s crucial to our wheel balancer engineering. The 64-bit, single-bit chip tech makes for speedier and more accurate balances. This permits operators to use a variety of balance and weight placement techniques for OEM and aftermarket tire/wheel configurations.

By using a single 64-bit chip, the DST642D wheel balancer ensures a more stable balance, and processing speeds are significantly improved. With less hardware involved, there’s less maintenance to worry about over time. The dedicated hyper-transport protocol lets data “talk” with the micro-processor with much less delay, meaning less power is consumed. The internal components of the wheel balancer run at lower temperatures, further extending the life of the unit and improving performance.

Serpentine poly-V belt features a polyester-aramid fiber composite core to resist degradation of functional performance under extreme operating conditions. Poly-V belt mates perfectly with the motor and spindle sheave for continuous tension and distribution.

(1) Dynamic, (2) static, (1) standard alloy and variable alloy setting that enables you to select the exact weight placement location you choose for the specific wheel being serviced. Easily configured with the simple push of a button for a variety of wheel styles and designs.

Multi-directional quartz piezoelectric load sensors

Dual-component piezoelectric quartz load sensors combine with a single digital rotation encoder to record longitudinal, transversal and shear effects for multi-directional force unbalance detection. These sensors are extremely precise for greater stability, as well as reduced wheel balancer fatigue. The high-rigidity quartz crystal sensors mean higher frequency (aka faster, more accurate) detection for all tire/wheel assembly measurements.

Automatic wheel data entry

Our simple, easy-to-use inner data set arm allows you to quickly and automatically enter offset distance of the wheel assembly. The wheel width and diameter measurements can be manually taken and entered in seconds.

User-friendly operation

Durable soft-touch keys complete a user-friendly display panel that features tire and wheel graphics for faster entry of wheel data. The step-by-step interface takes minimal training to master, as the wheel balancer has big, bright icons that indicate each balancing function. Additionally, when any wheel is rolled top-dead-center, the LED display will light up and an alarm will sound. Hidden or behind-the-spoke weight placement techniques are assisted by tiered weight placement indicators.

Inner wheel target lighting

The wheel balancer features a long-lasting LED inner wheel target light, which lights up the interior of the rim and identifies the best place to place weights. The light automatically activates when the wheel restraint pedal is engaged.

Multi-directional, anti-glare control panel

A fully adjustable control panel minimizes sunlight glare and makes all wheel balancer operations (and ultimately your shop) more productive. The display can be moved in all directions to compensate for sunlight, overhead light fixture glare or user height/preference. Light diffuses off the screen to make readouts more visible—no more painful glare!

Quick and precise setup

Several center cones, a rear-mounted spring and a non-marring “Quick-Nut” bell adapter assist in all wheel mounting procedures. They also protect wheels against costly scratches, dings and other damages.

Automatic weight optimization

The DST642D automatically detects the minimum amount of weight needed to achieve an optimum balance, so you’re never “chasing” weights (a waste of time and money). The increased accuracy and efficiency of weight placement readouts make this wheel balancer worth every penny.

Tape weight feeder

Ranger’s Quick-Peel™ adhesive sits conveniently in a side shelf and features an easy-to-use open-top design for fast access. Bulk rolls are available for restocking at any time.

Standard accessories and mounting cone package

The DST642D tooling package now comes with a medium-duty truck cone, in addition to the standard car and light truck cones. The four-piece cone set includes the following sizes: 1.75”-2.75”, 2.75”-3.50”, 3.50”-4.25” and 4.25” - 5.12”. Other standard accessories include wheel caliper, weight hammer, rear mounting spring, Quick-Nut, Quick-Nut bell adapter and specialty calibration weight.

Wheel weight starter kit

With the purchase of your new DST642D wheel balancer, we throw in two bulk rolls of 100 silver and 100 black adhesive tape weights. We also include a starter box of mixed clip-on steel weights.

Flange plate kit

Precision balancing requires a flange plate kit, and this completely adjustable, multi-position design features centering pin adapters that fit almost all vehicles, foreign and domestic. The pin adapters also fit light-duty truck lug-bolt patterns. Lug-bolt adapters are better for wheel balancing than using the cone by itself, and your customers will feel the difference when they drive. Flange plate kit includes a measuring caliper.

Features

• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• An audible alarm and brightly displayed LED’s identify exact weight amounts and precise positioning for perfect balancing
• Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden “behind-the-spoke” techniques
• Wheel restraint pedal secures wheels at precisely 12-o’clock for easier servicing and proper weight placement
• LED inner wheel target light automatically illuminates the interior of the rim and helps identify the exact weight placement location. Auto-activates each time the wheel restraint pedal is depressed.
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Precision-machined, hardened-steel 36 mm shaft (ACME thread 30-degree 3-P)
• Quick-release hub nut for dramatically reduced set-up times
• Side cone storage pegs keep mounting cones readily available
• Open-sided hood design allows for a broader coverage of tire shapes and sizes
• Wheel Weight Starter Kit: Free samples of Ranger steel wheel weights are included. Starter Kit includes one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights and one starter box of mixed clip-on steel weights.

Specifications

Manuals

Ranger DST642D User Manual
Ranger DST642D Sales Sheet

What our Experts Think

• Advanced Drive-Check™ Technology: Simulates real-world driving conditions to automatically measure and correct imbalances, ensuring optimal wheel balance with minimal weight usage.

• Rapid Six-Second Cycle Time: Delivers efficient balancing with quick cycle times, enhancing productivity in high-demand settings.

• Versatile Wheel Compatibility: Accommodates wheel diameters ranging from 10" to 30" and widths from 1.5" to 20", suitable for a wide array of vehicles.

• Precise Weight Measurement: Offers balancing increments of 0.25 grams or 0.01 ounces, with an accuracy of ±0.5 grams, ensuring precise weight placement.

• User-Friendly Features: Includes automatic wheel parameter settings, tiered weight placement indicators, and a wheel restraint pedal for ease of use and accurate weight positioning.

• Durable Construction: Equipped with a precision-machined, hardened-steel 36 mm shaft and a quick-release hub nut, designed for longevity and reduced setup times.

Q&A

Q: What is the Ranger DST642D used for?
A: The Ranger DST642D is a 2-dimensional wheel balancer designed to quickly and accurately balance tires for vehicles.

Q: What is the shaft size?
A: It features a 36mm shaft, making it compatible with most wheel types.

Q: What are the key features of this balancer?
A: This model includes Quick-Touch technology for fast setup, and Drive-Check for automatic data input and balancing precision.

Q: What is the color of the wheel balancer?
A: The Ranger DST642D comes in a gray-yellow color scheme, providing a durable and professional look.

Q: Is it easy to use?
A: Yes, its user-friendly interface makes tire balancing quick and efficient.

Maintenance Tips

• Regular Inspection: Before each use, inspect the wheel balancer for signs of damage or wear. Ensure all components are securely fastened, and there are no leaks in the hydraulic system.

• Cleaning: Keep the balancer clean and free from debris to prevent interference with its operation.

• Calibration: Periodically calibrate the balancer to ensure accurate readings. Refer to the manufacturer's manual for calibration procedures.

• Software Updates: Check for software updates that may enhance functionality or fix known issues.

• Operator Training: Ensure that all operators are trained in the correct use and maintenance procedures to prevent misuse and extend the balancer's lifespan.

• Avoid Overloading: Do not exceed the balancer's capacity. Overloading can lead to equipment damage and void the warranty.

• Use Appropriate Weights: Use the balancer only for its intended purpose—balancing wheels. Using it for other applications can damage the equipment and pose safety risks.

• Electrical Safety: Ensure that the balancer is properly grounded and that all electrical connections are secure.

• Storage: When not in use, store the balancer in a dry, clean environment to prevent rust and other forms of deterioration.

• Manufacturer's Manual: Refer to the manufacturer's installation and operation manual for detailed maintenance procedures and troubleshooting.
