The Ranger LS43B laser wheel balancer optimizes wheel weight placements with exclusive Laser-Spot™ technology. Laser lines clearly indicate outboard and inboard weight placements for incredible balances within hundredths of an ounce. Wheels that are laser-balanced drive like new!

A Laser Wheel Balancer for Supreme Speed and Amazing Accuracy

The Ranger LS43B laser wheel balancer handles wheels up to 43 inches in diameter. The average cycle time is just 7 seconds, making it one of the fastest floor-to-floor balancing machines ever built.

4 Smart Reasons to Get a Laser Wheel Balancer

Laser-Spot Technology

Laser balancers are increasingly being used in high-volume shops because lasers eliminate second-guessing and speed up weight placements. This also means the balance check you perform after placing inboard and outboard weights will almost always be clean. The fewer weights you use, the better your bottom line. Plus, customers will enjoy long-lasting balances that make their rides feel like new again.

When ALU modes are selected and stick-on weights are desired, instinctive lasers mark the low-side of the wheel at the 6-o’-clock position, making stick-on weight placement and installation a breeze. When it’s time for clip-on weights, the intuitive data control automatically senses that topside weight positioning is desired and pinpoints the laser at precisely 12-o’-clock. Laser-Spot™ weight-positioning lasers provide greater weight placement accuracy and help reduce mistakes. More single-spin balances and fewer customer comebacks will increase productivity and profits. It’s that easy.

Automatic wheel data entry

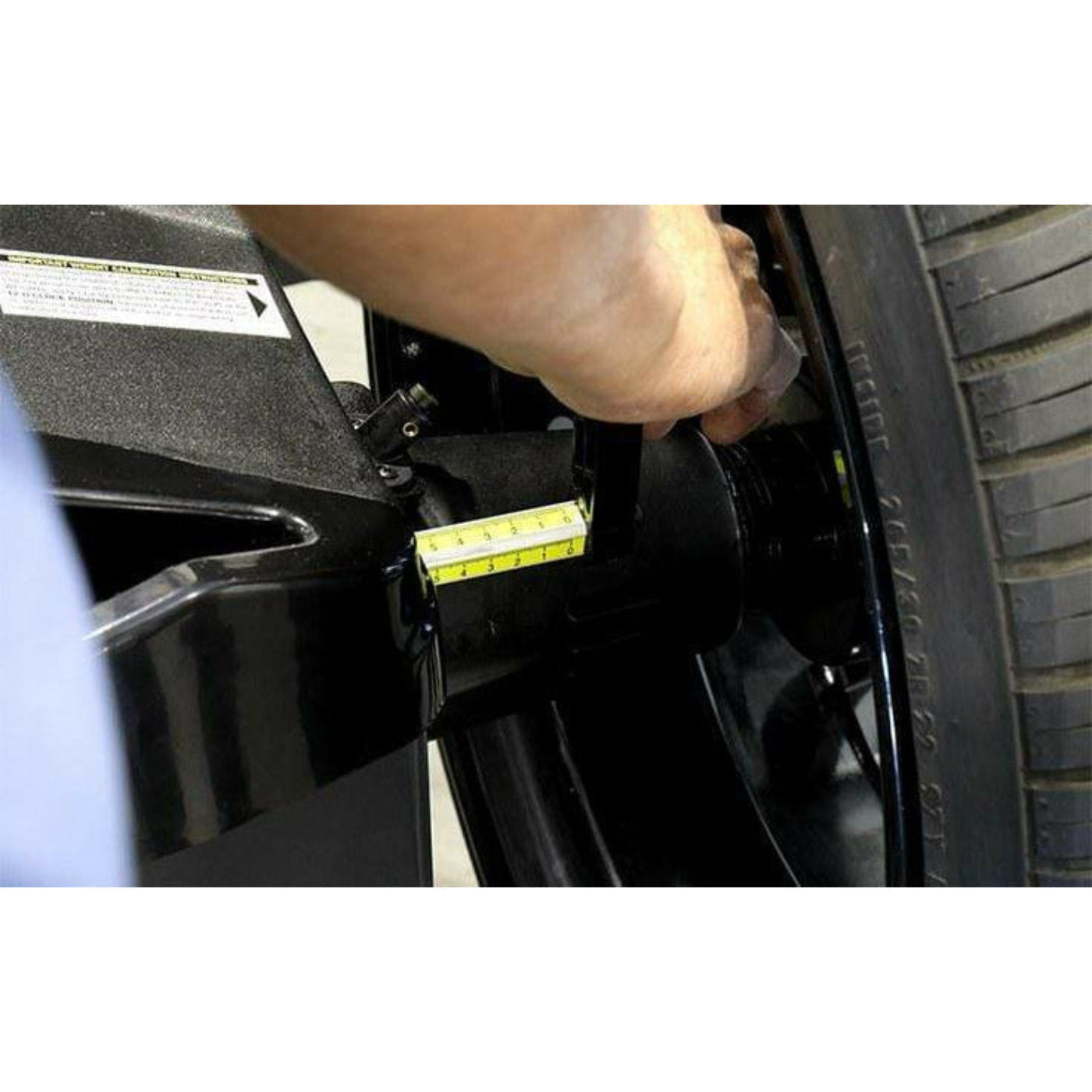

This balancer features Ranger's exclusive 3D Auto Data Entry technology, so you never have to manually input wheel parameters again. It takes most techs an average of three seconds to retrieve the wheel diameter, wheel width and offset distance from this balancer. Our extendable DataWand™ automatically retrieves all outer-wheel information, while the inner data set arm detects the offset distance between the machine and your tire-and-wheel configuration.

Highly precise digital sensor technology

Ranger's highly accurate Digital Sensor Technology features a 16-digit digital signal processor and single-chip technology that increases productivity and offers unprecedented speed and accuracy, especially during the sophisticated balance and weight placement techniques required for newer high-tech OEM and aftermarket wheels.

As soon as you lower the spacious wheel hood, the LS43B laser balancer spins into action, delivering precise outboard and inboard weight placements in mere seconds. Static, dynamic and ALU weight placement options can be pre-selected or retrieved simultaneously after a single spin, so you're always able to choose the option that best suits your particular wheel profile.

Automatic braking

After a quick spin of the wheel, a dual-plane automatic electromagnetic braking system automatically slows, stops and holds the wheel in the correct position, eliminating the need for a foot-activated brake with wheel-holding pedals. This gives technicians the freedom to move without restraint when placing weights on both the inner and outer faces of the wheel. At the precise instant the brake is engaged, dual Laser-Spot™ lasers come to life and pinpoint exactly where either the stick-on or clip-on wheel weights should be fastened. A bright, wide LED beam is activated at the precise moment the balancer brake engages. The LED assist light, dual lasers and auto brake will all remain active until the stop button is manually pressed.

Multi-directional quartz piezoelectric load sensors

Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal and shear effects for multi-directional force unbalance detection. The piezoelectric force sensors are the most sensiotive sensors we have ever made, offering superior stability and fatigue resistance for unlimited service life with your wheel balancer. The high-rigidity quartz crystal sensors offer high frequency detection in all three measured directions.

Quick and precise setup

A self-centering, non-marring Quick-Nut and bell adapter set ensures proper centering of the wheel and eliminates counterproductive setup errors. You'll mount wheels faster and easier, minimizing the risk of customer come-backs or costly wheel damage.

Mounting cone package

Included with every machine are both standard and heavy-duty mounting cones, as well as a full accessory tooling package. The LS43B laser balancer's tooling package includes our standard car and light truck cones, as well as a heavy-duty truck cone. This well-equipped package includes three automotive and light truck cones: 1.75” - 2.75”, 2.75” - 3.50” and 3.50” - 4.25”, as well as one truck cone 4.50” - 5.00”.

Tape weight feeder

An open-top side shelf accommodates a large roll of Ranger Quick-Peel™ adhesive tape weights. Included with your purchase is a complimentary wheel weight starter kit that fits directly into a built-in tape weight feeder. Additional weights are available for purchase at any time.

Automatic weight optimization

The LS43B laser wheel balancer features a computer interface with weight optimization technology that automatically calculates the minimum amount of weight needed to achieve optimal balance. Minimizing weight usage at your place of business is sure to add up to real savings over time and ultimately increase your bottom line.

User-friendly operation

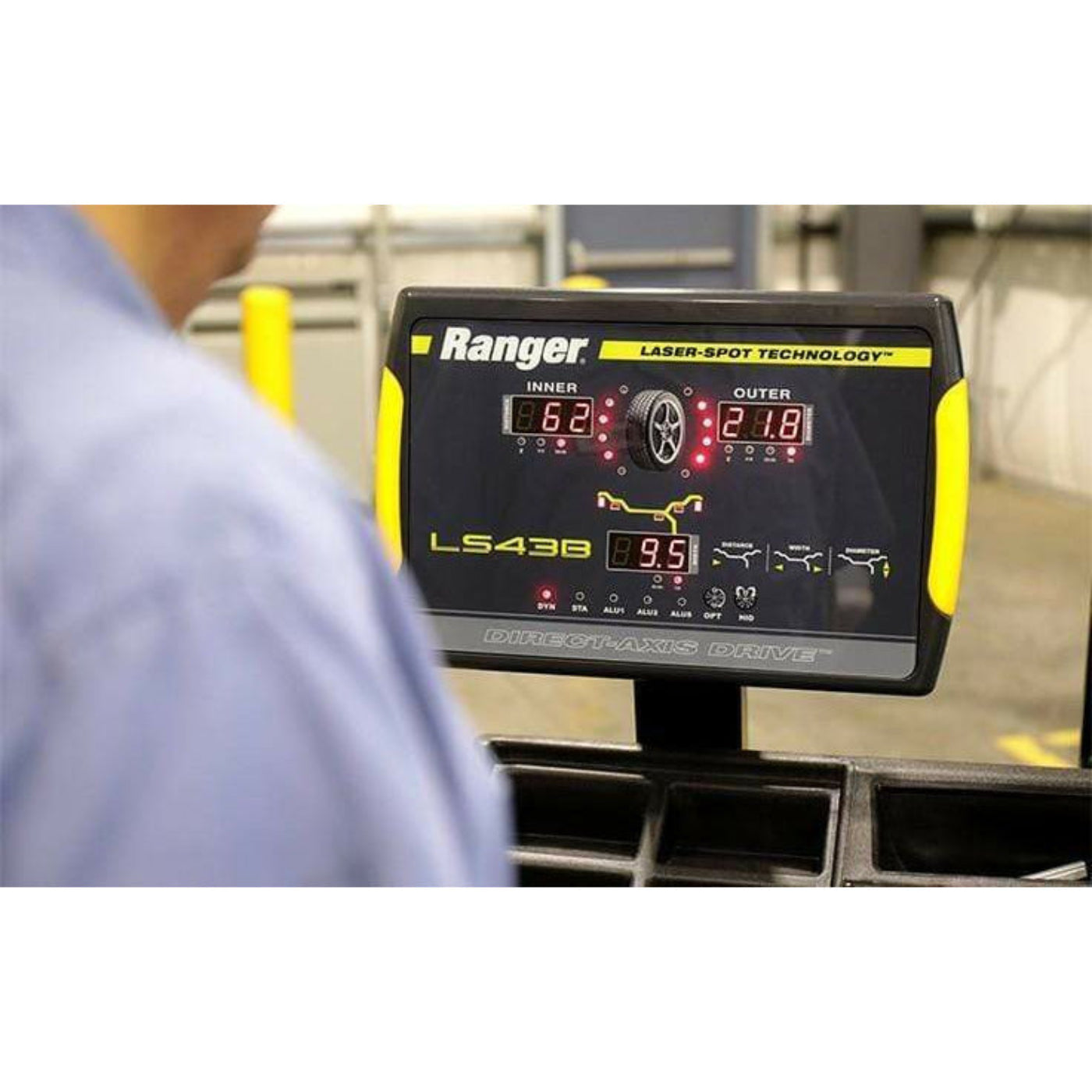

An anti-reflective, touch-pad display panel features tire and wheel assembly graphics that help simplify the speedy entry of wheel data. The display panel efficiently guides techs through each balancing procedure. Operator function keys are labeled with simple, easy-to-read icons to help operators identify and command all balancing functions.

LED rolling wheel weight displays

Bright LED weight placement indicators show weight positions as the wheel is gently rolled to exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placements, such as split-weight or hidden “behind-the-spoke” techniques. Indicators assist operators with clip-on and tape weight placement at precise locations for zero-on balancing.

Wheel weight starter kit

A free kit of wheel weights is included with every new LS43B laser wheel balancer. Each unit’s starter kit contains one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights and one starter box of mixed clip-on steel weights. It’s our way of getting you off on the right foot. Additional Ranger wheel weights are available for purchase at any time.

Features

• Dynamic, Static, and Performance Alloy settings
• Multi-user save function holds presets to increase productivity
• Ergonomic control board and easy-to-read LED display
• A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data
• Automatic rolling wheel parameter setting feature saves time, minimizes errors
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• “Open-side” hood design allows for a broader coverage of tire shapes and sizes

Specifications

Manuals

Ranger LS43B User Manual
Ranger LS43B Sales Sheet

What our Experts Think

• Accurate Balancing: The Ranger LS43B 3D Quick-Touch Laser Spot Wheel Balancer offers precise balancing for smooth rides and optimal tire wear.

• User-Friendly: Features a quick-touch design for easy operation, reducing time spent on each balancing job.

• Durable Build: Built with a 36mm shaft and robust gray-yellow finish for longevity and stability.

• Enhanced Efficiency: Ideal for high-volume tire shops, balancing wheels quickly and accurately with minimal effort.

• Laser Spot Technology: The advanced laser spot system ensures accuracy by visually guiding the technician during setup

Q&A

Q: What is the Ranger LS43B used for?
A: The LS43B is a 3D laser spot wheel balancer designed for precise wheel balancing, enhancing vehicle performance and safety.

Q: What is the shaft size of the LS43B wheel balancer?
A: The LS43B features a 36mm shaft, providing reliable and accurate balancing for various wheel sizes.

Q: What makes the LS43B a quick-touch balancer?
A: The quick-touch feature allows for faster setup and easy operation, making wheel balancing more efficient.

Q: What color is the Ranger LS43B wheel balancer?
A: The LS43B comes in a gray-yellow color scheme, offering a professional and durable appearance.

Q: Is the LS43B suitable for high-precision balancing?
A: Yes, the 3D laser spot technology ensures high-precision wheel balancing for optimal tire performance.

Maintenance Tips

• Regular Cleaning: After each use, clean the wheel balancer to remove tire debris, dust, and grease, ensuring smooth operation and extending the equipment's lifespan.

• Inspect and Lubricate Moving Parts: Regularly check moving components such as the wheel hood, DataWand™, and inner data set arm. Apply appropriate lubricants to maintain smooth operation and prevent wear.

• Verify Laser Functionality: Ensure that the Laser-Spot™ lasers are functioning correctly. If the lasers appear dim or are not operating, consult the user manual for troubleshooting steps or contact technical support.

• Check Wheel Braking System: Periodically test the automatic electromagnetic braking system to ensure it slows, stops, and holds the wheel correctly during balancing operations.

• Inspect Cones and Adapters: Examine the mounting cones and adapters for signs of wear or damage. Replace any worn or damaged components to ensure accurate wheel balancing

• Maintain Electrical Components: Regularly inspect the power cord, plug, and electrical connections for signs of wear or damage. Address any issues promptly to prevent electrical hazards.

• Calibrate the Balancer: Perform routine calibrations as specified in the user manual to maintain the balancer's accuracy
