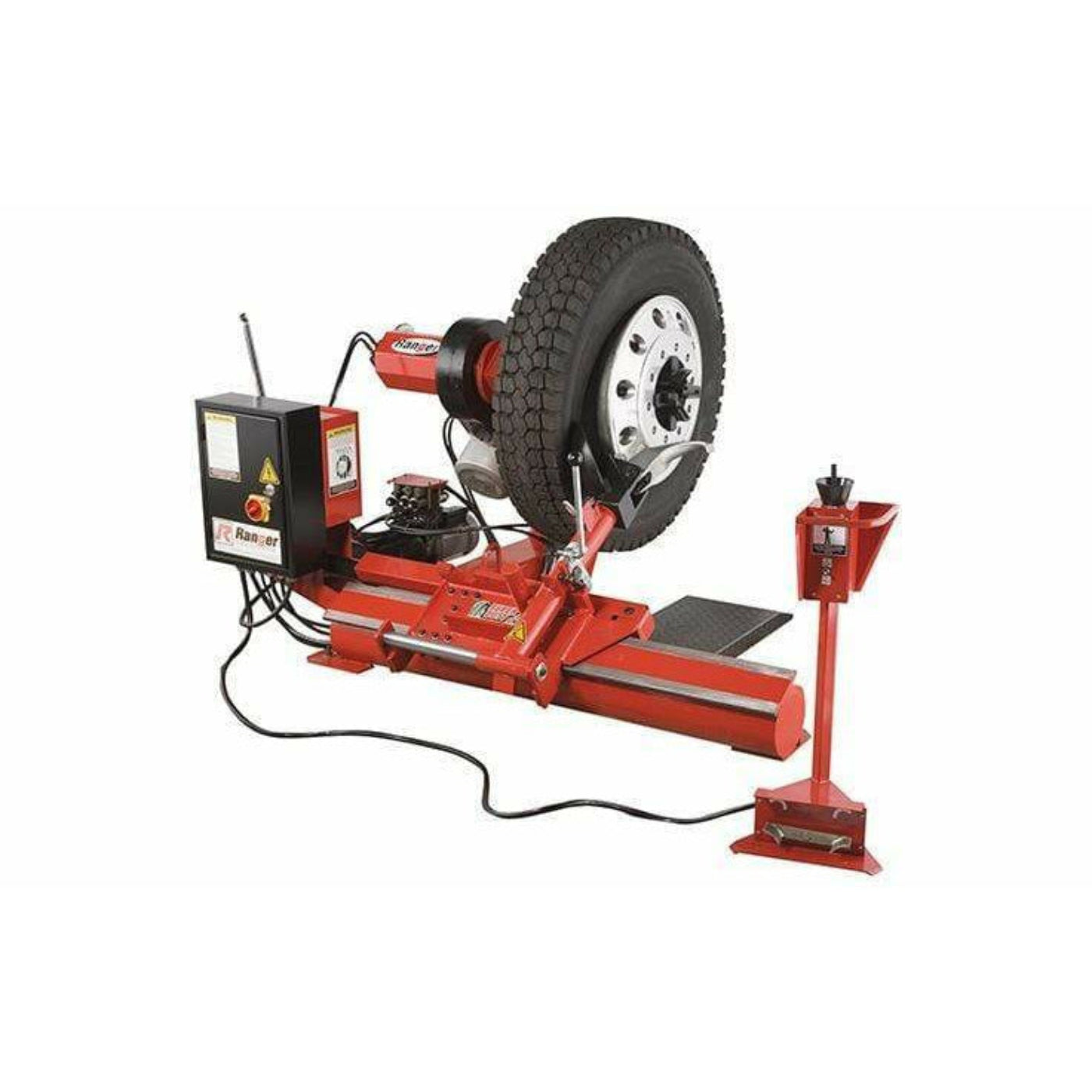

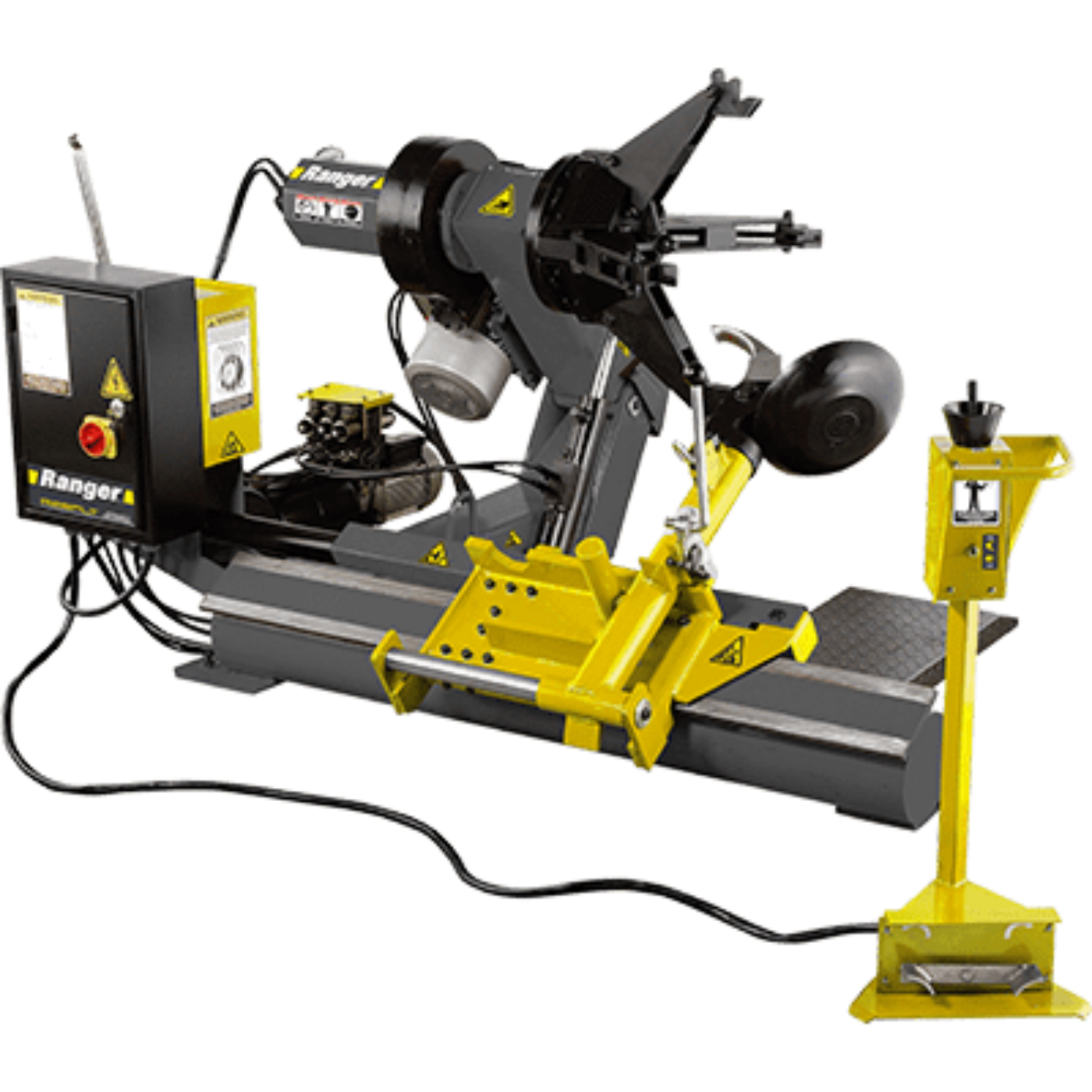

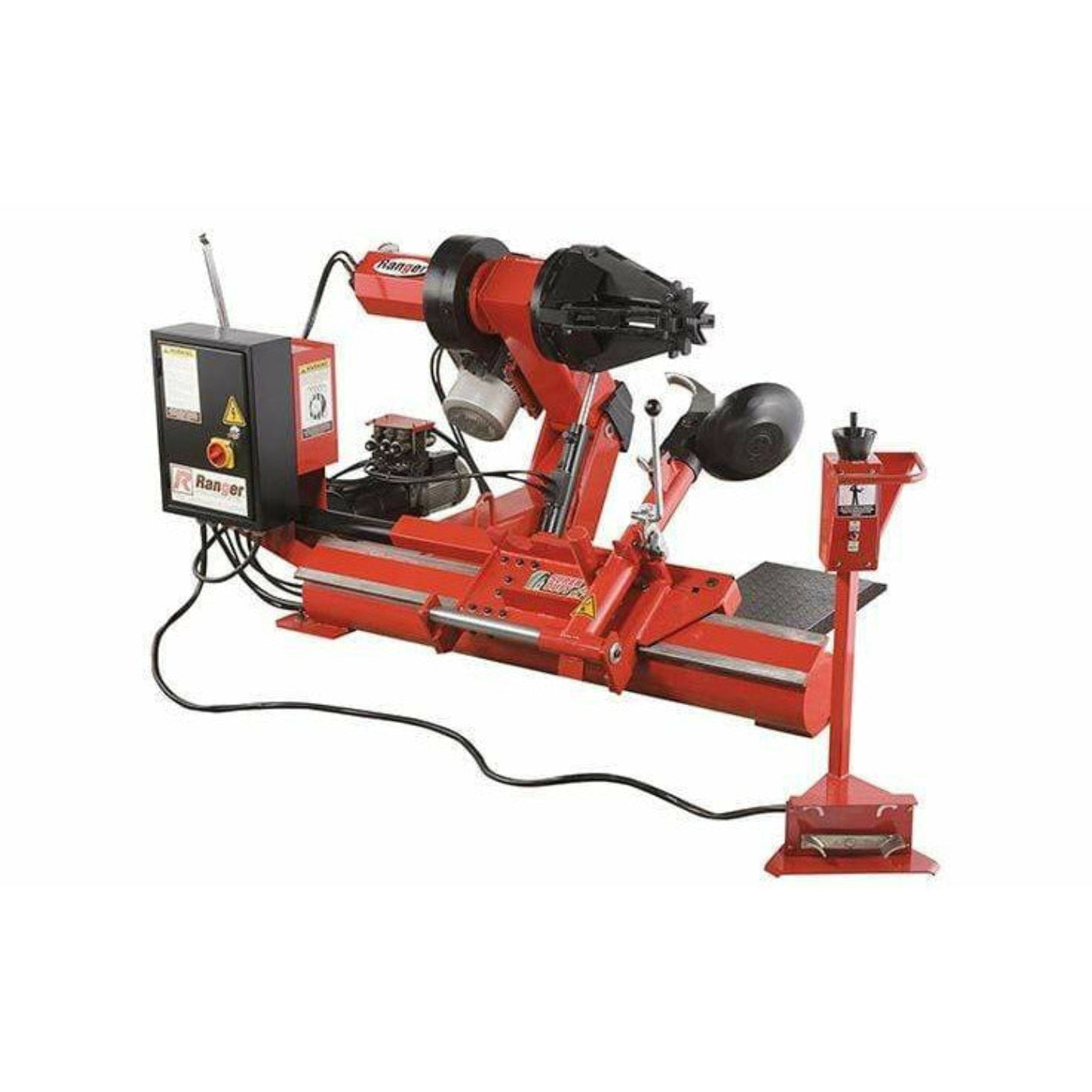

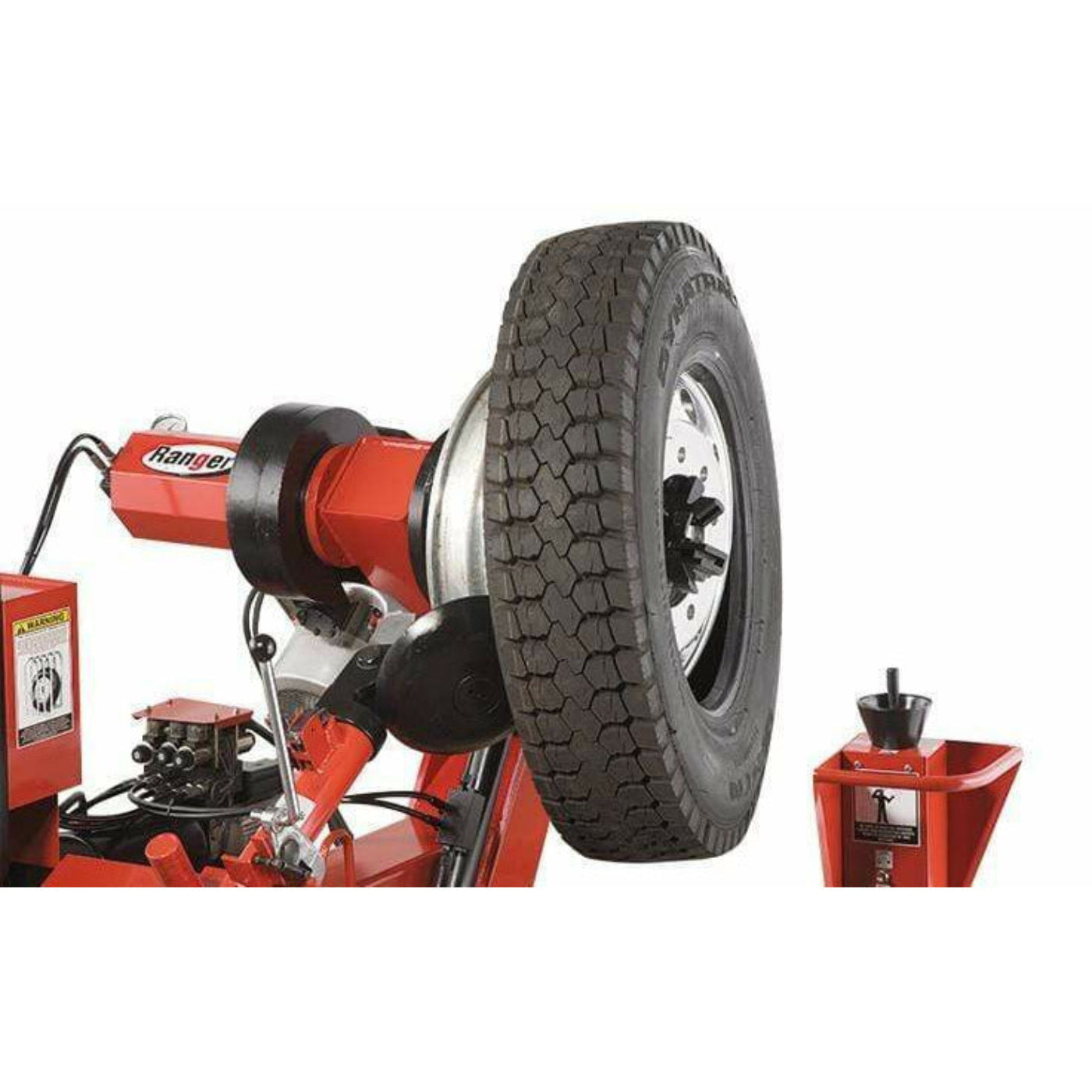

Ranger R26FLT Heavy-Duty Truck Tire Changer Joystick Control Gray-Yellow - 5140137

Specifications

Manuals

Ranger R26FLT User Manual
Ranger R26FLT Sales Sheet

What our Experts Think

• Efficient Operation: Quickly services tubeless truck, agricultural, and off-road tires ranging from 14" to 26" in diameter, enhancing productivity in high-volume settings.

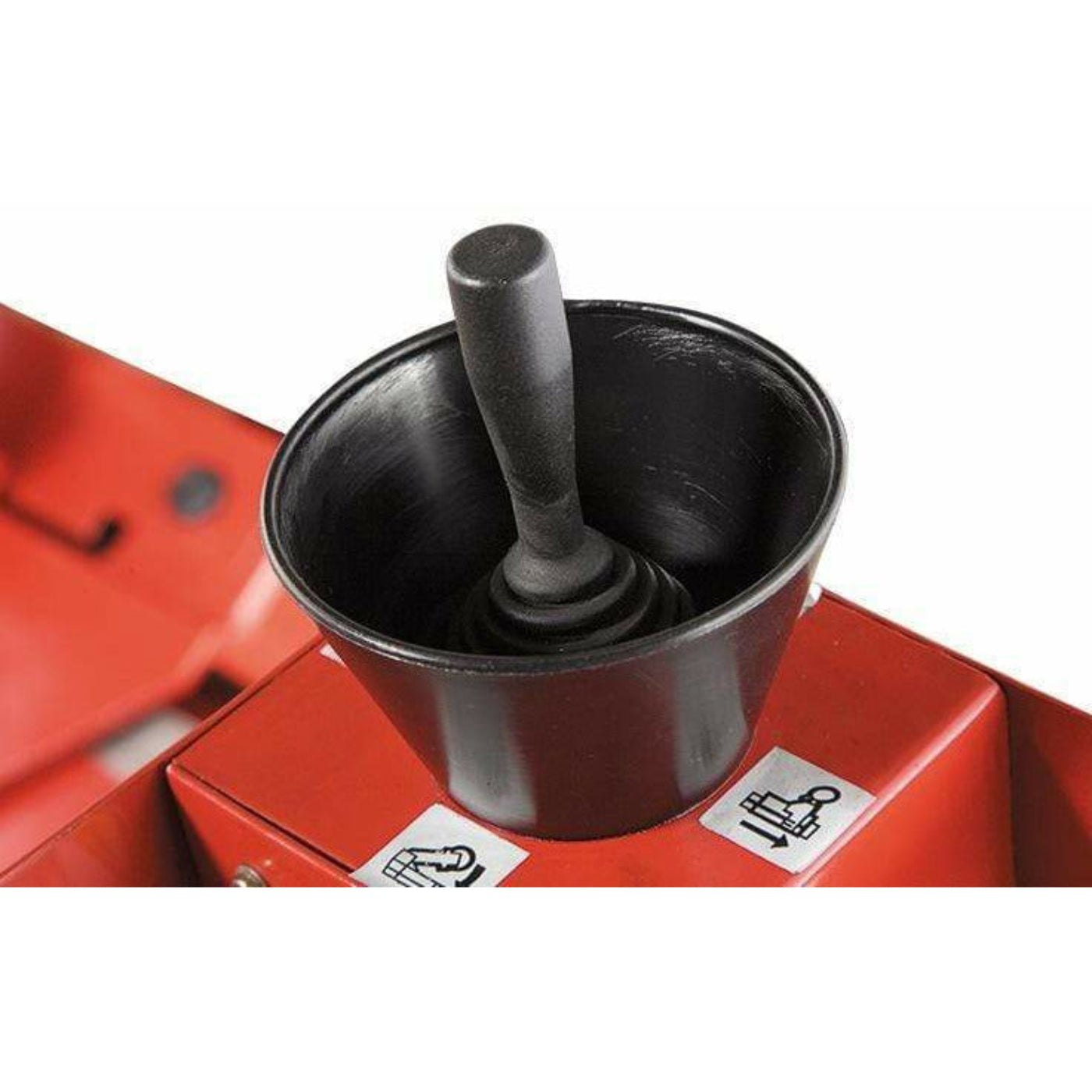

• Joystick Control: Features a portable remote control for precise operation, allowing technicians to work from optimal positions around the vehicle.

• Robust Construction: Built with a welded steel frame, aluminum-alloy air cylinders, and sealed components to withstand demanding workloads and ensure longevity.

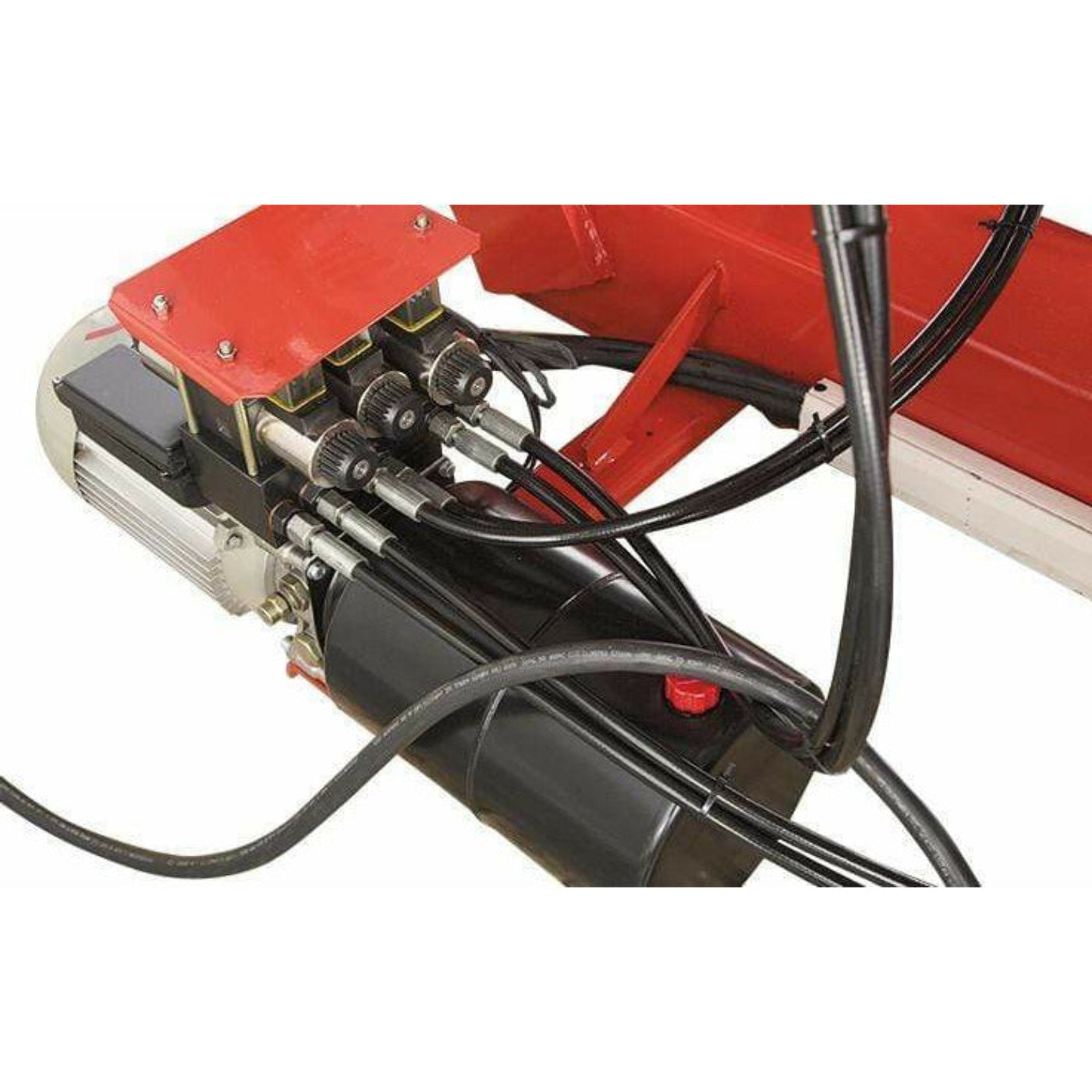

• Powerful Performance: Equipped with a super-duty electric hydraulic motor that delivers smooth torque, facilitating efficient tire mounting and demounting processes

• Secure Clamping: Self-centering hydraulic clamping chuck and hydraulically operated spreader jaws provide secure clamping for a wide variety of rims and off-road wheels

• User-Friendly Design: Ergonomic controls and a versatile unit console simplify operation, reducing the learning curve and minimizing the risk of user error.

Q&A

Q: What is the capacity of the Ranger R26FLT Heavy-Duty Truck Tire Changer?
A: It handles rim diameters from 14" to 26" (356 mm – 660 mm) and tire/wheel diameters up to 63" (1,600 mm), accommodating widths up to 31.5" (800 mm).

Q: What is the power source and motor specification for the Ranger R26FLT?
A: It utilizes a 3 HP electric motor operating at 220 VAC, 50-60 Hz.

Q: How does the Ranger R26FLT secure wheels during operation?

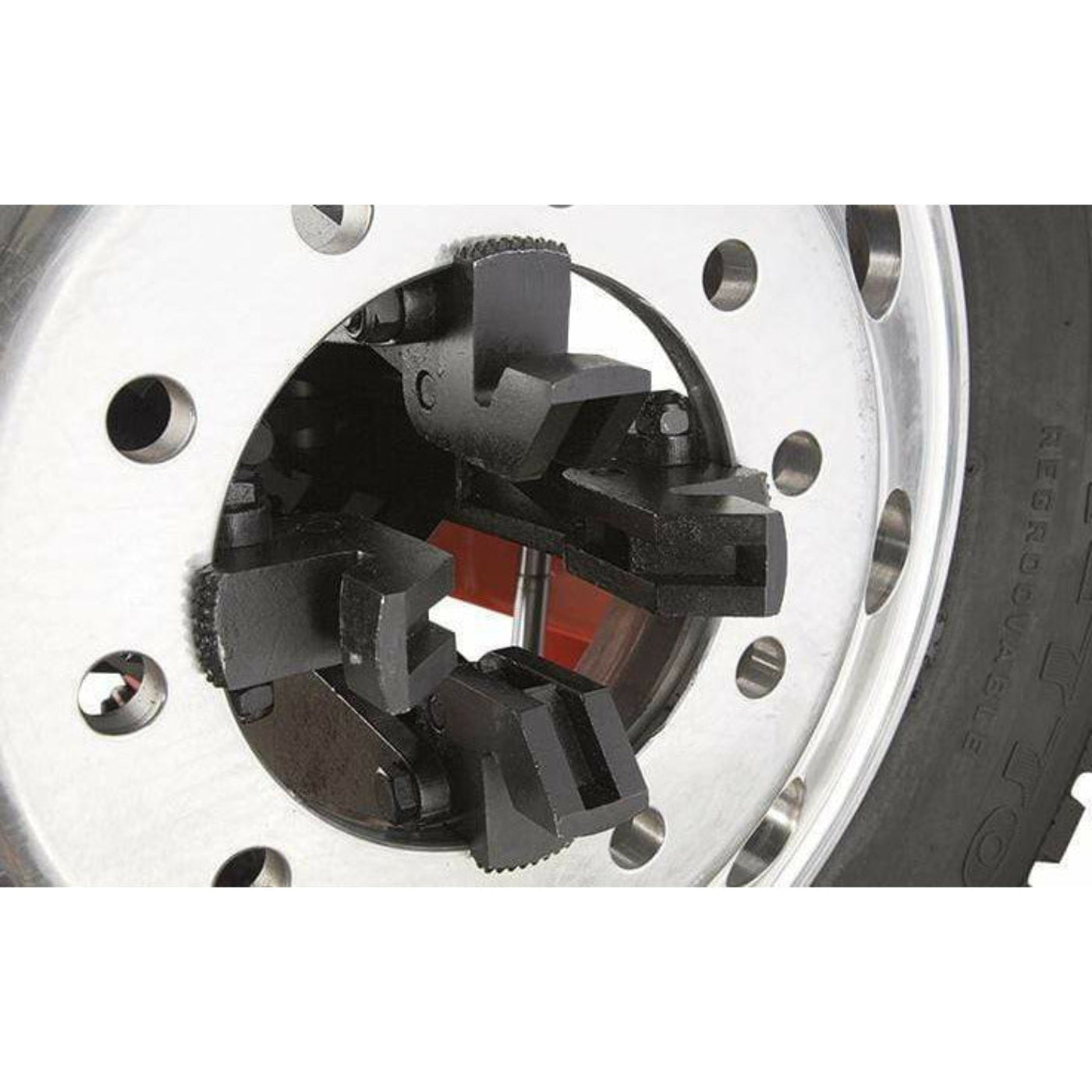

A: It employs a self-centering hydraulic clamping chuck with four clamps to securely hold wheels in place.

Q: What bead-breaking system does the Ranger R26FLT feature?

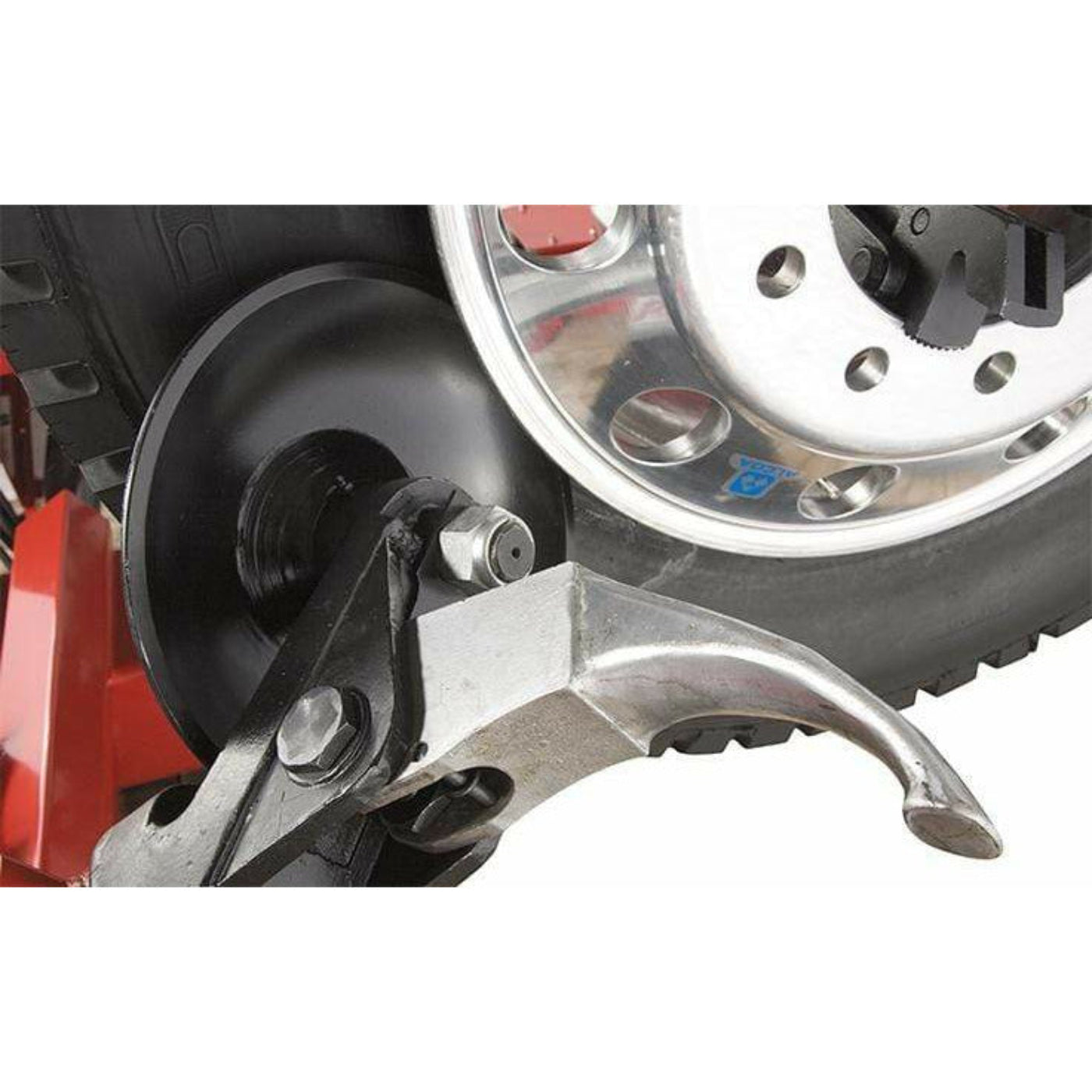

A: It is equipped with an armor-plated disc bead-breaking system for efficient tire removal.

Q: What standard accessories are included with the Ranger R26FLT?
A: Included are tire lubrication, a funnel, large and small bead tools, rotary valve O-rings, fuses, a wheel clamp, and a lever grease gun.

Q: What are the shipping dimensions and weight of the Ranger R26FLT?
A: It ships with dimensions of 63" x 80" x 38" (1,600 mm x 2,032 mm x 965 mm) and a weight of approximately 1,485 lbs. (674 kg

Maintenance Tips

• Regular Cleaning:

• After each use, clean the tire changer to remove tire debris, dust, and grease.
• Use a mild detergent solution and a soft cloth to prevent surface damage.
• Lubrication:
• Moving Parts: Apply appropriate grease to moving components such as the spindle, chuck, and mount/demount head to maintain smooth operation.
• Bead Breaker Blade: Lubricate the bead breaker blade regularly to ensure efficient operation and prevent wear.
• Hydraulic System Maintenance:
• Fluid Level: Check the hydraulic fluid level periodically.
• Leaks: Inspect for hydraulic leaks and address them promptly to maintain optimal performance
• Inspect Clamping System:
• Regularly check the self-centering hydraulic clamping chuck for signs of wear or damage
• Ensure it securely clamps various rim types, including off-road styles.
• Verify Air Supply:
• Ensure that the pneumatic system operates at the recommended pressure levels.
• Check for leaks and address them promptly to maintain optimal performance.
• Check Electrical Connections:
• Inspect all electrical connections for signs of wear or loose connections.
• Ensure that the motor operates smoothly and that controls respond correctly.
• Safety Features:
• Before each use, verify that safety mechanisms, such as emergency stops and protective guards, are functioning correctly to minimize the risk of accidents.
• Operator Training:
• Ensure that all operators are properly trained in the use of the R26FLT tire changer.
• Familiarity with the equipment enhances safety and efficiency.
