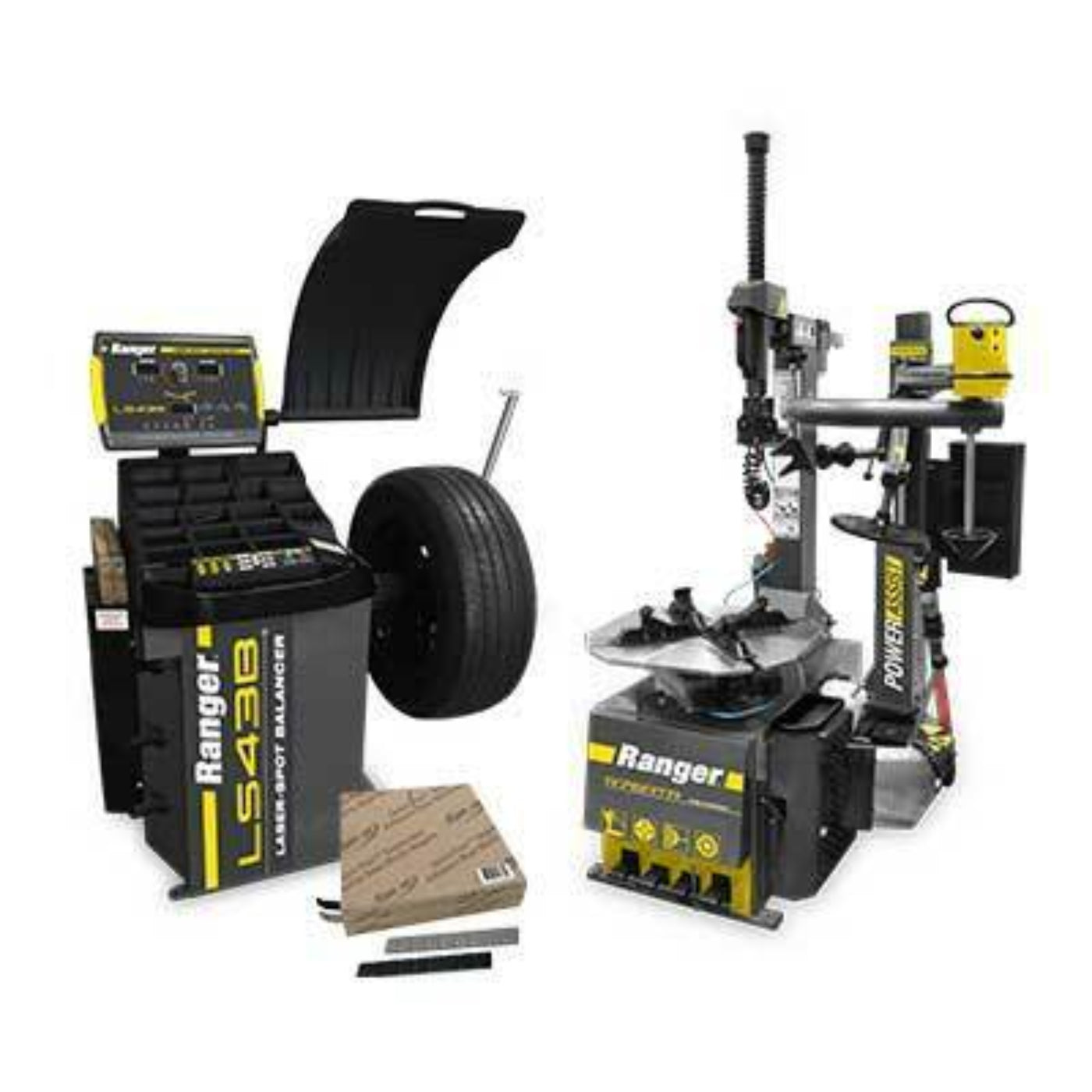

Ranger R76ATR Tire Changer + LS43B Wheel Balancer + Tape Wheel Weights Black and Silver 1400 pcs - 5140123

Ranger R76ATR Tire Changer + LS43B Wheel Balancer + Tape Wheel Weights Black and Silver 1400 pcs - 5140123

Adhesive Steel Wheel Weights / Combo / ROLLS (1400 pcs. - 0.25 oz. - 1/2" Wide - 22 lbs.)

This combo Quick-Peel™ adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Features

R76ATR (5140140) QTY 1

• 4 Clamps (Internal / External)
• Dual Pneumatic Cylinders
• Adjustable Pneumatic Blade
• Tilt-Back Tower Design
• Vertical Shaft / Tool Head Positioning
• Inflation System
• Inflation Gauge & Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tire Iron
• Alloy-Steel Mount-Demount Head
• Nylon Mount-Demount Head
• Large Soap Bucket
• Soap Brush
• TurboBlast™ Bead Seating System
• Tool Tray / Bin Storage

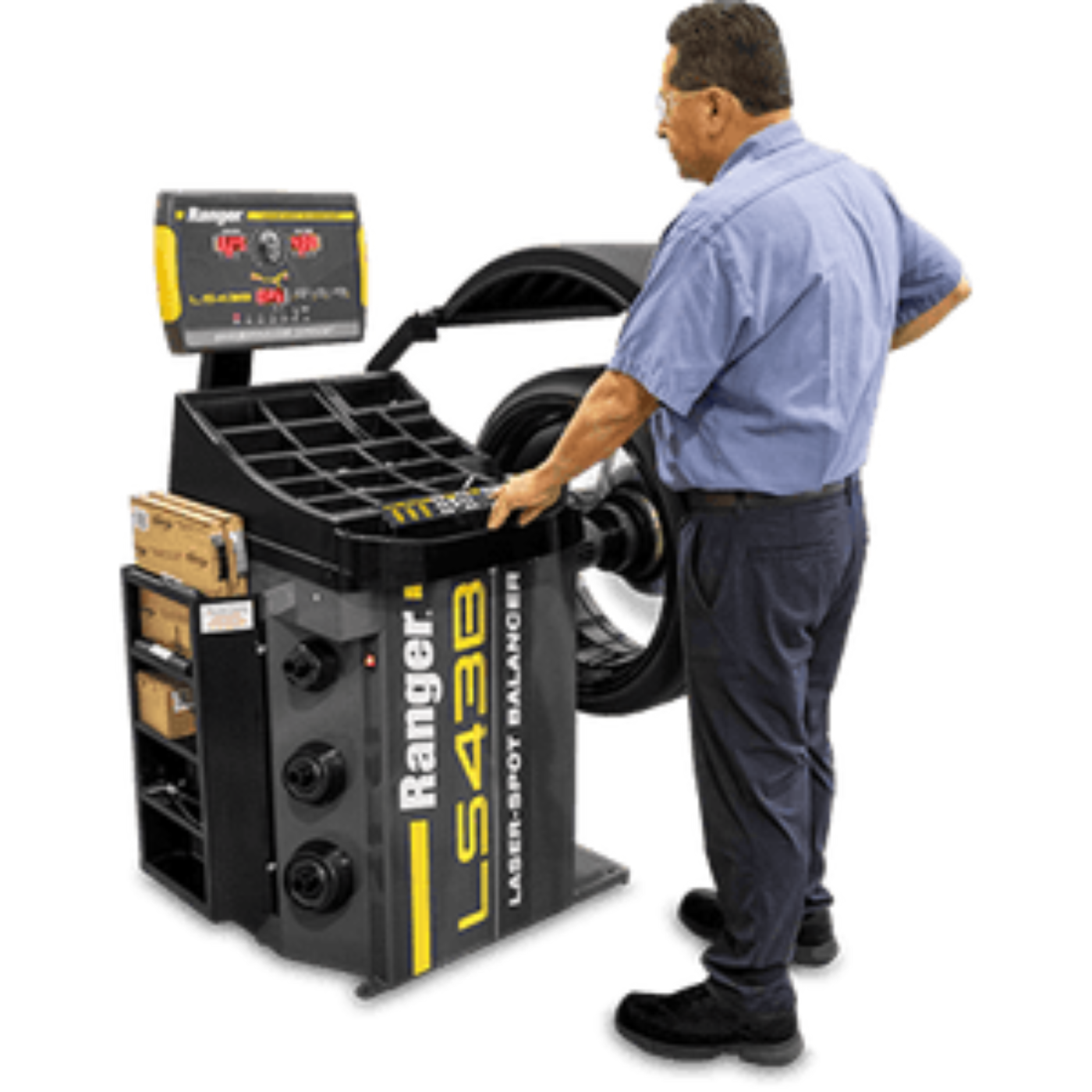

LS43B (5140151) QTY 1

• Dynamic, Static, and Performance Alloy settings
• Multi-user save function holds presets to increase productivity
• Ergonomic control board and easy-to-read LED display
• A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data
• Automatic rolling wheel parameter setting feature saves time, minimizes errors
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• “Open-side” hood design allows for a broader coverage of tire shapes and sizes

  Specifications

R76ATR (5140140) QTY 1

Manuals

Ranger R76ATR User Manual
Ranger R76ATR Sales Sheet

What our Experts Think

• Powerful Performance: Equipped with a brushless motor, this trimmer delivers power comparable to a 22.7cc gas engine, providing increased torque for cutting through thicker branches with ease.

• Long Battery Life: The included 40V Max XGT® 4.0Ah battery provides up to 6 hours of continuous use, reducing downtime and allowing you to tackle larger trimming jobs without interruptions.

• Efficient Cutting: Features a 30" single-sided shear blade with bevel-tipped, curved 3-sided teeth that grip branches and deliver clean, smooth cuts with minimal friction.

• Versatile Speed Settings: With three speed options (Low: 2,000 SPM, Medium: 3,600 SPM, High: 5,000 SPM), you can adjust the power based on the task at hand, maximizing performance and battery efficiency.

• Comfortable Design: Anti-vibration technology and an ergonomic handle ensure comfort and reduced fatigue during prolonged use, even in tough conditions.

• Durability: Built with weather-resistant materials, the trimmer is designed to withstand various environmental conditions, ensuring long-term durability and reliability.

Q&A

Q: What is included in the Ranger R76ATR Tire Changer, LS43B Wheel Balancer, and Tape Wheel Weights Combo (SKU: 5140123)?
This comprehensive package includes the R76ATR tire changer, LS43B wheel balancer, and Quick-Peel™ adhesive steel wheel weights (1,400 pieces in black and silver).

Q: How does the Laser-Spot™ Technology in the LS43B enhance wheel balancing?
Laser-Spot™ Technology optimizes wheel weight placements by clearly indicating where to position weights, achieving balances within hundredths of an ounce for a smoother ride.

Q: What are the benefits of using Quick-Peel™ adhesive steel wheel weights?
These weights provide an effective and environmentally friendly solution for balancing wheels, allowing technicians to use the minimum necessary weight for precise balancing

Q: Is this package suitable for professional automotive service centers?
Yes, this package is designed for high-volume tire service operations, offering time-saving features and precise balancing capabilities to meet professional demands

Maintenance Tips

• Regular Inspection: Periodically examine the tire changer for signs of wear, loose components, or damage. Ensure all moving parts are functioning correctly.

• Lubrication: Apply appropriate lubricants to moving parts, such as the bead loosener and assist tower, to ensure smooth operation. Refer to the user manual for specific lubrication points and recommended lubricants.

• Cleaning: Keep the tire changer clean and free from debris. Regularly remove any tire residue or foreign materials that could affect performance.

• Safety Precautions: Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when operating or servicing the tire change
