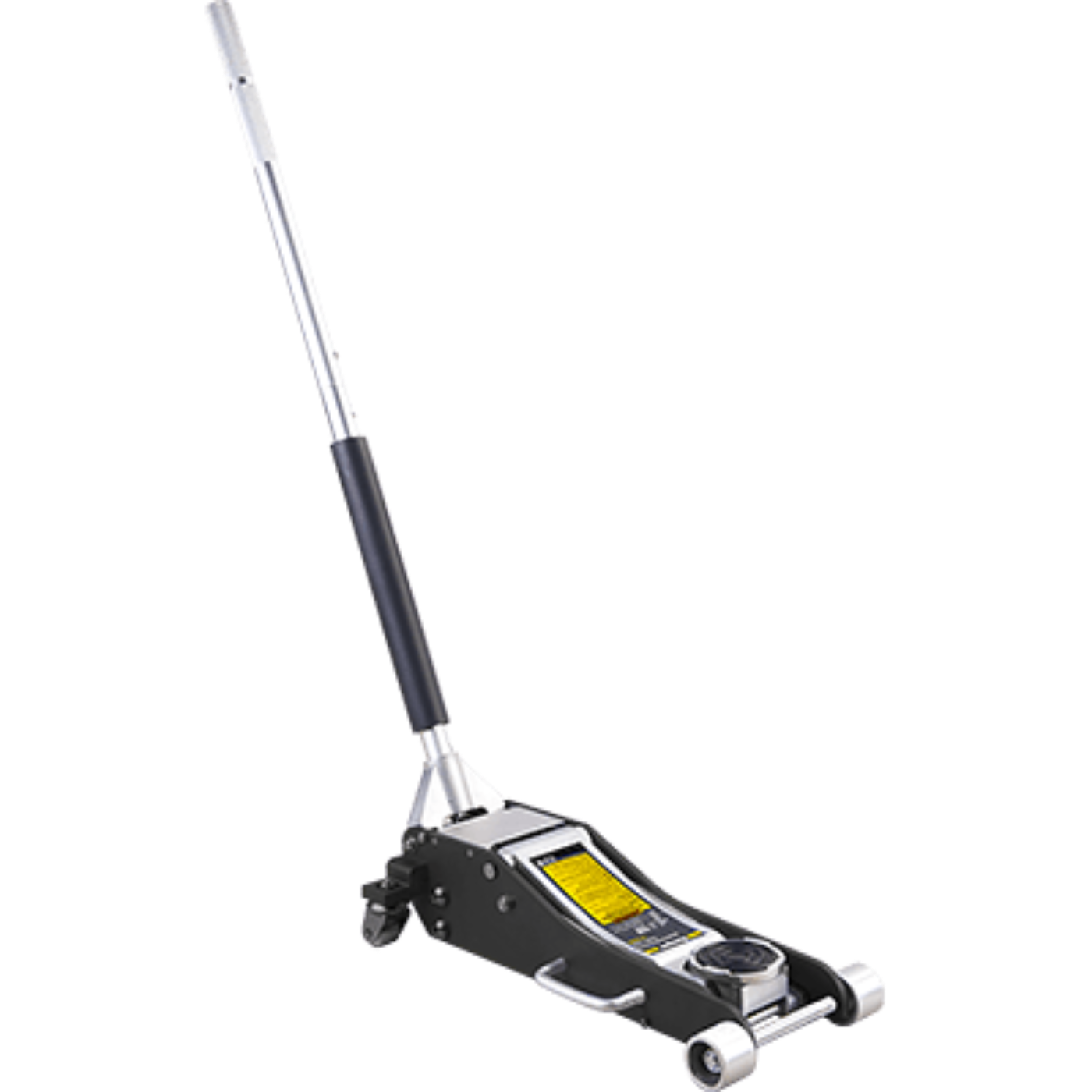

Ranger RFJ-3000AL 1-1/2 Ton Aluminum Racing Quick Jack - 5150061

• 3,000-lb. lifting capacity
• Lightweight for easy portability
• Aircraft grade billet aluminum design
• Low profile single piece front roller
• Oversized knurled aluminum handle
• Three and a half quick pumps to full rise

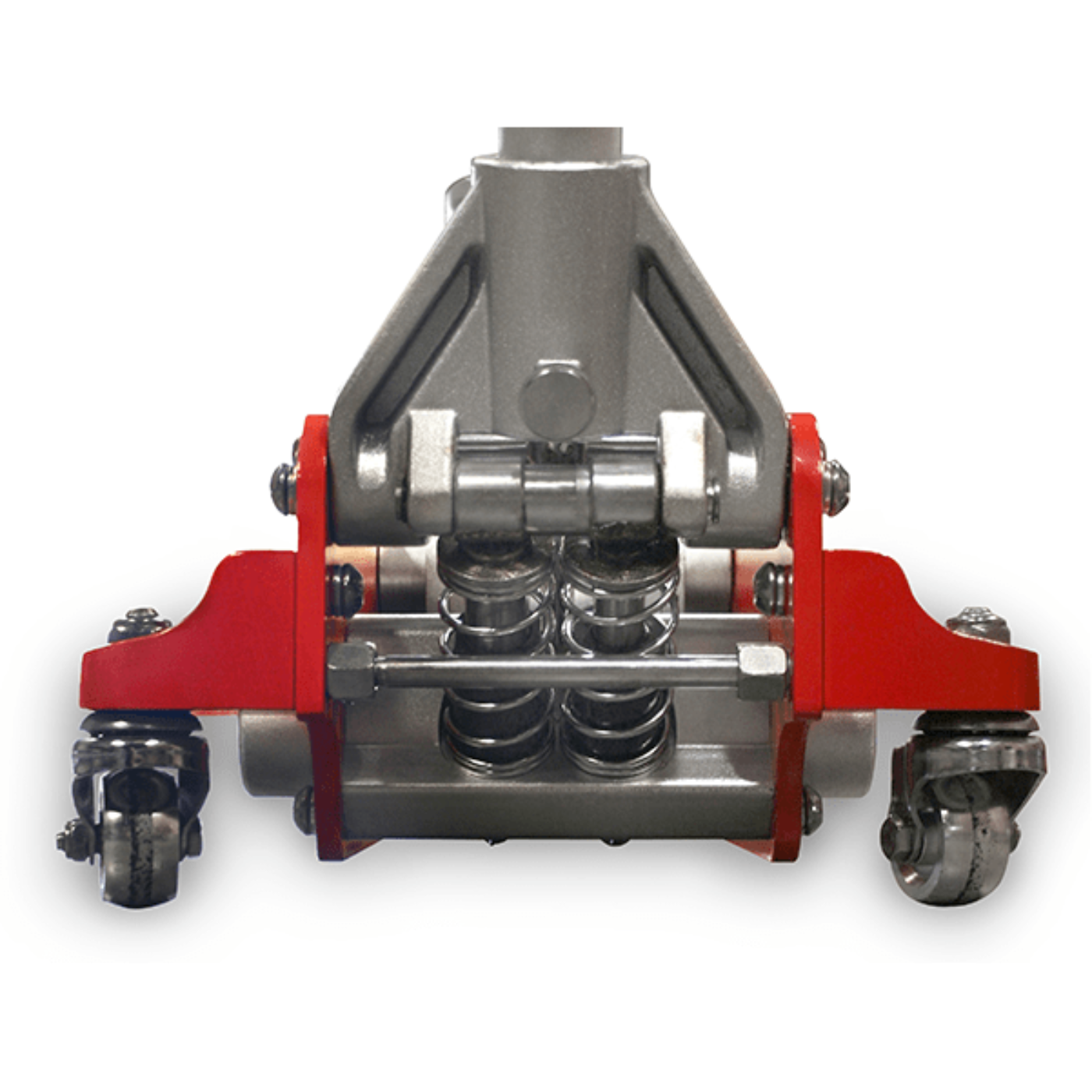

• Dual-plunger pump assembly
• Roller-cam plungers and u-joint release
• Alloy-plated ram
• Double-sealed hydraulics for longer service life
• Built-in safety overload valve

Specifications

Manuals

Ranger RFJ-3000AL User Manual
Ranger RFJ-3000AL Sales Sheet

What our Experts Think

• High Lifting Capacity: The Ranger RFJ-3000AL boasts a 3,000-lb (1,361 kg) lifting capacity, suitable for a wide range of vehicles.

• Lightweight Design: Crafted from aircraft-grade billet aluminum, it weighs only 41 lbs (19 kg), ensuring easy portability without compromising strength.

• Low Profile: With a lowered pad height of 3.5 inches (89 mm), it's ideal for vehicles with low ground clearance.

• Quick Lifting: Equipped with a dual-plunger pump assembly, it reaches its full raised height of 17.5 inches (445 mm) in just four pumps, enhancing efficiency.

Q&A

Q: What is the lifting capacity of the RFJ-3000AL?

A: The RFJ-3000AL has a lifting capacity of 3,000 lbs (1,361 kg), suitable for most performance vehicles.

Q: What are the lowered and raised heights of this jack?

A: It features a lowered pad height of 3.5 inches (89 mm) and a raised height of 17.5 inches (445 mm), accommodating a variety of vehicles.

Q: How heavy is the RFJ-3000AL?

A: The jack weighs approximately 41 lbs (19 kg), making it lightweight and easy to maneuver.

Q: What materials are used in its construction?

A: Constructed from aircraft-grade billet aluminum, it combines strength with reduced weight for enhanced portability.

Q: How many pumps does it take to reach full lift?

A: The dual-plunger pump system allows the jack to reach full lift in just three and a half pumps, improving efficiency during use.

Q: What safety features does the RFJ-3000AL include?

A: It includes a built-in safety overload valve to prevent overloading and ensure safe operation.

Maintenance Tips

• Regular Cleaning: After each use, clean the jack to remove dirt, grease, and debris. Use a mild detergent and a soft cloth to prevent surface damage.

• Lubrication:

• Hydraulic System: Periodically check the hydraulic fluid level. With the saddle fully lowered and the jack on level ground, remove the filler screw. If the fluid level is below the hole, add quality hydraulic fluid as nee
• Moving Parts: Lubricate all moving joints, including the saddle post and handle pivot, with appropriate grease to ensure smooth operation and extend the jack's lifespan.
• Air Purging: Air may become trapped in the hydraulic system during transit. To purge air:
• Open the release valve by twisting the handle counterclockwise.
• Pump the handle rapidly 4-6 times to expel air from the oil passages.
• Close the release valve by twisting the handle clockwise and pump the handle.
• If the lift arm raises, the jack is ready for use. If not, repeat this procedure.
• Safe Operation:
• Load Capacity: Adhere to the jack's 3,000-lb lifting capacity
• Positioning: Before lifting, ensure the jack is correctly positioned under the vehicle's lifting point
• Lifting: Close the release valve tightly by twisting the handle clockwise (avoid overtightening). Operate the jack handle until the saddle approaches the load. Once the load is raised to the desired height, place jack stands under the vehicle for added safety.
• Lowering: After ensuring jack stands are securely in place, open the release valve slowly by twisting the handle counterclockwise to lower the vehicle onto the stands. Before removing the jack, ensure the release valve is closed tightly.
