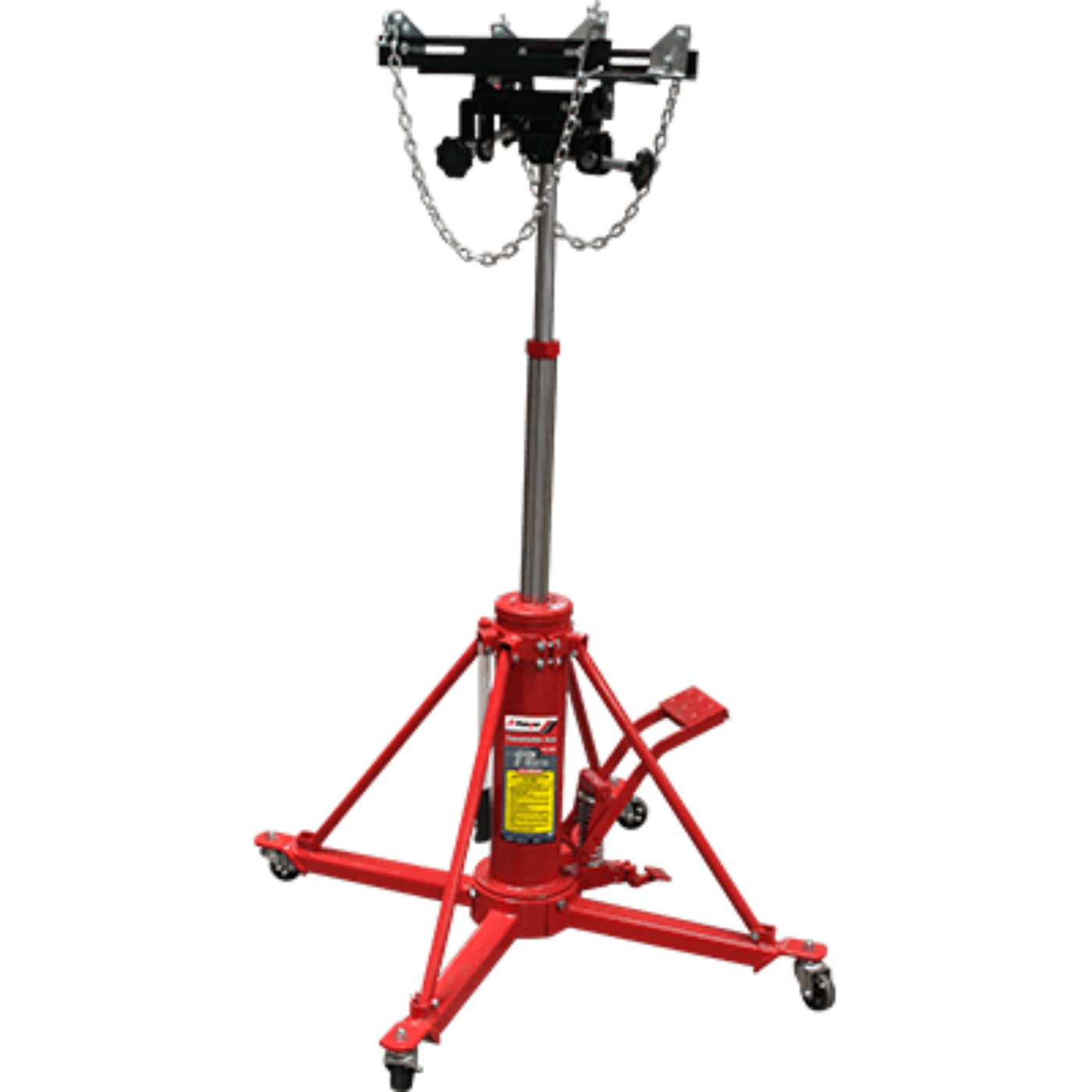

Ranger RTJ-3000 1-1/2 Ton Transmission Jack, Truck Model - 5150406

• Foot -operated pump
• Alloy-plated ram
• Two-stage design
• Extra-wide base
• Safety overload system

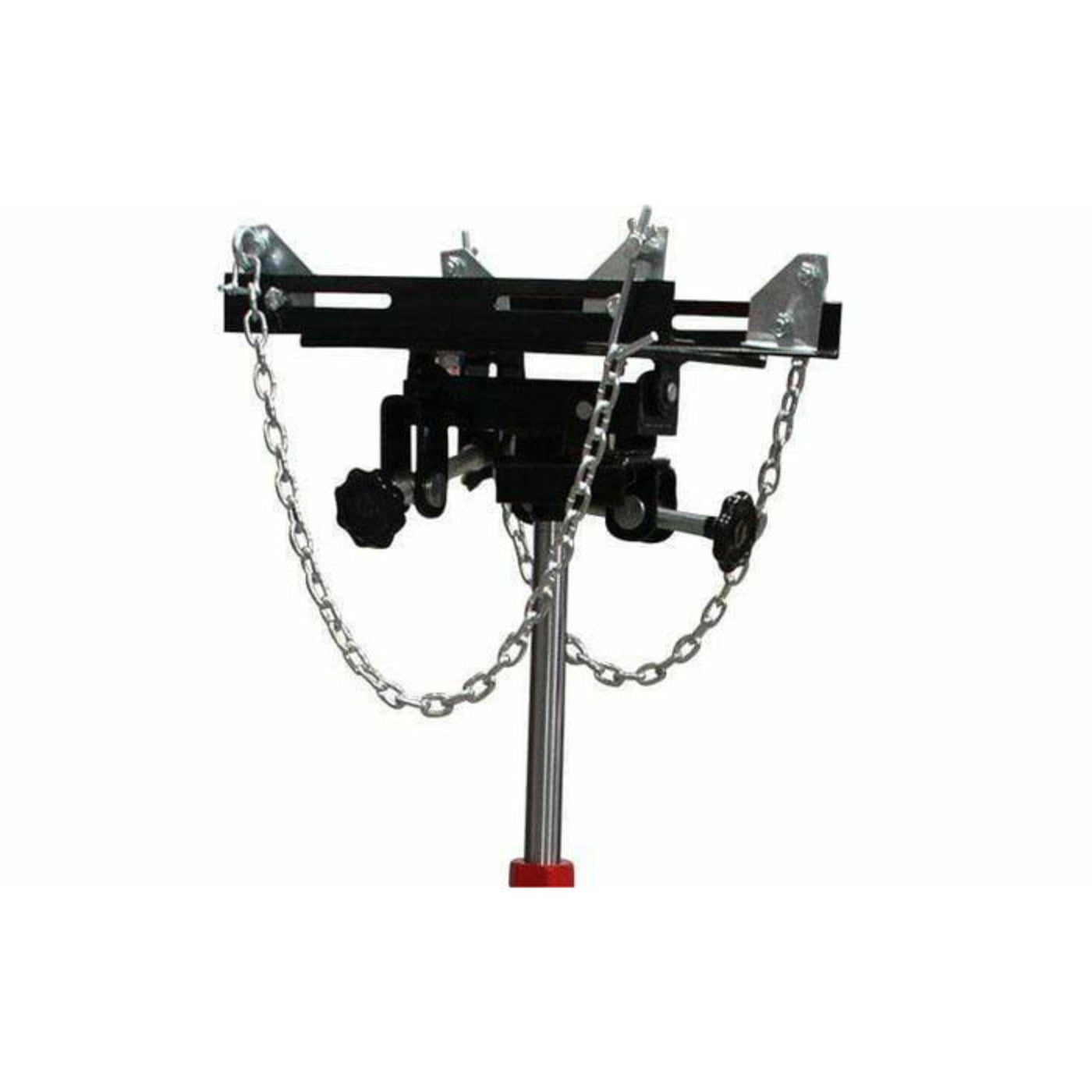

• Adjustable saddle tilts two ways
• Saddle slides the other two ways
• Heavy-duty steel swivel casters
• Two push/pull handles
• Heavy steel construction for maximum durability
• Sealed hydraulic unit prevents contamination
• Double-sealed hydraulics for longer service life
• Heavy-duty chain anchors keep loads secure
• Steel roller bearings are included underneath the table and on the ends of the adjustment screw to minimize friction and allow for effortless table adjustment even when loaded
• Fully adjustable universal saddle adapts to passenger car and light truck automatic transmissions and transaxle assemblies
• Fine-thread adjustment screws with oversized knobs make adjusting the table a cinch
• Two-stage design provides an extended lifting height of over 71"
• Hardened chrome-moly ram prohibits rust from entering hydraulic system
• Convenient pull handle for extra stability and control
• System overload system prevents the jack from being used beyond its rated capacity

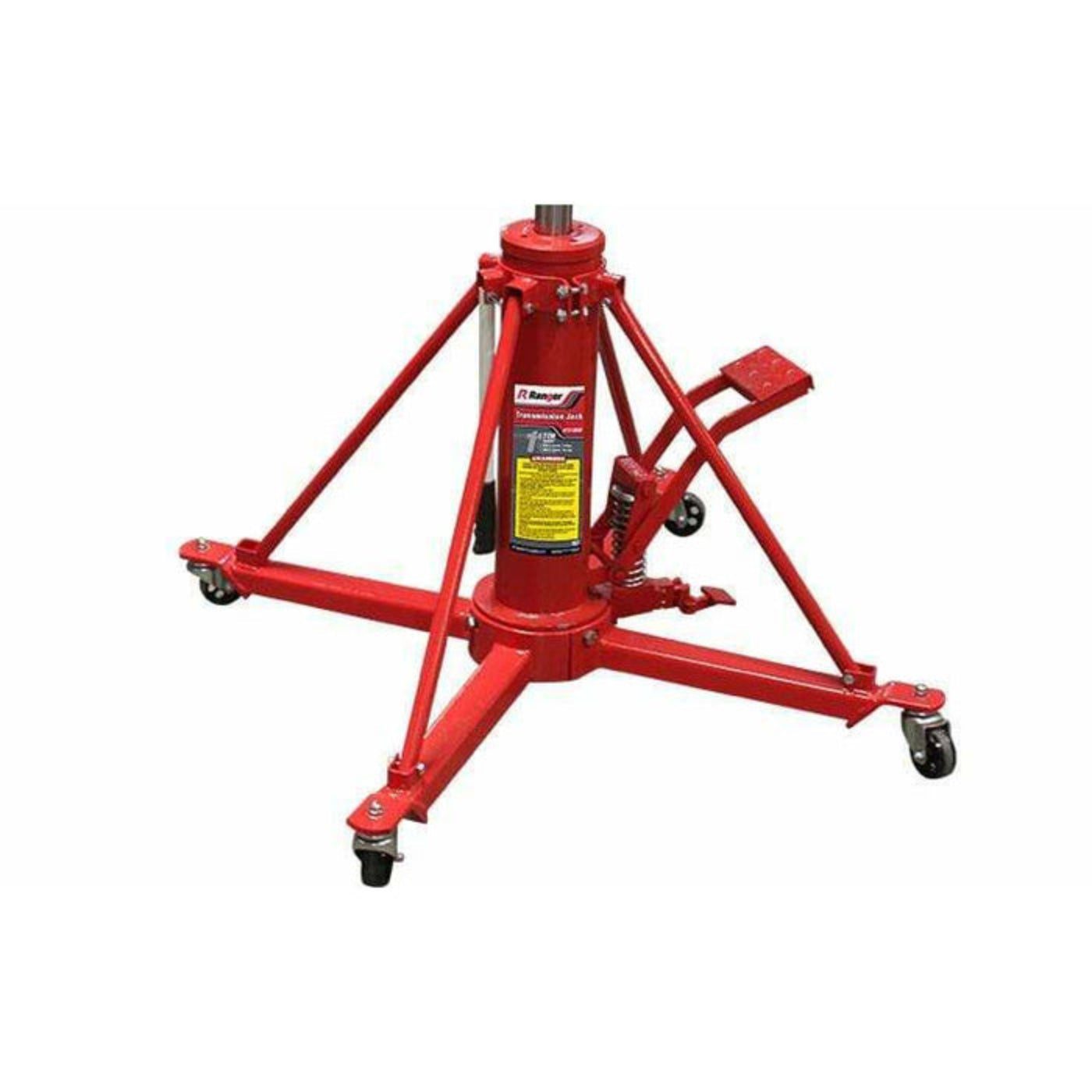

• Extra-wide base and four heavy-duty swivel ball bearing casters provides a low center of gravity and exceptional maneuverability

Specifications

Manuals

Ranger RTJ-3000 User Manual
Ranger RTJ-3000 Sales Sheet

What our Experts Think

• High Lifting Capacity: The Ranger RTJ-3000 features a 1.5-ton (3,000 lbs) lifting capacity, ideal for safely handling the removal and installation of heavy-duty transmissions in trucks, vans, and light vehicles.

• Extended Lifting Height: With a two-stage design, this jack offers a maximum lifting height of 71.5 inches, providing excellent clearance for full-rise lifts and making it suitable for a range of vehicle types.

• Adjustable Saddle: The fully adjustable saddle allows tilting and sliding, ensuring compatibility with various transmission sizes and configurations, improving flexibility during use.

• Stability & Mobility: Equipped with a wide base and heavy-duty swivel casters, the RTJ-3000 offers stability during lifting operations and easy maneuverability across the shop floor.

• Durable and Safe: Constructed from heavy-duty steel, this jack includes safety overload features, sealed hydraulics, and anchor chains for secure and reliable performance over time.

Q&A

Q: What is the Ranger RTJ-3000 Transmission Jack?
A: The Ranger RTJ-3000 is a heavy-duty 1-1/2 ton transmission jack designed for safely and efficiently lifting and removing transmissions from light trucks and vehicles.

Q: What is the lifting capacity of the RTJ-3000?
A: The RTJ-3000 has a lifting capacity of 3,000 lbs, making it ideal for heavy-duty transmission service.

Q: What is the lifting height of the RTJ-3000?
A: The jack offers a maximum lift height of 71.5 inches, suitable for working under full-rise lifts.

Q: Who should use the Ranger RTJ-3000?
A: This jack is perfect for mechanics, automotive technicians, and service shops handling transmission replacements or repairs on trucks, vans, and light-duty vehicles.

Maintenance Tips

• Regular Cleaning: After each use, clean the jack thoroughly to remove dirt, debris, and hydraulic fluid residues to maintain smooth operation.

• Inspect Hydraulic System: Check for leaks in the hydraulic lines and connections. Ensure hydraulic fluid is at the proper level, topping it up with the recommended fluid when necessary.

• Lubricate Moving Parts: Regularly apply lubricant to the moving components such as the saddle, pump, and swivel casters to prevent wear.

• Test Safety Features: Periodically verify the safety overload system works correctly to avoid exceeding the jack's rated capacity.

• Proper Storage: Store the jack in a clean, dry area to prevent rust and damage from environmental factors.
