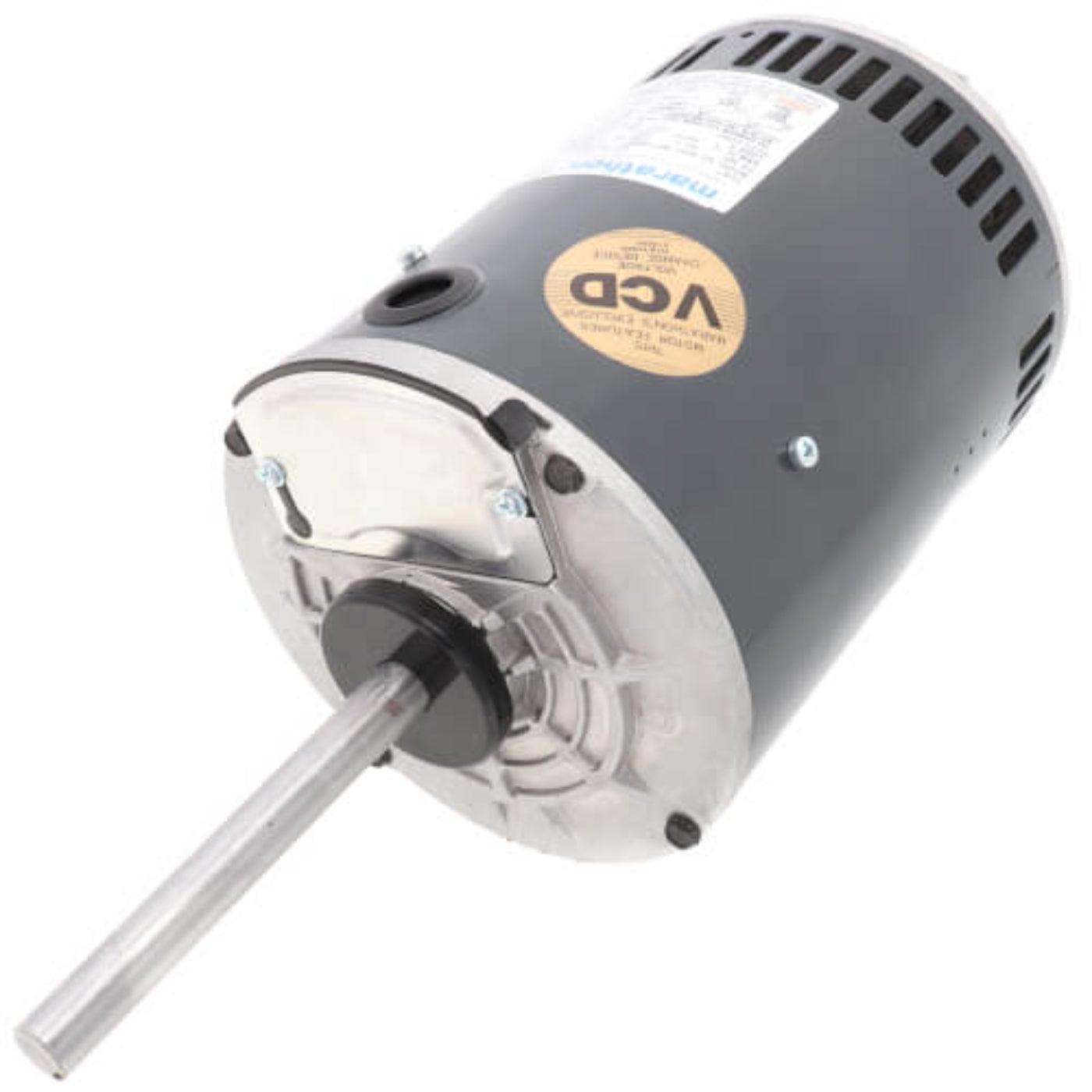

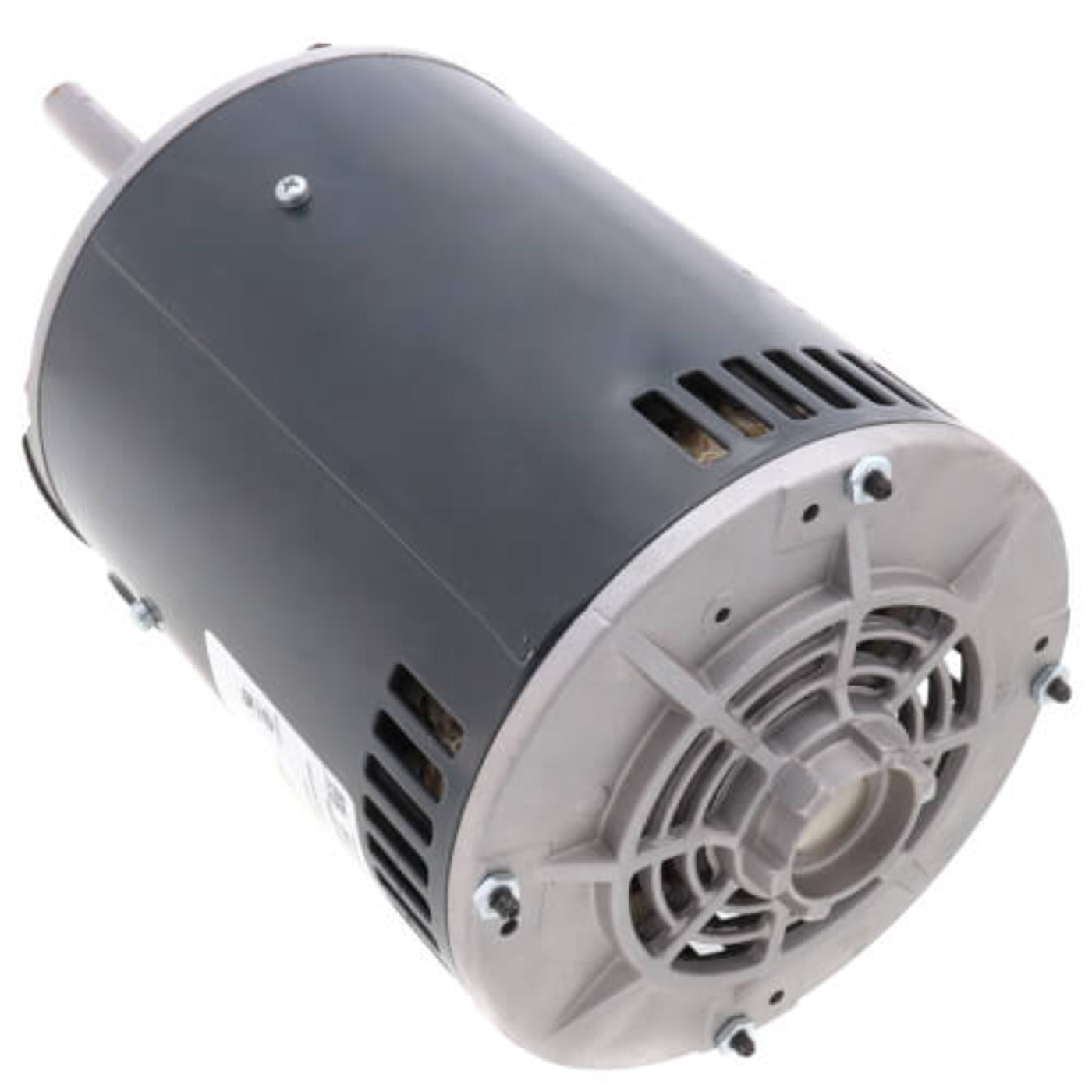

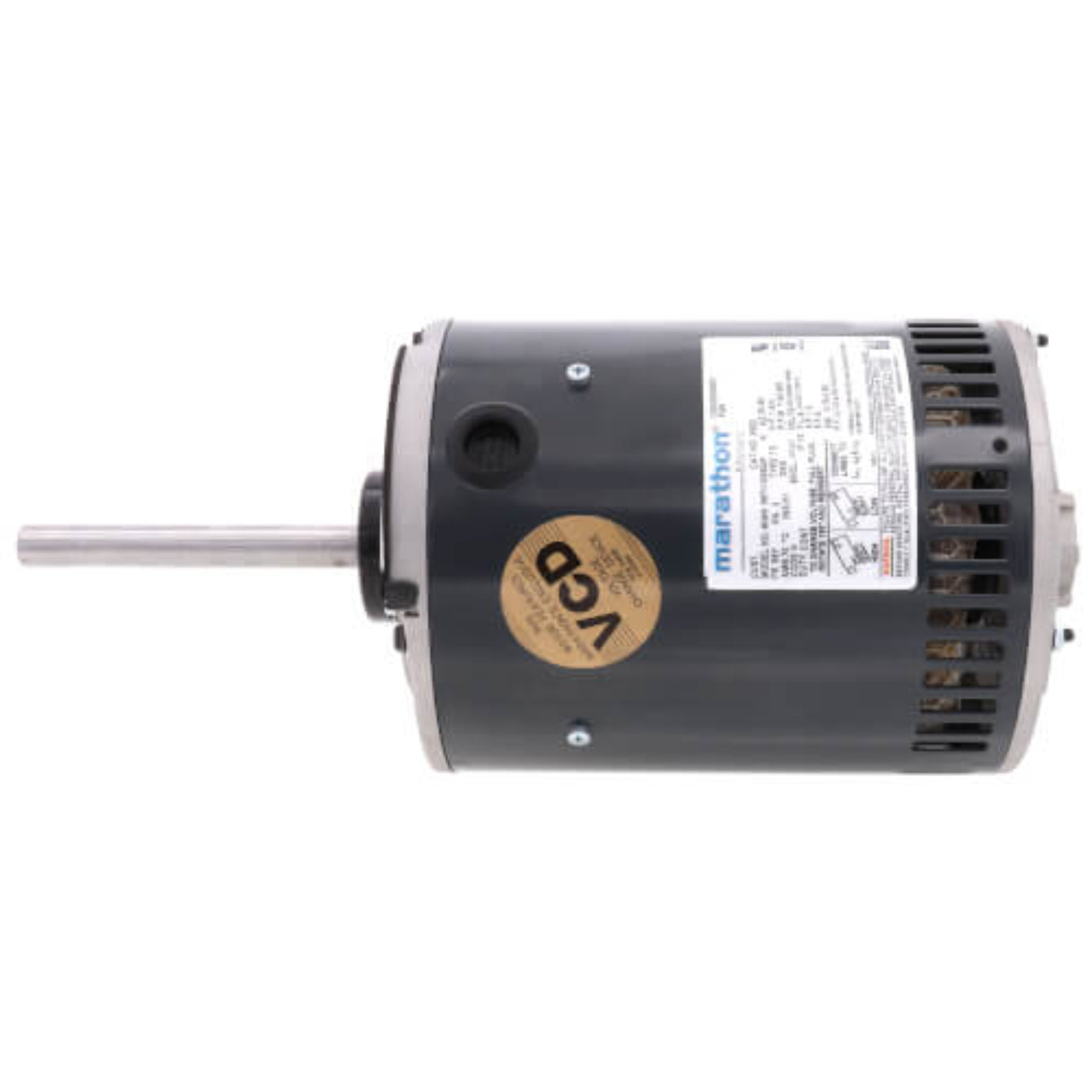

Marathon Regal Rexnord - Marathon X502 1HP 200-230/460V 1140RPM Mtr - X502

Marathon Regal Rexnord - Marathon X502 1HP 200-230/460V 1140RPM Mtr - X502

The Regal Rexnord - Marathon X502 is a one horsepower motor designed for various industrial applications. It operates on 200-230/460 volts and reaches a consistent speed of 1140 RPM. The motor's robust rolled steel frame ensures durability and prevents corrosion, making it suitable for challenging environments. With three-phase power, the X502 provides efficient and reliable operation for equipment such as conveyors and material handling systems.

Product Highlights

This motor is ideal for use in HVAC systems and other industrial machinery where dependable power is essential.

Features

• 1 HP rating for versatile industrial use
• Supports multiple voltage options: 200-230/460V
• Continuous duty with reliable performance

Specifications

What our Experts Think

• Reliable Power: Delivers 1 HP at 1140 RPM, perfect for low-speed, continuous-duty applications like fans, condensers, and pumps.

• Three-Phase Flexibility: Operates on 200-230/460V, providing compatibility with multiple electrical systems.

• Efficient Cooling: The Open Air Over (OAO) design ensures excellent cooling by allowing airflow around the motor.

• Reversible Rotation: Offers flexible installation, allowing for optimal configuration and airflow direction.

• Durable Construction: Built with a 56Y frame and sealed ball bearings for improved stability and longer service life.

• Thermal Protection: Includes an automatic reset thermal protector to avoid overheating, ensuring safe operation.

Q&A

Q: What is the Marathon X502 motor?
A: The X502 is a 1 horsepower, three-phase motor with an Open Air Over (OAO) enclosure. It operates at 1140 RPM and is commonly used in industrial applications like compressors, fans, and blowers.

Q: What is the voltage rating for the X502 motor?
A: The X502 motor operates on a 200-230/460V power supply, making it versatile for different voltage setups.

Q: What applications is the X502 motor suitable for?
A: This motor is ideal for use in outdoor units, such as air conditioning systems, as well as in material handling equipment and manufacturing machinery.

Q: What does OAO mean in motor enclosures?
A: OAO stands for Open Air Over, which means the motor is cooled by air that circulates around the motor. It’s suitable for applications where the motor is in a relatively clean and dry environment.

Q: Does the X502 motor have thermal protection?
A: The X502 motor has automatic lock rotor protection but no other built-in thermal protection, so external protection may be required.

Q: What is the frame size for the X502 motor?
A: The motor has a 56Y frame size, which is common for smaller motors used in various applications.

Maintenance Tips

• Regular Cleaning: Keep the motor free from dust and debris, especially the fan and air passages, to maintain airflow.

• Check Bearings: Ensure the ball bearings are adequately lubricated and inspect for wear.

• Monitor Temperature: Ensure the motor doesn’t overheat by checking its temperature regularly, especially under heavy load conditions.

• Check Wiring and Connections: Tighten electrical connections and inspect for any signs of wear or corrosion.
