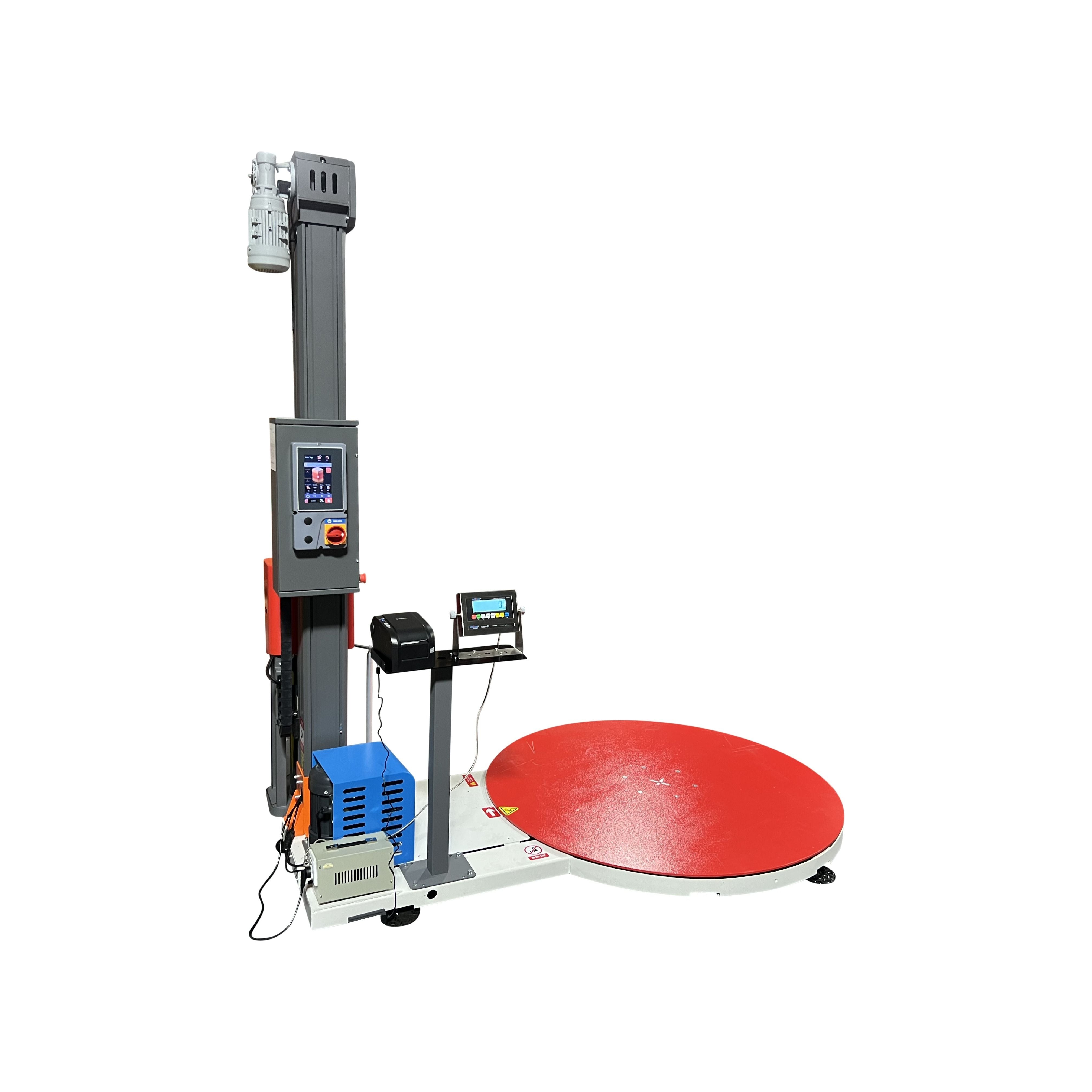

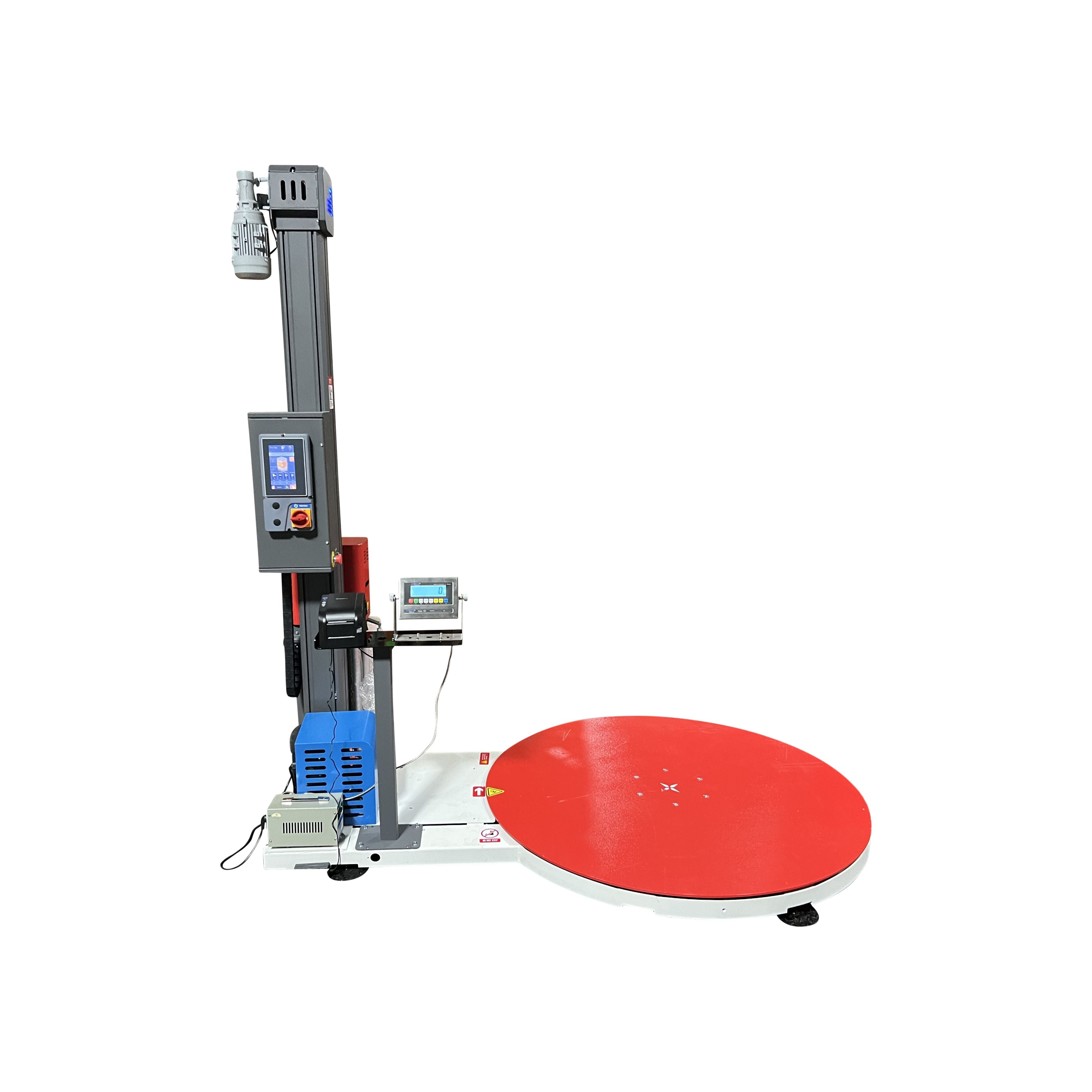

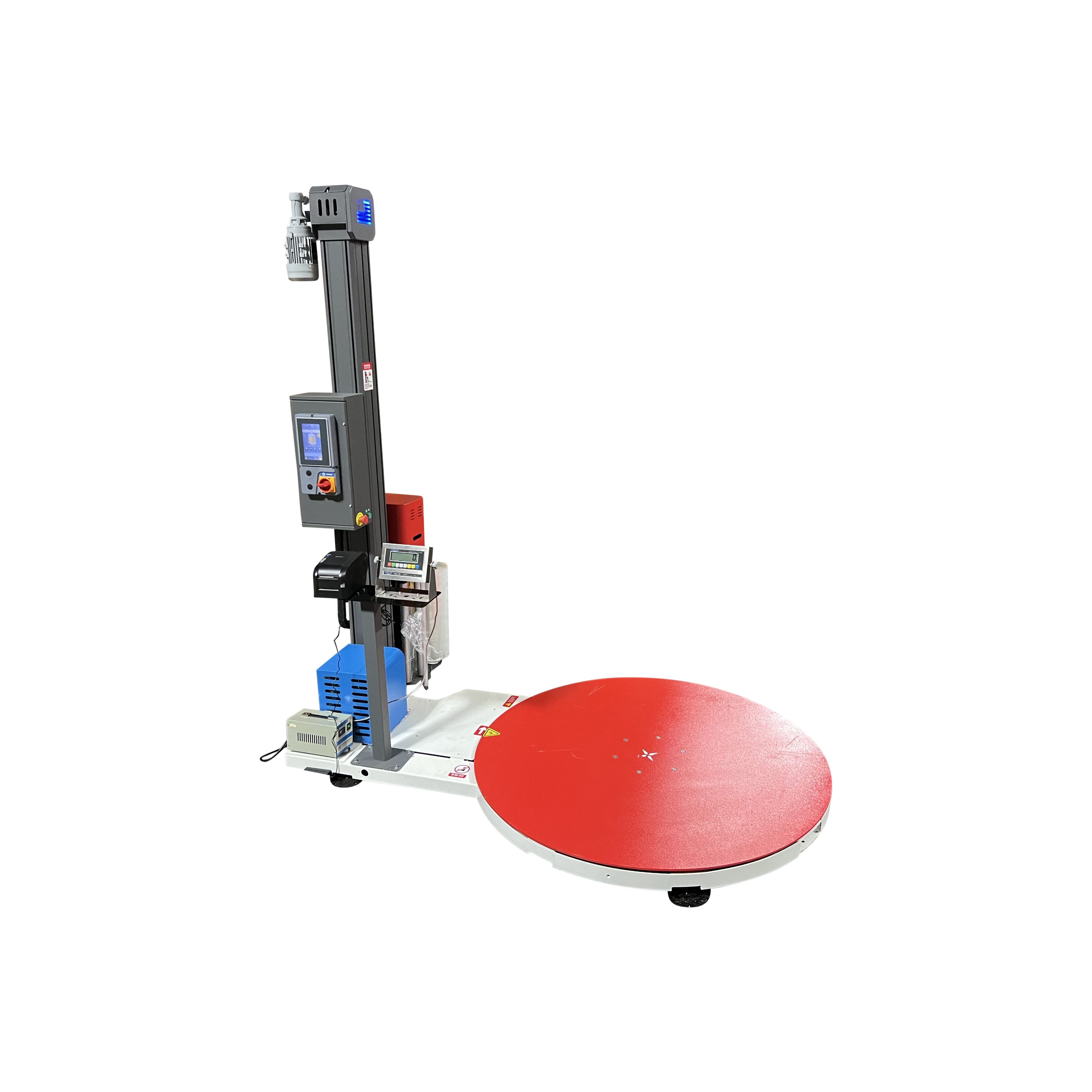

iDeal SL-7200-X0-PS Automatic Pallet Wrapping Machine with scale system

iDeal SL-7200-X0-PS Automatic Pallet Wrapping Machine with scale system

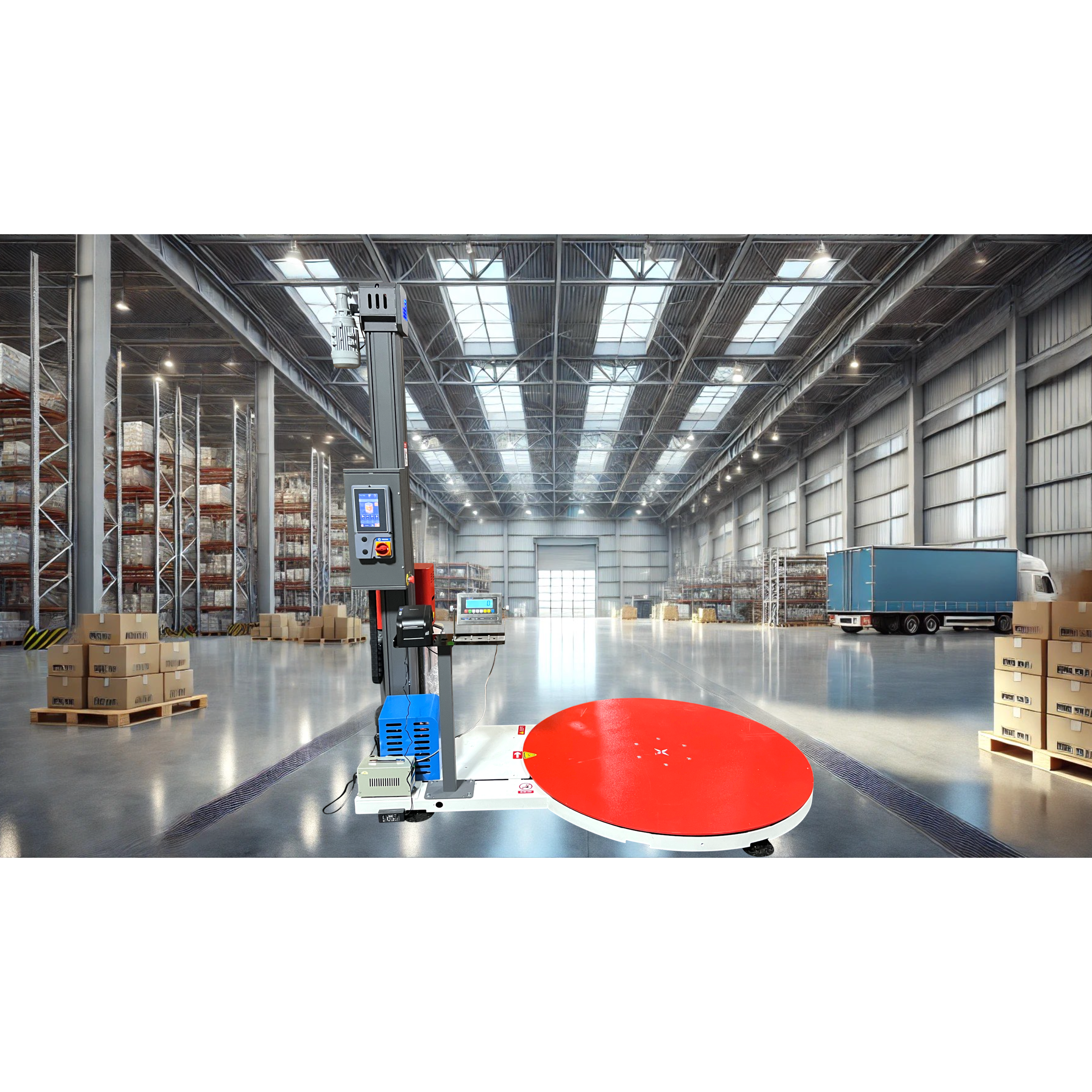

Introducing the SL-7200-X0-PS, a premium high-performance pallet wrapping machine designed to streamline your warehouse operations with efficiency and precision. Built with industrial-strength components and equipped with advanced technology, this machine delivers reliability for high-demand environments in the USA.

Features

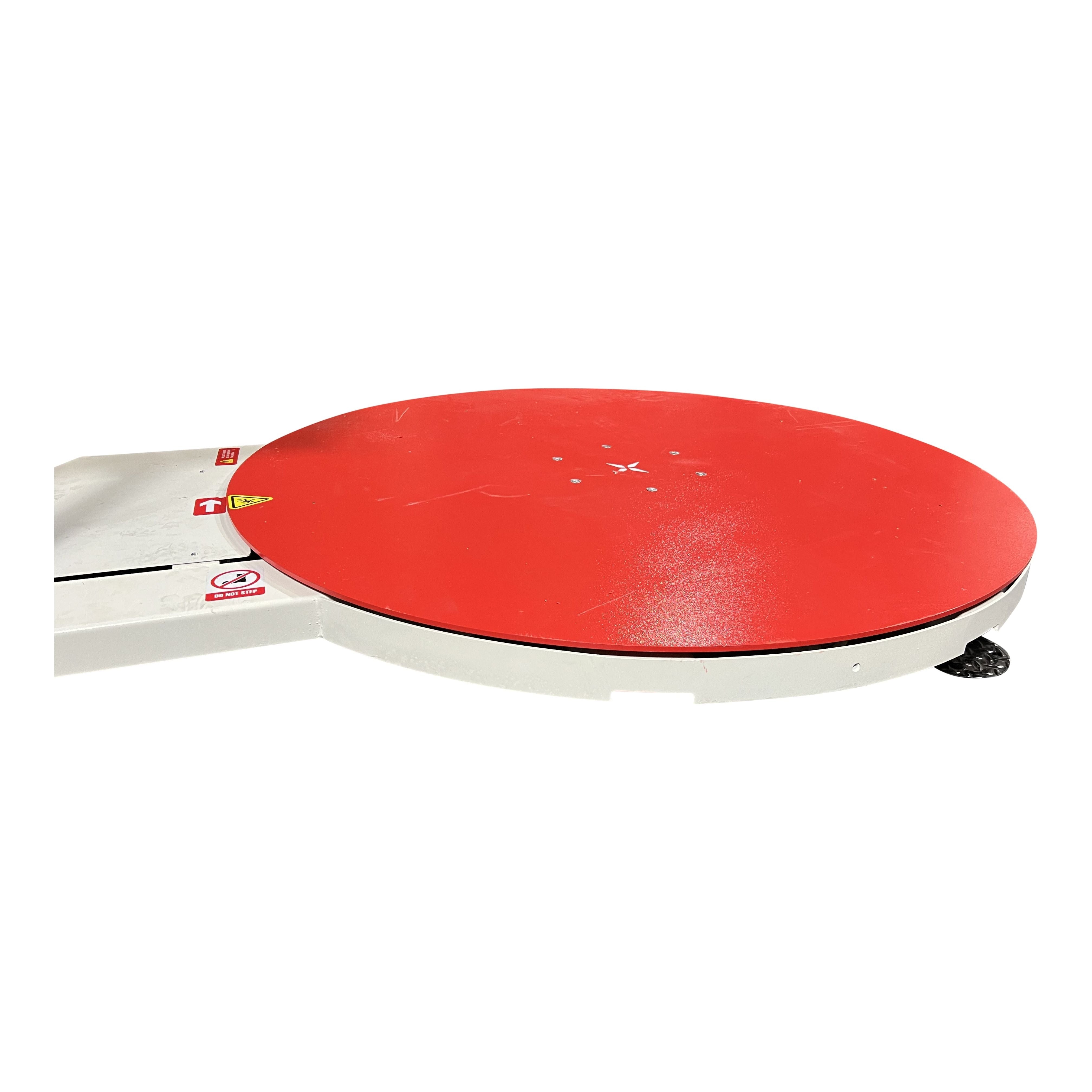

• Generous Turntable Size: The 59” turntable accommodates pallets up to 1.2 x 1m, providing versatility for standard-sized loads.
• Impressive Wrapping Capacity: With a maximum wrapping height of 2000mm (6.5 feet) and a robust load capacity of 4400 lbs (2000 kg), the SL-7200-X0-PS is suitable for a wide range of palletized goods.
• Efficient Wrapping Speed: Capable of wrapping up to 25 pallets per hour, this machine optimizes throughput while ensuring secure and consistent wrapping.
• Adjustable Turntable and Carriage Speeds: The turntable speed ranges from 3 to 12 RPM, and the carriage’s up-and-down speed can be set from 1.5 to 5.5 meters per minute, allowing flexibility to meet varied packaging needs.

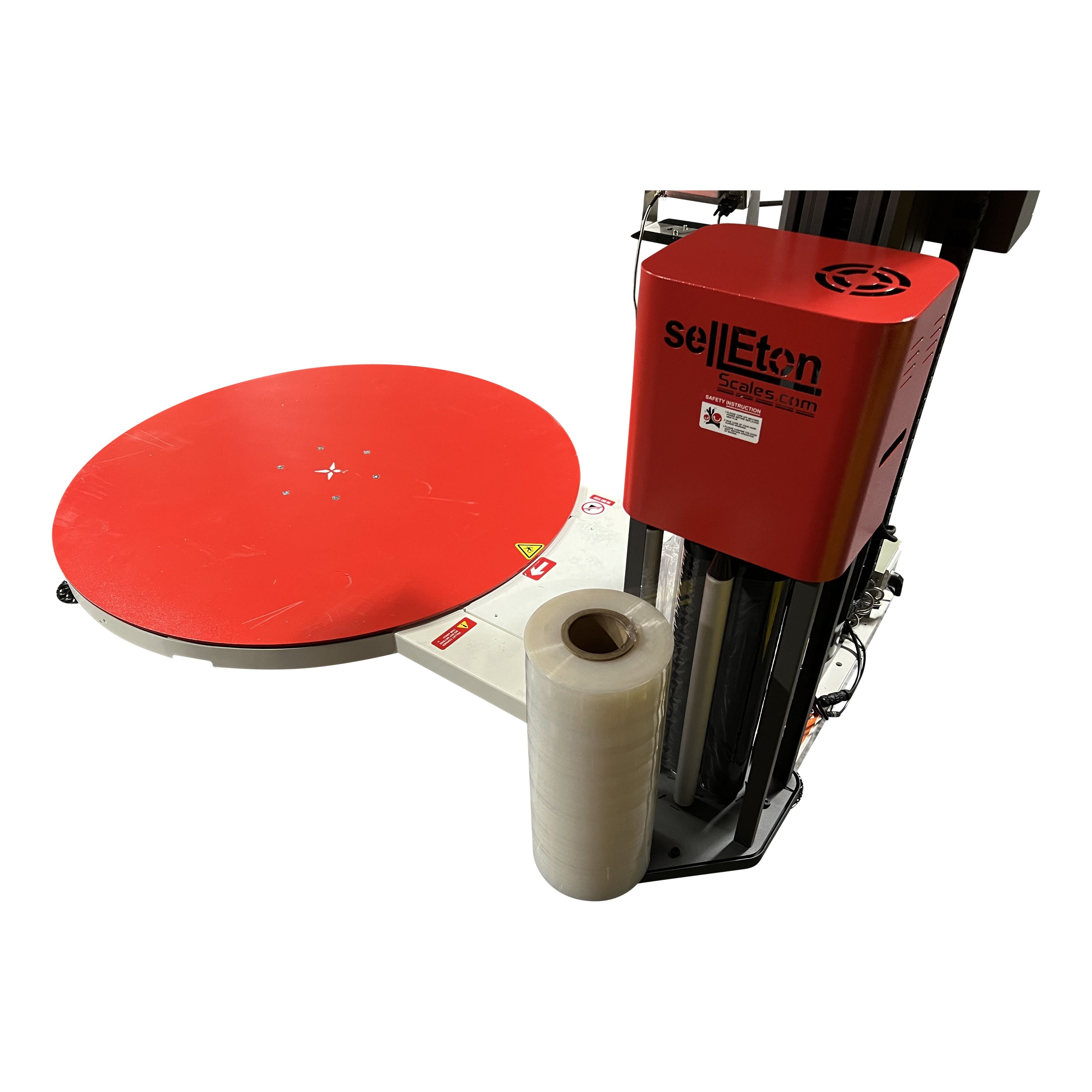

• High Pre-Stretch Rate: This machine features a fixed pre-stretch rate of 250%, maximizing film efficiency by stretching 1 meter of film to 2.5 meters, saving on film costs while ensuring a tight wrap.

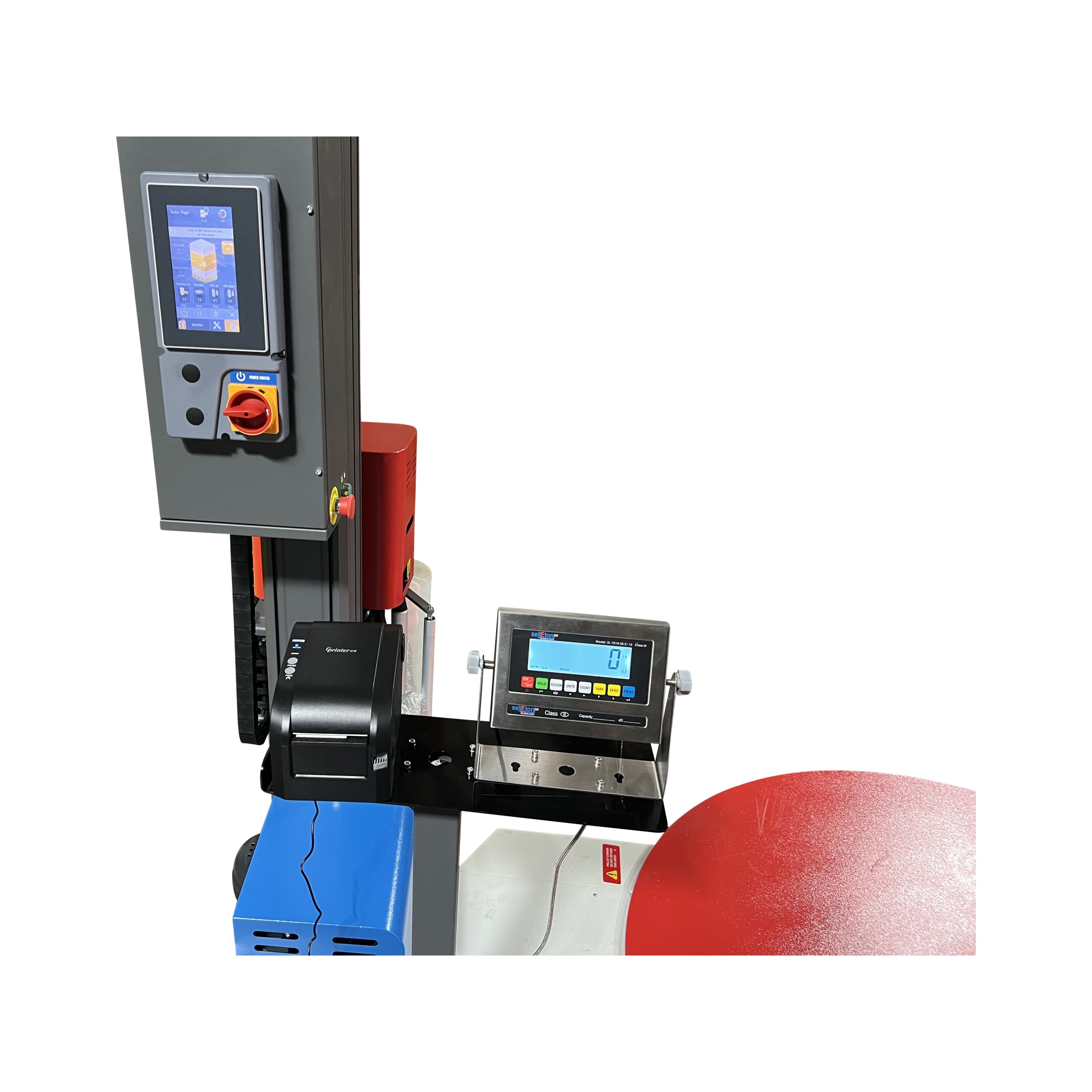

• User-Friendly Controls: Equipped with a SellEton touch screen interface, the SL-7200-X0-PS is intuitive and easy to operate. The control system is managed by a reliable PCB board, making it ideal for both experienced operators and new users.
• Global Brand Components: The machine features premium components from trusted brands:
• SICK proximity switches (Germany)
• Autonics photoelectric sensor (optional black sensor)
• GPG motor (Taiwan)
• OMRON position switch (Japan)

Specifications

Videos

What our Experts Think

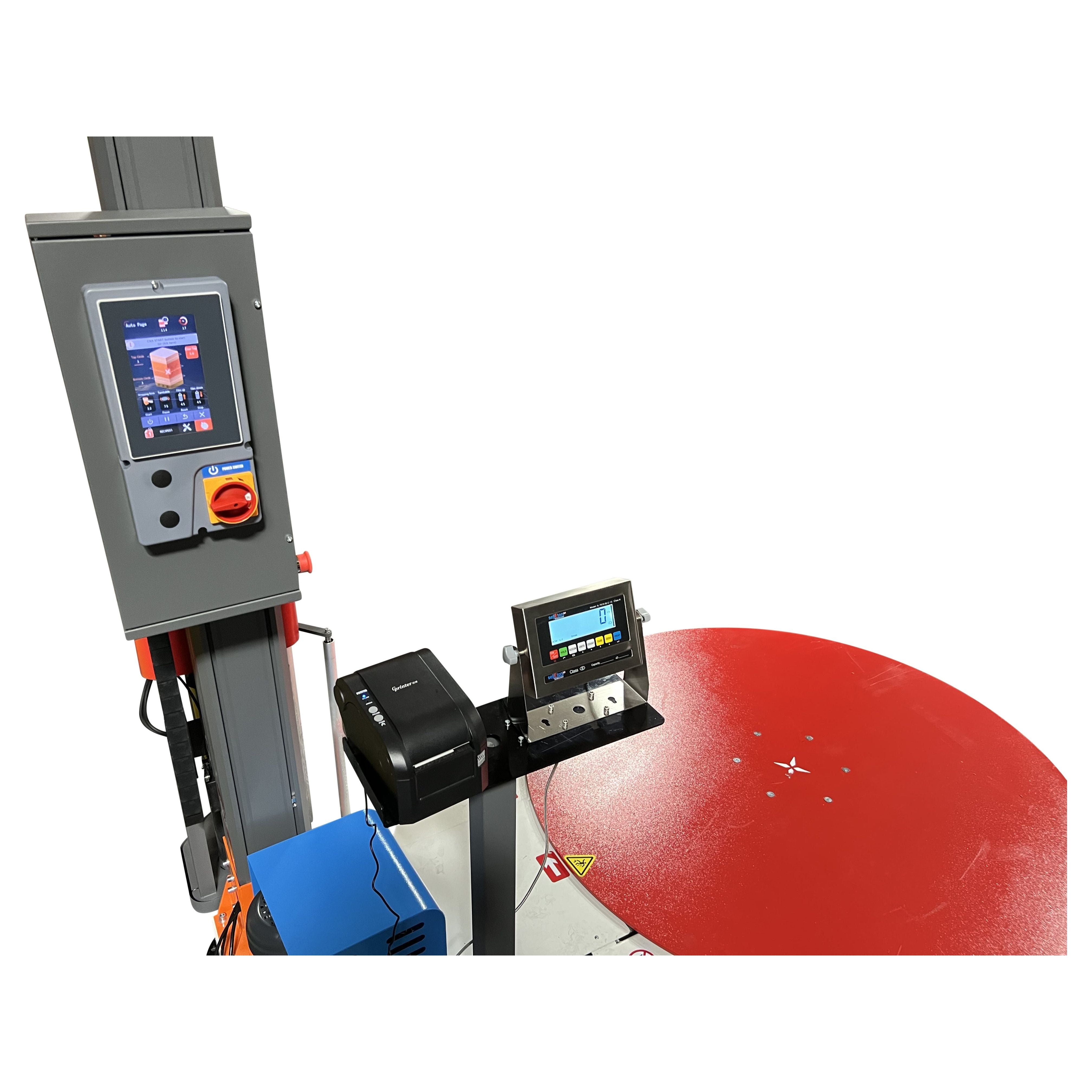

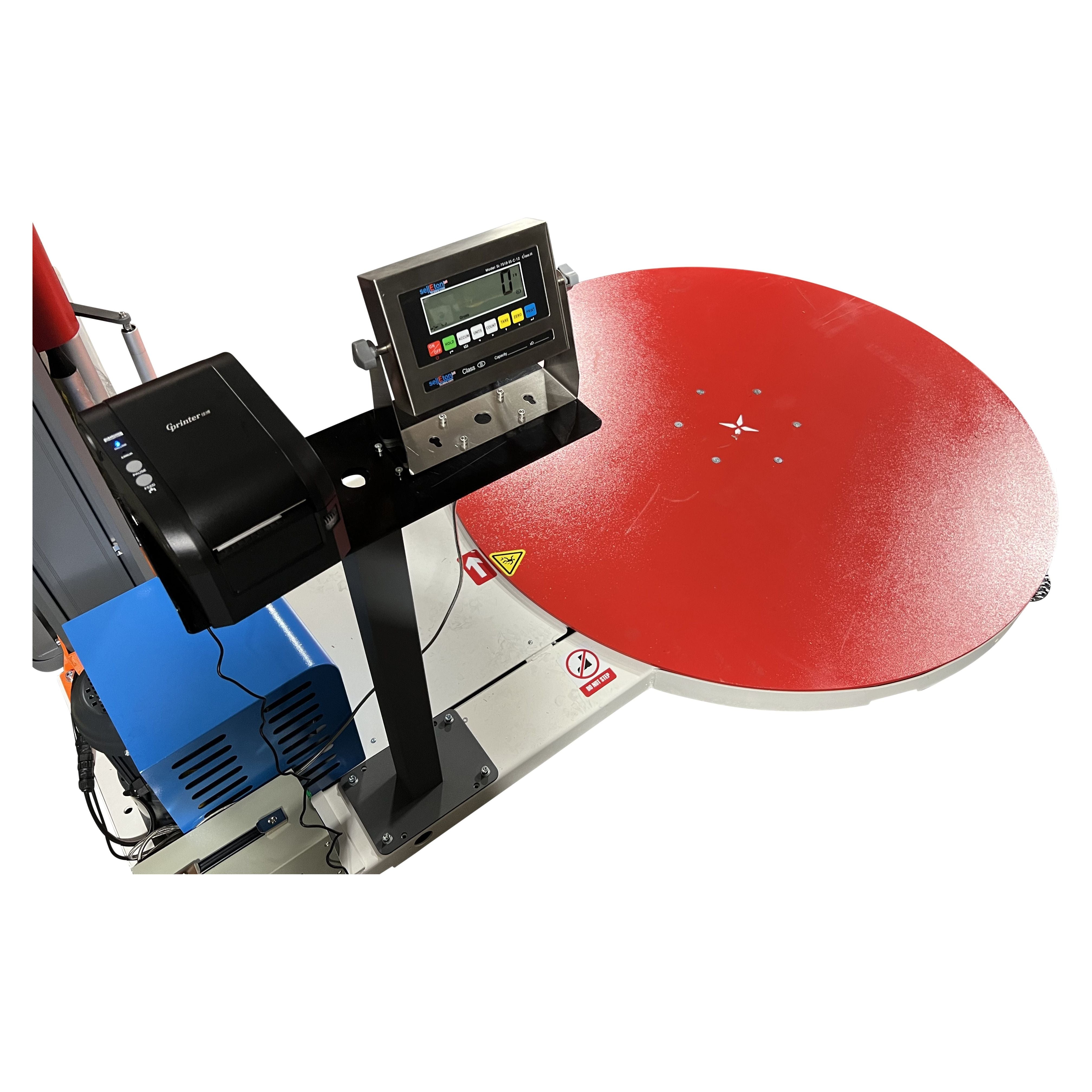

• Integrated Weighing System: Built-in scale allows operators to weigh pallets during wrapping, streamlining workflow and eliminating extra handling steps.

• High Performance: Wraps up to 25 pallets per hour with a max load capacity of 4,400 lbs—ideal for busy warehouse and shipping operations.

• Precision Wrapping: Delivers a consistent 250% pre-stretch, maximizing film usage and reducing material waste.

• Adjustable Settings: Customizable turntable speed (3–12 RPM) and carriage movement speed (1.5–5.5 m/min) for full control over the wrapping process.

• Large Turntable: 59” platform supports standard pallet sizes up to 48” x 40”, with a wrapping height up to 6.5 feet.

• User-Friendly Interface: Features a touchscreen control panel and intuitive PCB system for easy operation.

• Built Tough: Industrial-grade design ensures long-term reliability in demanding environments.

Q&A

Q: What is the iDeal SL-7200-X0-PS?
A: It’s a fully automatic pallet wrapping machine with a built-in scale system, designed for high-efficiency wrapping and weighing in industrial and warehouse settings.

Q: What size pallets can it handle?
A: It supports pallets up to 1.2 x 1 meters, with a maximum load capacity of 4,400 lbs and a wrap height up to 79 inches (2000 mm).

Q: How fast is the machine?
A: It can wrap up to 25 pallets per hour. Turntable speed is adjustable between 3–12 RPM, and film carriage speed ranges from 1.5 to 5.5 meters per minute.

Q: What type of stretch film does it use?
A: It uses 20-inch film rolls, with a max roll diameter of 9.84 inches and roll weight up to 33 lbs.

Q: What power does it require?
A: Operates on 110V, single phase, 1.5 kW power supply.

Q: Who is it best for?
A: Ideal for warehouses, manufacturers, shipping centers, and operations looking to increase throughput, consistency, and precision in pallet packaging.

Maintenance Tips

• Lubricate Moving Parts: Apply lubricant to the turntable chain and carriage guide rails.

• Drive System: Check belt and chain tension; inspect for signs of wear or fraying.

• Emergency Stop Test: Ensure all safety switches and emergency stops are functioning.

• Scale Calibration: Verify and calibrate the scale system for accuracy.

• Electrical Check: Inspect connections for looseness or corrosion and secure them if needed.

• Software Settings Review: Check control settings and update firmware if applicable.

• Use Compatible Stretch Film: Stick with recommended film specs for optimal performance.

• Operator Training: Ensure all users are trained on correct usage and safety.

• Routine Inspections: Set a regular inspection schedule to catch and prevent issues early.
