Stratus SAE-C10X 10,000 Lbs Extra Wide Two Post Lift - SAE-C10X

Stratus SAE-C10X 10,000 Lbs Extra Wide Two Post Lift - SAE-C10X

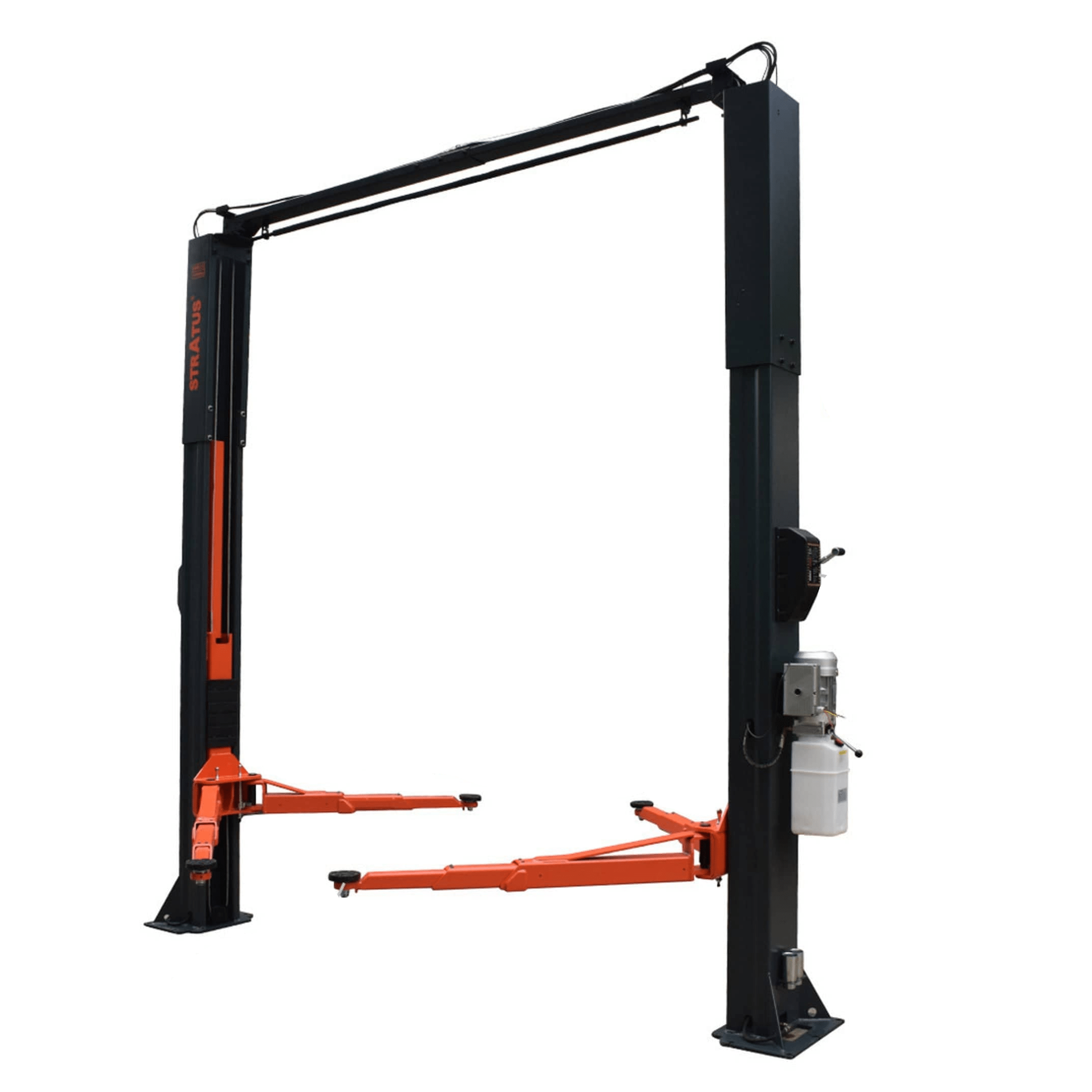

Introducing the Stratus 2-In-1 Clear Floor Car Lift SAE-C10X, a cutting-edge 2-Post Lift that combines both asymmetric and symmetric lifting capabilities. Engineered for versatility and strength, it boasts an impressive 10,000 lbs capacity. With a direct drive system powered by a single-point manual release, this lift ensures optimal control and efficiency.

Its extra-wide design accommodates a variety of vehicles, while the clear floor feature provides an unobstructed workspace underneath, making it an essential addition to any garage or workshop. Whether you're working on compact cars or larger trucks, the Stratus SAE-C10X delivers unmatched performance and reliability.

Important Notes

• A $425 surcharge applies to the following states: OR, WA, ID, MT, ND, SD, and ME.
• Buyer is responsible for unloading freight; additional charges may apply if unloading exceeds 30 minutes.

Video

Features

• 10,000 lbs Lifting Capacity: Handles vehicles of various sizes with ease.
• 2-in-1 Design: Symmetric and asymmetric lifting options for maximum versatility.
• Extra-Wide Drive Through: 112" symmetrical and 107 11/16" asymmetrical clearance.
• Clear Floor Design: Provides unobstructed workspace for easier maintenance.
• Heavy-Duty 14-Fold Columns: Built for durability and long-term use.

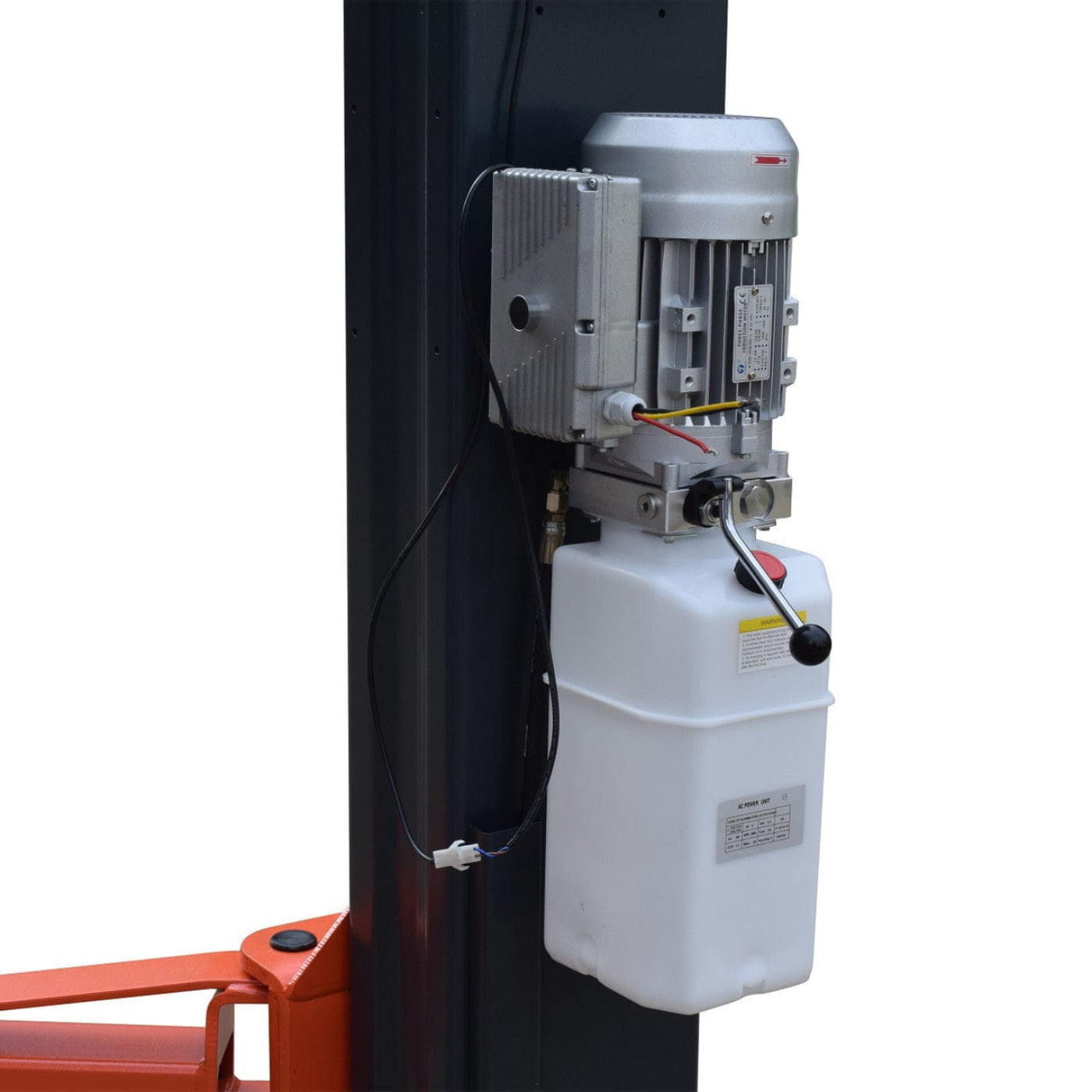

• Direct Drive System: Ensures smooth and efficient lifting operations.

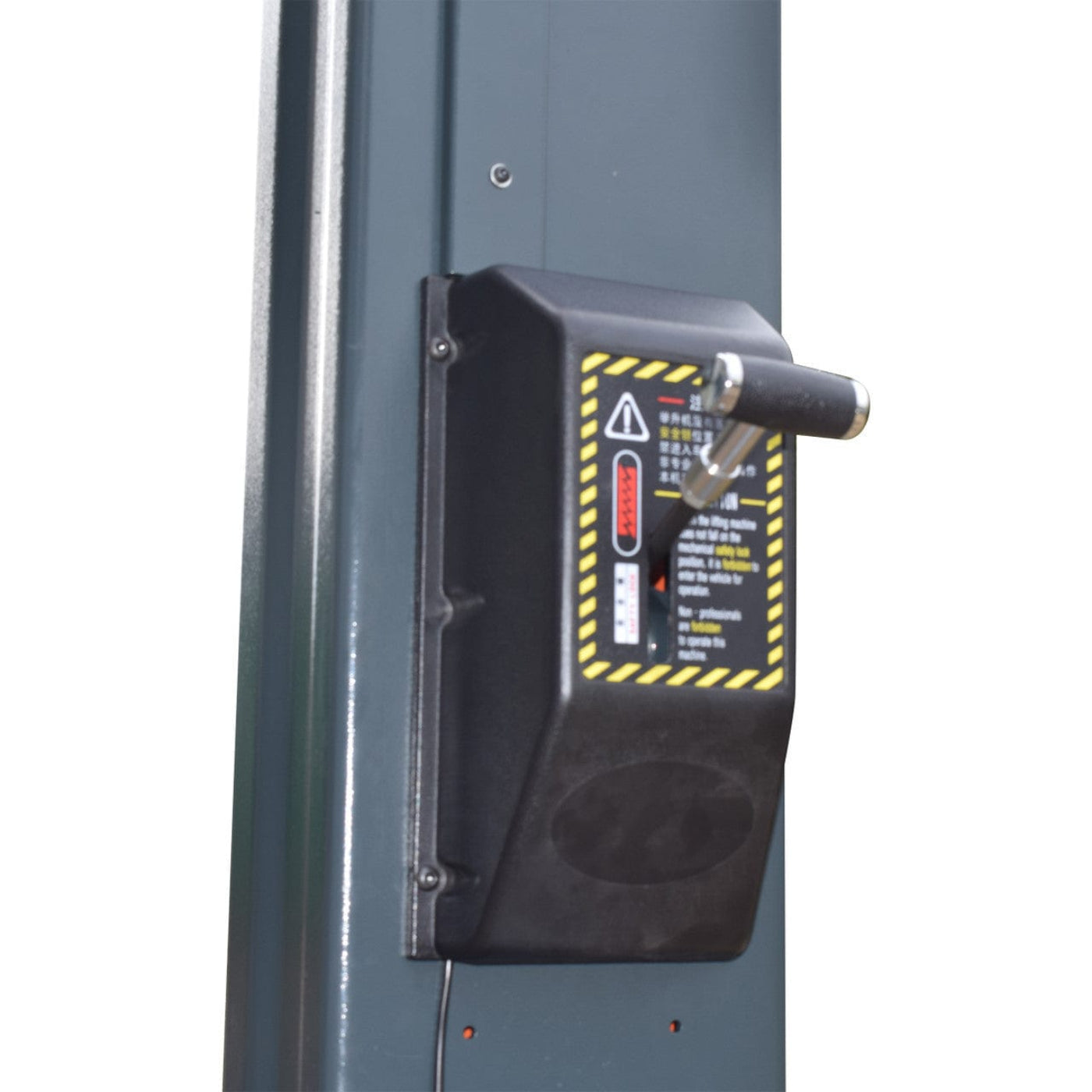

• Electric Safety Lock Release: Prioritizes safety during every lift.

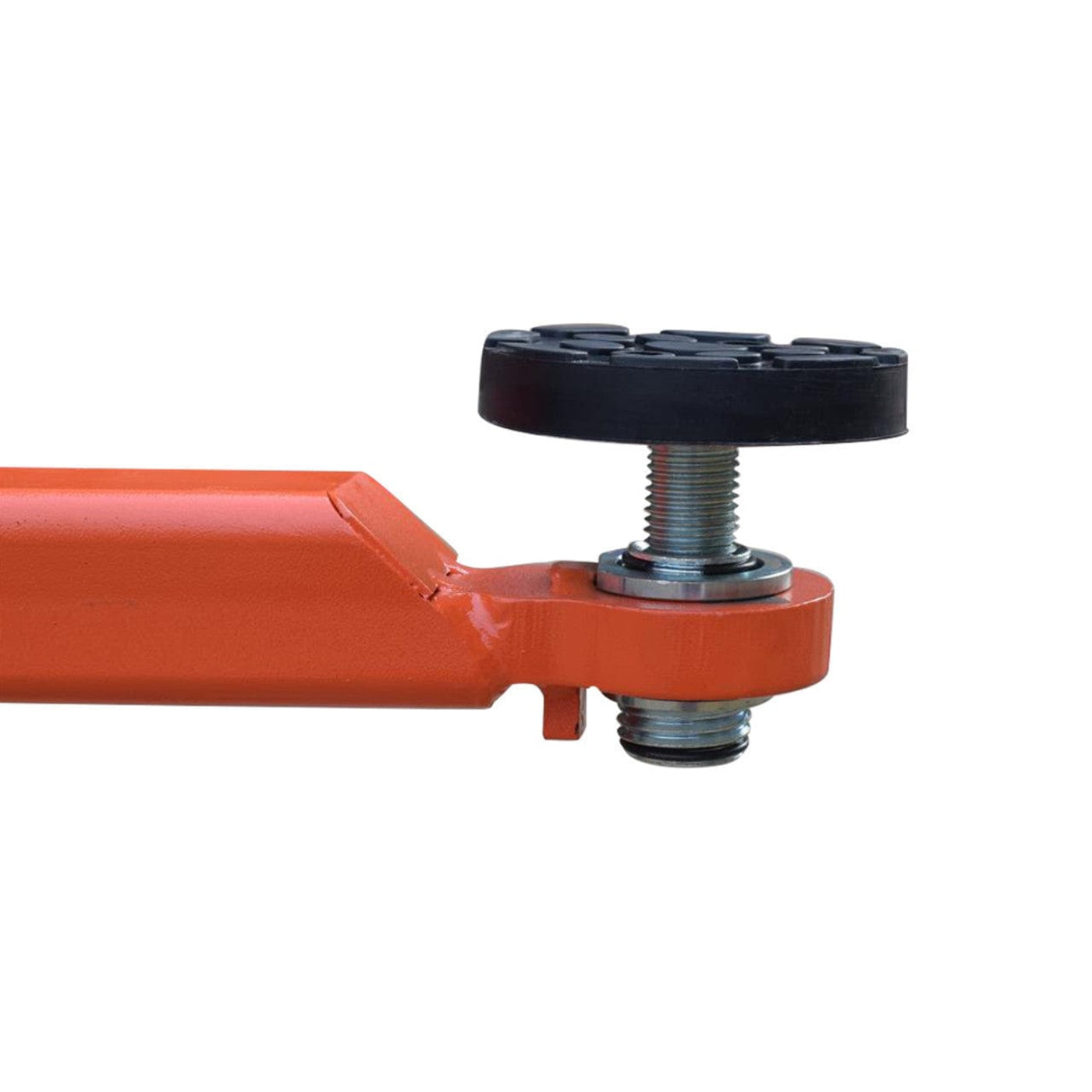

• 4 Screw-Up Rubber Pads: Protects vehicles during lifting.
• Truck Adapters Included: Includes 4 x 4" (100 mm) adapters for larger vehicles.

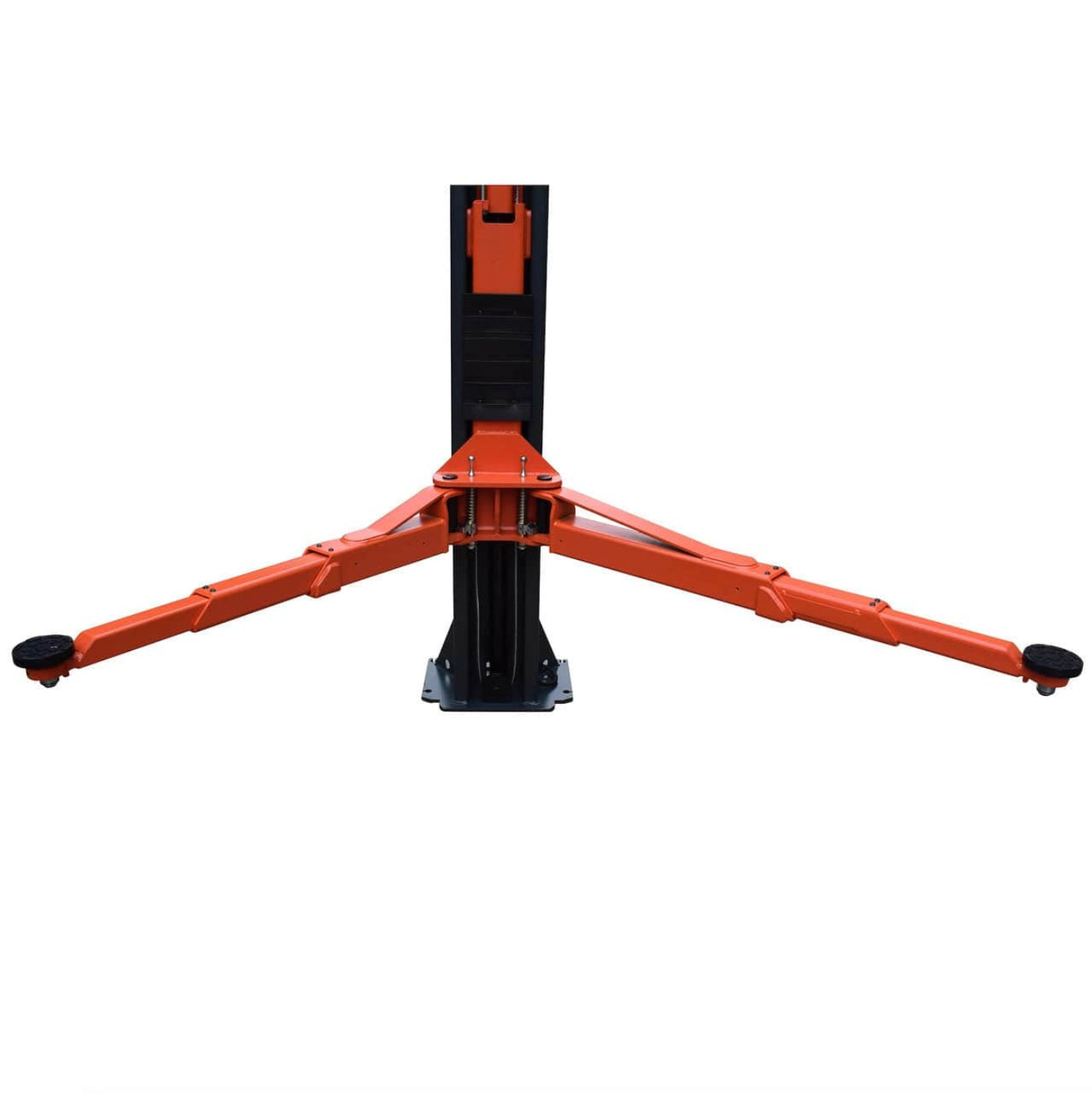

• Automatic Arm Restraints: Locks arms in place for secure lifting.
• Anti-Surge Valves: Protects the hydraulic system.
• Powder Coating Finish: Durable granite gray (RAL 7026) and rein orange (RAL 2004) finish for a sleek appearance.
• Proof of Strength: Dynamic test with 115% rated capacity and static test with 150% rated capacity.

Resources

• Download Manual (PDF)
• Download Brochure (PDF)

What Our Experts Think

• 10,000 lb. Lifting Capacity – Handles a wide range of vehicles, from compact cars to full-size trucks and SUVs.
• Extra-Wide Design – Provides greater clearance for easier vehicle positioning and improved accessibility.
• Two-Post Symmetric/Asymmetric Arms – Offers versatile lifting configurations, making it suitable for various vehicle types.
• Durable Hydraulic System – Ensures smooth, reliable, and efficient lifting for professional garages and serious DIYers.
• Heavy-Duty Steel Construction – Built for long-term durability and maximum safety in demanding environments.
• Advanced Safety Features – Includes automatic safety locks, reinforced columns, and an overhead shutoff bar for added protection.

Q&A

Q: What is the Stratus SAE-C10X Two-Post Lift?
A: The Stratus SAE-C10X is a heavy-duty, extra-wide two-post lift designed for lifting vehicles up to 10,000 lbs. It is ideal for auto repair shops and garages that need a reliable and spacious lifting solution.

Q: What makes this lift stand out?
A: The extra-wide design allows for better access and accommodates a variety of vehicle sizes, including wider trucks and SUVs. Its robust construction ensures stability and safety during lifting.

Q: What types of vehicles can this lift handle?
A: With a 10,000-lb capacity, it can lift most passenger cars, SUVs, and light-duty trucks.

Q: What type of power source does it use?
A: This lift operates using a hydraulic system, typically powered by an electric motor. Voltage requirements depend on the model specifications.

Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper setup, safety, and long-term performance.

Maintenance Tips

• Daily Safety Check: Inspect for leaks, unusual noises, or worn cables before use. Ensure all safety locks engage properly.
• Hydraulic System Maintenance: Regularly check hydraulic fluid levels and top off as needed. Inspect hoses and fittings for leaks or wear.
• Lubrication: Apply grease to all moving parts, including pulleys, cables, and pivot points, to ensure smooth operation.
• Bolt & Anchor Inspection: Periodically tighten anchor bolts securing the lift to the floor and check for cracks or loosening.
• Equalize Cables: Ensure lift cables remain balanced and adjust tension as needed to prevent uneven lifting.
• Keep It Clean: Remove dirt, oil, and debris from the lift base and posts to prevent buildup that could interfere with operation.
• Weight Distribution: Always load vehicles evenly and within the 10,000 lb capacity to avoid excessive stress on components.
