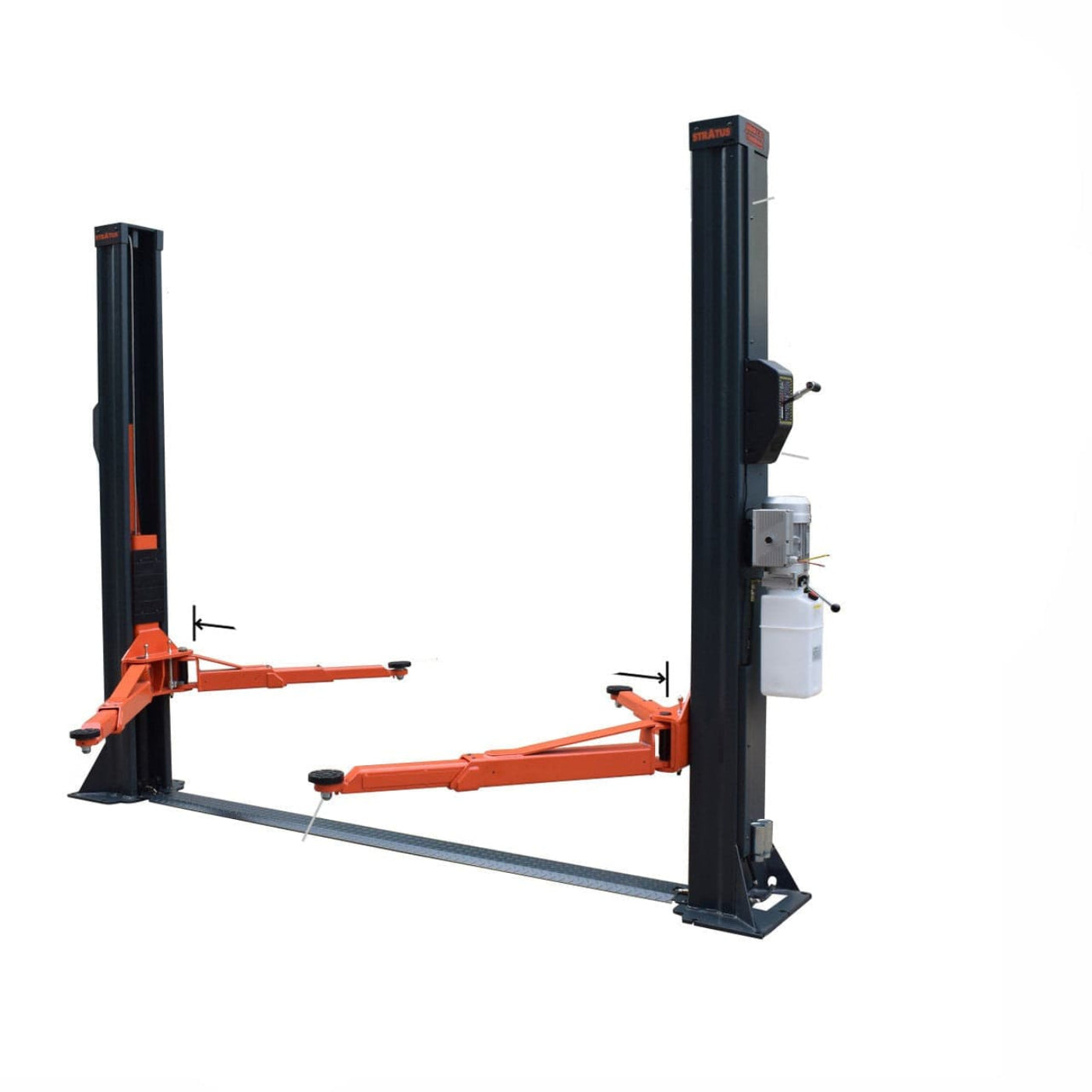

Stratus SAE-F10X 10,000 Lbs Extra Wide 2 Post Lift - SAE-F10X

Stratus SAE-F10X 10,000 Lbs Extra Wide 2 Post Lift - SAE-F10X

The Stratus Extra Wide Drive Through Floor Plate Car Lift is the ultimate lifting solution for your garage or workshop. With a robust 10,000 lbs capacity, this extra wide 2-post lift is designed to handle various vehicles effortlessly. Its feature-rich design includes a Single Point Manual Release system, ensuring precise control and flexibility for all your lifting needs. Durable, reliable, and built to perform, the Stratus Car Lift is an essential upgrade for your garage.

Important Notes

• A $425 surcharge applies to the following states: OR, WA, ID, MT, ND, SD, and ME.
• Buyer is responsible for unloading freight. Additional charges may apply if unloading exceeds 30 minutes.


Features

• Base Plate / Open Top Design: Ideal for garages with lower ceiling heights.

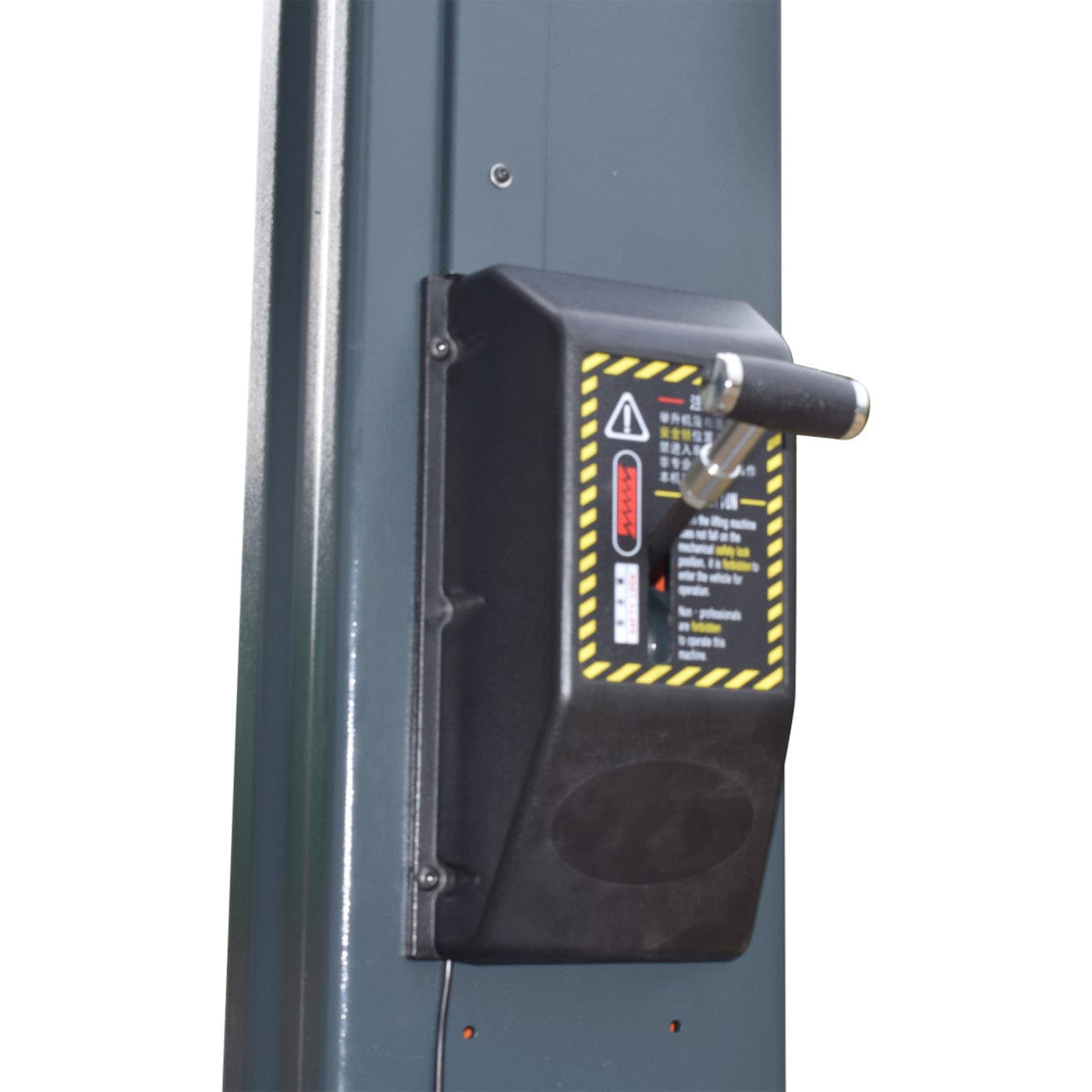

• Single Point Manual Release: Simplifies operation for efficiency and convenience.
• Top Limiter Switch: Enhances safety by preventing over-lifting.
• Dynamic and Static Testing: Proofed with 115% of rated capacity for dynamic loads and 150% for static loads.
• Powder Coating Finish: Durable and stylish granite gray (RAL 7026) with rein orange (RAL 2004).

Specifications

Resources

For additional information and detailed guidance, download the following resources:

• Download Manual (PDF)
• Download Brochure (PDF)

What Our Experts Think

• 10,000 lb. Lifting Capacity – Handles cars, SUVs, and light-duty trucks with ease.

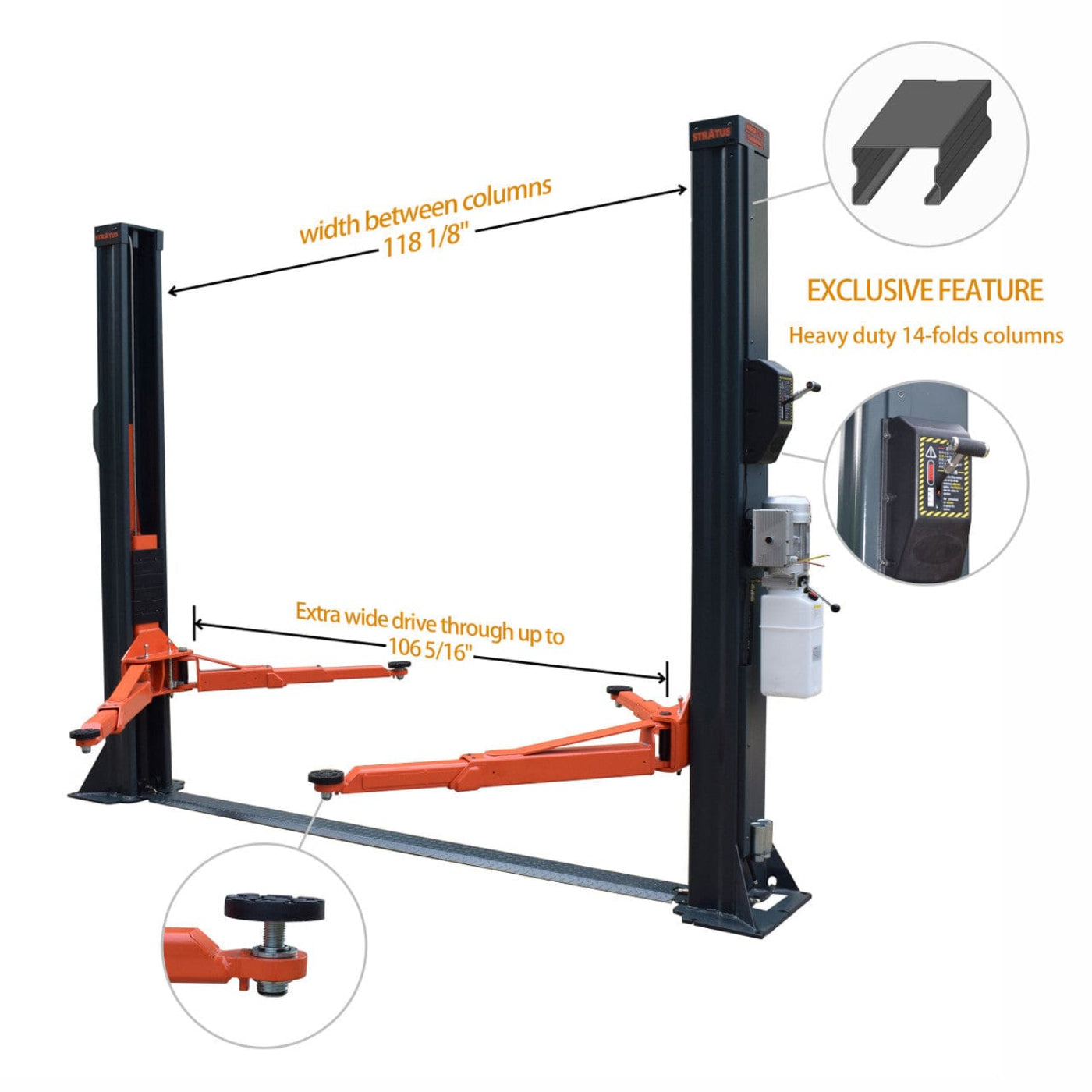

• Extra-Wide Design – Provides more clearance for easier vehicle positioning and improved access.

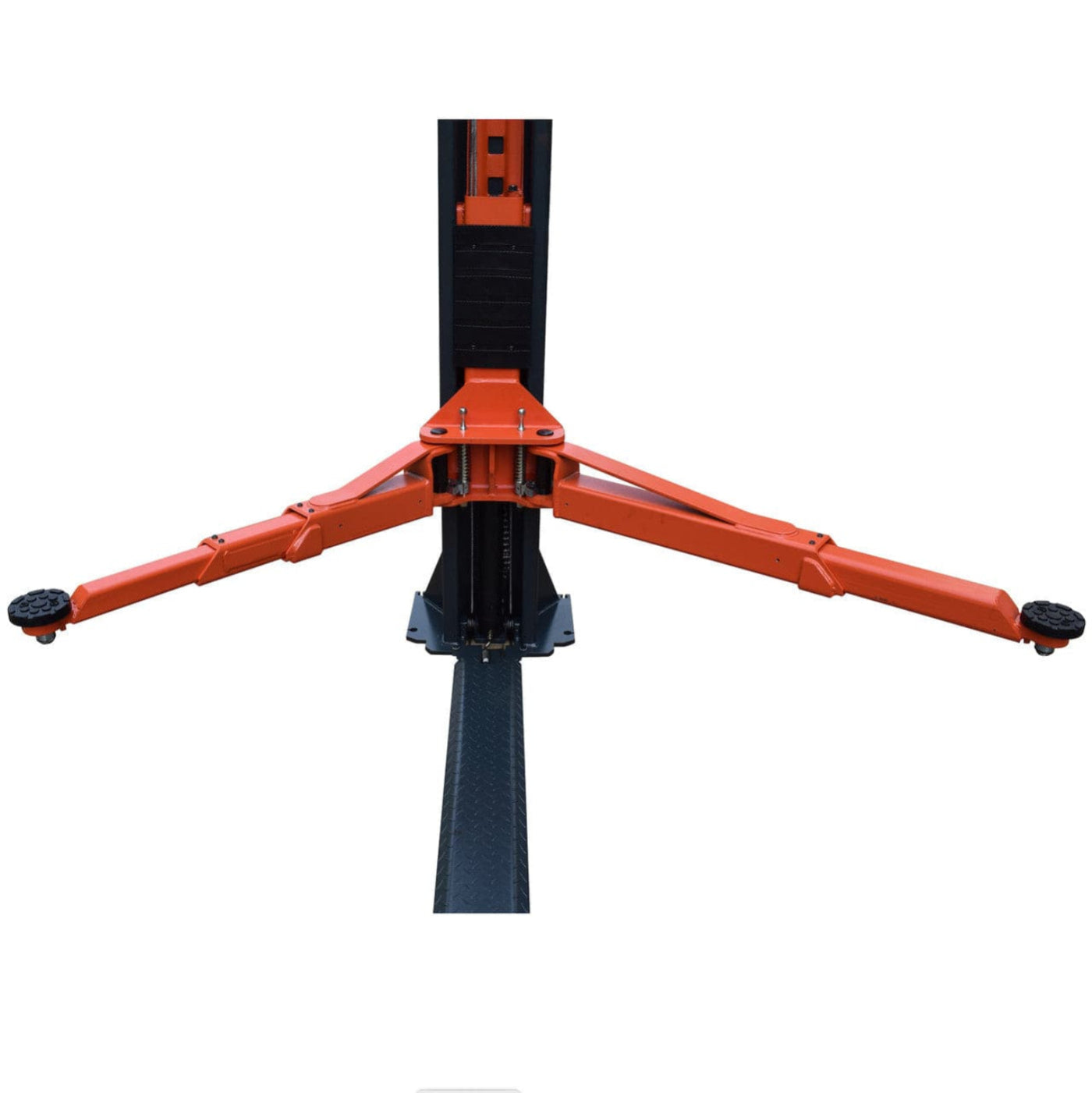

• Symmetric & Asymmetric Arm Options – Allows flexible lifting configurations for different vehicle types.

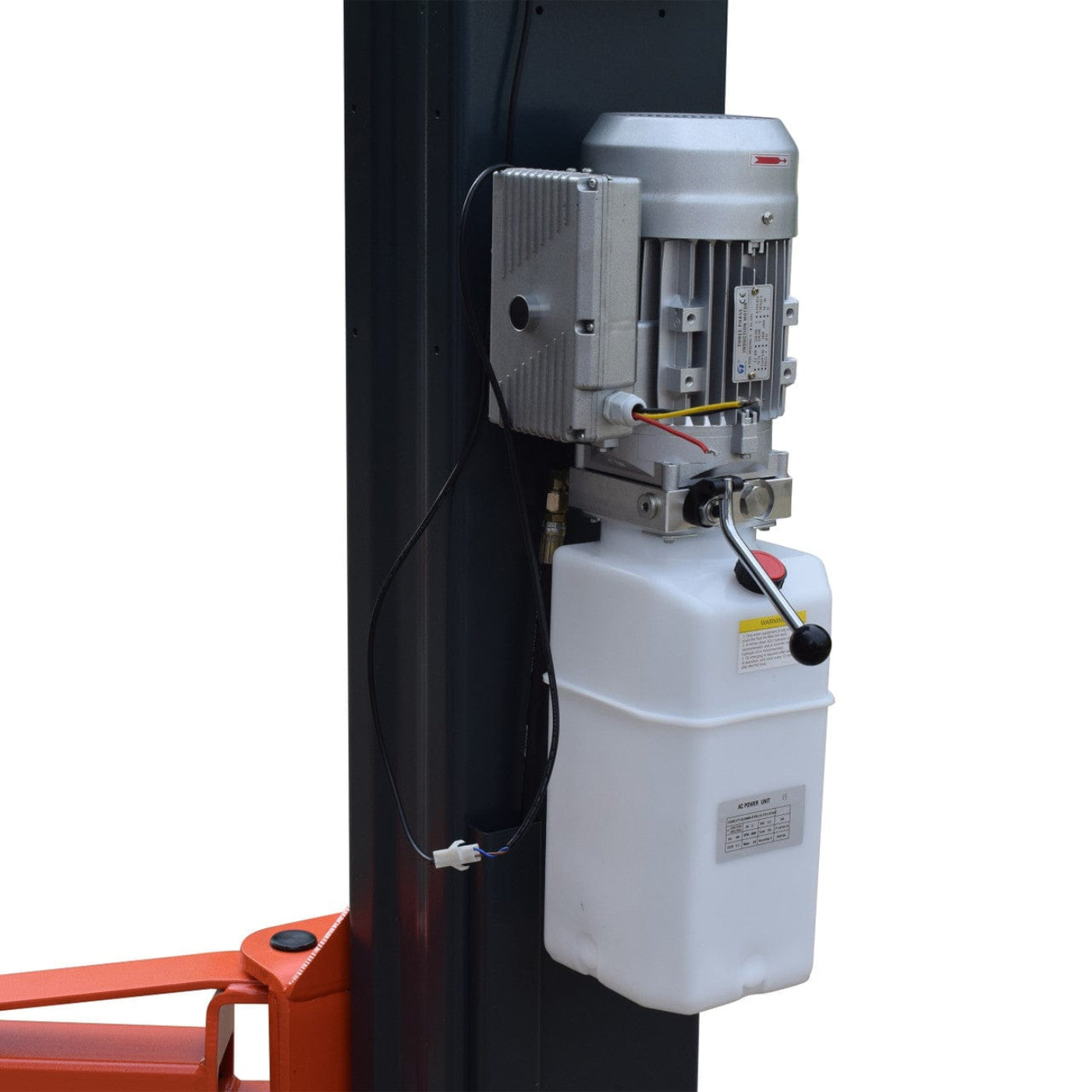

• Heavy-Duty Hydraulic System – Ensures smooth, consistent, and powerful lifting performance.
• Reinforced Steel Construction – Built for long-term durability and maximum stability under heavy loads.
• Advanced Safety Features – Includes automatic safety locks, an overhead shutoff bar, and a strong column structure for enhanced security.

Q&A

Q: What is the Stratus SAE-F10X Two-Post Lift?
A: The Stratus SAE-F10X is a heavy-duty, extra-wide two-post lift with a 10,000-lb capacity, designed for lifting a wide range of vehicles, including trucks and SUVs.

Q: What makes this lift stand out?
A: Its extra-wide design provides more space between the posts, making it ideal for larger vehicles. The durable construction ensures stability and safety during lifting.

Q: What types of vehicles can this lift handle?
A: It is suitable for most passenger cars, SUVs, and light-duty trucks within the 10,000-lb capacity.

Q: What type of power source does it use?
A: The lift operates using a hydraulic system powered by an electric motor. Voltage requirements depend on the specific model configuration.

Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper setup, safety, and long-term performance.

Maintenance Tips

• Daily Safety Inspection: Check for hydraulic leaks, worn cables, or unusual noises. Ensure safety locks engage properly before each use.
• Hydraulic System Check: Maintain proper fluid levels and inspect hoses for leaks or cracks. Replace any worn-out seals or fittings.
• Lubrication: Apply grease to moving parts such as pulleys, cables, and pivot points to prevent wear and ensure smooth operation.
• Bolt & Anchor Tightening: Periodically check and tighten floor anchor bolts to maintain stability. Inspect the frame for cracks or structural wear.
• Cable Adjustment: Keep cables evenly tensioned to prevent uneven lifting. Replace frayed or stretched cables as needed.
• Clean Work Area: Remove debris, oil, and dirt from the base and posts to prevent obstructions and maintain a safe workspace.
• Weight Distribution: Always load vehicles evenly within the 10,000 lb capacity to avoid excessive strain on lift components.
