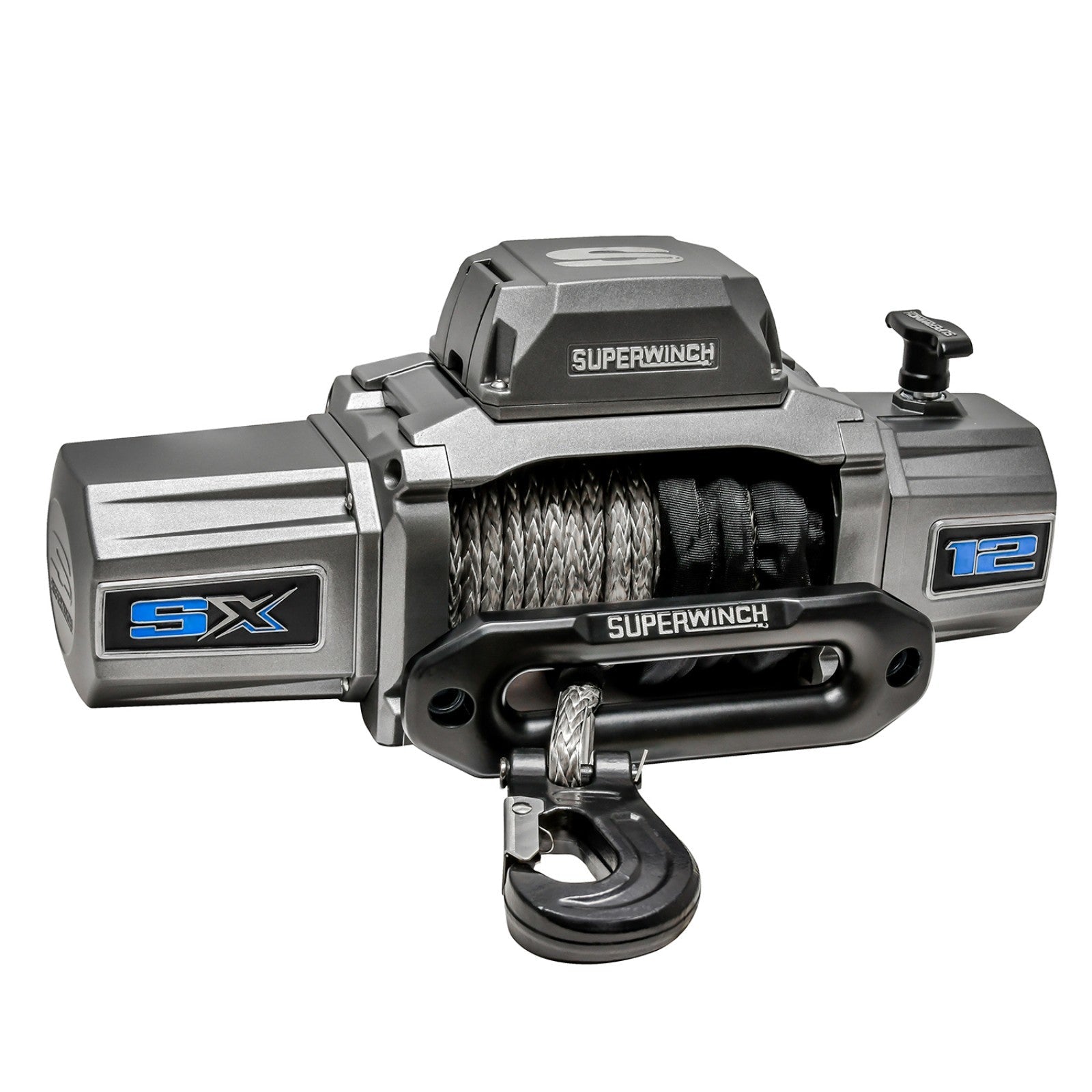

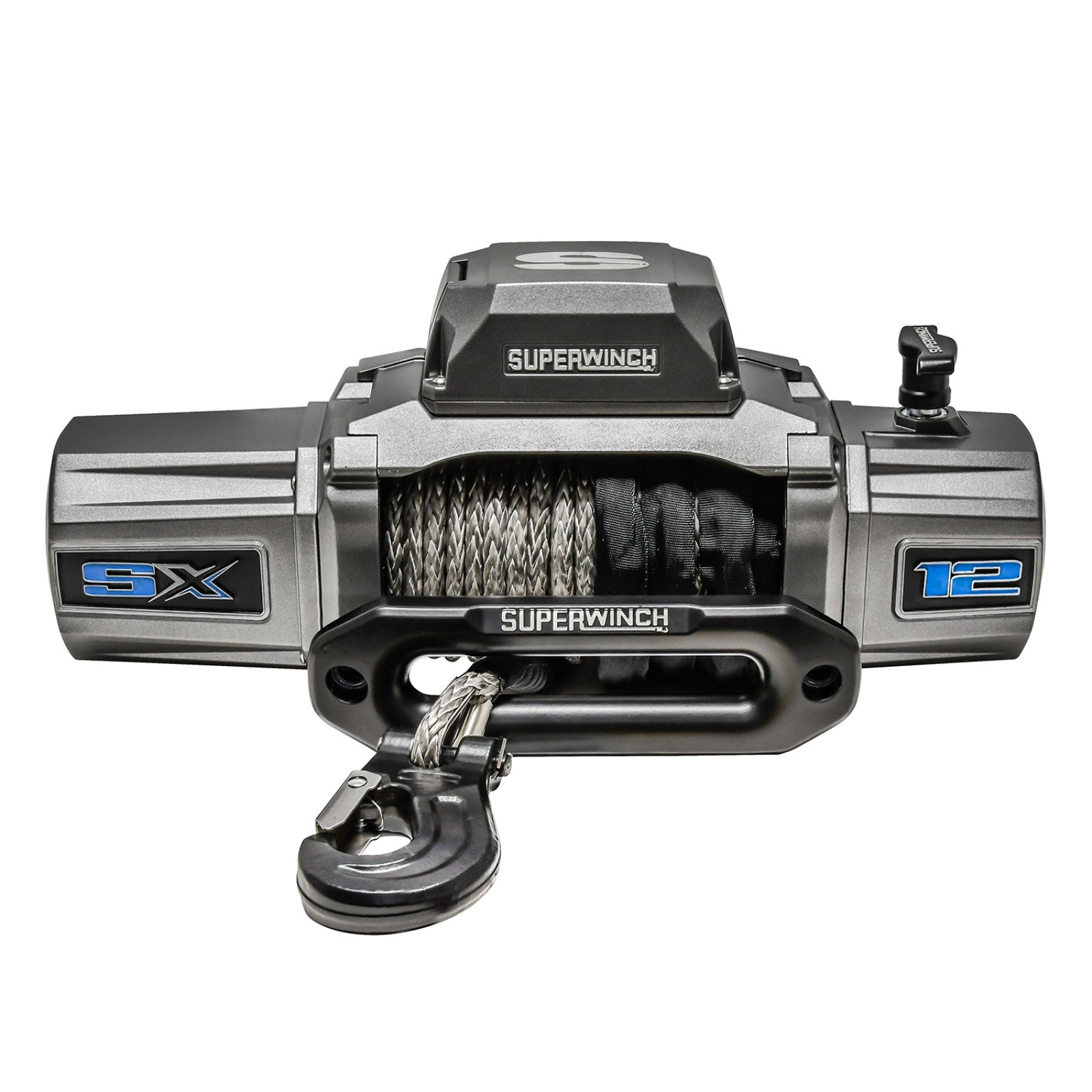

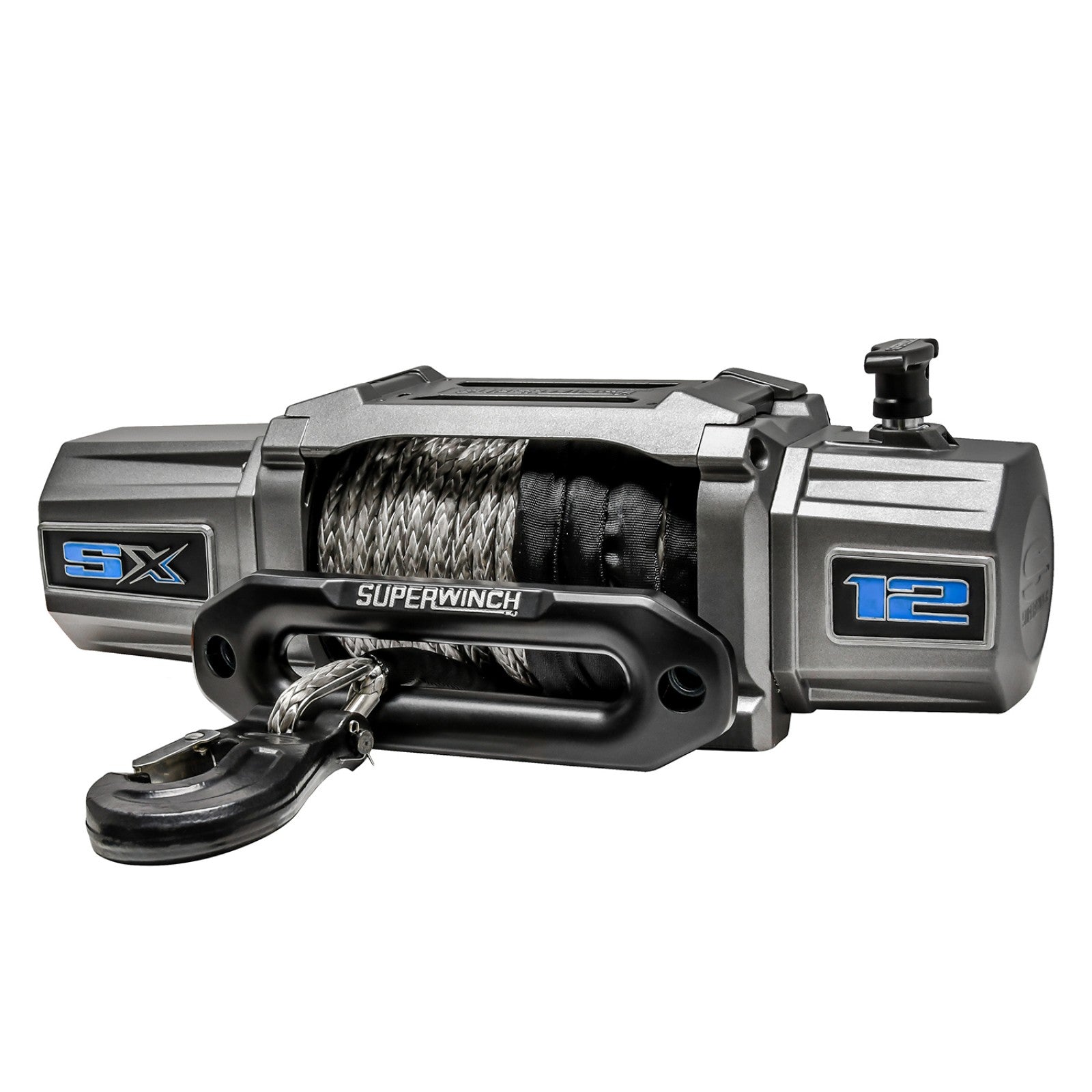

Superwinch SX12SR 12K Synthetic Rope Winch - 1712201

Superwinch SX12SR 12K Synthetic Rope Winch - 1712201

The Superwinch SX12SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard.

SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.

• 12V DC 12,000 lbs rated line pull
• 6.0 HP sealed motor
• Relocatable die-cast aluminum control box
• Includes wireless handheld remote & 12' handlead wired remote
• Pull-and turn clutch handle
• 3-stage planetary gearing with 231:1 ratio
• Patented drum light
• Synthetic rope measures 3/8” x 80'
• Drum diameter measures 2.5"
• Heavy duty clevis winch hook
• Aluminum hawse fairlead
• 100% full load holding automatic mechanical brake

Specifications

What Our Experts Think

• 12,000 lb. Towing Capacity: Handles heavy-duty recovery tasks with ease.
• Synthetic Rope: Strong, lightweight, and safer than steel cable, with minimal recoil.
• Durable Construction: Designed for tough conditions and long-lasting performance.
• Efficient Line Speed: Quick and smooth retrieval for fast, reliable winching.
• Wireless Remote Control: Convenient and safe operation from a distance.
• Corrosion-Resistant: Built to withstand the elements, ideal for off-road and marine use.

Q&A

Q: What are the key features of the SX12SR 12K Synthetic Rope Winch?
A: This winch offers a 12,000-pound pulling capacity, synthetic rope for enhanced safety and ease of handling, and a powerful 12V DC motor. It also comes with a wireless remote for convenient control.

Q: What is the pulling capacity of this winch?
A: The SX12SR winch has a maximum pulling capacity of 12,000 pounds, ideal for heavy-duty towing and recovery tasks.

Q: Why is synthetic rope better than steel cable?
A: Synthetic rope is lighter, safer, and easier to handle than steel cable. It also reduces the risk of injury from snapback and is resistant to abrasions and weather conditions.

Q: Does the winch come with a remote?
A: Yes, the winch is equipped with a wireless remote for easy and safe operation from a distance.

Q: What tasks is this winch designed for?
A: The SX12SR winch is perfect for off-road vehicle recovery, towing, and other heavy-duty applications in rugged terrain.

Maintenance Tips

• Inspect the synthetic rope: Check for signs of fraying, cuts, or wear; replace if damaged.
• Lubricate the winch: Apply lubricant to the winch’s moving parts to ensure smooth operation.
• Clean the rope: Wash the synthetic rope with mild soap and water to remove dirt and debris, then let it dry thoroughly.
• Check electrical connections: Ensure all wiring is secure and free from corrosion for proper function.
• Test the winch: Run the winch periodically to ensure proper operation, especially after long periods of inactivity.
