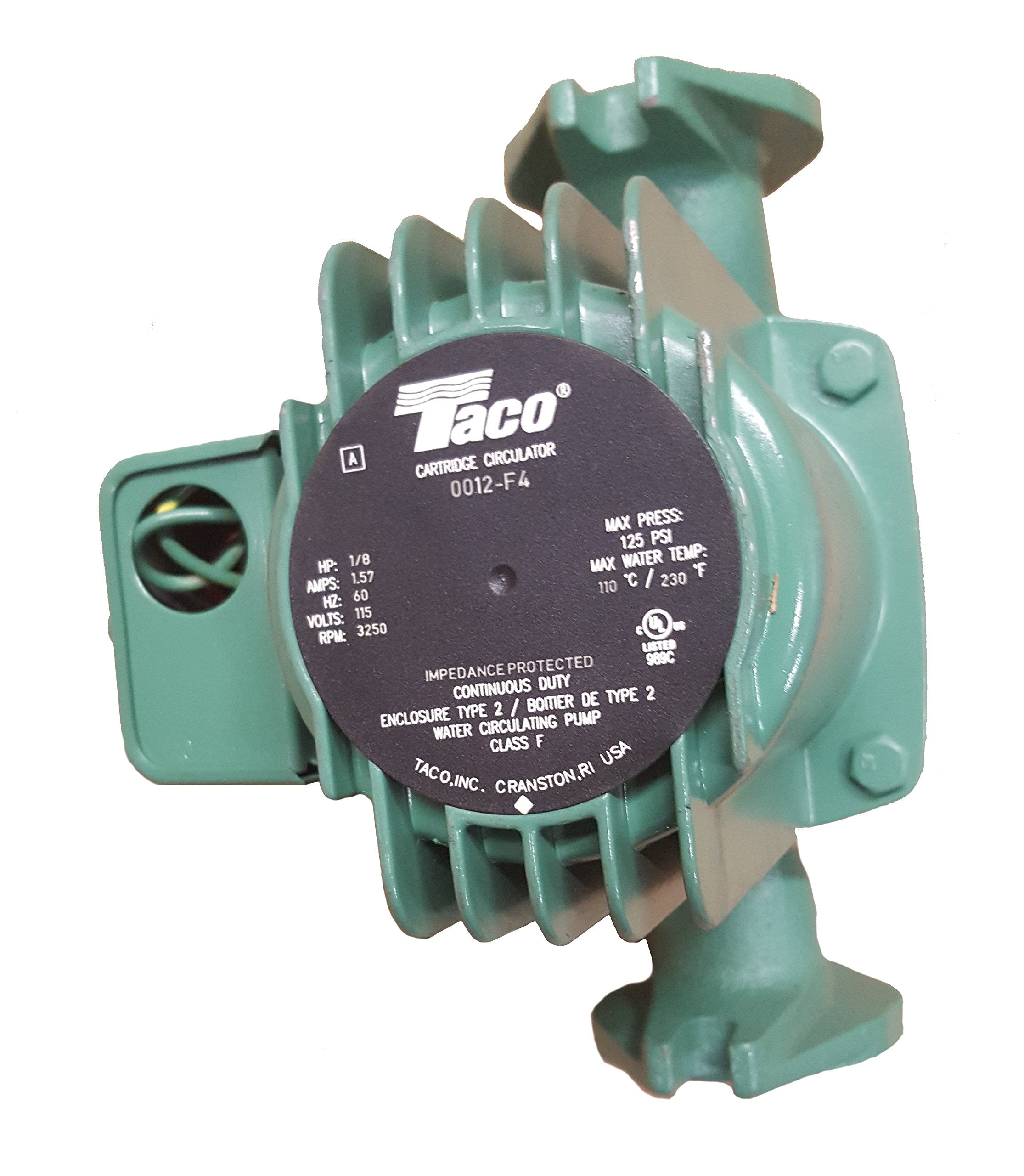

Taco Circulator 1-1/4 - 1-1/2 - 0012-F4-IFC

Taco  Circulator 1-1/4 - 1-1/2 - 0012-F4-IFC

The Taco 0012-F4-IFC is a cartridge circulator designed for efficient heating applications. It features an Integral Flow Check (IFC) that simplifies installation by eliminating the need for a separate in-line flow check. This product saves time and enhances performance in systems where water flow is essential.

This circulator is ideal for large residential or light commercial heating and cooling systems. The replaceable cartridge design allows for easy servicing.

Features

• Flow range: 0 to 42 gallons per minute
• Head range: 0 to 13 feet
• Connections: 1-1/4 and 1-1/2 inches

Specifications

What Our Experts Think

• High-Flow Capability: Delivers up to 42 GPM with a 13-foot maximum head, ideal for large residential and light commercial heating systems.

• Integral Flow Check (IFC): Built-in check valve prevents gravity circulation, cutting installation time and eliminating the need for a separate flow check.

• Rugged Cast Iron Housing: Durable and corrosion-resistant construction ensures reliable operation in closed-loop hydronic systems.

• Replaceable Cartridge Design: Simplifies maintenance with all moving parts contained in a serviceable cartridge.

• Maintenance-Free Motor: Features a self-lubricating, direct-drive motor with no mechanical seals for quiet, reliable performance.

• Versatile Use: Perfect for large BTU boilers, recirculation loops, primary/secondary piping, and light commercial heating and cooling systems.

• Specs at a Glance:

• 1/8 HP, 115V, 1.33 amps

• 3250 RPM

• Max pressure: 125 PSI

• Temp range: 40°F – 230°F

• Fits 1-1/4" and 1-1/2" flange connections

Q&A

Q: What is the Taco 0012-F4-IFC Circulator Pump?
A: The Taco 0012-F4-IFC is a high-capacity, cast iron circulator pump with a built-in Integral Flow Check (IFC), ideal for large residential and light commercial hydronic systems requiring high flow and medium head.

Q: Is the 0012-F4-IFC easy to install and maintain?
A: Yes, it features standard flange connections for easy fitment and a replaceable cartridge that simplifies maintenance without replacing the whole unit.

Q: Where can I buy the 0012-F4-IFC?
A: This model is commonly available through HVAC and plumbing supply distributors.

Maintenance Tips

• Inspect Regularly: Look for leaks, unusual noises, or vibration. Early signs of wear help prevent bigger issues.

• Check IFC Operation: Make sure the Integral Flow Check is functioning properly to prevent unwanted gravity circulation.

• Clean Surroundings: Keep the pump area free of dust and debris to avoid clogging or overheating.

• Monitor System Flow: Confirm the system is circulating correctly and the pump isn’t over- or under-performing.

• Maintain Electrical Integrity: Ensure wiring and connections remain tight and corrosion-free.

• Service Cartridge if Needed: Replace the cartridge if performance drops—this circulator is designed for easy maintenance.
