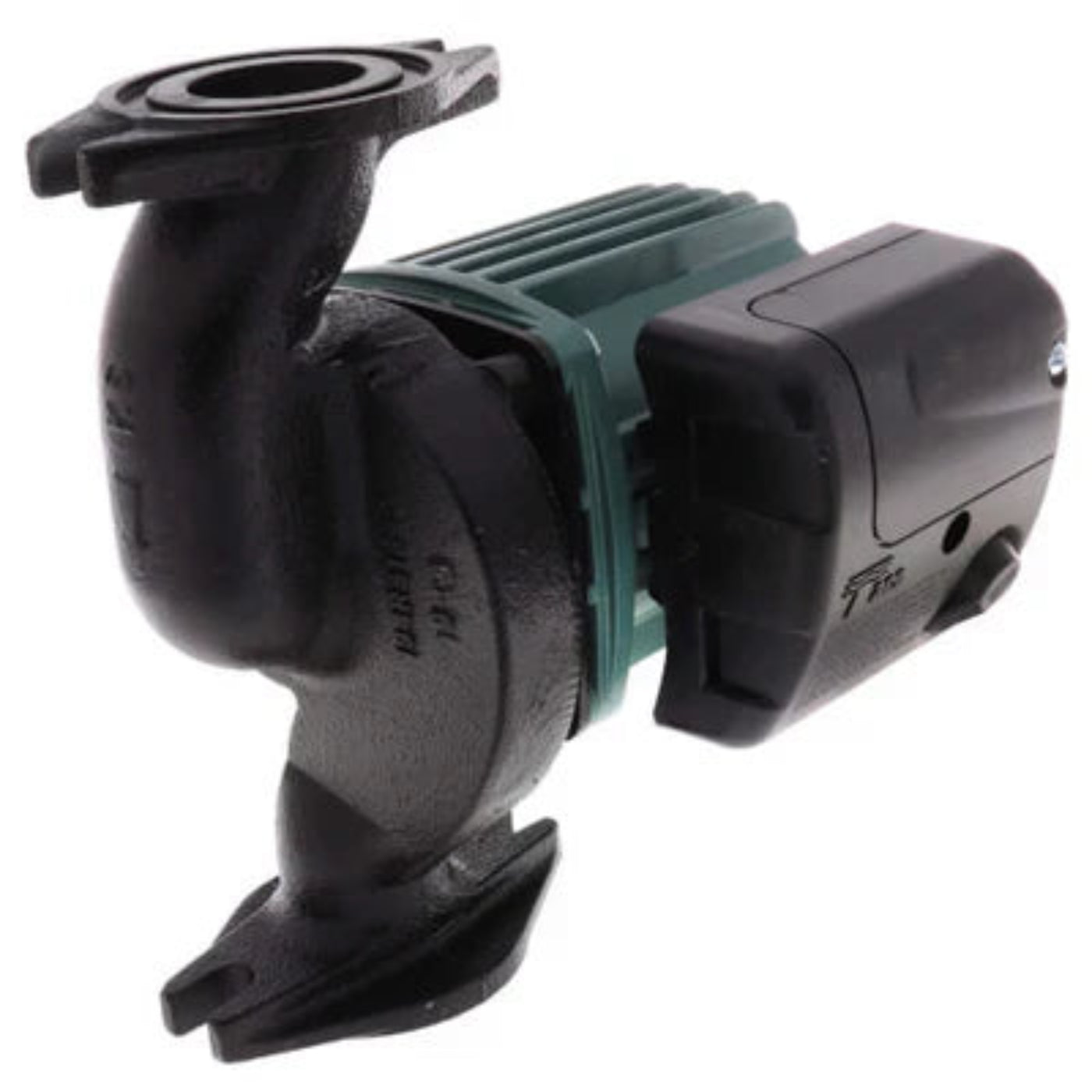

Taco Hydronic Circulating Pump 1/6 HP 115V 3-Speed - 0012-MSF2-IFC

Taco  Hydronic Circulating Pump 1/6 HP 115V 3-Speed - 0012-MSF2-IFC

The Taco 0012-MSF2-IFC is a robust circulator pump designed for efficient fluid management in heating systems. With a 1/6 HP motor and a cast iron body, this unit ensures reliability across various industrial applications.

Notable for its versatility in large BTU boilers, primary boiler loops, and sizable recirculation systems. The pump's advanced engineering is suited for both potable water systems and rigorous industrial environments.

Features

• Equipped with a three-speed switch to optimize system performance.
• Features an Integral Flow Check (IFC) to prevent backflow and enhance system integrity.
• Stainless steel impeller and cast iron construction provide long-lasting durability.

Specifications

What Our Experts Think

• Powerful and Efficient: With a 1/6 HP motor and 3-speed operation, this pump delivers versatility, allowing you to optimize performance based on system needs.

• Integral Flow Check (IFC): The built-in IFC prevents gravity flow, ensuring maximum efficiency and reducing the need for additional check valves.

• Quiet and Reliable: Known for its smooth, quiet operation, making it ideal for residential and light commercial hydronic heating systems where noise reduction is key.

• Durable Construction: Made from robust cast iron, the pump is designed to withstand the demands of continuous operation, providing long-lasting performance in hydronic heating systems.

• Versatile Applications: Perfect for use in large BTU boilers, primary boiler loops, or large recirculation systems, offering flexibility for a wide range of heating and cooling setups.

Q&A

Q: What is the Taco 0012-MSF2-IFC?
The Taco 0012-MSF2-IFC is a high-performance, 3-speed cast iron circulator pump designed for hydronic heating systems. It is ideal for large BTU boilers, primary boiler loops, and extensive recirculation systems.

Q: What is the Integral Flow Check (IFC)?
The IFC is a built-in valve that prevents gravity flow, eliminating the need for a separate check valve, which simplifies installation and improves system performance.

Q: What are its typical applications?
This circulator pump is ideal for large BTU boilers, primary boiler loops, and extensive recirculation systems in both residential and light commercial hydronic heating applications.

Maintenance Tips

• Self-Lubricating Design: The pump is designed with self-lubricating components and requires minimal maintenance. There are no mechanical seals, which reduces the need for frequent servicing.

• Integral Flow Check (IFC): The built-in IFC prevents gravity flow, helping to maximize system efficiency and performance. Ensure it remains free from debris and functions properly.

• System Flushing: Flush the system to remove any debris before operating the pump. After flushing, run the circulator for a few minutes at full speed to purge any remaining air.

• Avoid Dry Operation: Never run the pump dry. Always ensure that the system is filled with fluid to prevent damage to the bearings and internal components.

• Speed Adjustment: The pump offers three speed settings. Adjust the speed based on the specific needs of your system to optimize performance.

• Regular Inspection: Periodically inspect the pump for leaks, abnormal noise, or wear. Ensure the electrical connections are secure and the motor is operating correctly.

• Electrical Safety: Always disconnect the power supply before performing any maintenance to avoid electrical hazards.
