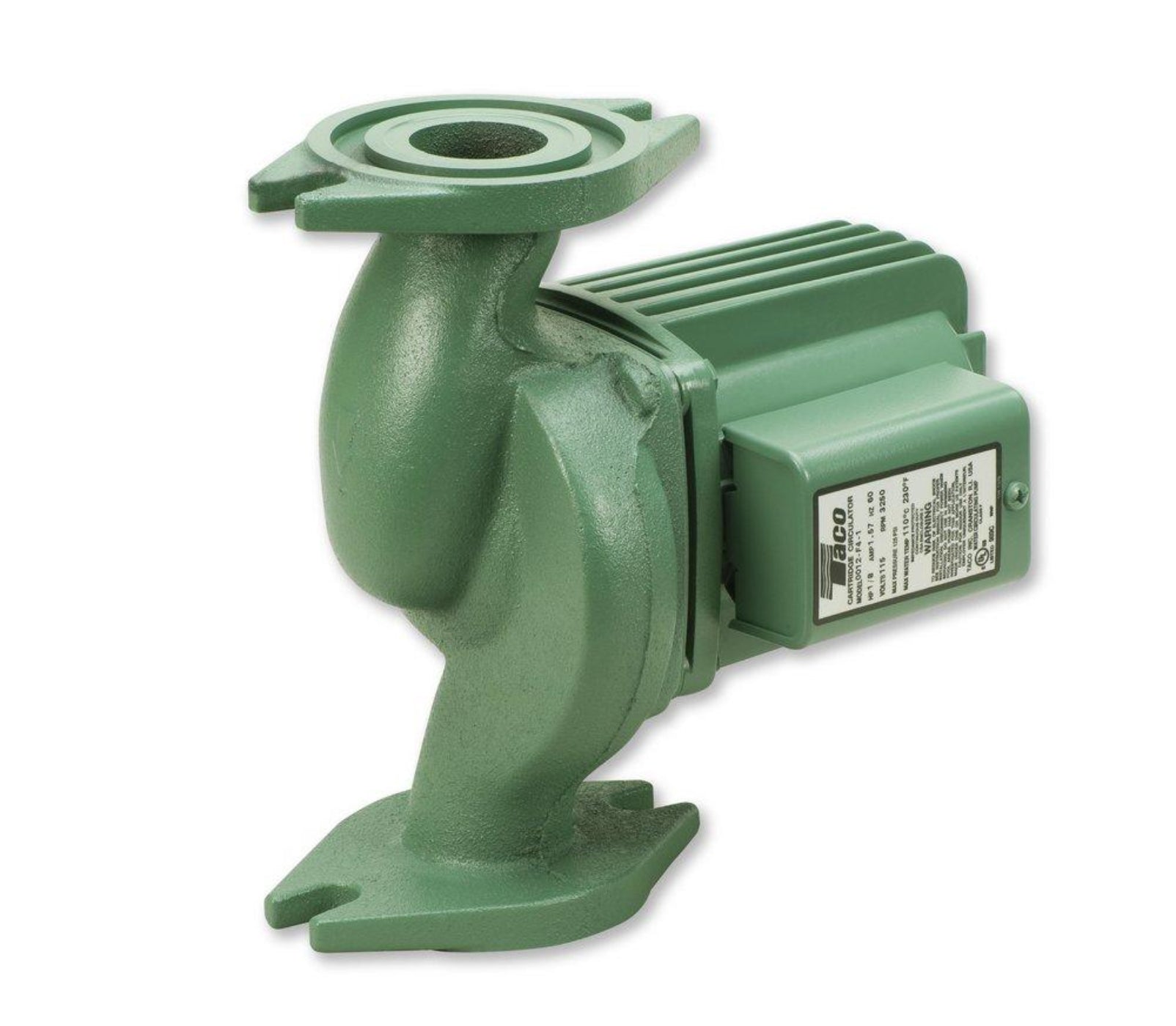

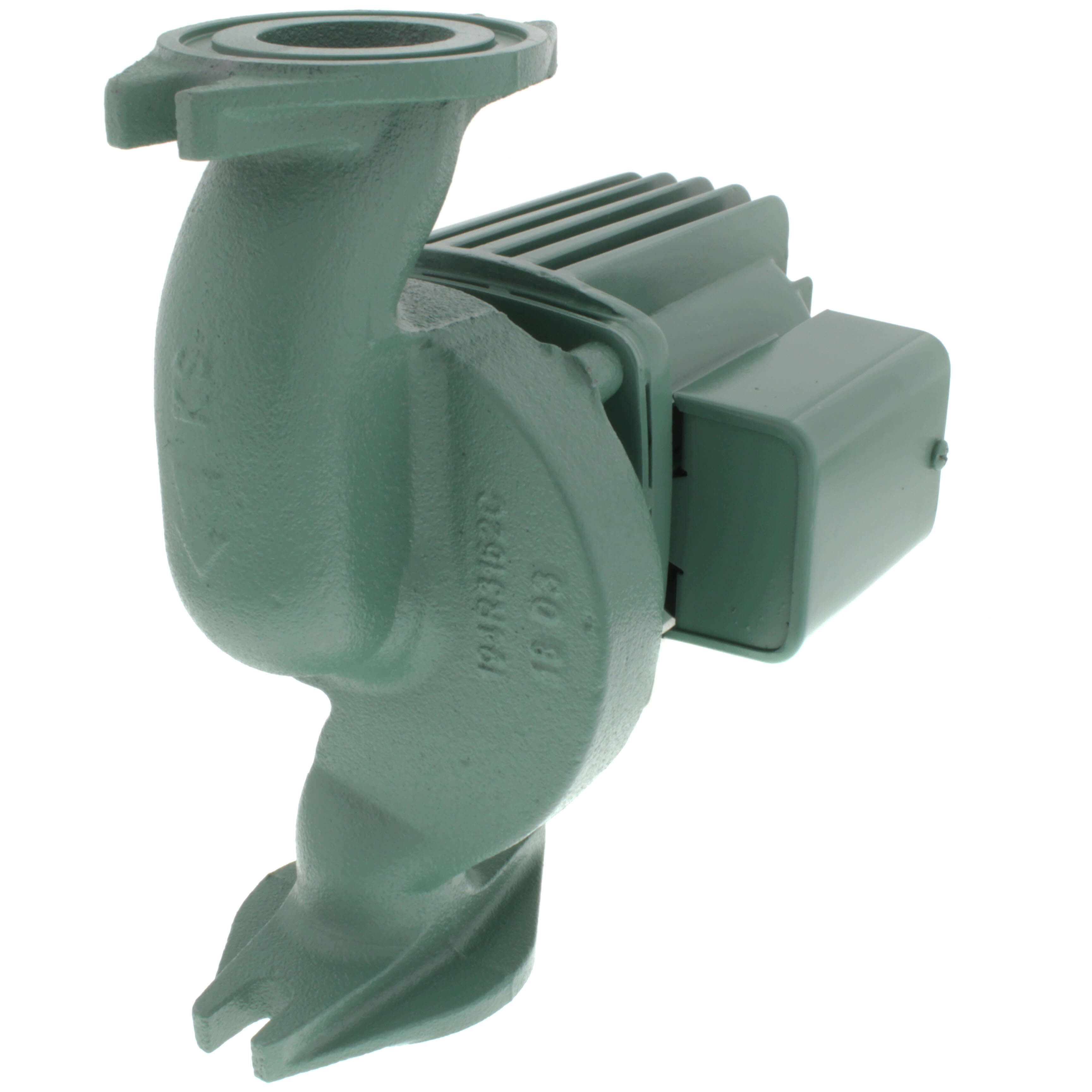

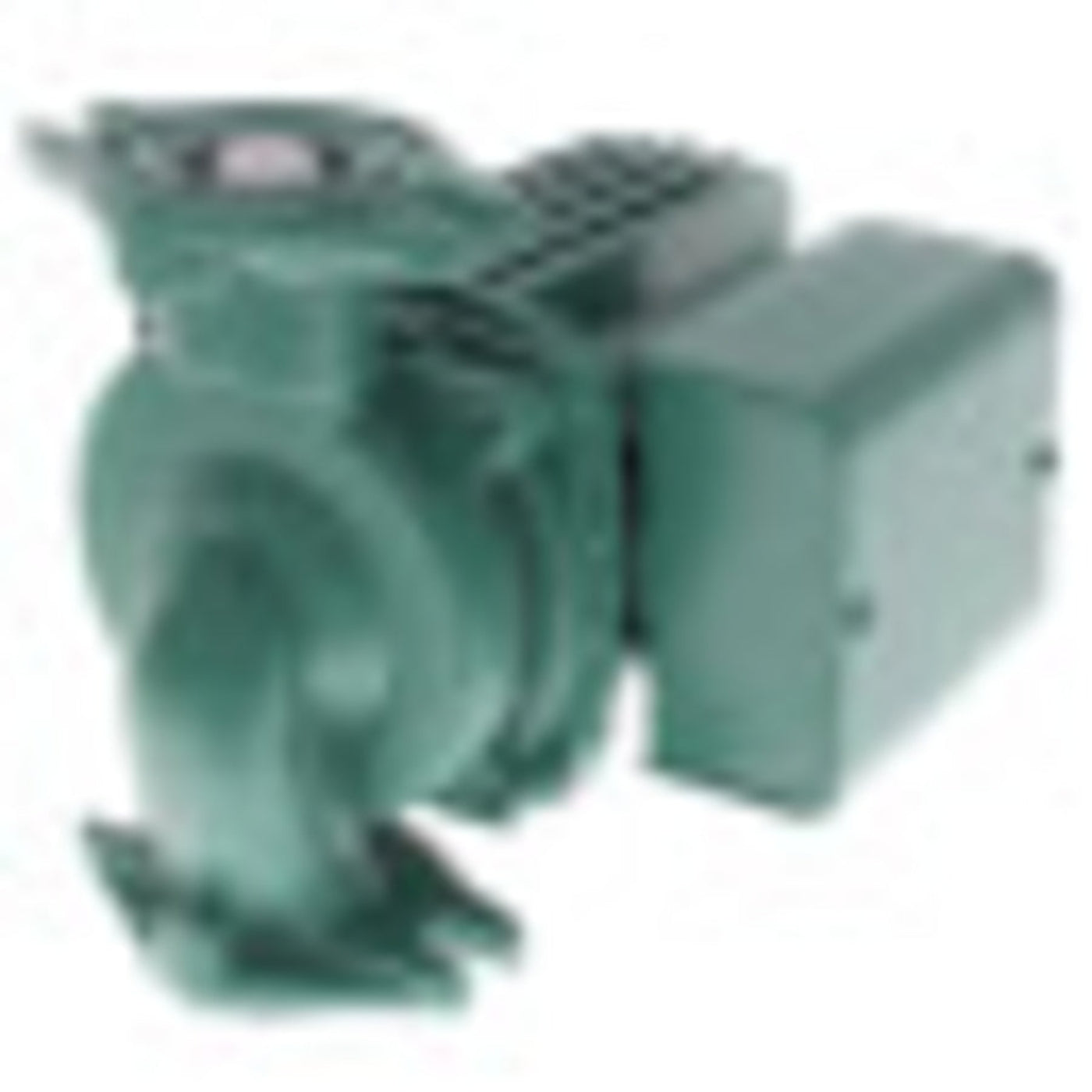

Taco 0012-F4 1/8 HP 115V Cast Iron Circulator Pump - 0012F-4

Taco 0012-F4 1/8 HP 115V Cast Iron Circulator Pump - 0012F-4

The Taco 0012-F4 is a 1/8 horsepower circulator pump designed for hydronic heating systems. This model operates at 115V and offers a flow rate of up to 50 gallons per minute, making it suitable for various heating applications.

Product Highlights

The Taco 0012-F4 circulator pump is ideal for residential and light commercial hydronic heating. It features compact construction with a maximum fluid temperature of 230 degrees Fahrenheit and a maximum working pressure of 150 psi.

Features

• Efficient for low temperature radiant systems
• Quiet operation with self-lubricating bearings
• Cartridge design for easy maintenance and replacement

Specifications

Product Information

Standard Information

What our Experts Think

• High-Flow Performance: The Taco 0012-F4 circulator pump offers a maximum flow rate of 52 GPM and a maximum head of 14.5 feet, making it suitable for medium-flow hydronic systems.

• Durable Construction: Built with a cast iron body, this pump is designed to withstand demanding environments, providing long-lasting reliability in various applications.

• Maintenance-Free Operation: The 0012-F4 features a maintenance-free, self-lubricating design with a replaceable cartridge, eliminating the need for mechanical seals and reducing maintenance requirements.

• Versatile Applications: Ideal for use in hot water heating systems, closed cooling circuits, air conditioning systems, and hydronic heating and cooling setups, including solar and geothermal systems.

Q&A

Q: What is the Taco 0012-F4 Circulator Pump used for?
A: The Taco 0012-F4 is designed for high-flow, medium-head applications in large residential and light commercial hydronic heating systems, radiant heating, chilled water cooling, and hydro-air fan coils.

Q: What are the of the replaceable cartridge design?
A: The replaceable cartridge design allows for easy servicing by replacing the entire cartridge, which contains all moving parts, rather than replacing the entire pump. This simplifies maintenance and reduces downtime.

Q: Is this pump suitable for potable water systems?
A: No, the cast iron construction is intended for closed-loop hydronic systems and is not suitable for potable water applications.

Q: What are the typical applications for this circulator pump?
A: Ideal for use in large residential and light commercial hydronic heating systems, radiant heating, chilled water cooling, and hydro-air fan coils.

Maintenance Tips

• Self-Lubricating Design: The Taco 0012-F4 circulator features a maintenance-free, self-lubricating motor with no mechanical seal, ensuring reliable performance without the need for routine lubrication.

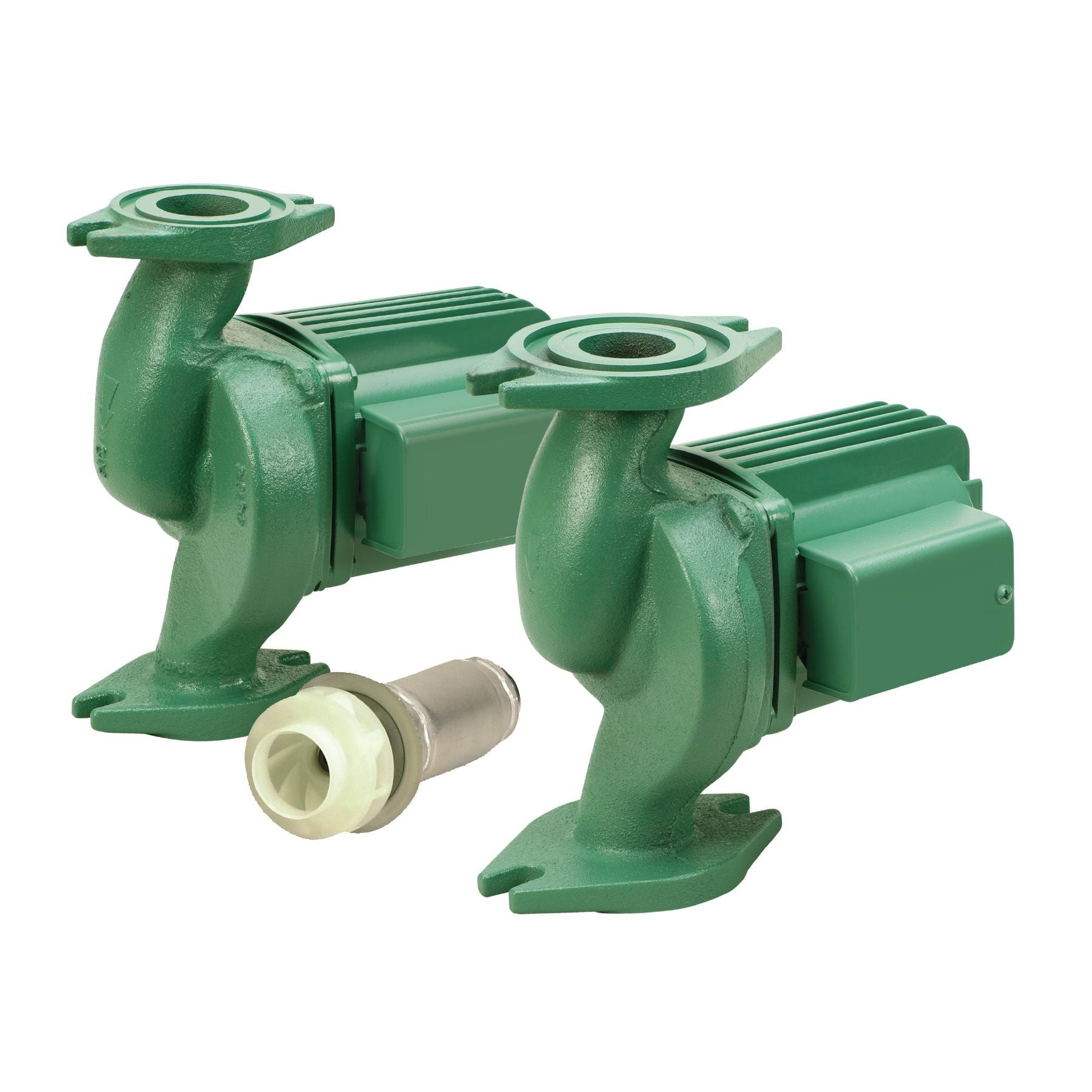

• Replaceable Cartridge: The circulator is equipped with a unique, replaceable cartridge that contains all moving parts. This design allows for easy servicing by replacing the cartridge instead of the entire unit.

• Anti-Condensate Baffle (ACB): An exclusive Anti-Condensate Baffle protects motor windings from condensate buildup, enhancing the pump's durability and efficiency, especially in chilled water applications.

• System Cleanliness: Keep the surrounding area clean and free from debris to prevent any obstruction or damage to the pump components.

• Regular Inspection: Conduct routine inspections for any signs of wear or unusual noise, addressing issues promptly to maintain efficient operation.

• Electrical Checks: Periodically inspect electrical connections to ensure they are secure and free from corrosion to maintain optimal performance.

• Pressure Monitoring: Use the dual pressure taps (suction/discharge) to monitor system pressure and ensure the pump is operating within the recommended parameters
