Taco Stainless Steel Circulator w/ Integral Flow Check, 1/35 HP - 005-SF2-IFC

Taco  Stainless Steel Circulator w/ Integral Flow Check, 1/35 HP - 005-SF2-IFC

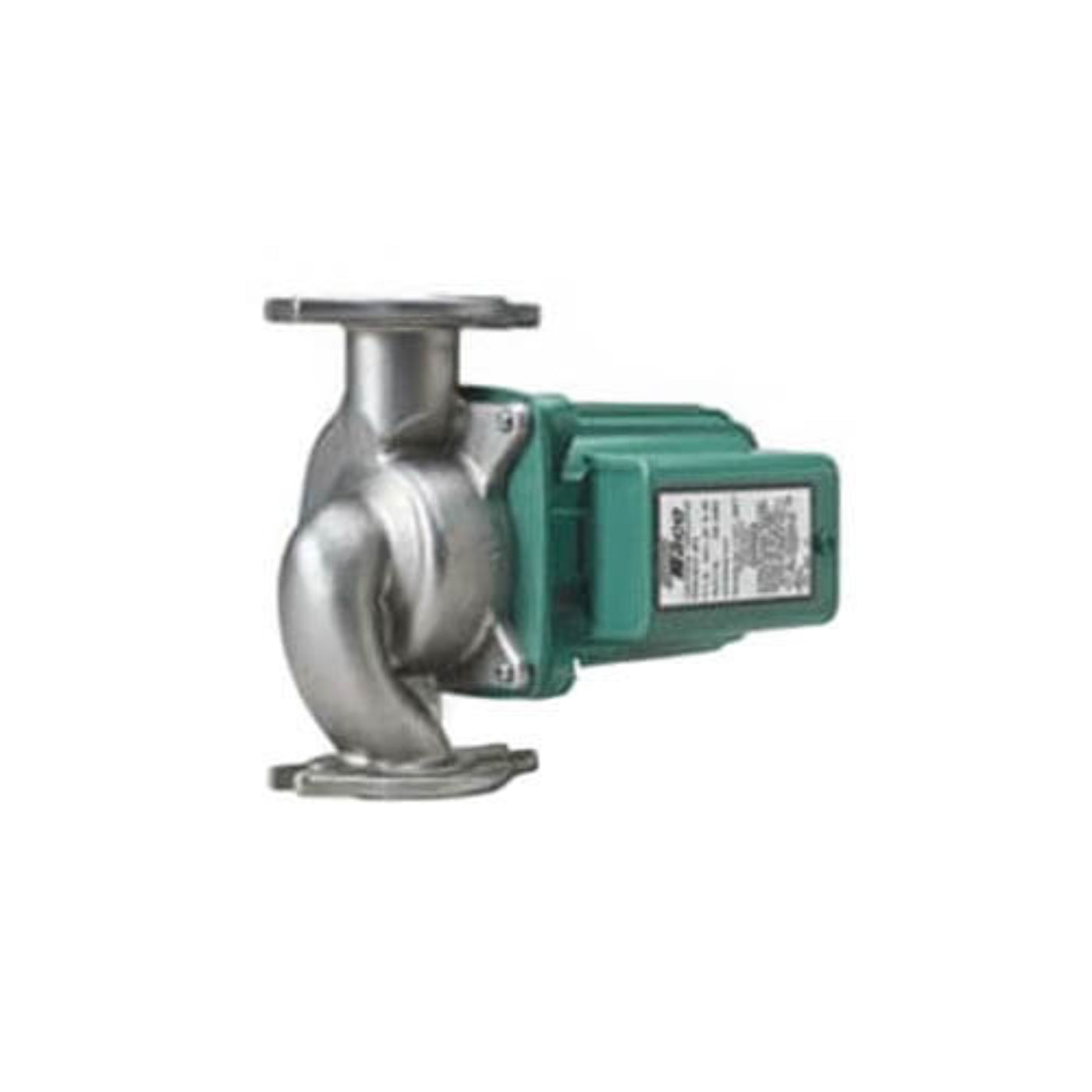

The Taco 005-SF2-IFC is a stainless steel circulator designed for hydronic heating and cooling applications. This pump features an integral flow check that improves performance and simplifies installation. It is suitable for various systems including hydro-air fan coils, radiant heating, and domestic water recirculation.

This circulator pump offers maintenance-free operation and accommodates a temperature range of forty degrees Fahrenheit to two hundred thirty degrees Fahrenheit.

Features

• Integral Flow Check: Prevents reverse flow and optimizes performance
• Unique replaceable cartridge for easy servicing
• Quiet, efficient operation with no mechanical seal

Specifications

What Our Experts Think

• Efficient Design: Compact, direct-drive circulator with a 1/35 HP motor, ideal for low-flow, low-head residential hydronic applications.

• Stainless Steel Body: Corrosion-resistant and safe for potable water systems—great for domestic hot water recirculation.

• Built-In Flow Check (IFC): Prevents backflow and gravity circulation without needing a separate valve, simplifying installation.

• Quiet Operation: Self-lubricating, maintenance-free cartridge provides silent, smooth performance.

• Energy Conscious: Low power draw and efficient operation make it cost-effective over time.

Q&A

Q: What is the Taco 005-SF2-IFC circulator pump?
A: It’s a 1/35 HP stainless steel circulator with an Integral Flow Check (IFC), designed for efficient circulation in hydronic heating, cooling, and domestic hot water systems.

Q: What is the Integral Flow Check (IFC)?
A: The IFC is a built-in check valve that prevents backflow, eliminating the need for a separate flow check valve during installation.

Q: Is it suitable for potable water systems?
A: Yes, its stainless steel construction makes it safe for potable water applications.

Q: What are the electrical specifications?
A: It operates on 115V, 60Hz, single-phase power, drawing 0.54 amps.

Q: What is the maximum operating pressure and temperature?
A: The pump can handle up to 125 psi and fluid temperatures up to 220°F (104°C).

Q: What applications is it designed for?
A: It’s ideal for hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, and domestic hot water recirculation systems.

Q: Is the pump easy to service?
A: Yes, its replaceable cartridge design allows for easy field servicing without the need for replacing the entire unit.

Maintenance Tips

• Avoid Dry Operation: Always ensure that the system is filled with fluid before operating the pump to prevent damage to the bearings and internal components.

• System Flushing: Before starting the pump or after servicing, flush the system to remove any debris or air. This helps maintain optimal performance.

• Regular Inspection: Periodically check for any leaks or signs of wear, including the electrical connections and pump components. Ensure the pump is running quietly and efficiently.

• Cleaning and Debris Removal: Inspect the Integral Flow Check (IFC) regularly for any buildup or debris that could obstruct its function. Keep the pump area clean to ensure smooth operation.

• Electrical Safety: Always disconnect the power supply before performing any maintenance to avoid electrical hazards.

• Cartridge Replacement: If the pump shows signs of wear or if there are issues with performance, consider replacing the cartridge. The replaceable design simplifies maintenance without replacing the entire pump.

• Avoid Over-Heating: Ensure the pump operates within its maximum fluid temperature range (230°F). Overheating can lead to premature failure.
