Taco 113-C4 Cast Iron Three-Piece Circulator Pump 1/8 HP - 113-C4

Taco 113-C4 Cast Iron Three-Piece Circulator Pump 1/8 HP - 113-C4

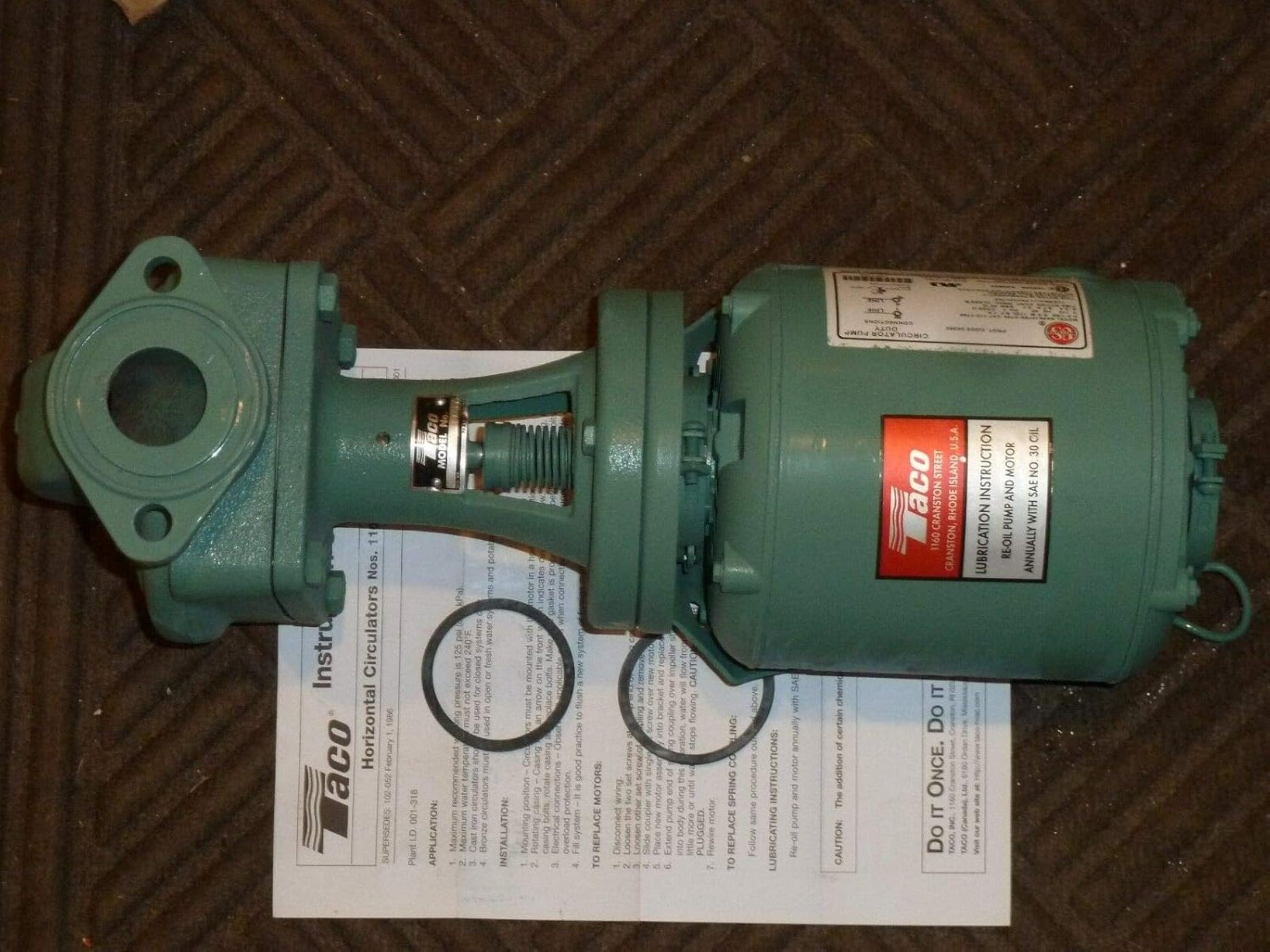

Taco 113-C4 Cast Iron Three-Piece Circulator Pump is designed for circulating water in various systems. It features a 1/8 horsepower motor for effective fluid movement. The pump is constructed from durable cast iron and can handle residential or light commercial hydronic systems. It is suitable for heating and cooling applications and can be used for zoning large installations.

Product Highlights

Efficient water circulator for hydronic systems

Features

• Durable cast iron construction
• 1/8 horsepower motor
• Handles up to 10 gallons per minute

Specifications

Product Information

Standard Information

What our Experts Think

• Durable Cast Iron Construction: The Taco 113-C4 circulator pump is built with rugged cast iron, ensuring long-lasting durability and resistance to corrosion, making it suitable for demanding hydronic heating and cooling systems.

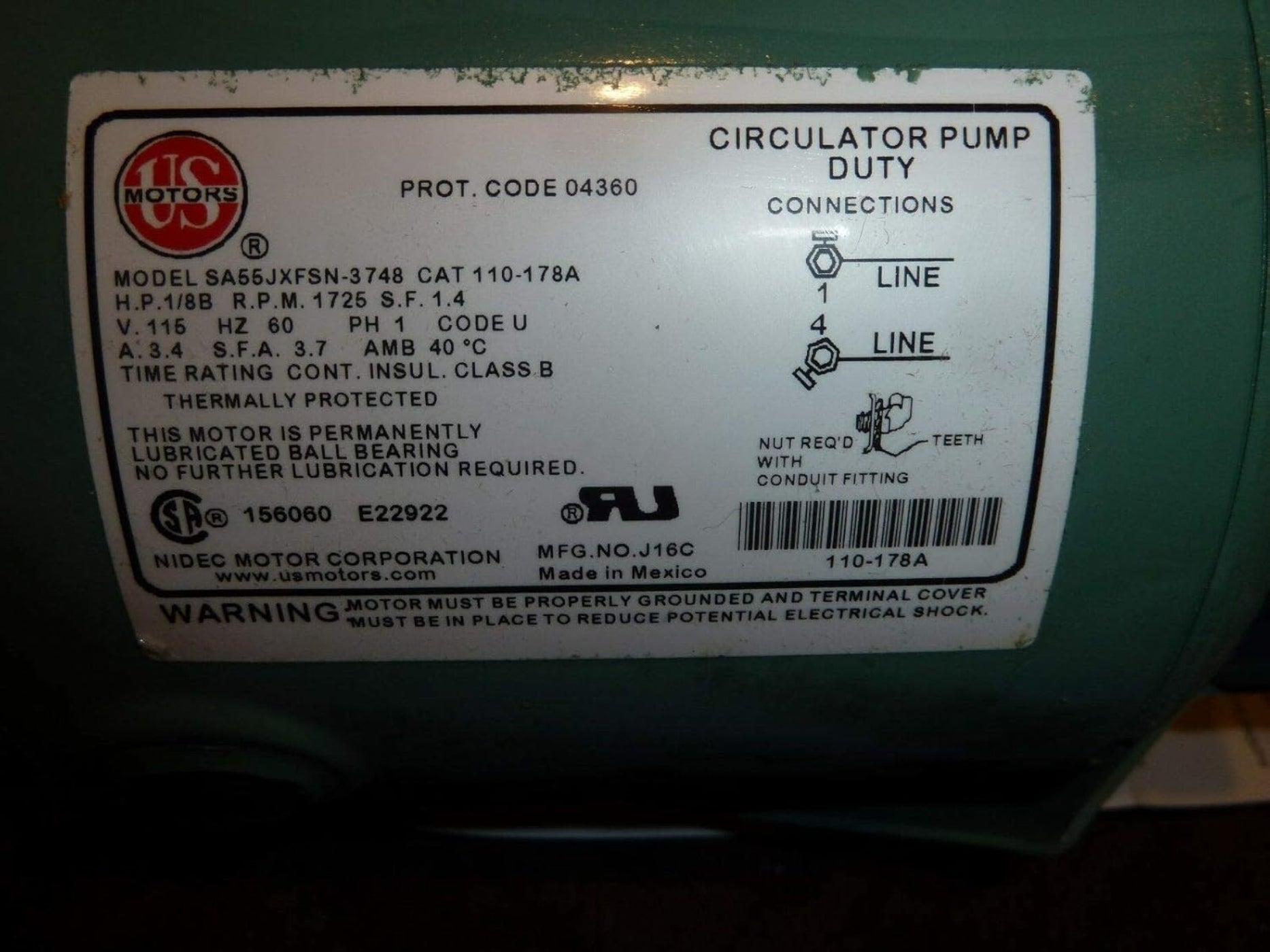

• Efficient Performance: Powered by a 1/8 HP motor operating at 1725 RPM, this pump delivers a flow rate of up to 25 GPM and a maximum head of 17 feet, providing efficient circulation for residential and light commercial applications.

• Quiet Operation: Designed with a resilient-mounted, split-phase motor and sleeve bearings, the 113-C4 operates quietly, ensuring minimal noise disruption in residential and commercial environments.

• Versatile Applications: Ideal for use in domestic hot water heating systems, radiant floor heating, fan coil units, and domestic hot water recirculation systems, offering flexibility across various setups.

• Easy Maintenance: The 113-C4 features a one-piece non-ferrous impeller, stainless steel shaft, and a two-piece carbon/ceramic seal assembly, allowing for easy servicing without the need to replace the entire unit, reducing downtime and maintenance costs.

Q&A

Q: What is the Taco 113-C4 Cast Iron Three-Piece Circulator Pump?
A: The Taco 113-C4 is a 1/8 HP cast iron circulator pump designed for heating and circulating water in residential and light commercial systems.

Q: What applications is the Taco 113-C4 suitable for?
A: It’s ideal for use in hydronic heating systems, hot water circulation, and other water circulation applications in residential or light commercial settings.

Q: How does the Taco 113-C4 improve efficiency?
A: The Taco 113-C4 offers reliable, quiet operation with low energy consumption, helping to reduce operating costs while maintaining system efficiency.

Q: Is the Taco 113-C4 easy to install?
A: Yes, the three-piece design allows for easy installation and maintenance, making it a convenient choice for professionals and DIYers alike.

Maintenance Tips

• Check for Leaks: Inspect the pump, flanges, and connection points for any signs of leaks. Tighten any loose bolts or fittings to prevent water leakage.

• Corrosion and Wear: Inspect the cast iron housing for signs of corrosion. Although cast iron is durable, it can corrode in the presence of water or chemicals. Regular inspection will help catch any early signs of damage.

Cleaning

• Exterior Cleaning: Regularly clean the exterior of the pump using a damp cloth to remove dust, dirt, and mineral deposits. Avoid using abrasive cleaners that could scratch or damage the cast iron surface.

• Flange and Pipe Cleaning: Check the inlet and outlet pipes for sediment buildup or debris. Clean these areas to maintain proper flow and avoid blockages that could strain the pump.

Lubrication and Motor Check

• Motor Inspection: Listen for any unusual noise coming from the motor. If you hear grinding or whirring sounds, this could indicate an issue with the motor bearings or other internal parts.

• Lubricate Bearings (if applicable): Some models require periodic lubrication of the motor bearings. Refer to the manufacturer's manual to determine if lubrication is necessary and follow the recommended procedures.

Check the Pump Shaft

• Rotation Test: Ensure the pump shaft rotates freely without resistance. A stiff or hard-to-turn shaft can indicate a need for lubrication or internal part inspection.

• Alignment: Verify that the motor and shaft are properly aligned to prevent excess wear or misalignment, which can lead to pump failure over time.

. Electrical Connections

• Check Wiring: Inspect the electrical connections for signs of wear, fraying, or damage. Ensure that the wires are securely connected and that there is no evidence of overheating or electrical short circuits.

• Power Supply Check: Ensure that the pump is receiving the correct voltage (typically 115V). A power supply issue can lead to motor failure or improper pump operation.

. System Pressure

• Monitor System Pressure: Regularly monitor the pressure in the system. If the system pressure is too high or low, it may affect pump performance and cause inefficiencies or damage.

• Pressure Relief Valve: Make sure the pressure relief valve is functioning correctly to prevent over-pressurization, which can cause leaks or pump failure.

 Winterization (If Applicable)

• Freeze Protection: If the circulator pump is installed in an area that experiences freezing temperatures, ensure it is properly insulated or removed during the winter to prevent freezing and damage to the pump.
