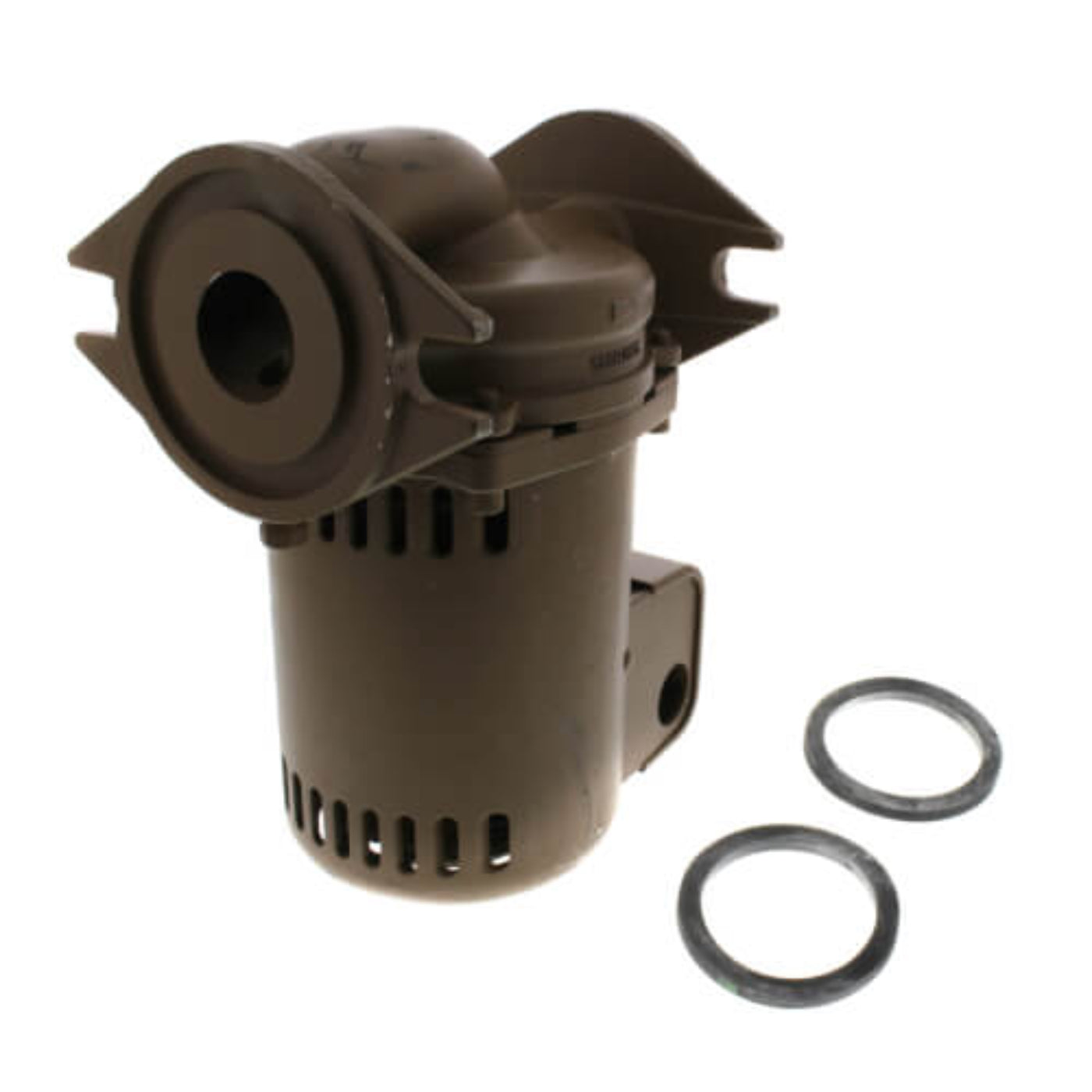

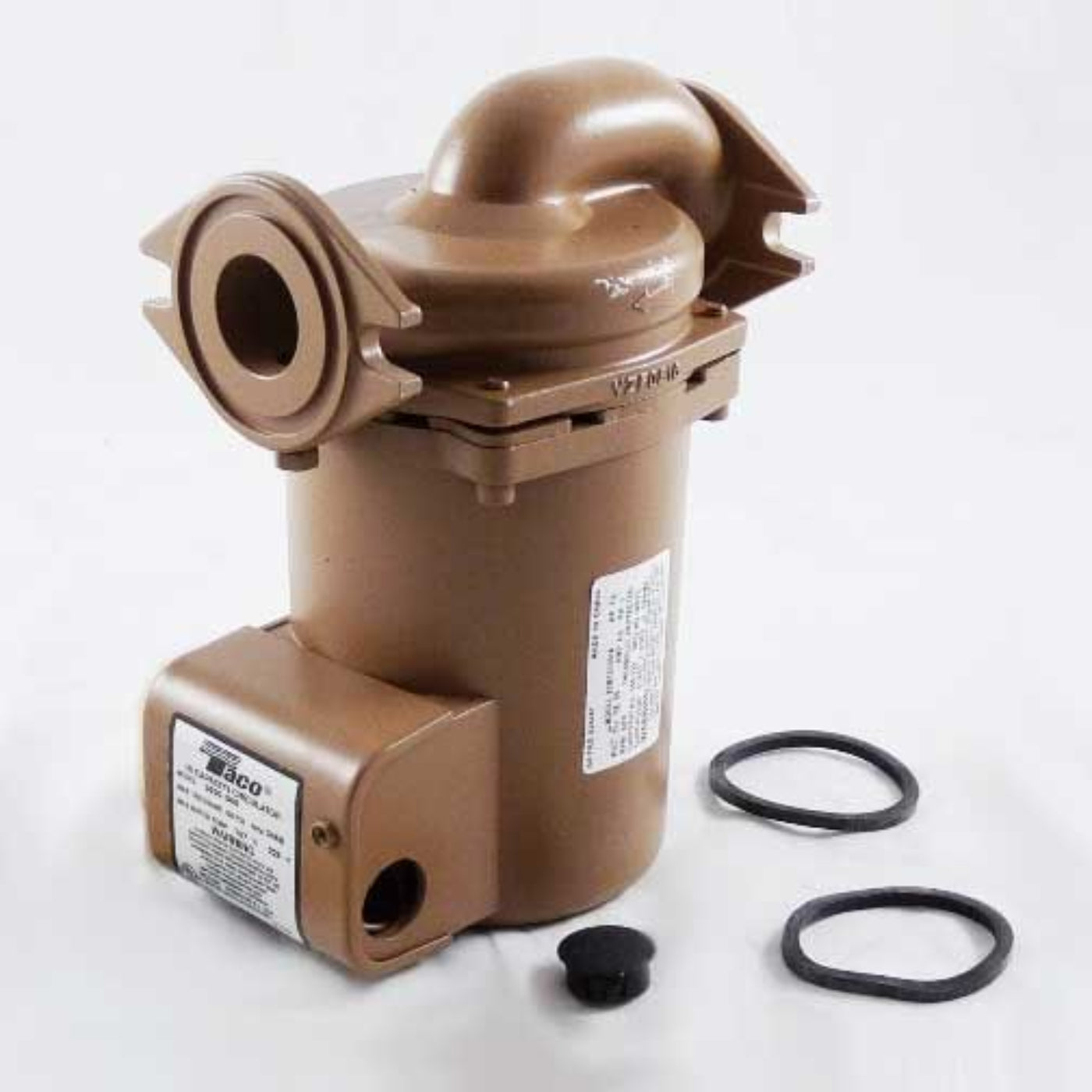

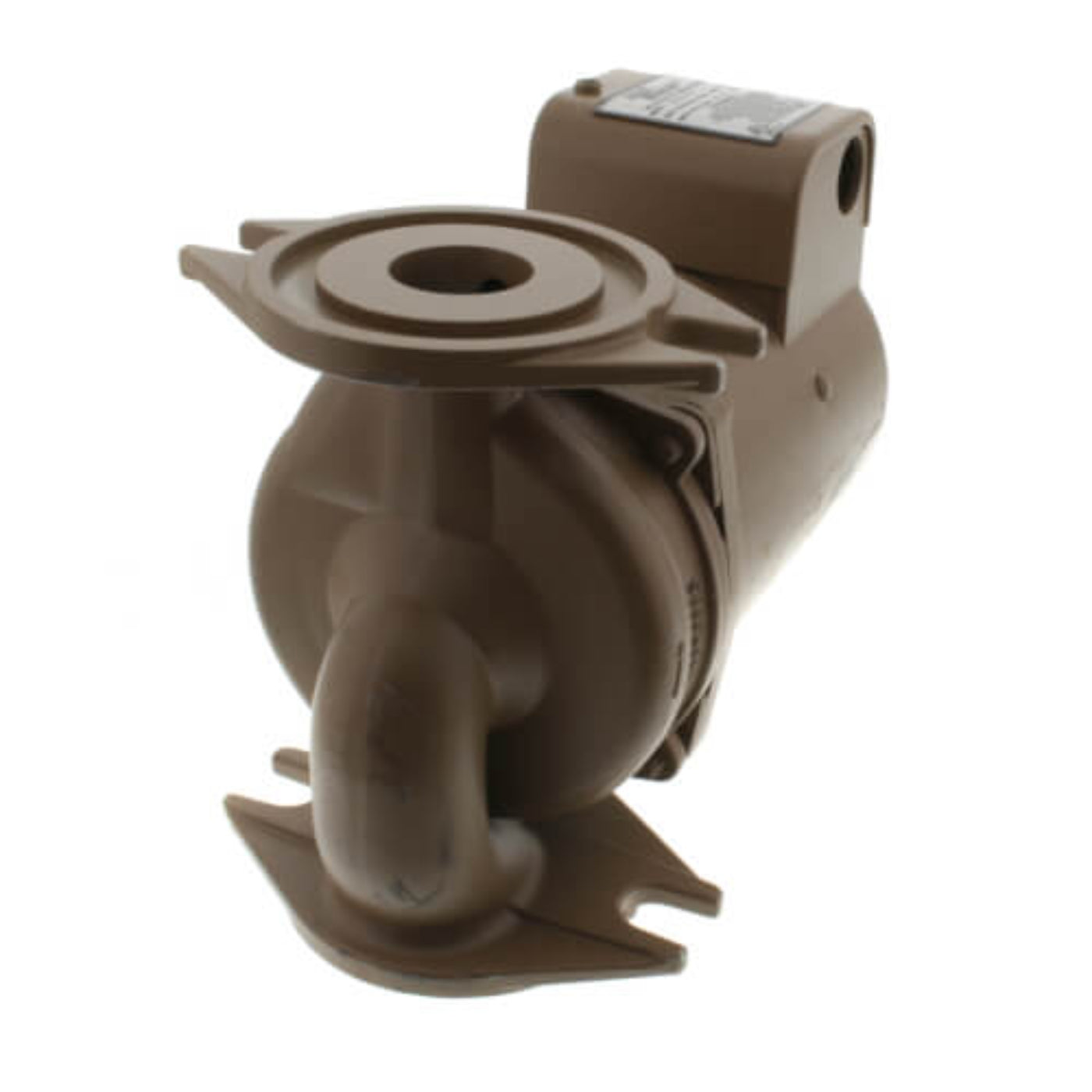

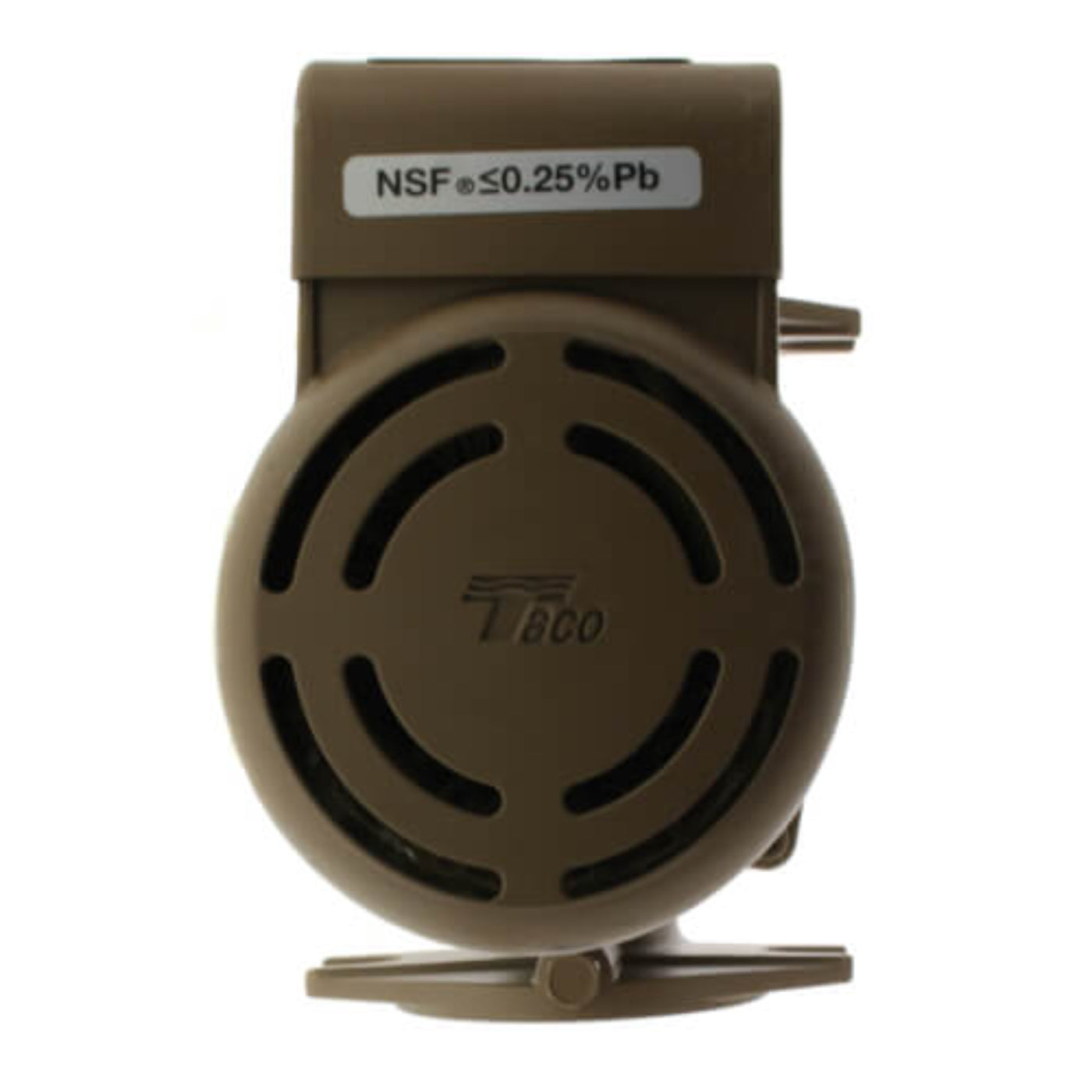

Taco 2400-50S/2-3P High Capacity Circulator Pump 1/2 HP 115V Stainless Steel - 2400-50S/2-3P

Taco 2400-50S/2-3P High Capacity Circulator Pump 1/2 HP 115V Stainless Steel - 2400-50S/2-3P

The Taco 2400-50S/2-3P Circulator Pump is designed for quiet and efficient operation in various hydronic heating, chilled water cooling, and hot water recirculation systems. This model features a space-saving design, a close-coupled, maintenance-free motor, and permanently lubricated sealed-for-life bearings.

Product Highlights

Suits a wide range of residential and commercial systems. Easy to service and highly reliable with minimal maintenance.

Features

• Medium to high flow and head applications
• 1/2 HP, 115V, single-phase motor
• Stainless steel construction for durability

Specifications

Product Information

Standard Information

What our Experts Think

• High-Capacity Performance: The Taco 2400-50S/2-3P circulator pump offers robust performance with a flow rate of up to 90 GPM and a maximum head of 46 feet, making it ideal for medium to high-flow hydronic systems.

• Durable Construction: Built with stainless steel for corrosion resistance and longevity, this pump features a carbon/silicon-carbide mechanical seal and stainless steel shaft for dependable operation in demanding environments.

• Maintenance-Free Operation: Designed for minimal upkeep, it has a maintenance-free motor and sealed-for-life bearings, ensuring quiet and efficient performance with little to no maintenance.

• Versatile Applications: Suitable for various hydronic heating, radiant floor systems, snowmelt applications, chilled water systems, and more, this pump meets the needs of both residential and commercial systems.

Q&A

Q: What is the Taco 2400-50S/2-3P Circulator Pump used for?
A: This high-capacity circulator pump is designed for hydronic heating, chilled water cooling, and hot water recirculation systems, providing efficient water flow in medium to high-flow applications.

Q: What are the key of this circulator pump?
A: The Taco 2400-50S/2-3P features a stainless steel construction for durability, a maintenance-free motor, carbon/silicon-carbide mechanical seal, and permanently lubricated bearings for long-lasting performance.

Q: What are the technical specifications?

• Horsepower: 1/2 HP

• Voltage: 115V, 60Hz, Single Phase

• Flow Rate: Up to 90 GPM

• Head Range: 0 – 46 feet

• Maximum Pressure: 150 PSI

• Temperature Range: 40°F – 225°F

• Connection Size: 2" Flanged

• RPM: 3450

• Amperage: 4.9A

Q: Is this pump suitable for potable water systems?
A: Yes, the stainless steel construction makes it suitable for use in potable water recirculation systems.

Q: What applications is this pump ideal for?
A: Ideal for hydronic heating, snow melt systems, geothermal heat pumps, chilled water cooling, radiant heating, and hydro-air fan coils.

Maintenance Tips

• Self-Lubricating Motor: The pump features a maintenance-free motor with sealed-for-life bearings, eliminating the need for routine lubrication.

• Mechanical Seal Replacement: The carbon/silicon-carbide mechanical seal is designed for easy servicing and can be replaced quickly if necessary.

• System Cleanliness: Keep the surrounding area clean and free from debris to prevent any obstruction or damage to the pump components.

• Regular Inspection: Perform routine inspections for any signs of wear or unusual noise, addressing any issues promptly to maintain efficient operation.

• Electrical Checks: Periodically inspect electrical connections to ensure they are secure and free from corrosion to maintain optimal performance.

• Pressure Monitoring: Use the dual pressure taps (suction/discharge) to monitor system pressure and ensure the pump is operating within the recommended parameters.
