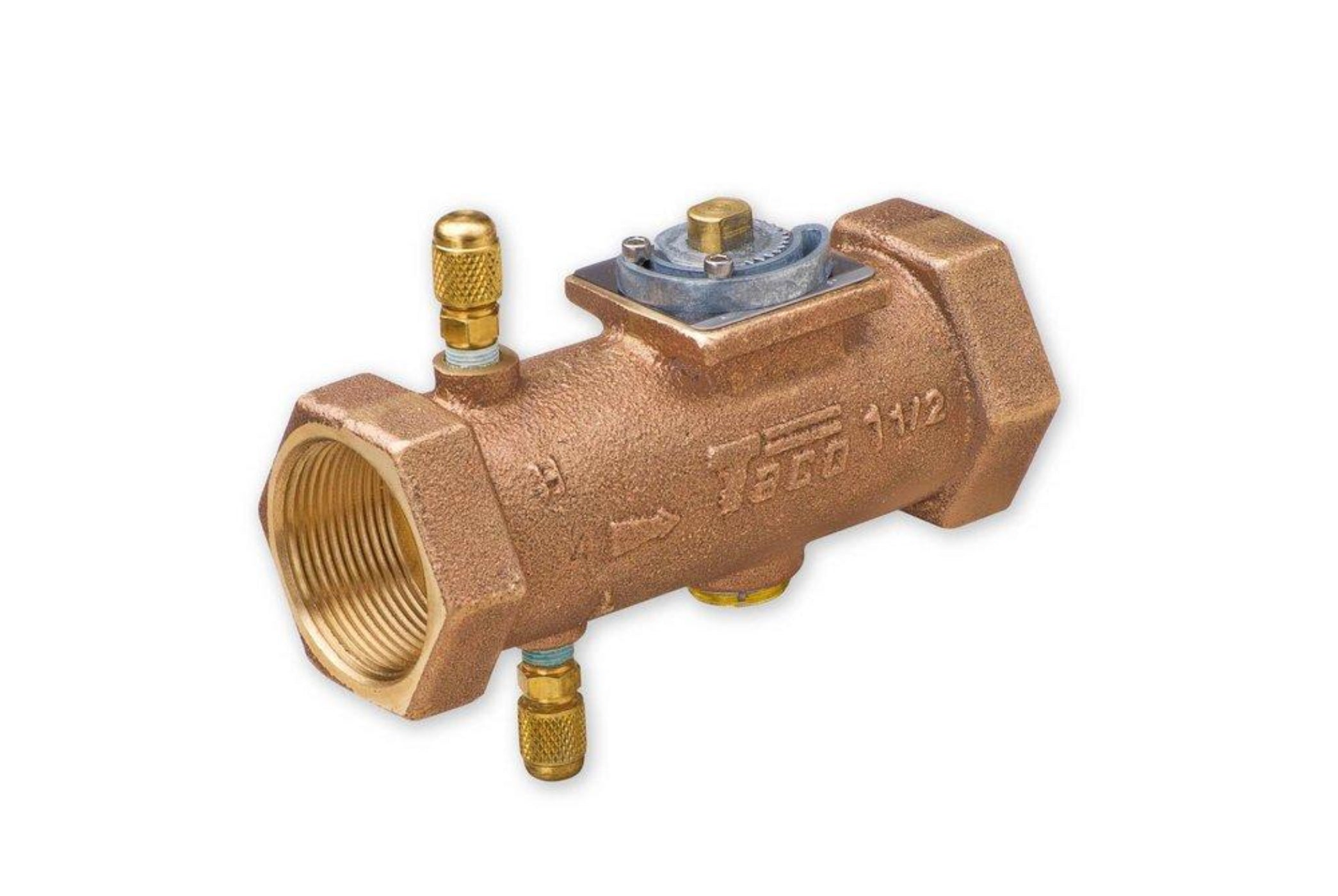

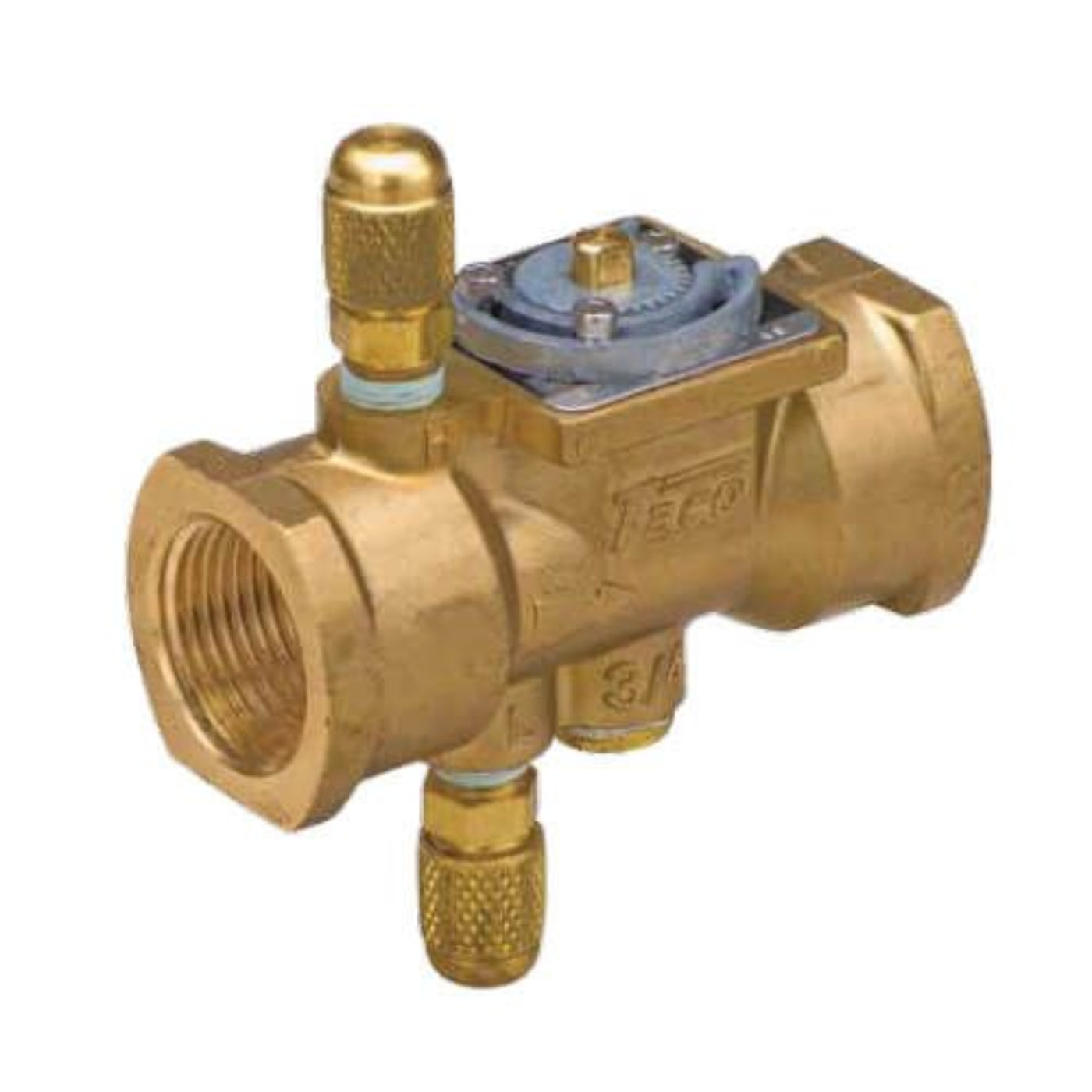

Taco ACUF150AT2 1-1/2 in. NPT Hydronic Balancing Valve - ACUF150AT2

Taco ACUF150AT2 1-1/2 in. NPT Hydronic Balancing Valve - ACUF150AT2

The Taco ACUF150AT2 1-1/2 in. NPT Hydronic Balancing Valve is designed for precise flow control in hydronic heating systems. This valve features superior engineering and precision machining to ensure reliable performance and high accuracy.

Product Highlights

This balancing valve is ideal for controlling flow in hydronic heating systems. It offers a positive shut-off and can read low flows accurately. Its design does not require reading the nameplate setting to determine the flow.

Features

• 4 to 5 times more accurate than variable orifice balancing valves
• Flow measurement independent of stem and ball position
• Tamper resistant memory stop for accurate resetting

Specifications

Product Information

Standard Information

What our Experts Think

• Precision Balancing: The Taco ACUF150AT2 Hydronic Balancing Valve offers superior accuracy with its modified venturi design, ensuring precise flow measurement regardless of stem and ball position.

• Durable and Reliable: Constructed from high-quality bronze, this valve is designed to withstand pressures up to 300 psi and temperatures as high as 250°F, making it ideal for demanding hydronic systems.

• Easy Adjustment: Features a calibrated nameplate for simple presetting, a tamper-resistant memory stop for consistent performance, and a blowout-proof stem for added durability.

• Flexible Application: Perfect for use in closed-loop hydronic systems, the valve functions as both a balancing valve and a shut-off valve, offering versatility in system setup and maintenance.

Q&A

Q: What is the Taco ACUF150AT2 Hydronic Balancing Valve used for?
A: This valve is designed to balance the flow in hydronic heating and cooling systems, ensuring efficient operation and optimal system performance..

Q: What are the technical specifications?

• Size: 1-1/2" NPT

• Material: Bronze body with Teflon seat

• Pressure Rating: 300 PSI

• Temperature Rating: Up to 250°F

• End Connections: Threaded NPT

• Length: 5-7/8 inches

Q: Is this valve suitable for potable water systems?
A: No, the ACUF150AT2 is designed for use in closed-loop heating and cooling systems, not for potable water.

Maintenance Tips

• Installation: Install the valve in the closed position during soldering to avoid overheating. Use a torch with a sharp-pointed flame and apply it carefully to prevent excessive heat exposure. Opt for low-temperature solders, and avoid brazing.

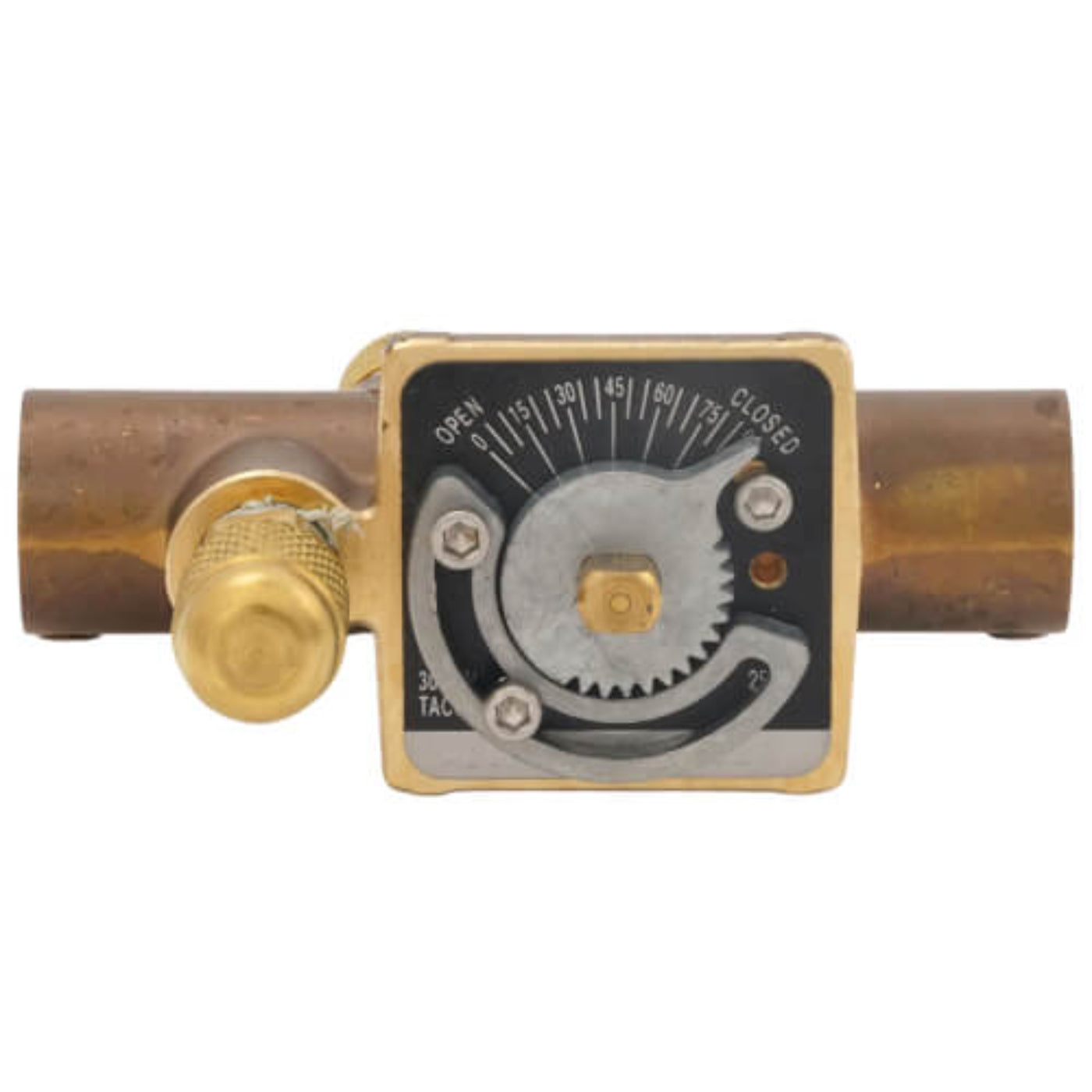

• Flow Measurement: Use the calibrated nameplate to preset the valve and achieve the desired pressure drop for accurate flow management.

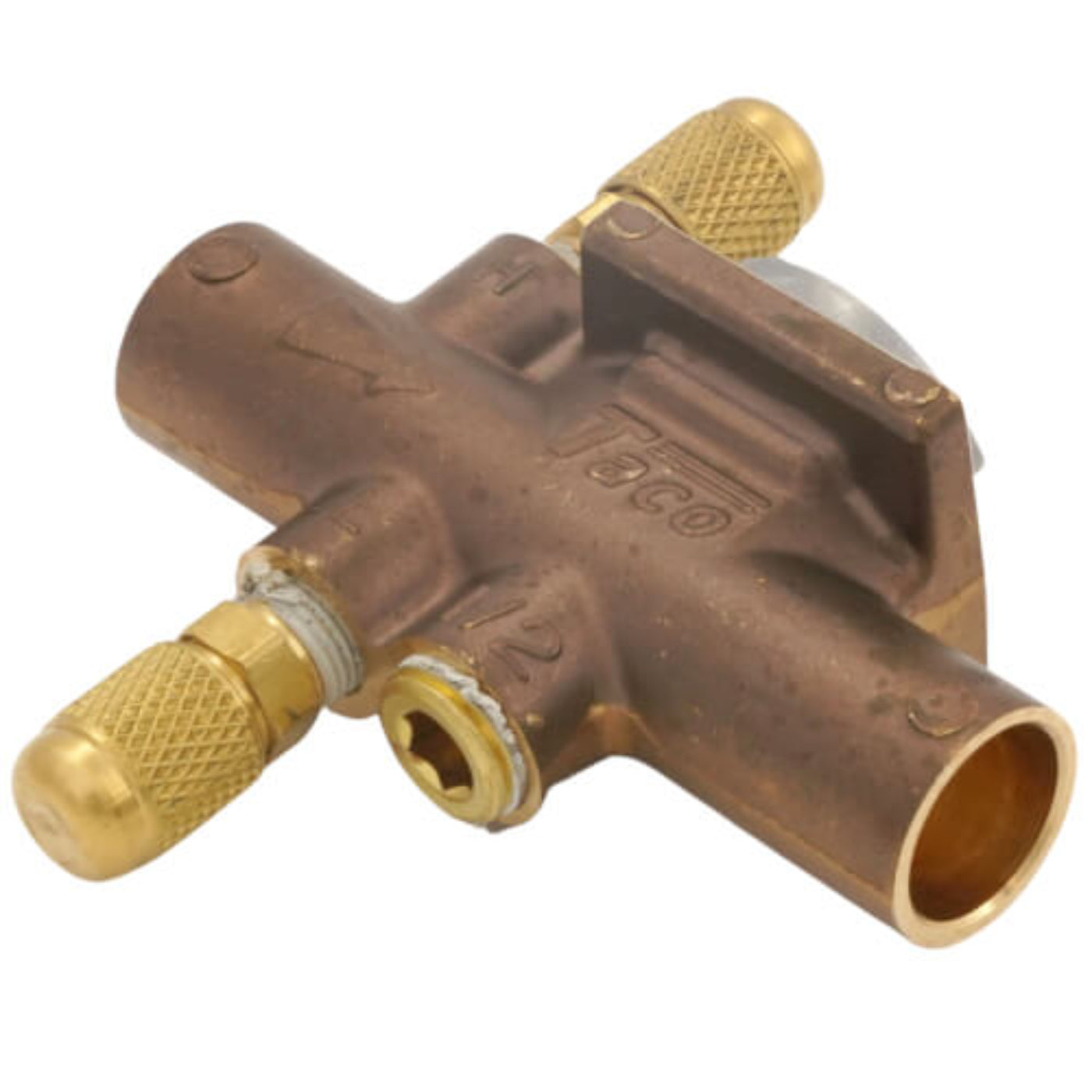

• Pressure Ports: Connect a Taco Pressure Gauge to the dual Schrader-style pressure ports for accurate differential pressure measurement.

• Maintenance: The valve functions reliably as both a balancing valve and a shut-off valve in closed hot or cold water systems.

• System Cleanliness: Keep the surrounding area clean and free from debris to prevent any obstruction or damage to the valve components.

• Regular Inspection: Perform routine inspections for any signs of wear or unusual noise, addressing any issues promptly to maintain optimal performance.
