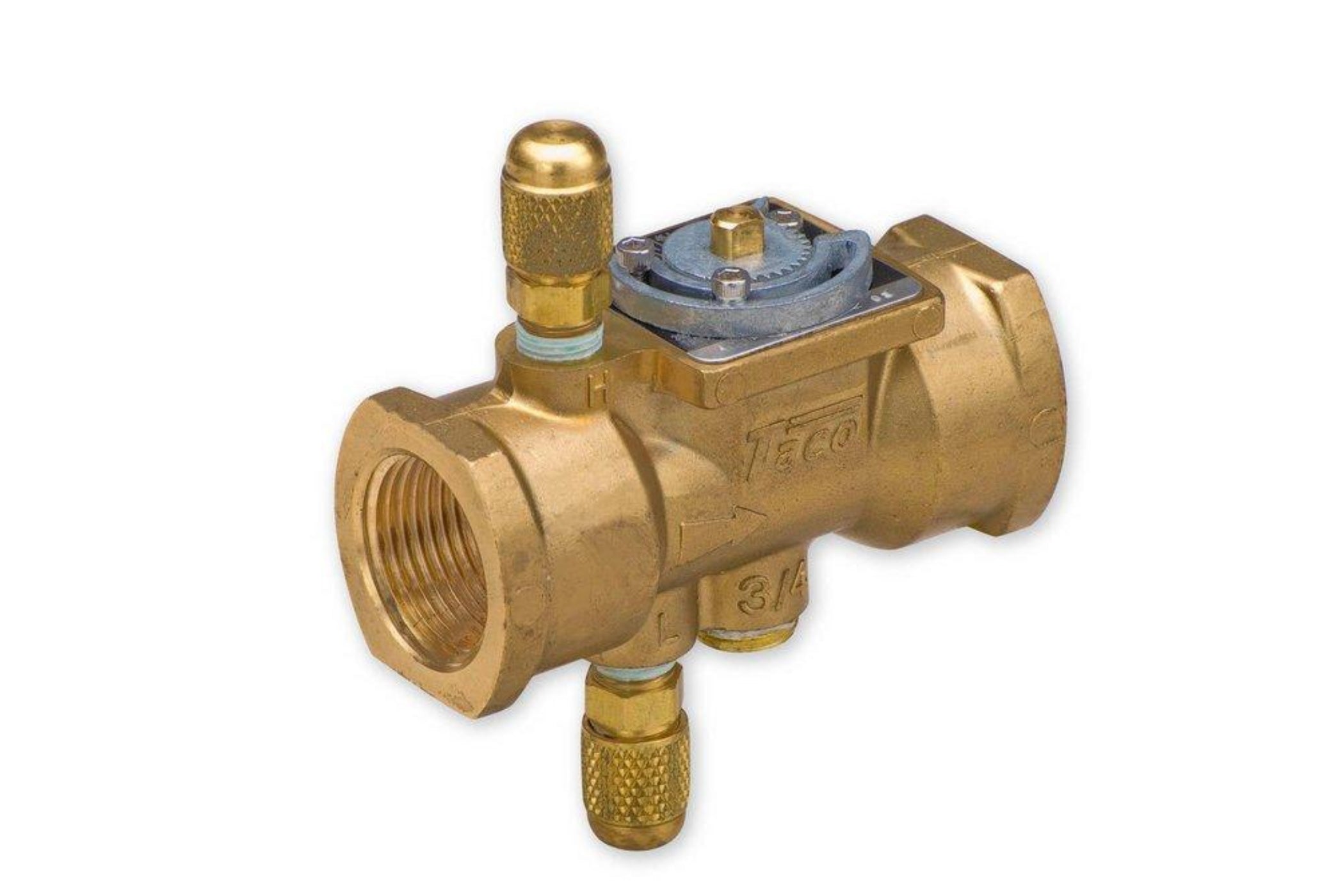

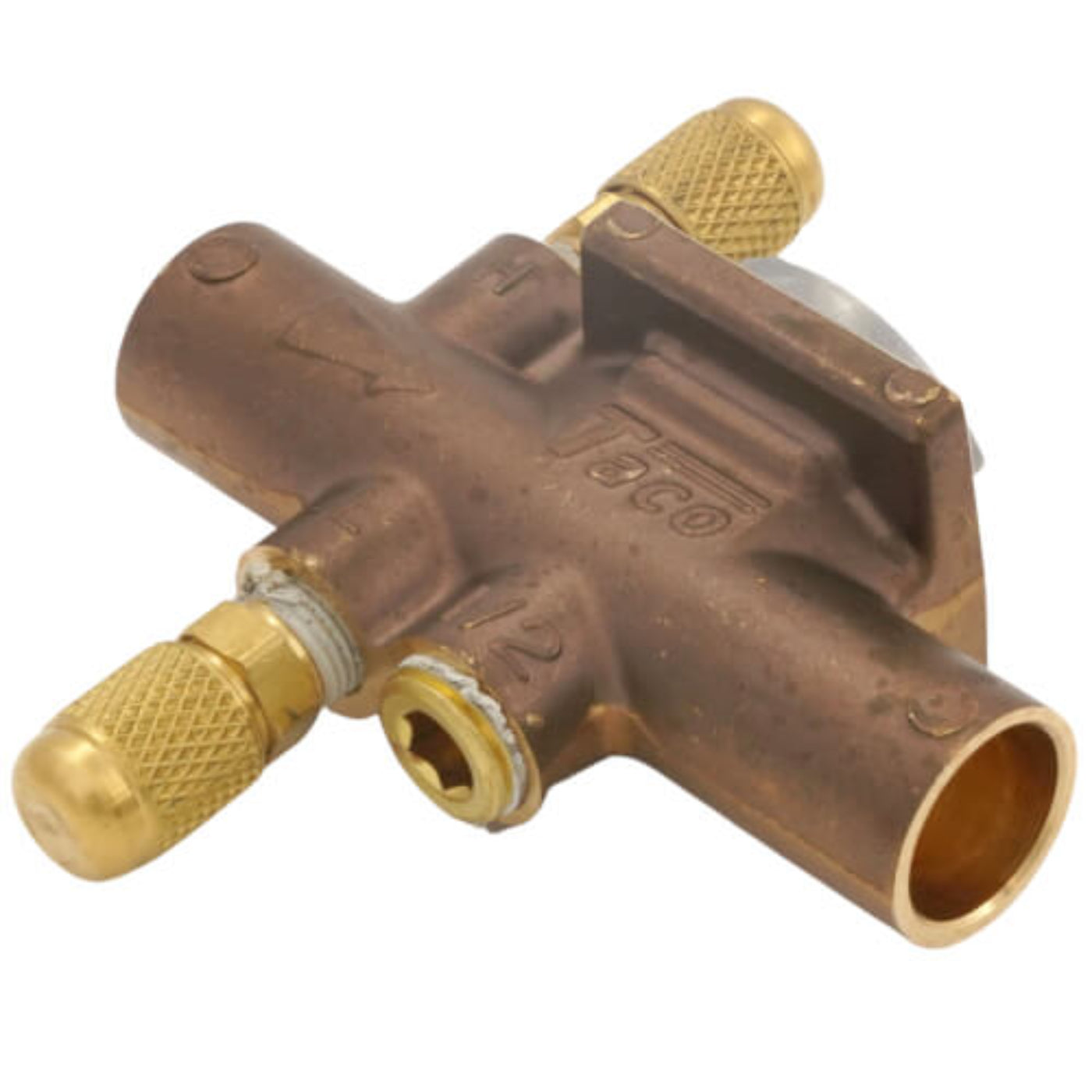

Taco 2 in IPS Circulator Setter - ACUF200AT2

Taco  2 in IPS Circulator Setter - ACUF200AT2

The Taco 2 in IPS Circulator Setter, MPN ACUF200AT2, provides precision flow measurement and balancing for hydronic systems.

This product ensures reliable performance and compatibility with various HVAC systems, making it suitable for trade professionals

Features

• Accurate flow measurement independent of stem and ball position.

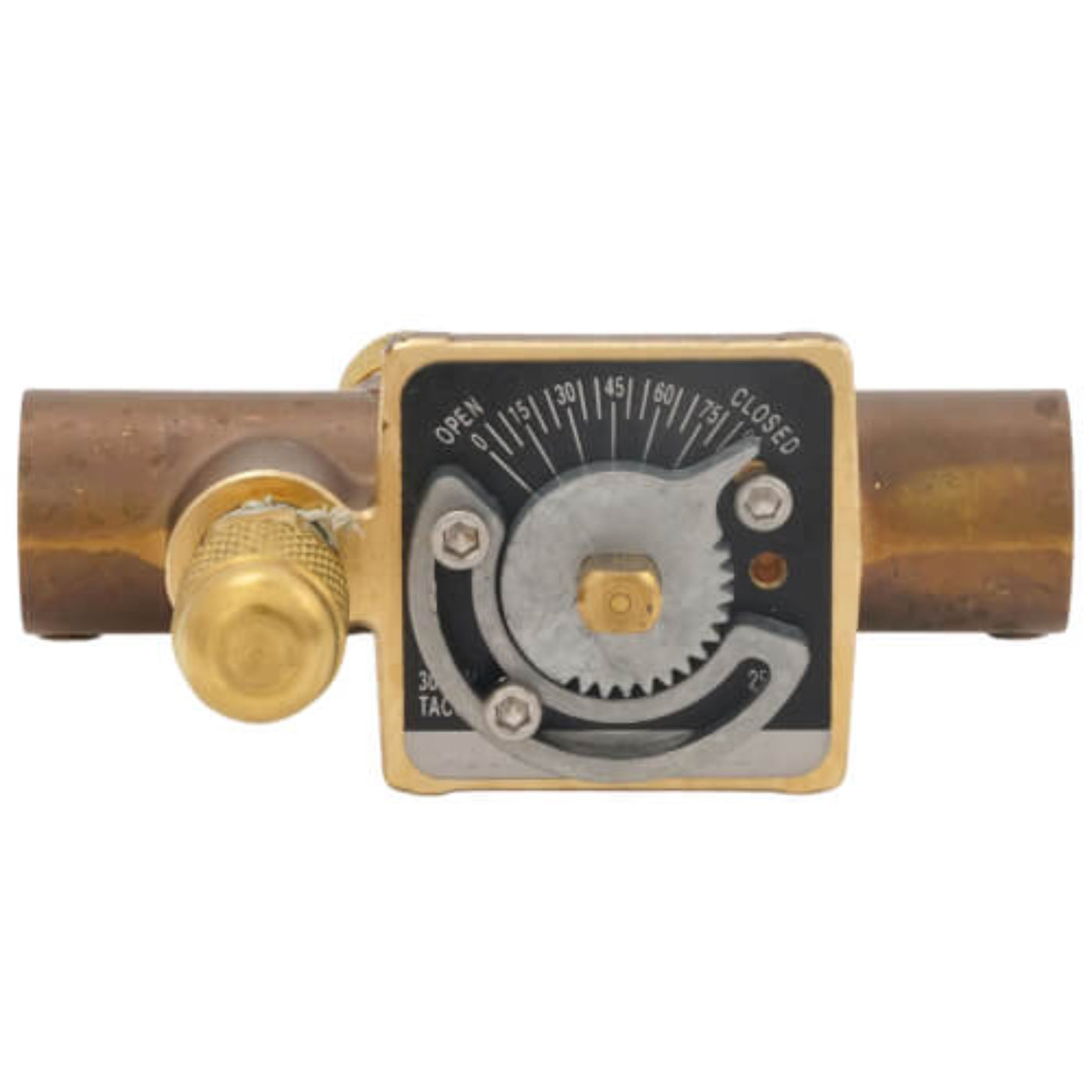

• Calibrated nameplate with tamper-resistant memory stop.
• Blowout-proof stem and positive shut-off feature.

Specifications

What Our Experts Think

• Precise Flow Control: Delivers accurate flow measurement, ensuring optimal system performance.

• Tamper-Resistant Design: Features a memory stop and a calibrated nameplate, maintaining consistent settings over time.

• Enhanced Durability: Built with a blowout-proof stem and positive shut-off ball valve for long-lasting reliability.

• Factory Tested: Each unit undergoes 100% factory testing, ensuring it meets the highest quality standards.

• Easy Integration: Perfect for use in hydronic systems, providing simple and efficient flow measurement and balancing.

• Versatile Usage: Ideal for commercial HVAC applications, improving system efficiency and ease of maintenance.

Q&A

Q: What is the Taco ACUF200AT2 used for?
A: The Taco ACUF200AT2 is used for balancing and flow measurement in hydronic heating, cooling, and circulating systems. It helps ensure precise flow rates and efficient system performance by regulating water flow.

Q: How does the Taco ACUF200AT2 improve system performance?
A: It provides high-accuracy flow measurement, which ensures optimal system balance. By precisely controlling water flow, it prevents overflows or underflows, improving system efficiency and energy use.

Q: Can this circulator setter be used with different types of fluids?
A: Yes, it can be used in systems with water, glycol, or other compatible fluids, as long as they fall within the temperature and pressure ratings.

Q: What is the Cv value, and why is it important?
A: The Cv value of 62.3 means the circulator setter can handle a flow rate where 1 gallon of water flows through the valve for every minute with a pressure drop of 1 psi. A higher Cv value indicates greater flow capacity, which is crucial for balancing larger systems.

Q: Is this product suitable for residential systems?
A: While the Taco ACUF200AT2 is often used in commercial or large residential systems due to its high accuracy, it can also be used in smaller systems that require precise flow control and balancing.

Q: How easy is it to install the Taco ACUF200AT2?
A: The circulator setter is designed for easy installation, with standard threaded connections (IPS) that fit most piping systems. It also includes clear markings for easy flow adjustments.

Q: What makes the Taco ACUF200AT2 more durable than other circulator setters?
A: Made of robust materials like bronze and featuring a blowout-proof stem, it is built to withstand high-pressure environments and extended use, ensuring long-term reliability.

Q: What maintenance is required for the Taco ACUF200AT2?
A: Minimal maintenance is required. Periodically check the valve and memory stop to ensure proper operation. If there’s a buildup of sediment or debris, use the built-in blow-down port to flush the system.

Q: How do I adjust the flow on the Taco ACUF200AT2?
A: Flow can be adjusted using the tamper-resistant memory stop to ensure the setting remains consistent and accurate over time.

Maintenance Tips

• Regular Inspection:

• Check for any leaks around the valve body and connections.

• Ensure that the valve is securely installed and there are no signs of wear.

• Flow Calibration:

• Confirm that the flow rate is correctly adjusted based on system specifications.

• Pressure Monitoring:

• Keep track of the system pressure to ensure it remains within the recommended range to avoid damage.

• Cleaning:

• Clean the valve and surrounding area regularly to prevent debris buildup that could affect the valve's performance.

• Tamper Resistance:

• Ensure that the tamper-resistant memory stop is intact to maintain the accurate flow settings.
