Taco HLS-2 Hot-Link Recirculation System 115V Replacement HLS-1 - HLS-2

Taco HLS-2 Hot-Link Recirculation System 115V Replacement HLS-1 - HLS-2

The Taco HLS-2 Hot-Link System is designed for efficient domestic hot water recirculation, ensuring immediate hot water delivery at showers and faucets while conserving up to 12,000 gallons of water per year for an average family. This system is ideal for retrofitting to existing plumbing without needing a dedicated return line.

Product Highlights

Integrated with an analog clock timer, the Taco HLS-2 allows for scheduling operation during peak hours or continuous function, maximizing convenience and efficiency. The exclusive clean-in-place valve design minimizes maintenance and prolongs equipment life.

Features

• Ensures instant hot water delivery across household fixtures.
• Saves significant amounts of water annually, enhancing household efficiency.
• Quick and straightforward installation process.

Specifications

Product Information

Standard Information

What our Experts Think

• Instant Hot Water: The Taco HLS-2 Hot-Link Recirculation System ensures that hot water is immediately available at faucets and showers, eliminating the wait and enhancing comfort. It saves both time and water by efficiently circulating water through the system.

• Water Conservation: This system can save an average household up to 12,000 gallons of water per year by reducing the amount of water wasted while waiting for hot water to arrive at the tap.

• Easy Installation: The Hot-Link system is designed for retrofit installations, allowing it to be easily added to existing plumbing without the need for a dedicated return loop. The pump is installed at the water heater, and the bypass valve is mounted under the sink.

• Maintenance-Free: The system features a clean-in-place valve design, extending valve life and reducing the frequency of maintenance and repairs.

Q&A

Q: What is the Taco HLS-2 Hot-Link Recirculation System?
A: The Taco HLS-2 is a domestic hot water recirculation system designed to provide instant hot water at faucets and showers, reducing water waste and conserving energy.

Q: How does the HLS-2 system work?
A: The system includes a Hot-Link bypass valve installed under the sink and a cartridge circulator near the water heater. The bypass valve uses thermal disk technology to return cooled water back to the heater, ensuring hot water lines remain hot without the need for dedicated return piping.

Q: Is the HLS-2 system easy to install?
A: Yes, the system is designed for easy installation and can be retrofitted to existing plumbing without the need for a dedicated return line.

Maintenance Tips

• Installation: Ensure the circulator motor is installed in the horizontal position to prevent overheating.

• Air Purging: After installation, open the hot water faucet to purge air from the system.

• Leak Checks: If leaks are detected, close the supply valve and tighten all connections.

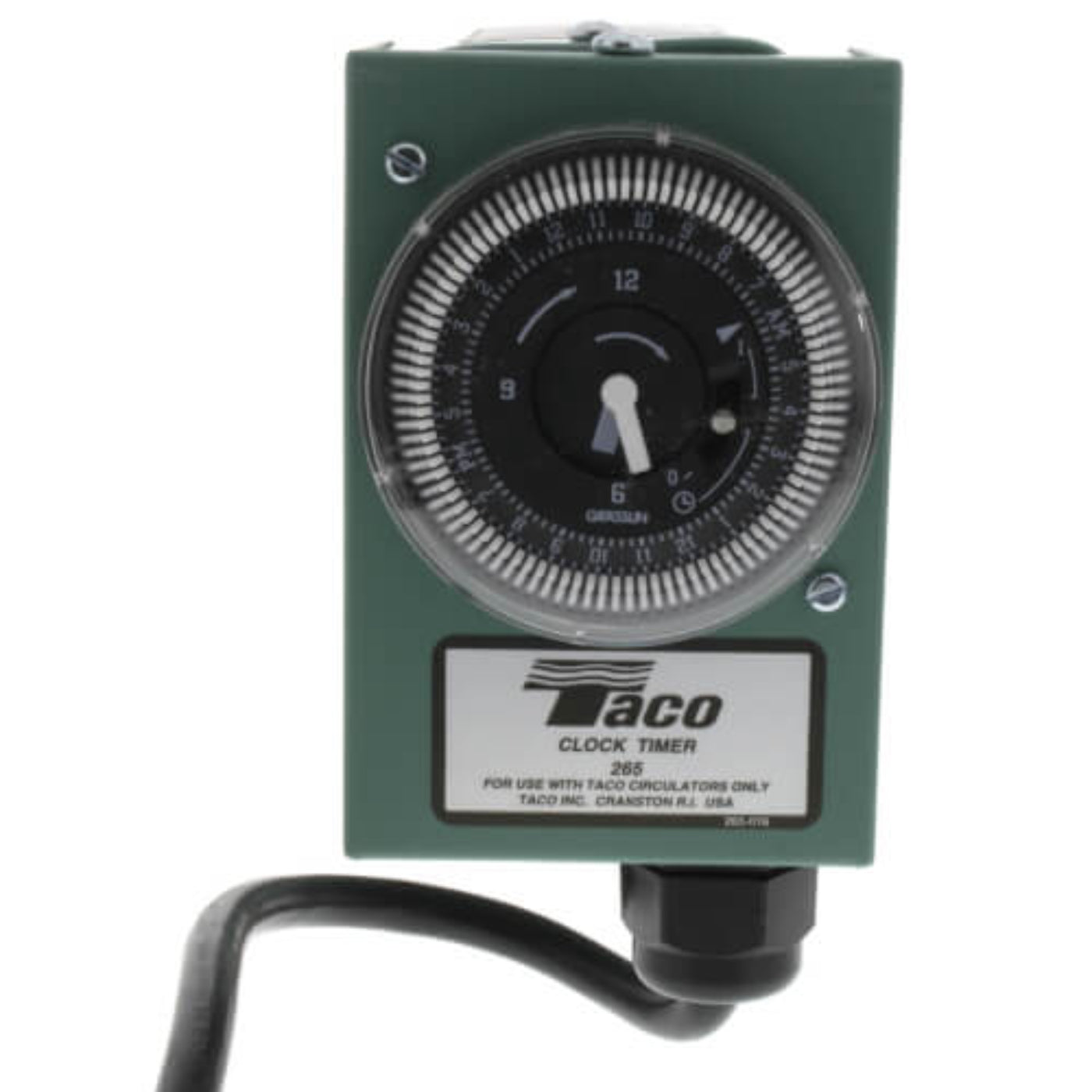

• Timer Settings: Use the analog clock timer to operate the system during peak usage hours or continuously, as needed.

• System Cleanliness: The Hot-Link valve features a clean-in-place design, eliminating the need for removal during cleaning.

• Dry Running: Avoid running the circulator without water, as this can cause permanent damage and void the warranty.

• Regular Inspections: Perform routine checks for any signs of wear or unusual noise, addressing issues promptly to maintain efficient operation.
