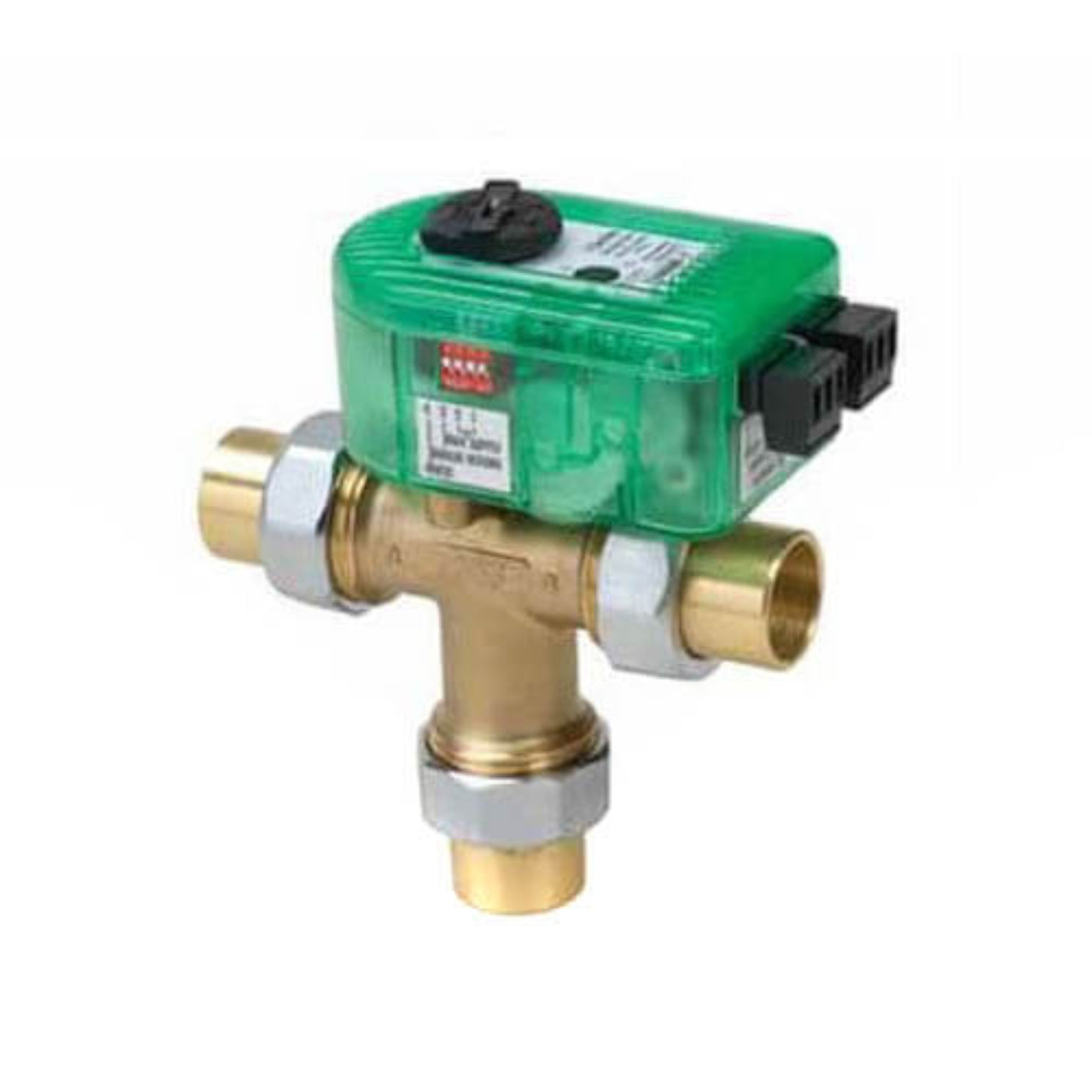

Taco /2 3 Way Outdoor Reset I-Series Mixing Valve w/ Sensor - I050C3R-1
The Taco i050C3R-1 is a microprocessor-based mixing valve designed for heating systems. This valve helps regulate the supply water temperature by modulating its position based on a reset ratio. It adjusts heat to align with the heat loss in buildings or specific heating zones.
With built-in outdoor reset control, this valve eliminates the need for external controls, making installation simpler. It's capable of zone-by-zone outdoor reset control for customized comfort.
Features
- Brand: Taco
- Product Number: i050C3R-1
- Category: HVAC
Specifications
| Brand |
Taco |
| MPN |
i050C3R-1 |
| Type |
3-Way Valve |
| Size |
1/2 inch |
| Connection Type |
C x C |
| Max Temperature |
150°F |
| Min Temperature |
85°F |
| Temperature Range |
85°F – 150°F |
| Max Pressure |
125 PSI |
| Weight |
1.4 lbs |
What Our Experts Think
-
Built-In Outdoor Reset: Automatically adjusts supply water temperature based on outdoor conditions—no external controller needed.
-
Precise Temperature Control: Continuously modulates to match system heat demand, enhancing comfort and efficiency.
-
Boiler Protection: Helps prevent low return water temps to avoid condensation and extend boiler life.
-
Easy Installation: Plug-in low-voltage wiring, manual override, and status LED make setup and diagnostics simple.
-
High-Performance Build: Ball valve design with high Cv for strong flow; rated for up to 125 PSI shutoff.
-
Versatile Use: Great for radiant floor heating, hydronic systems, and solar/geothermal setups; handles water or glycol mixtures up to 50%.
Q&A
Q: What is the Taco I050C3R-1 Mixing Valve used for?
A: The Taco I050C3R-1 is a 1/2" 3-way outdoor reset mixing valve used to regulate supply water temperature in hydronic heating systems, automatically adjusting based on outdoor temperature for optimal comfort and energy efficiency.
Q: What applications is the Taco I050C3R-1 suited for?
A: It’s ideal for hot water heating systems, closed-loop cooling, radiant systems, and hydronic heating/cooling systems with up to 50% glycol concentration.
Q: Does the Taco I050C3R-1 include a sensor?
A: Yes, it includes a 10kΩ NTC thermistor sensor for accurate temperature detection.
Maintenance Tips
-
Ensure Compatibility: Confirm the seal kit matches your pump's shaft size (1-1/8") and model.
-
Clean Installation Area: Remove any debris from the shaft and sealing surfaces before installation to prevent damage to the new seal.
-
Lubricate Components: Use the provided grease to lubricate the shaft sleeve, seals, and other moving parts during installation to reduce friction.
-
Inspect Regularly: Check the seals periodically for wear, leaks, or any signs of failure, and replace them as necessary.
-
Maintain Proper Operating Conditions: Ensure the pump operates within the recommended temperature and pressure ranges to prolong the life of the seal.
-
Handle with Care: Be gentle when handling the seal and related components to avoid damaging the seal faces or O-rings.
