Transition Relay Alloy NX - 01.23.11.5048

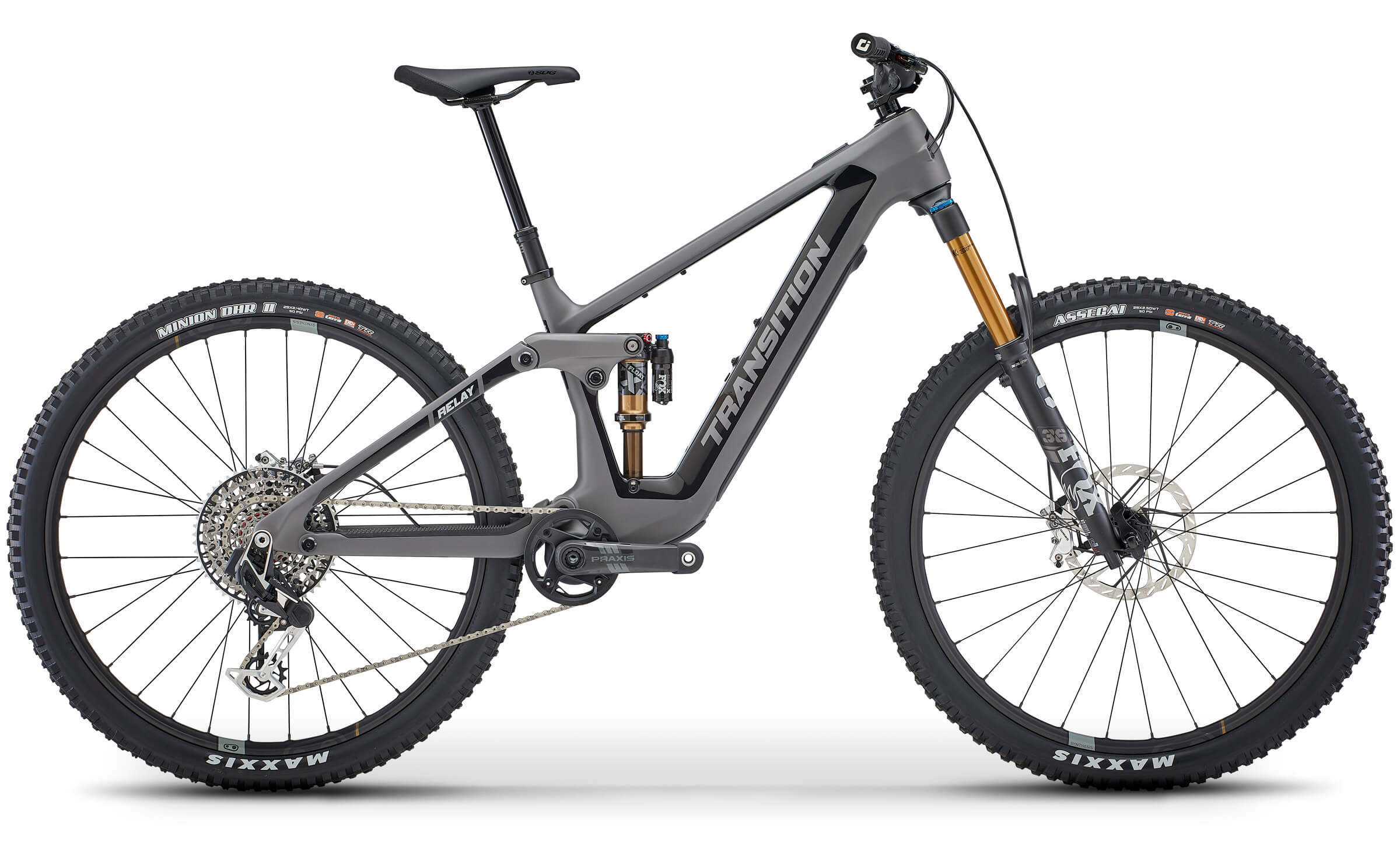

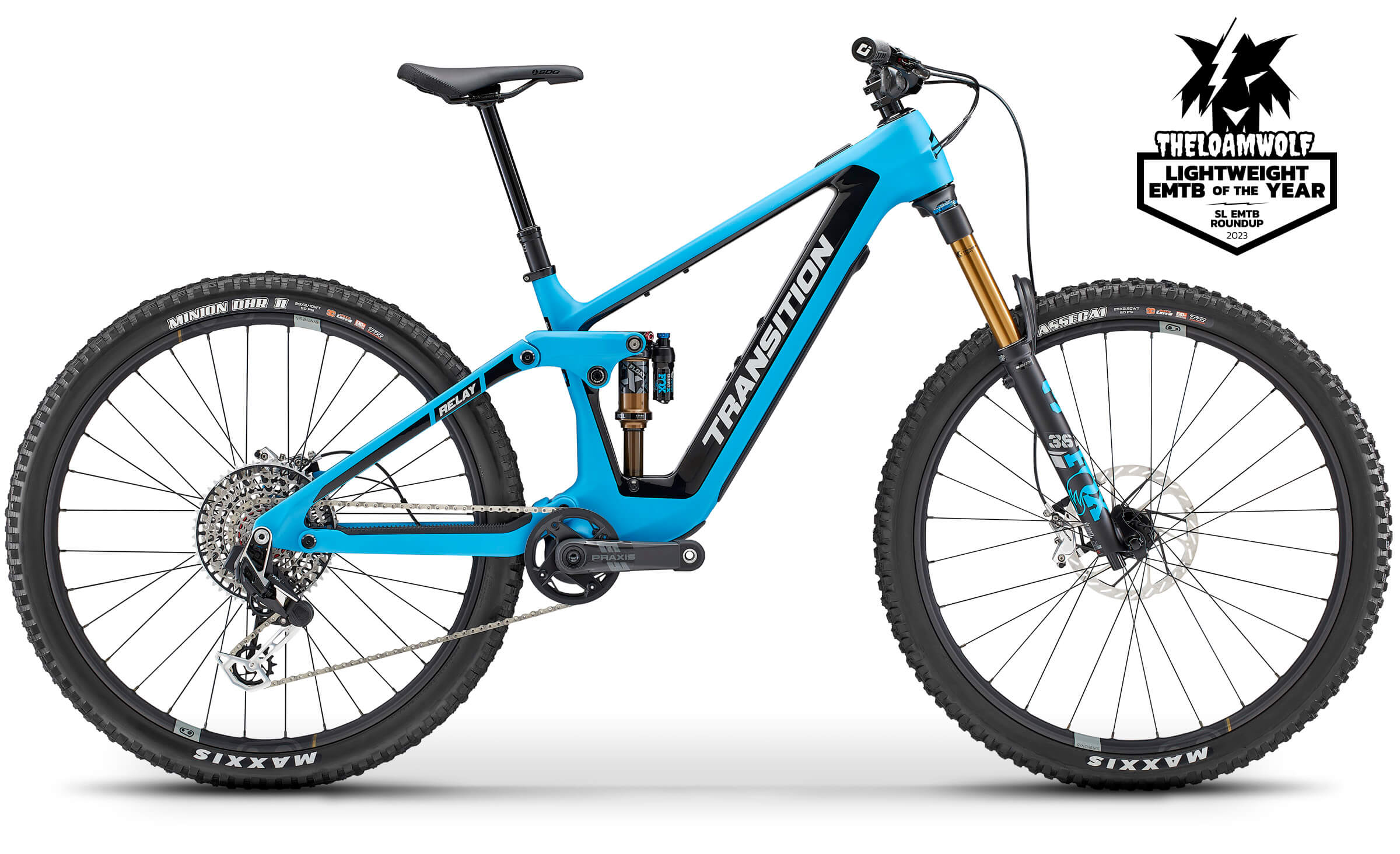

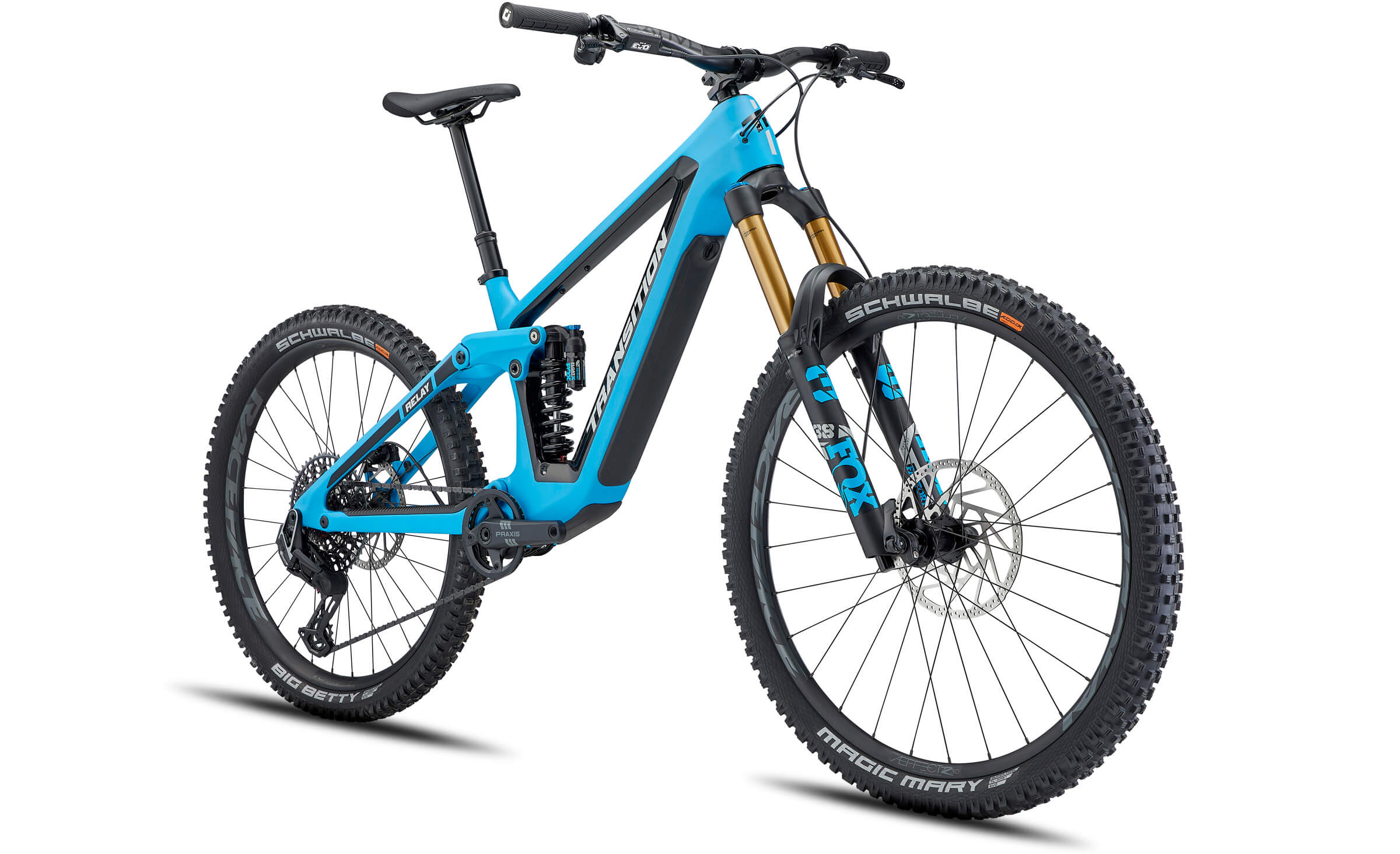

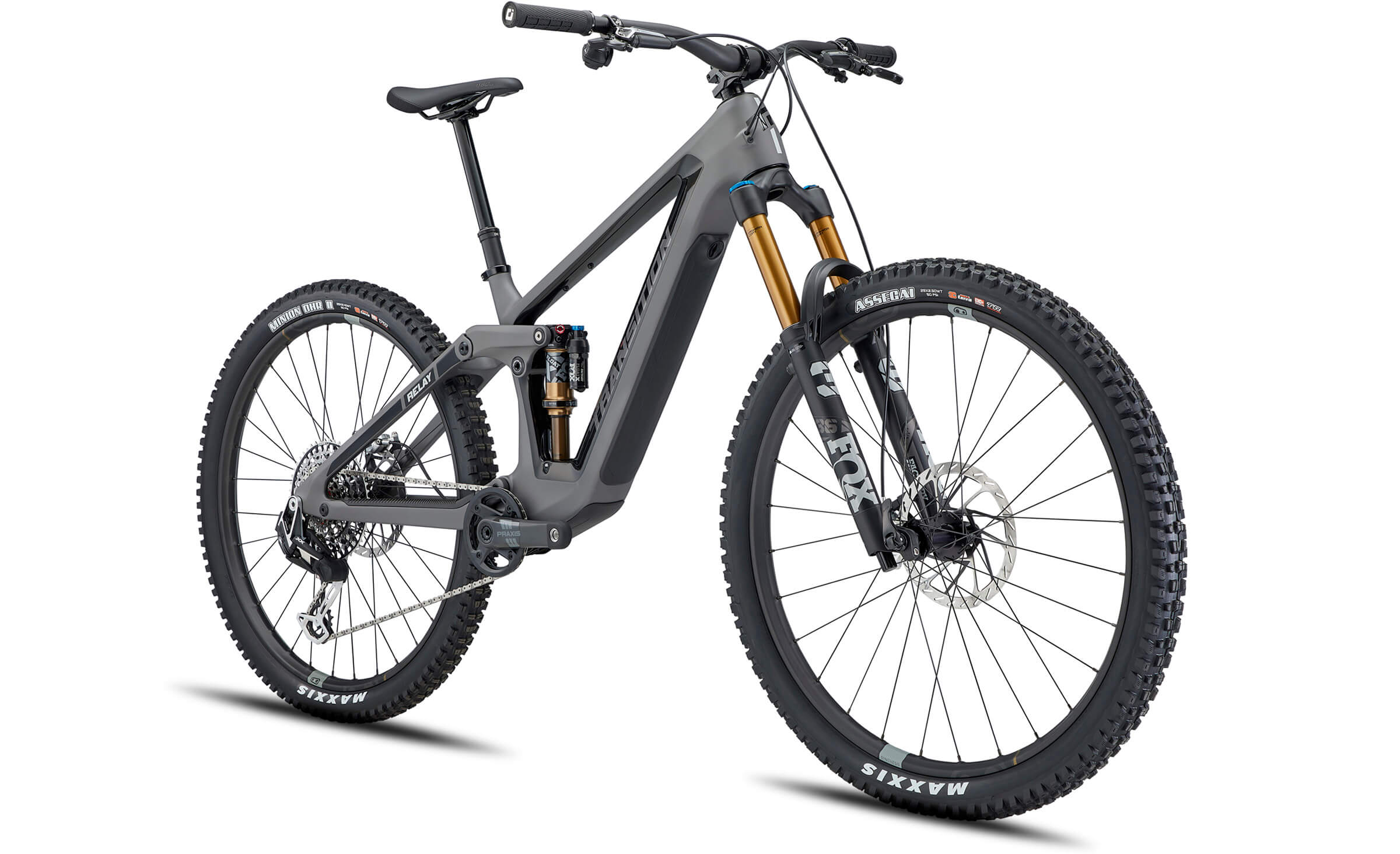

Relay Alloy NX

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

Specifications
Frame & Suspension
Frame PBJ Chromoly Steel
Wheel Size 26"
Fork Marzocchi Bomber DJ (100mm travel)
Headset FSA No.10/7B/44
Cockpit
Stem Spank Spoon (40mm)
Handlebar Spank Spoon
Short/Long: 785mm width, 40mm rise
X-Long: 785mm width, 60mm rise
Grips ODI Longneck Lock-On
Saddle SDG Patriot I-Beam
Seatpost SDG I-Beam
Brakes
Brake System SRAM Level (Rear Only)
Rotors SRAM Centerline (160mm)
Drivetrain
Cassette 12t Single Cog
Chain KMC K1 Wide
Crank Samox BMX 3-Piece Chromoly (25t / 170mm)
Wheels & Tires
Rims Kinlin DDT32
Spokes Pillar 14g
Front Hub Novatech D791SB-15
Rear Hub Novatech D256SBT
Front Tire Maxxis Ikon (2.2)
Rear Tire Maxxis Ikon (2.2)
Weight 26.3 lbs / 11.92 kg (Size Short)
Size Guide
Reach 410 / 405 430 / 422 460 / 452 485 / 477 510 / 502 535 / 527
B. Stack (Carbon) 590 / 588 615 / 615 628 / 634 637 / 643 646 / 652 655 / 661
B. Stack (Alloy) 595 / 593 620 / 620 628 / 634 637 / 643 646 / 652 655 / 661
C. Effective TT Length 523 / 532 553 / 564 586 / 597 614 / 631 642 / 665 671 / 696
D. Seat Tube Length (Carbon) 380 390 410 430 460 490
D. Seat Tube Length (Alloy) 410 410 410 430 460 490
E. Effective ST Angle 79.7 / 79.3 79.1 / 78.4 78.4 / 77.7 77.8 / 77.1 77.3 / 76.6 77 / 76.3
Saddle Height for ST Angle 560 600 660 720 780 820
Actual ST Angle 71 / 70.6 71 / 70.3 71 / 70.3 71 / 70.3 71 / 70.3 71 / 70.4
Seat Tube Offset @ BB 90 90 90 90 90 90
F. Head Tube Length (Carbon) 100 100 115 125 135 145
F. Head Tube Length (Alloy) 105 105 115 125 135 145
G. Head Tube Angle 64 / 63.6 64 / 63.3 64 / 63.3 64 / 63.3 64 / 63.4 64 / 63.4
H. Chainstay Length 436 442 / 440 442 / 440 448 / 446 448 / 446 448 / 446
I. Wheelbase 1167 / 1172 1208 / 1211 1244 / 1247 1280 / 1282 1309 / 1312 1338 / 1341
J. Bottom Bracket Drop 15 / 11 25 25 25 25 25
K. Estimated BB Height 340 / 343 350 350 350 350 350
What our Experts Think
  • Versatile Trail Performance: Designed for both aggressive trail riding and extended backcountry rides.

  • Bosch Performance CX Motor: Offers smooth, responsive pedal assist for a natural ride experience.

  • Durable Alloy Frame: Lightweight yet strong, ideal for rough trails and tough conditions.

  • SRAM NX Drivetrain: Offers smooth and reliable shifting across various terrains.

  • Progressive Geometry: Provides excellent handling, especially on steep trails.

  • Mixed Wheel Setup: Optimized with 29” front and 27.5” rear wheels for the best balance of agility and stability.

  • Adjustable Geometry: Customizable setup for different trail conditions and personal preferences.

Q&A

Q: What motor system powers the Relay Alloy NX?
The bike is equipped with the Fazua Ride 60 system, delivering 60Nm of torque and 250W continuous power, with a 450W peak output.

Q: What is the battery capacity and how is it integrated?
It features a 430Wh Fazua Energy battery that is tool-free removable via a door under the downtube, allowing for easy charging off the bike

Q: Can the bike be used without the motor assistance?
Yes, the Relay Alloy NX can be ridden without the battery, providing a natural, non-motorized riding experience due to the low drag of the motor system.

Q: What is the suspension setup?
The bike features 160mm of front and rear suspension travel, with a Marzocchi Z1 Air fork and a Fox Float X Performance rear shock.

Q: What wheel sizes are available?
XS size comes with 27.5" wheels; SM-XXL sizes come with 29" wheels.

Q: What is the frame material?
The frame is made of aluminum, providing a balance of strength and weight.

Q: What drivetrain does the bike use?
It is equipped with a SRAM NX Eagle 12-speed drivetrain, offering a wide range of gears.

Q: What braking system is installed?
The bike comes with SRAM Code R brakes, featuring 4-piston calipers and 200mm rotors for reliable stopping power.

Q: What is the weight of the bike?
The Relay Alloy NX weighs approximately 48.3 lbs (21.9 kg).

Maintenance Tips
  • Battery Care: Charge the integrated 430Wh battery regularly using the provided charger. Avoid deep discharges and store the battery at around 50% charge if unused for long periods.

  • Cleaning: Wipe down the frame with a damp cloth. Avoid water exposure to electrical components. Dry and lubricate the chain after cleaning.

  • Tire Maintenance: Check tire pressure regularly to maintain comfort and performance. Inflate the 27.5" or 29" tires to the recommended PSI.

  • Brake Inspection: Inspect hydraulic disc brakes for wear and alignment. Keep the rotors clean and free from debris.

  • Drivetrain Care: Ensure smooth shifting on the 12-speed system. Clean and lubricate the chain regularly and check the shifter for responsiveness.

  • Storage: Store in a dry, cool place. Avoid extreme temperatures. If storing long term, remove the battery and store it separately at room temperature.
