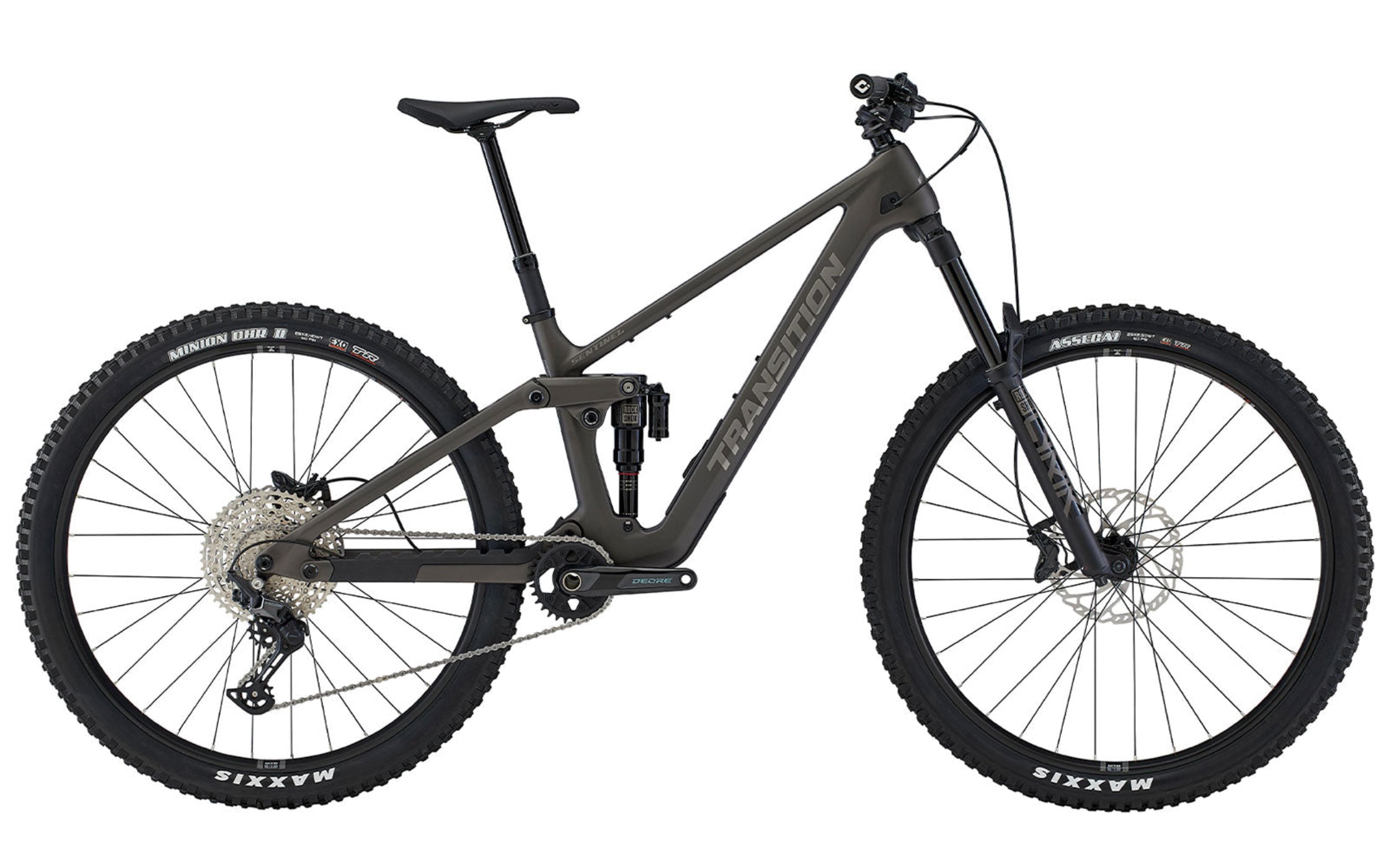

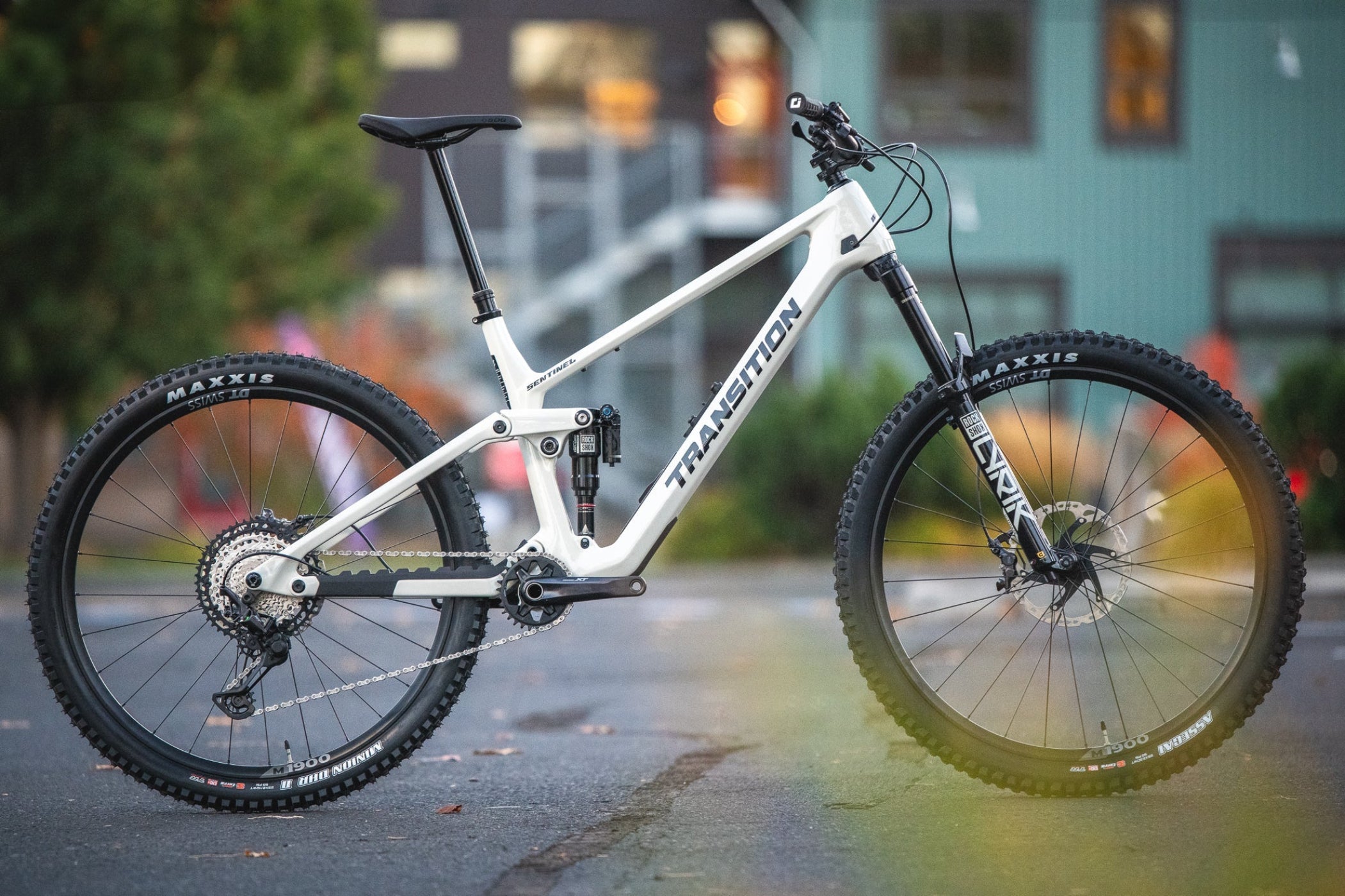

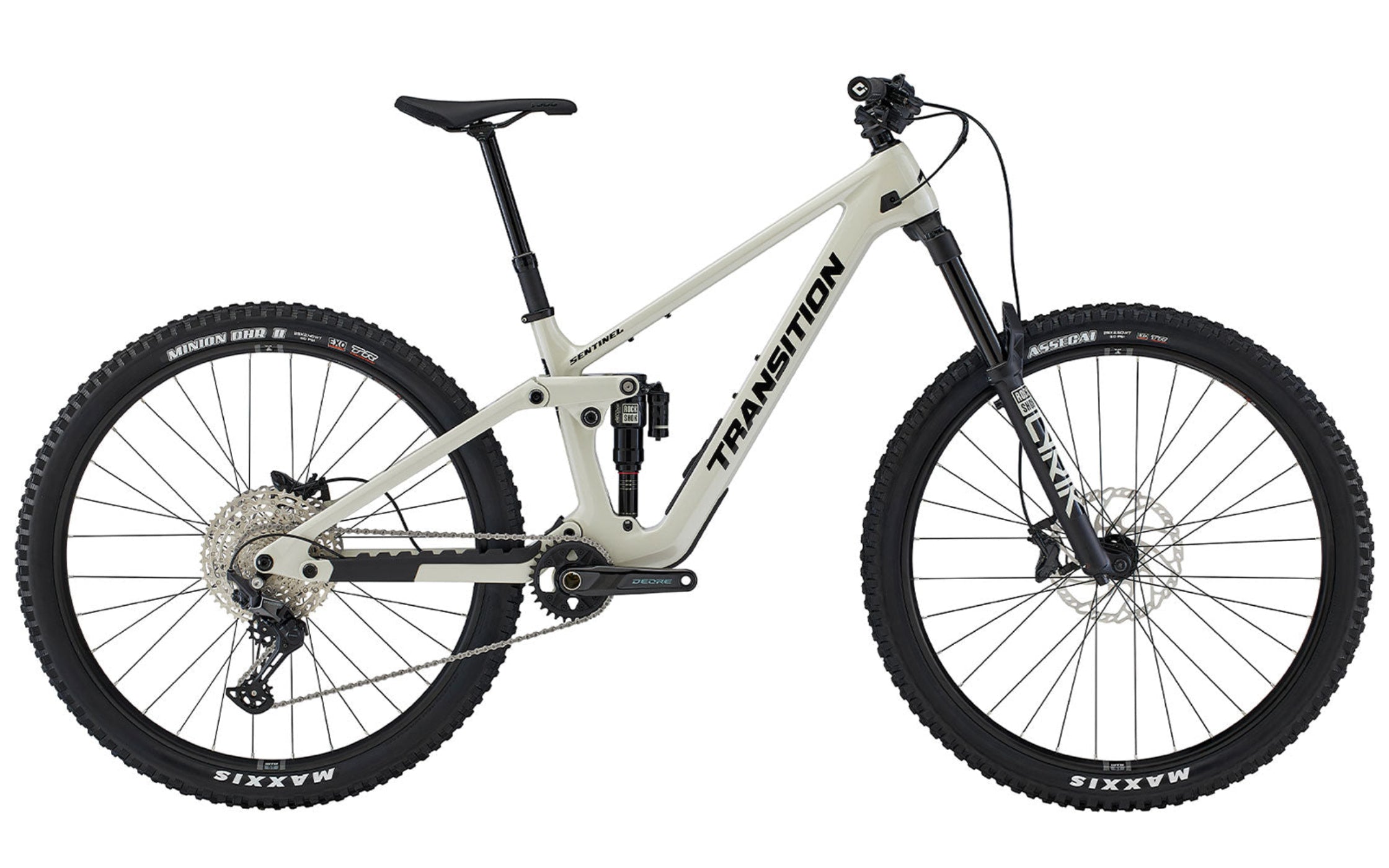

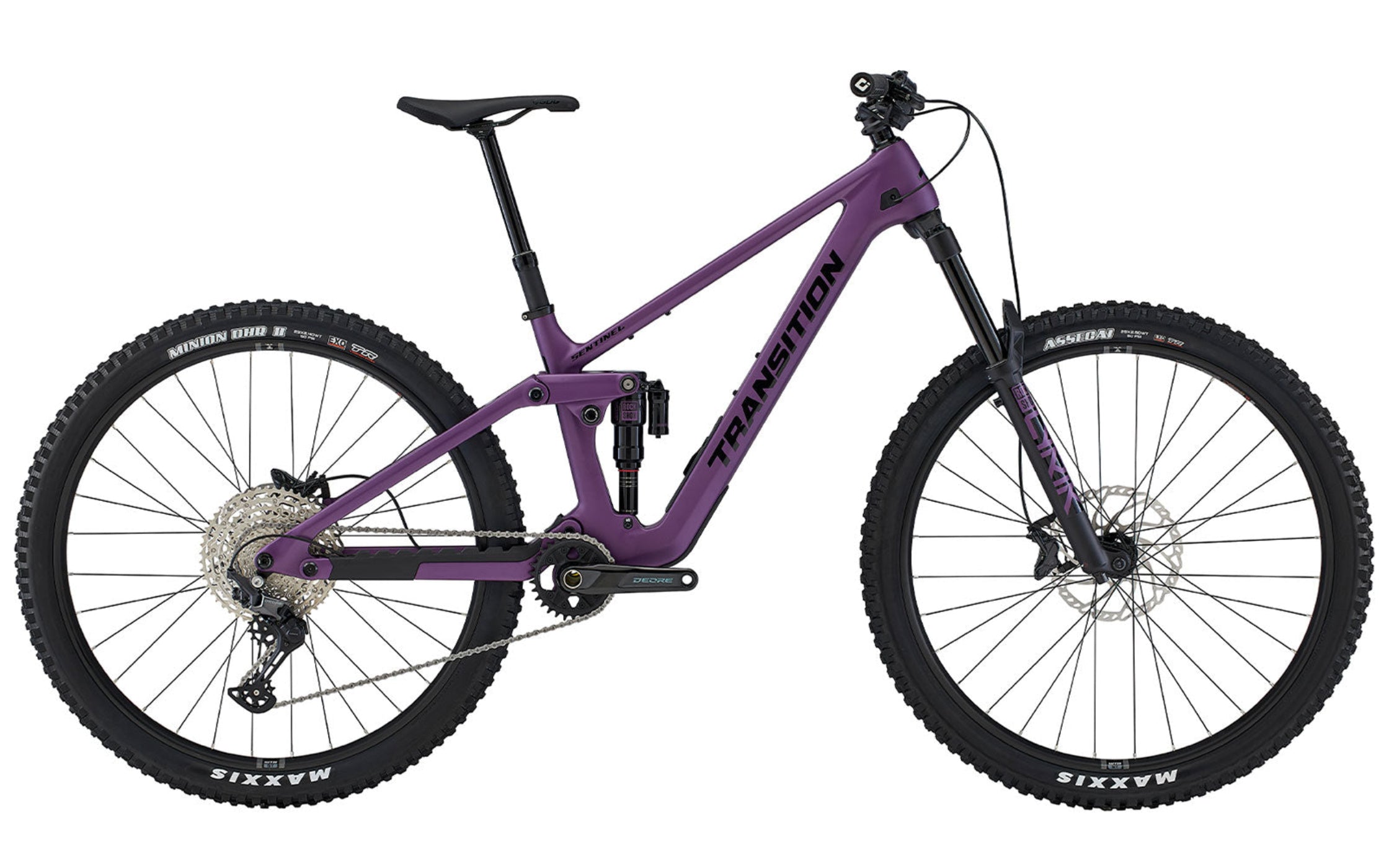

Transition Sentinel Carbon Deore - 01.25.11.4347

What our Experts Think

• Carbon Frame Construction: Lightweight yet strong, built to handle demanding trails with confidence.

• Shimano Deore Drivetrain: Dependable 12-speed shifting with smooth performance across all conditions.

• 160mm Front / 150mm Rear Travel: Ideal for aggressive riding, soaking up big hits while maintaining control.

• 29” Wheel Setup: Rolls efficiently over rough terrain, offering stability and traction on fast descents.

• Slack, Long Geometry: Optimized for modern trail riding with excellent cornering and downhill control.

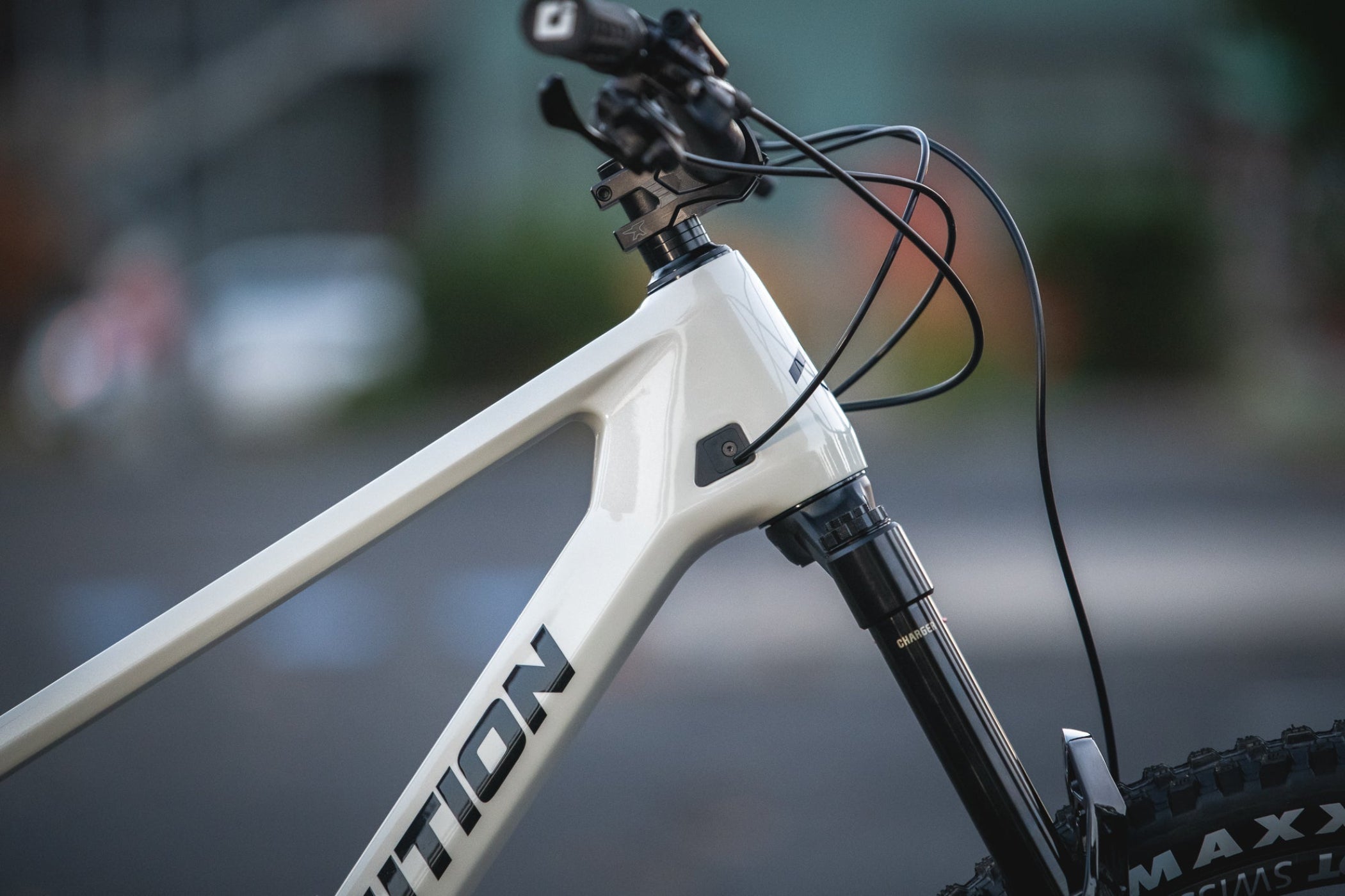

• Internal Cable Routing: Clean look with reduced maintenance and cable wear.

Q&A

Q: What material is the frame made from?
The Sentinel Carbon Deore features a carbon fiber frame for strength and reduced weight.

Q: What is the suspension travel?

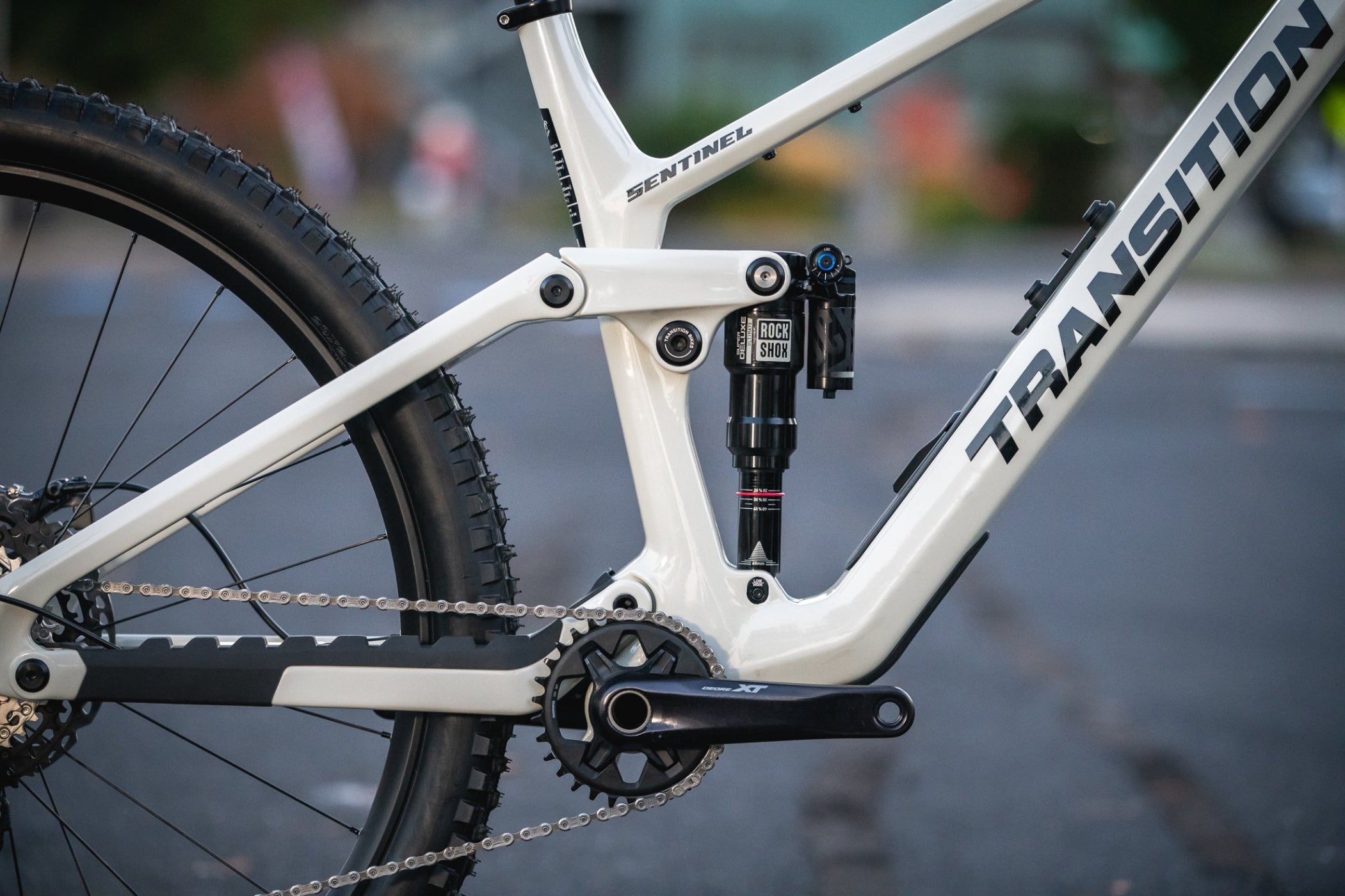

It has 150mm of rear travel with a RockShox Super Deluxe Select shock and 160mm front travel with a RockShox Lyrik Base fork.

Q: What drivetrain is ?
The bike is equipped with a Shimano Deore 12-speed drivetrain for reliable shifting across varied terrain.

Q: What brakes does it come with?
It features Shimano Deore 4-piston hydraulic disc brakes for strong and consistent stopping power.

Q: What wheel size is used?
The bike comes with 29-inch wheels for improved rollover and trail stability.

Q: What type of riding is this bike built for?
It’s designed for aggressive trail and enduro riding, offering a balanced and capable ride for demanding terrain.

Maintenance Tips

• Pivot Torque: Use a 5mm hex to remove the main pivot screw and tighten the main pivot axle to 19Nm with an 8mm hex. Reinstall the screw and torque to 10Nm to maintain rear-end stiffness.

• Bearing Check: Inspect pivot bearings regularly. If any feel rough or don’t spin freely, replace them to ensure smooth suspension movement.

• Suspension Setup: Start with all compression and rebound settings fully closed, then adjust as needed. Check sag with suspension fully open for accurate setup.

• Torque Specifications: Periodically check all bolts and components to ensure they're torqued to factory specs to avoid damage or loosening during rides.

• Cable Ports: Ensure unused cable ports are sealed to prevent dirt and water from entering the frame.

• Frame Protection: Inspect the frame for chips or wear, especially in high-contact areas. Apply protective tape or guards to preserve finish and prevent damage.

• Cleaning: Wipe down the bike after muddy or dusty rides. Avoid pressure washers and use a damp cloth to protect bearings and seals.
