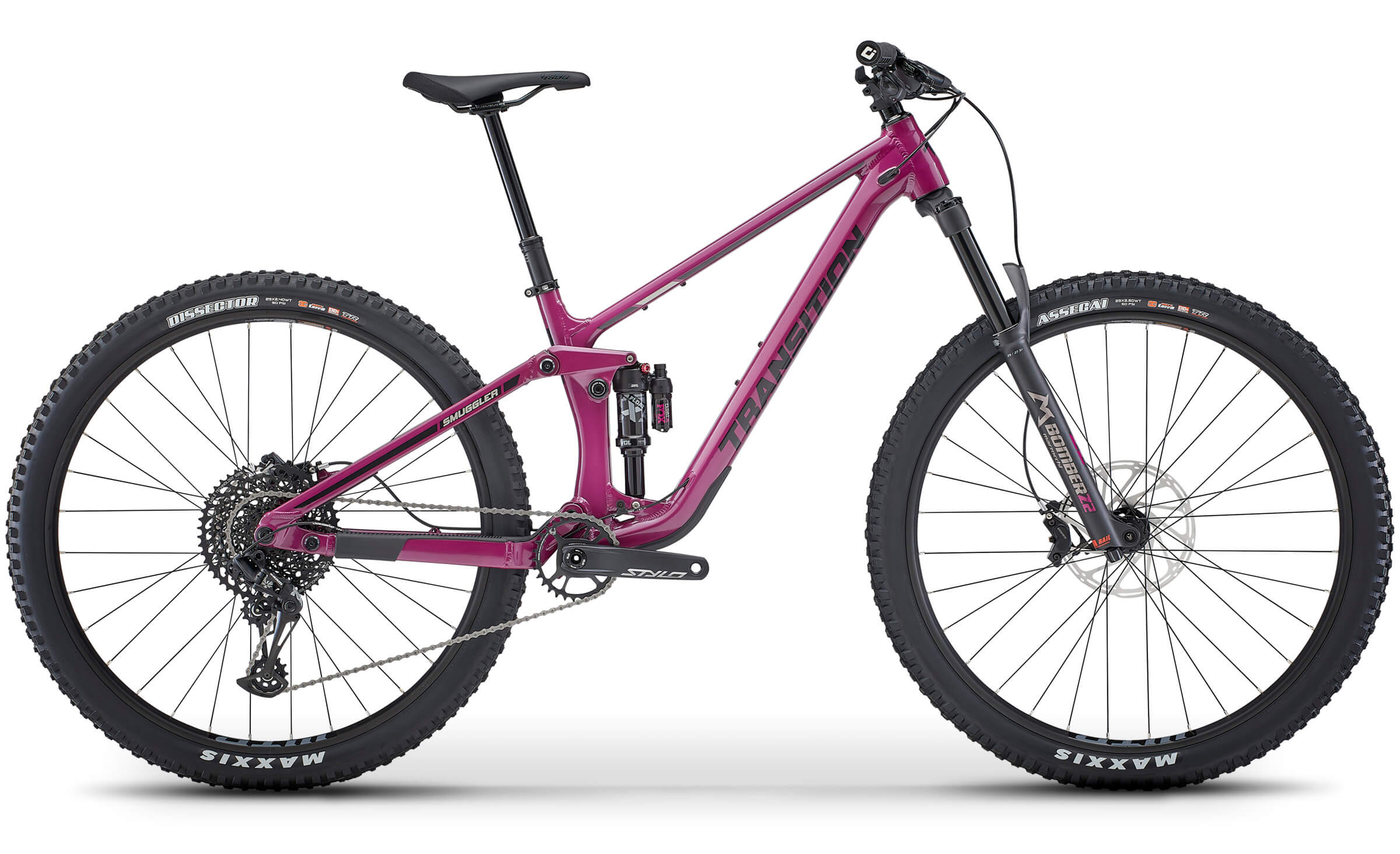

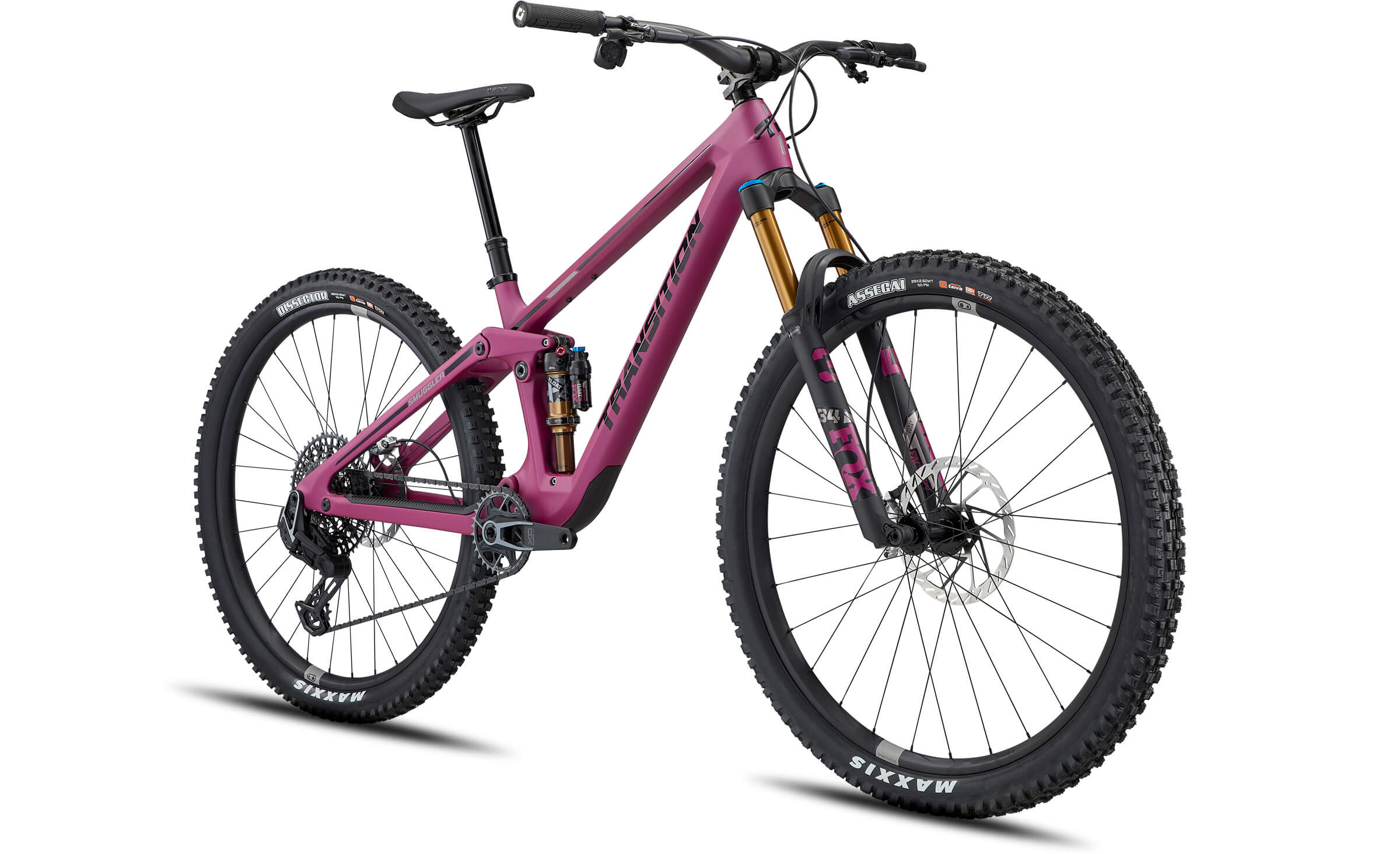

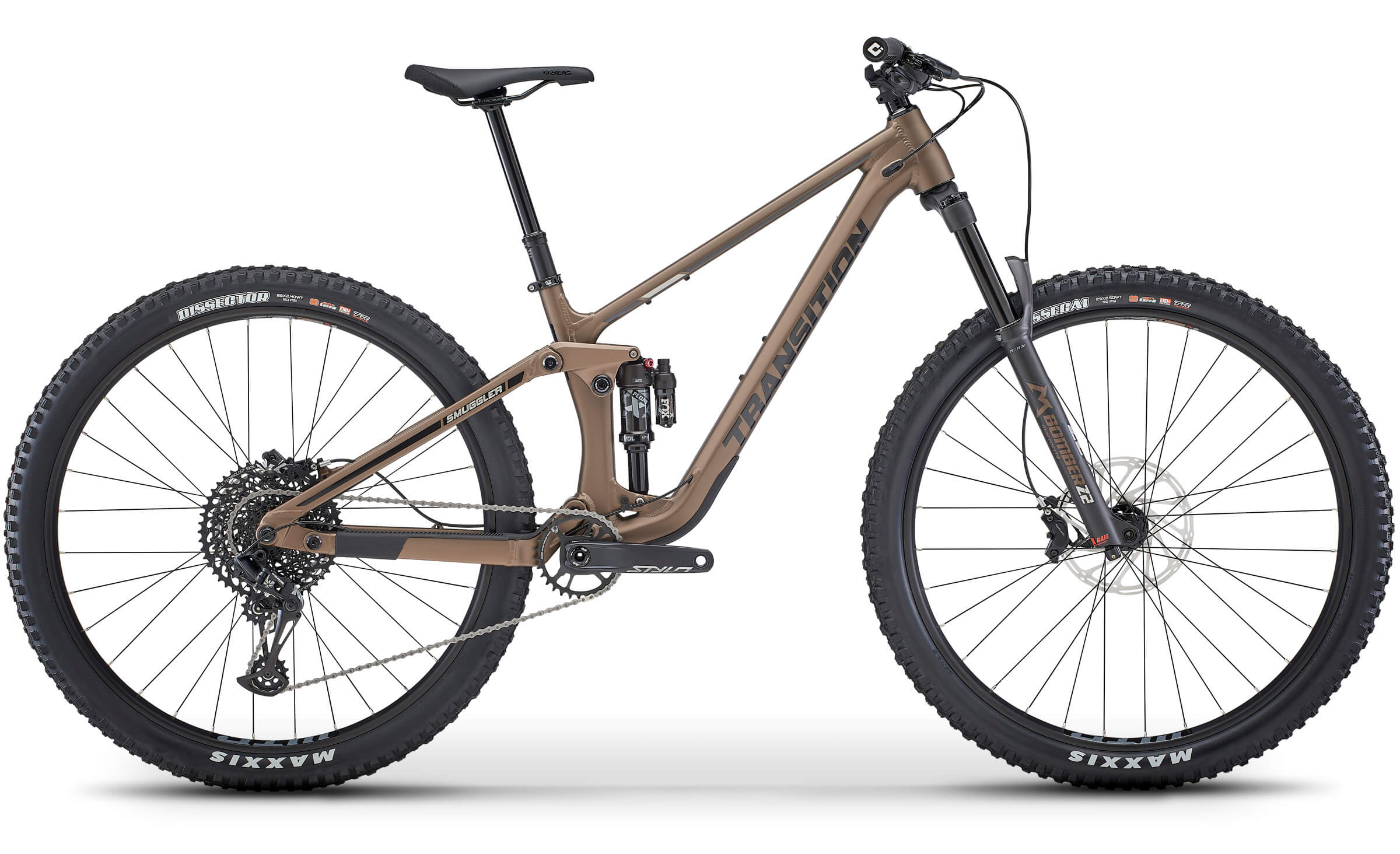

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.

With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

Specifications

Size Guide

What our Experts Think

• Carbon Frame Performance: Lightweight and stiff, offering optimal balance for fast, agile trail riding.

• SRAM GX Drivetrain: Reliable mechanical shifting with a wide range, ensuring smooth transitions on varied terrain.

• 140mm Travel Front & Rear: Excellent for absorbing impacts, delivering a plush ride over rough trails.

• Progressive Geometry: Designed for stability at high speeds and precision on technical sections.

• 29” Wheels: Ideal for efficiency on climbs and stability on descents.

• Versatile Design: Perfect for riders looking for a high-performing, all-mountain bike that handles diverse trails.

Q&A

Q: What is the frame material of the Smuggler Carbon GX Mechanical?
The frame is constructed from carbon fiber, offering a balance of strength and lightweight performance.

Q: What is the suspension setup?
It features 130mm of rear travel with a Fox Float X Performance rear shock and 140mm of front travel with a Fox Performance Float 34 fork.

Q: What drivetrain is included?
The bike is equipped with a SRAM GX Eagle 12-speed drivetrain, providing a wide gear range for various terrains.

Q: What braking system does it use?
It comes with SRAM Code R brakes and CenterLine rotors (200mm front, 180mm rear) for reliable stopping power.

Q: What is the wheel size?
The Smuggler Carbon GX Mechanical utilizes 29-inch wheels, providing stability and efficient rolling.

Q: What is the weight of the bike?
The bike weighs approximately 31.1 lbs (14.1 kg) in size Medium.

Q: What is the intended use of this bike?
Designed as a trail bike, it offers versatility for various terrains, combining climbing efficiency with descending capability.

Maintenance Tips

• Main Pivot Torque: Use a 5mm hex wrench to remove the main pivot screw and an 8mm hex wrench to tighten the main pivot axle to 19Nm. Reinstall the main pivot screw with the taper nut to 10Nm to ensure correct torque and rear end stiffness.

• Bearing Inspection: Regularly inspect the bearings in the bottom bracket main pivot, main rocker arm pivot, and seatstay/chainstay pivots. Replace any bearings that do not rotate smoothly.

• Suspension Setup: Adjust compression and rebound knobs to their fully closed (clockwise) position before making adjustments. Check sag with all compression levers and lockout mechanisms fully open (counter-clockwise). Aim for a balanced feel between the front and rear suspension.

• Torque Specifications: Refer to the Transition Bikes support page for detailed torque specifications to ensure all components are properly tightened.
