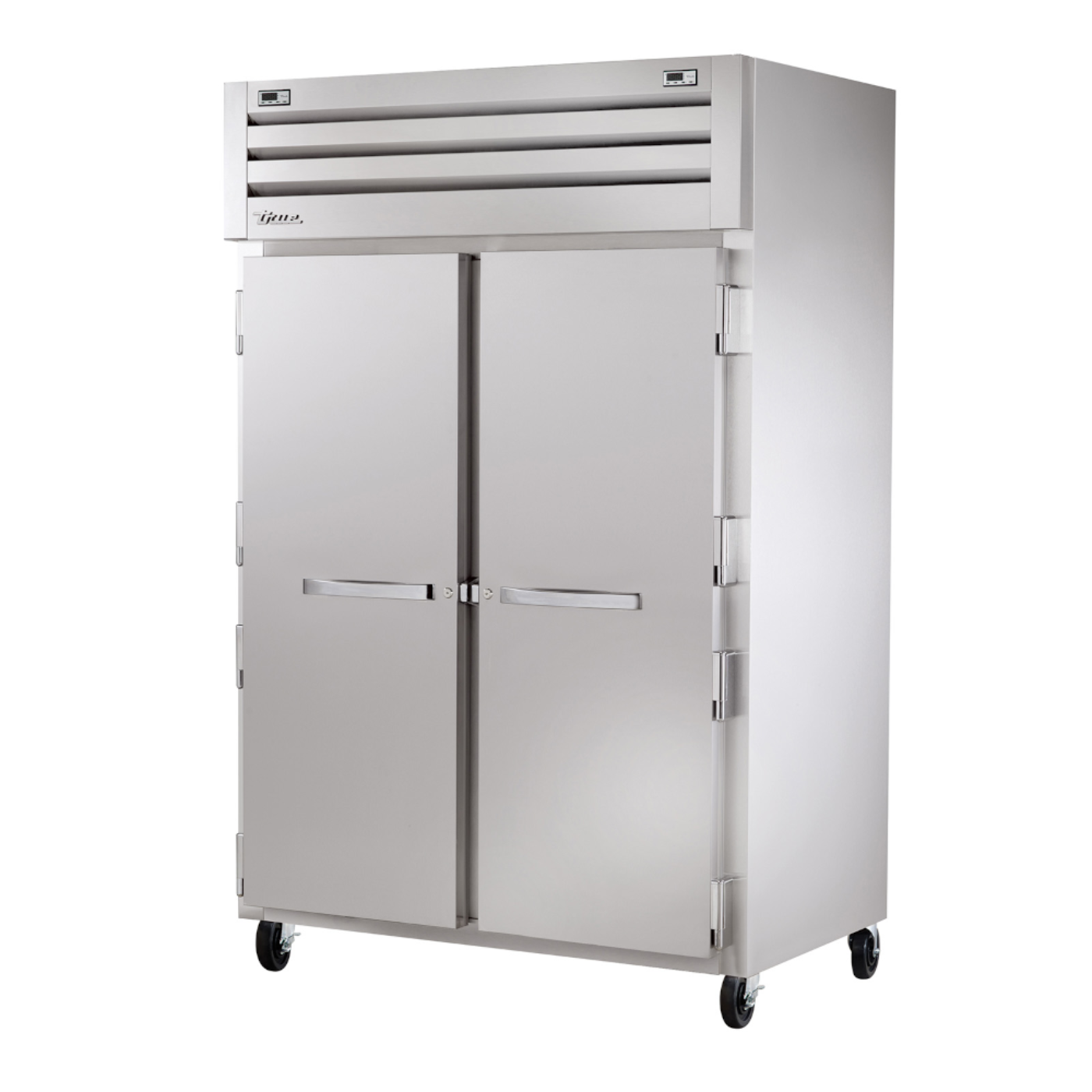

True STA2DT-2S Refrigerator Freezer, Reach-In -TRSTA2DT2S

True STA2DT-2S Refrigerator Freezer, Reach-In -TRSTA2DT2S

SPEC SERIES Refrigerator/Freezer, reach-in, two-section, (2) stainless steel doors, locks, cam-lift hinges, digital temperature control, aluminum interior, (6) chrome shelves, LED interior lights, stainless steel front & sides, 5" castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA

What our Experts Think

• Temperature Control

• Refrigerator Section: Maintains temperatures between 33°F to 38°F (0.6°C to 3.3°C).

• Freezer Section: Maintains temperatures around -10°F (-23.3°C).

• Refrigeration System

• Compressors: Equipped with a 1/3 HP compressor for the refrigerator and a 1/2 HP compressor for the freezer, ensuring efficient and reliable cooling.

• Refrigerants: Utilizes R134A refrigerant for the refrigerator and R404A for the freezer, both being CFC-free and environmentally friendly.

• Construction

• Exterior: Features stainless steel doors, front, and sides for durability and resistance to corrosion.

• Interior: Designed with aluminum side walls and back, complemented by a stainless steel floor and ceiling for easy cleaning.

• Shelving: Includes six heavy-duty, chrome-plated wire shelves (three per section), adjustable to accommodate various storage needs.

• Doors

• Equipped with two full-height, solid swing doors, each featuring locks for secure storage.

• Doors are self-closing with a 120° stay-open feature to facilitate loading and unloading.

• Magnetic door gaskets provide a tight seal and are removable without tools for easy maintenance.

• Lighting: Features LED interior lighting to enhance visibility and reduce energy consumption compared to traditional lighting.

• Mobility: Mounted on 5-inch diameter plate casters, with front set casters featuring locks to ensure stability during use.

Q&A

Q: What are the dimensions of the True STA2DT-2S Refrigerator Freezer?
A: The unit measures 52.63" in width, 33.75" in depth, and 77.75" in height.

Q: What is the capacity of the True STA2DT-2S Refrigerator Freezer?
A: It offers a total capacity of 50 cu. ft., with 25 cu. ft. allocated to both the refrigerator and freezer sections.

Q: What temperature ranges does the True STA2DT-2S maintain?
A: The refrigerator section maintains temperatures between 33°F to 38°F, while the freezer section operates at -10°F.

Q: What are the key features of the True STA2DT-2S?
A: This model features two solid stainless steel doors with locks and cam-lift hinges, six heavy-duty adjustable chrome-plated wire shelves (three per section), LED interior lighting, and a top-mounted refrigeration system utilizing R-134A refrigerant for the refrigerator and R-404A for the freezer.

Q: Is the True STA2DT-2S energy-efficient?
A: Yes, it utilizes high-efficiency compressors and electronically commutated fan motors to reduce energy consumption, aligning with True's commitment to eco-friendly manufacturing.

Q: What are the electrical specifications of the True STA2DT-2S?
A: It operates on 115V/60Hz/1-phase power, drawing 11.6 amps, and comes with a 9-foot cord and NEMA 5-20P plug.

Maintenance Tips

• Regular Cleaning

• Interior and Exterior: Clean both interior and exterior surfaces with a mild detergent to prevent buildup and maintain hygiene.

• Condenser Coils: Regularly clean the condenser coils to ensure efficient operation. Refer to the for detailed instructions

• Inspect Door Seals

• Check the gaskets for wear or damage to ensure proper sealing, enhancing energy efficiency and maintaining temperature.

• Ensure Proper Ventilation

• Keep air vents unobstructed to maintain optimal airflow, which is crucial for consistent refrigeration and freezing performance.

• Verify Temperature Accuracy

• Regularly confirm that the refrigerator maintains temperatures between 33°F and 38°F (0.6°C to 3.3°C), and the freezer maintains -10°F (-23.3°C).

• Examine Refrigeration Components

• Periodically inspect evaporator and condenser fan motors for signs of damage or corrosion to ensure consistent cooling.
