True STA2DT-4HS Refrigerator Freezer, Reach-In - TRSTA2DT4HS

True STA2DT-4HS Refrigerator Freezer, Reach-In - TRSTA2DT4HS

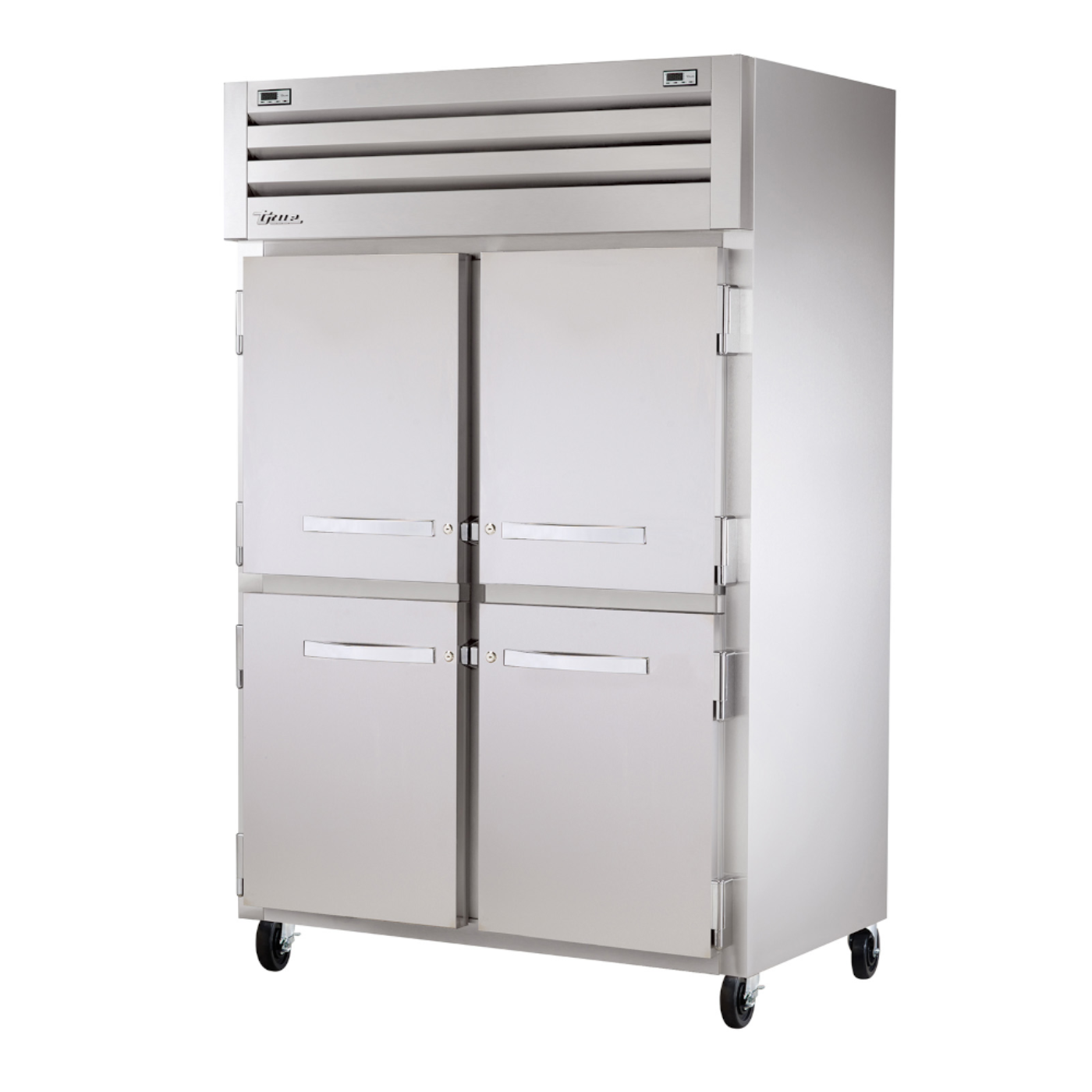

SPEC SERIES Refrigerator/Freezer, reach-in, two-section, (4) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (6) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5" castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA

What our Experts Think

• Dual-Temperature Design: This unit features two separate compartments:

• Refrigerator Section: Maintains temperatures between 33°F and 38°F (0.6°C to 3.3°C).

• Freezer Section: Maintains a temperature of -10°F (-23.3°C).

• Construction: Built with a stainless steel front and sides, the STA2DT-4HS ensures durability and resistance to corrosion. The interior is equipped with aluminum side walls and back, complemented by a stainless steel floor and ceiling, facilitating easy cleaning and maintenance.

• Doors: Equipped with four half-size solid doors, each featuring locks for security, cam-lift hinges for smooth operation, and a stay-open feature past 120 degrees to prevent slamming. The doors are self-closing to retain temperature and have removable, one-piece magnetic gaskets for easy cleaning.

• Shelving: Comes standard with six adjustable, chrome-plated wire shelves (three per section), offering ample storage and organization options.

Q&A

Q: What is the True STA2DT-4HS Refrigerator Freezer?
The True STA2DT-4HS is a two-section, reach-in refrigerator/freezer combination unit designed for commercial kitchens. It features four solid half-swing doors, providing efficient storage for both refrigerated and frozen items.

Q: What are the key features of the True STA2DT-4HS?

• Dual-Temperature Design: Maintains temperatures between 33°F to 38°F (0.5°C to 3.3°C) in the refrigerator section and -10°F (-23.3°C) in the freezer section.

• Independent Refrigeration Systems: Equipped with two self-contained systems, each utilizing environmentally friendly R290 hydrocarbon refrigerant for efficient cooling.

• Durable Construction: Built with a stainless steel front and sides, and an aluminum interior, ensuring longevity and ease of cleaning.

• Ample Storage: Comes with six heavy-duty, adjustable chrome-plated wire shelves (three per section) for organized storage.

• User-Friendly Features: Includes LED interior lighting for visibility, digital temperature controls for precise adjustments, and cam-lift hinges for smooth door operation.

• Mobility: Mounted on 5" diameter plate casters, with locks on the front set for stability and easy movement.

Q: How does the True STA2DT-4HS benefit my business?
This unit offers versatile storage solutions by combining refrigeration and freezing capabilities in one compact design. Its durable construction and efficient operation can help reduce energy consumption and maintenance costs, making it a reliable choice for commercial establishments.

Q: What are the dimensions of the True STA2DT-4HS?

• Width: 52.625 inches (1337 mm)

• Depth: 33.75 inches (858 mm)

• Height: 77.75 inches (1975 mm)

Q: What are the electrical specifications for the True STA2DT-4HS?

• Voltage: 115V/60Hz/1Ph

• Amperage: 11.6 Amps

• Refrigeration Horsepower: 1/3 HP for refrigeration; 1/2 HP for freezing

Q: Is the True STA2DT-4HS easy to maintain?
Yes, its stainless steel exterior and aluminum interior are designed for straightforward cleaning, and its robust construction minimizes maintenance needs, ensuring consistent performance over time.

Maintenance Tips

• Clean Condenser Coils: Clean the condenser coils every 3-6 months to maintain efficiency and prevent overheating.

• Inspect Door Seals: Check the door gaskets for cracks or damage, and replace as needed to ensure energy efficiency.

• Defrost Regularly: Periodically defrost to prevent ice buildup, ensuring smooth operation.

• Monitor Temperature: Regularly verify temperature settings to maintain food safety standards.

• Clear Drain Lines: Ensure drain lines are free of debris to avoid water accumulation or leaks.

• Check Fan Motors: Inspect fan motors for proper airflow and clean blades to prevent strain on the system.
