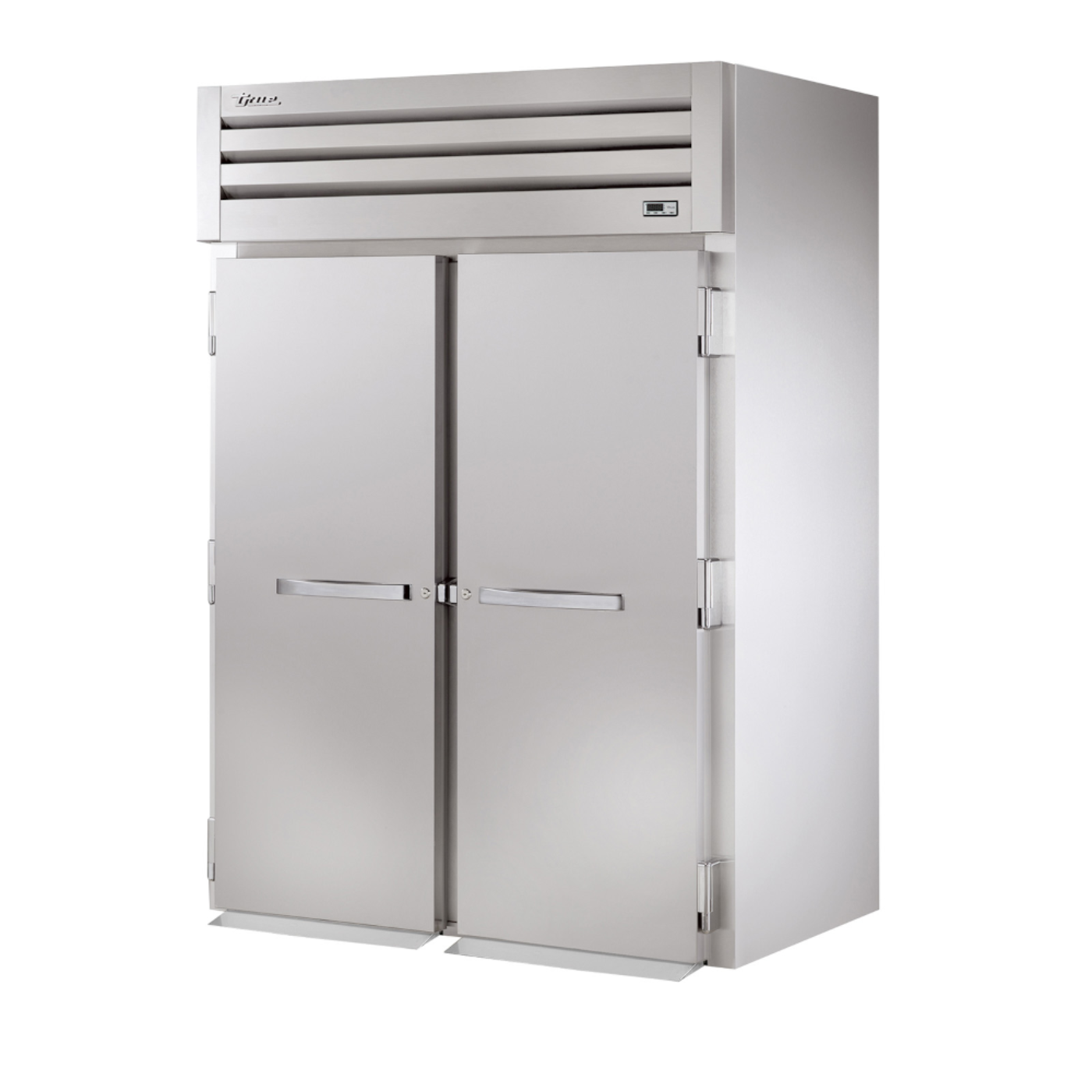

True STA2HRI-2S Heated Cabinet, Roll-In

True STA2HRI-2S Heated Cabinet, Roll-In

SPEC SERIES Heated Cabinet, roll-in, two-section, (2) stainless steel doors with locks, cam-lift hinges, color-coded temperature display, interior lighting, stainless steel ramp, stainless steel front & sides, aluminum interior, 4.0kW, 115/208-240v/60/1-ph, hard wired, (accommodates 27"W x 29"D x 66"H carts, NOT included), cULus, UL EPH Classified, Made in USA

What our Experts Think

• Construction: The cabinet features a stainless steel front and sides, with aluminum interior walls and back, ensuring durability and ease of cleaning. It is equipped with two heavy-gauge stainless steel ramps (one per door) to facilitate easy loading and unloading of roll-in racks (sold separately) measuring up to 27" W x 29" D x 66" H.

• Heating System: Designed to maintain holding temperatures between 140°F and 180°F (60°C to 82.2°C), the cabinet utilizes two 1,000-watt stainless steel, finned-tube heating elements per section, providing a total of 4,000 watts. Low-velocity fans ensure even temperature distribution throughout the cabinet.

• Humidity Control: A manually controlled vent located on top of the cabinet allows for precise humidity regulation, preventing food from becoming soggy and ensuring optimal food quality.

• Doors: The cabinet is equipped with two solid, self-closing doors featuring locks for enhanced security. Each door is fitted with three external cam-lift hinges, providing a full 180° open capability with a 120° stay-open feature to facilitate easy access.

• Interior Lighting: Incandescent interior lighting, activated by an exterior on/off switch, ensures visibility of stored items while maintaining energy efficiency.

• Temperature Display: An exterior, color-coded temperature display provides an accurate direct reading of the internal cabinet temperature, allowing staff to monitor and adjust settings as needed

• Insulation: The cabinet and solid doors are foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential (ODP) and zero global warming potential (GWP), ensuring energy efficiency and consistent temperature maintenance.

• Electrical Specifications: Operating at 4.0 kW, the cabinet requires a 115/208-240v/60/1-phase electrical connection and is hardwired for reliable performance.

Q&A

Q: What is the True STA2HRI-2S Roll-In Heated Cabinet?
The True STA2HRI-2S is a two-section roll-in heated cabinet designed for commercial kitchens, providing efficient storage and heating for large quantities of food.

Q: What are the key features of this heated cabinet?

• Capacity: Accommodates roll-in racks up to 27" W x 29" D x 66" H (rack not included).

• Construction: Features a stainless steel front and sides, with an aluminum interior, ensuring durability and ease of cleaning.

• Doors: Equipped with two self-closing, solid stainless steel doors with locks, cam-lift hinges, and a full 180° open capability with a stay-open feature at 120°.

• Heating System: Maintains temperatures between 140°F and 180°F (60°C to 82.2°C) using two 1000-watt stainless steel finned tube heating elements per section, totaling 4000 watts.

• Fans: Low-velocity fans ensure even temperature distribution throughout the cabinet, controlled by an exterior on/off switch.

• Humidity Control: Includes a manually controlled vent located on top of the cabinet for positive humidity control.

• Interior Lighting: Features incandescent interior lighting activated by an exterior on/off switch with safety shielding.

• Ramp: Comes standard with a heavy-gauge stainless steel ramp for easy cart loading.

• Temperature Display: Exterior color-coded temperature display provides an accurate direct reading of internal cabinet temperature.

• Certifications: cULus and UL EPH Classified; made in the USA.

Q: What are the dimensions of the True STA2HRI-2S?

• Width: 68 inches

• Depth: 34.75 inches

• Height: 83.75 inches

• Weight: Approximately 565 lbs

Q: What are the electrical specifications?
Operates at 115/208-240 volts, 60 Hz, single-phase, drawing 4.0 kW, and comes with a 9-foot cord and NEMA 14-20P plug.

Q: Who is this heated cabinet ideal for?
Ideal for commercial kitchens, banquet facilities, and foodservice operations requiring efficient, high-capacity heated storage with the ability to accommodate large roll-in racks.

Maintenance Tips

• Regular Cleaning: Clean both the interior and exterior surfaces with a mild, non-abrasive cleaner to maintain hygiene and prolong the cabinet's lifespan.

• Condenser Care: Ensure the condenser is free from obstructions and debris to maintain efficient operation.

• Door Maintenance: Periodically inspect door seals and hinges for wear, ensuring the doors close securely to prevent heat loss.

• Temperature Monitoring: Regularly verify that the cabinet maintains the desired temperature range to ensure food safety.
