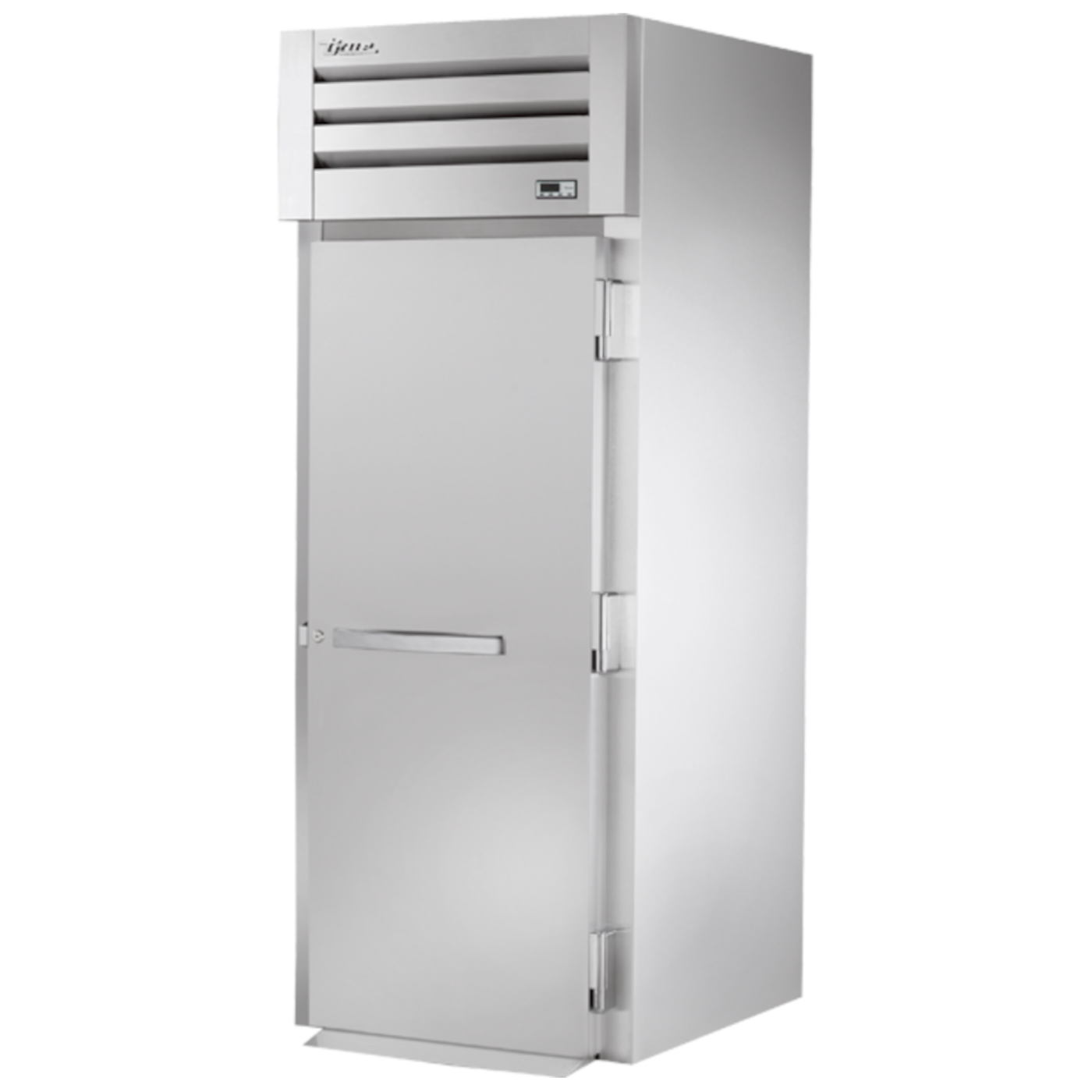

True STG1HRI-1S Heated Cabinet, Roll-In

True STG1HRI-1S Heated Cabinet, Roll-In

SPEC SERIES Heated Cabinet, roll-in, one-section, (1) stainless steel door with lock, cam-lift hinges, color-coded temperature display, interior lighting, stainless steel front, aluminum sides, aluminum interior, stainless steel ramp, 2.0kW, 115/208-230v/60/1-ph, NEMA 14-20P (accommodates 27"W x 29"D x 66"H cart, NOT included), cULus, UL EPH Classified, Made in USA

What our Experts Think

• Construction: Features a stainless steel front with aluminum sides and interior, ensuring durability and ease of cleaning. Equipped with a stainless steel ramp to facilitate the roll-in of compatible carts and racks.

• Capacity: Designed to accommodate a 27" W x 29" D x 66" H cart (sold separately), providing ample space for holding various food items.

• Heating System: Maintains temperatures between 140°F and 180°F (60°C to 82.2°C) using two 1,000-watt stainless steel, finned-tube heating elements. Low-velocity fans ensure even heat distribution throughout the cabinet.

• Door: Equipped with a solid stainless steel door featuring a bolt-style lock for security, cam-lift hinges for smooth operation, and a positive seal with a 120° stay-open feature to facilitate easy loading and unloading.

• Interior Lighting: Incandescent interior lighting enhances visibility of stored items and is activated by an exterior on/off switch.

• Electrical Specifications: Operates at 2.0 kW with a 115/208-230v/60/1-ph electrical connection. Comes with a NEMA 14-20P plug for easy installation.

• Certifications: Made in the USA, the STG1HRI-1S is cULus and UL EPH Classified, meeting rigorous safety and sanitation standards.

Q&A

Q: What is the True STG1HRI-1S Roll-In Heated Cabinet?
The True STG1HRI-1S is a one-section roll-in heated cabinet designed for commercial kitchens, offering efficient storage and heating for large quantities of food.

Q: What are the key features of this heated cabinet?

• Capacity: Accommodates roll-in racks up to 27" W x 29" D x 66" H (rack not included).

• Construction: Features a stainless steel front with matching aluminum sides, aluminum interior, and a stainless steel floor and ceiling for durability and easy cleaning.

• Door: Equipped with one self-closing, solid stainless steel door with a lock, cam-lift hinges, and a full 180° open capability with a stay-open feature at 120°.

• Heating System: Designed to maintain temperatures between 140°F and 180°F (60°C to 82.2°C) using two 1000-watt stainless steel finned tube heating elements, totaling 2000 watts.

• Fans: Low-velocity fans ensure even temperature distribution throughout the cabinet, controlled by an exterior on/off switch.

• Humidity Control: Includes a manually controlled vent located on top of the cabinet for positive humidity control.

• Interior Lighting: Features incandescent interior lighting activated by an exterior on/off switch with safety shielding.

• Temperature Display: Exterior color-coded temperature display provides an accurate direct reading of internal cabinet temperature

• Ramp: Comes standard with a heavy-gauge stainless steel ramp for easy cart loading

• Certifications: cULus and UL EPH Classified; made in the USA.

Q: What are the dimensions of the True STG1HRI-1S?

• Width: 35 inches

• Depth: 34.75 inches

• Height: 83.75 inches

• Weight: Approximately 385 lbs

Q: What are the electrical specifications?
Operates at 115/208-230 volts, 60 Hz, single-phase, with a NEMA 14-20P plug.

Q: Who is this heated cabinet ideal for?
Ideal for commercial kitchens, banquet facilities, and foodservice operations requiring efficient, high-capacity heated storage with the ability to accommodate large roll-in racks.

Maintenance Tips

• Temperature Range: Maintains temperatures between 140°F and 180°F, suitable for holding warm baked or cooked foods.

• Heating System: Equipped with two stainless steel, finned-tube heating elements that evenly distribute heat. Low-velocity fans ensure consistent air circulation throughout the cabinet

• Construction: Features a stainless steel front with aluminum sides, and an aluminum interior with a stainless steel ceiling and floor, providing durability and ease of cleaning.

• Capacity: Designed to accommodate roll-in racks measuring 27" W x 29" D x 66" H (sold separately), facilitating efficient loading and unloading.

• Door: Comes with a stainless steel door equipped with a bolt lock to prevent theft, cam-lift hinges for smooth operation, and a metal handle for durability. The door stays open past 120° and self-closes under 120°

• Interior Features: Includes a one-piece magnetic door gasket, a 12" x 20" water pan for added humidity control, and bumpers lining the interior walls to protect against damage from carts and racks

• Lighting and Display: Incorporates incandescent interior lighting for visibility and a color-coded exterior temperature display for easy monitoring

• Ramp: Equipped with a heavy-gauge stainless steel ramp to facilitate the rolling in of carts and racks.

• Electrical Specifications: Operates at 2.0kW with a 115/208-230V/60Hz/1-phase electrical connection. A 9-foot cord with a NEMA 14-20P plug is included.
