True STG2DT-4HS Refrigerator Freezer, Reach-In - TRSTG2DT4HS

True STG2DT-4HS Refrigerator Freezer, Reach-In - TRSTG2DT4HS

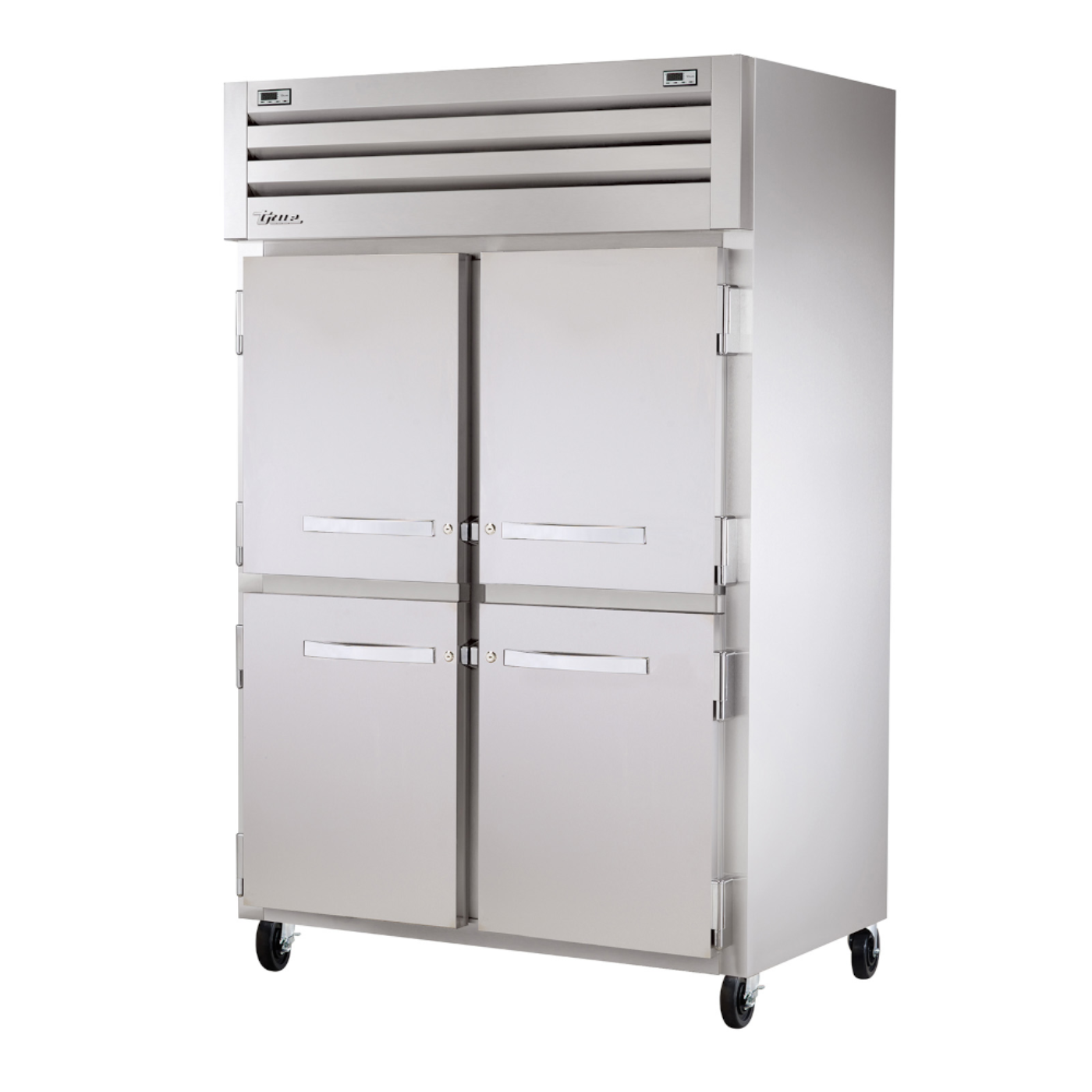

SPEC SERIES Refrigerator/Freezer, reach-in, two-section, (4) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (6) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA

What our Experts Think

• Temperature Zones

• Refrigerator: Maintains temperatures between 33°F and 38°F (0.6°C to 3.3°C) using R134A refrigerant.

• Freezer: Operates at -10°F (-23.3°C) utilizing R404A refrigerant.

• Capacity: Each section offers approximately 25 cubic feet of storage, totaling 50 cubic feet.

• Construction

• Exterior: Features stainless steel doors with matching aluminum sides, ensuring durability and resistance to corrosion.

• Interior: Constructed with aluminum side walls and back, complemented by stainless steel floor and ceiling for easy cleaning.

• Shelving: Equipped with six heavy-duty, PVC-coated wire shelves (three per section), adjustable to accommodate various storage needs.

• Refrigeration System

• Compressors: Utilizes a 1/3 HP compressor for the refrigerator and a 1/2 HP compressor for the freezer, both top-mounted to minimize exposure to debris and ensure efficient operation.

• Defrost System: Features an automatic defrost system that is time-initiated and temperature-terminated, with fan motor delays during defrost cycles to maintain consistent temperatures.

• Doors

• Fitted with four stainless steel half doors, each equipped with locks for security, cam-lift hinges for smooth operation, and the capability to stay open at 120 degrees for easy loading and unloading.

• Lighting: Bright LED interior lighting enhances visibility within both compartments, improving accessibility and reducing energy consumption compared to traditional lighting.

• Mobility: Mounted on 5-inch diameter castors, with front set casters featuring locks to ensure stability during use.

• Electrical Specifications

• Power Requirements: Operates on a 115V/60Hz/1-phase electrical system, drawing 11.6 amps.

• Cord and Plug: Comes with a 9-foot cord and a NEMA 5-20P plug for standard electrical outlets.

Q&A

Q: What is the True STG2DT-4HS Refrigerator Freezer, Reach-In?
A: The True STG2DT-4HS is a two-section, reach-in refrigerator/freezer combination designed for commercial kitchens. It features four stainless steel half doors, with the left section serving as a refrigerator and the right as a freezer, each equipped with independent refrigeration systems.

Q: What are the key features of the True STG2DT-4HS?
A: Key features include:

• Temperature Control: The refrigerator maintains temperatures between 33°F and 38°F, while the freezer operates at -10°F.

• Construction: Built with a stainless steel front and sides, and an aluminum interior, ensuring durability and ease of cleaning.

• Doors: Equipped with four stainless steel half doors featuring locks, cam-lift hinges, and magnetic gaskets to ensure a tight seal and energy efficiency.

• Shelving: Includes six adjustable gray PVC-coated wire shelves (three per section) to organize food items efficiently.

• Lighting: LED interior lights illuminate the interior, making it easy to find what you need.

• Mobility: Mounted on 5-inch diameter castors, with locks on the front set for stability during operation

• Refrigeration System: Features two independent, self-contained refrigeration systems using R134A for the refrigerator and R404A for the freezer, ensuring efficient cooling and freezing.

• Electrical Specifications: Operates at 115V/60Hz/1-phase, drawing 11.6 amps, and comes with a NEMA 5-20P plug.

Q: Is the True STG2DT-4HS energy-efficient?
A: Yes, it incorporates electronically commutated evaporator and condenser fan motors, which operate at higher peak efficiencies, move a more consistent volume of air, produce less heat, reduce energy consumption, and provide greater motor reliability.

Q: How large is the storage capacity of the True STG2DT-4HS?
A: The unit offers a combined storage capacity of 19.7 cubic feet, with each section providing ample space for various food items.

Q: Is the True STG2DT-4HS easy to maintain?
A: Yes, its stainless steel and aluminum construction, along with removable magnetic door gaskets, facilitate easy cleaning and maintenance.

Maintenance Tips

• Regular Cleaning: Clean both interior and exterior surfaces with a mild detergent to prevent buildup and maintain hygiene.

• Inspect Door Seals: Check gaskets for wear or damage to ensure proper sealing, which enhances energy efficiency and maintains temperature.

• Ensure Proper Ventilation: Keep air vents unobstructed to maintain optimal airflow, which is crucial for consistent cooling performance.

• Verify Temperature Accuracy: Regularly confirm that the refrigerator maintains temperatures between 33°F and 38°F (0.5°C to 3.3°C), and the freezer maintains -10°F (-23.3°C).

• Examine Refrigeration Components: Periodically inspect evaporator and condenser fan motors for signs of damage or corrosion to ensure consistent cooling.

• Power Off During Maintenance: Always disconnect the unit from the power source before cleaning or performing maintenance tasks to ensure safety.

• Professional Servicing: Schedule annual inspections with a qualified technician to ensure optimal operation and extend the cabinet's lifespan.
