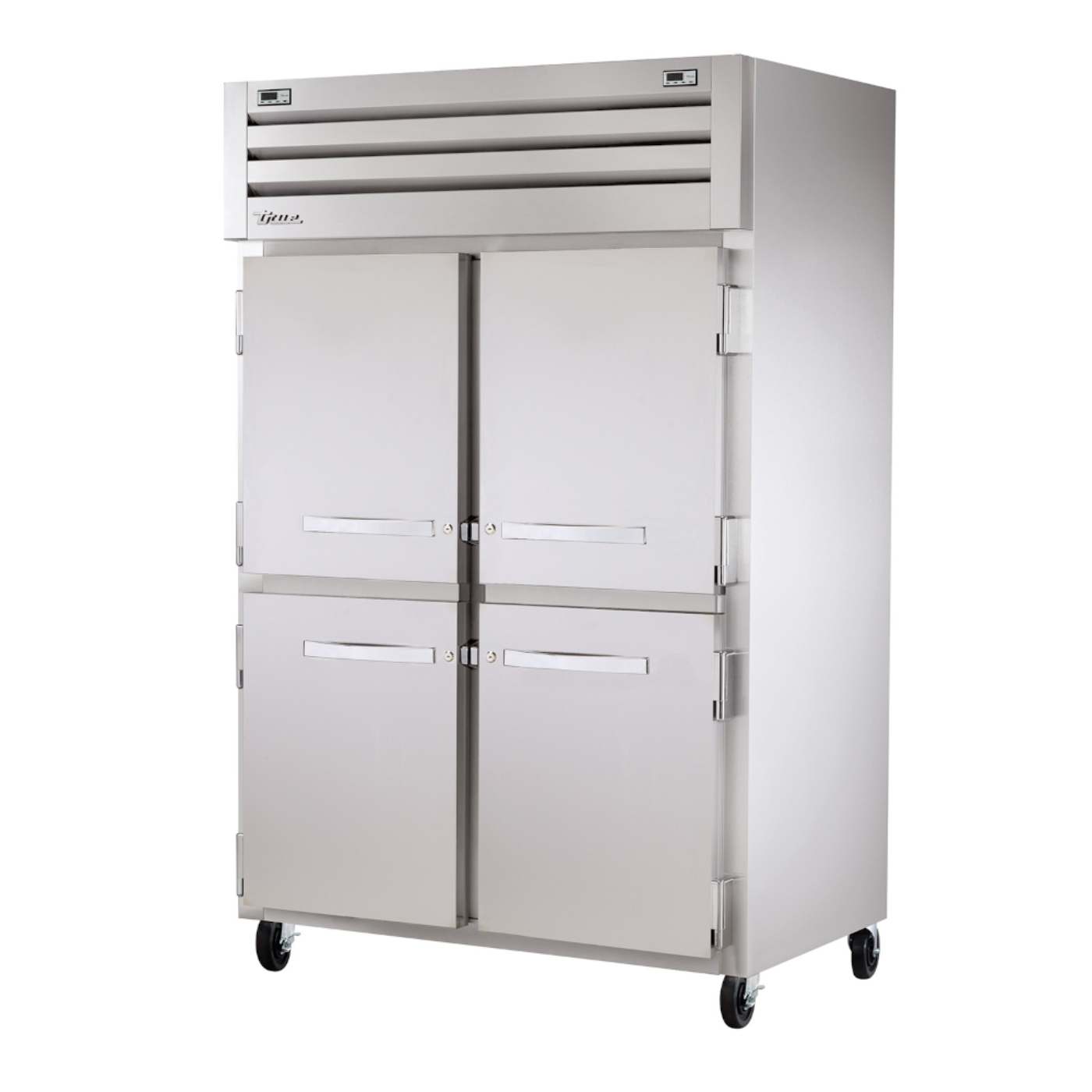

True STR2DT-4HS Refrigerator Freezer, Reach-In - TRSTR2DT4HS

True STR2DT-4HS Refrigerator Freezer, Reach-In - TRSTR2DT4HS

SPEC SERIES Refrigerator/Freezer, reach-in, two-section, (4) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (2) interior kits, LED interior lights, stainless steel front & sides, stainless steel interior, 5" castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA

What our Experts Think

• Construction: Built with a stainless steel front and sides, the STR2DT-4HS ensures durability and resistance to corrosion. The interior is equipped with stainless steel side walls, back, floor, door liner, and ceiling, facilitating easy cleaning and maintenance.

• Doors: Equipped with four half-size solid doors, each featuring locks for security, cam-lift hinges for smooth operation, and a stay-open feature to prevent slamming. The doors are self-closing to retain temperature and have magnetic gaskets to ensure a tight seal.

• Shelving: Comes standard with six adjustable, chrome-plated wire shelves (three per section), offering ample storage and organization options.

• Refrigeration System: Equipped with two independent, self-contained refrigeration systems

• Refrigerator: Utilizes R134A refrigerant.

• Freezer: Utilizes R404A refrigerant.

• Both systems are top-mounted, positioning the evaporators out of the food zone to maximize capacity and are epoxy-coated to prevent corrosion.

• Temperature Control: Features digital temperature controls with exterior displays, allowing staff to monitor and adjust settings as needed.

• Interior Lighting: Equipped with LED interior lighting, providing clear visibility of stored items and enhancing energy efficiency.

• Mobility: Mounted on 5-inch diameter castors, with locks provided on the front set, facilitating easy movement and stability.

• Electrical Specifications: Operating at 115 volts, 60 Hz, with an 11.6 amp draw, the unit comes with a 9-foot cord and NEMA 5-20P plug for easy installation.

Q&A

Q: What is the True STR2DT-4HS Refrigerator Freezer?
The True STR2DT-4HS is a dual-temperature, two-section reach-in refrigerator/freezer designed for commercial kitchens. It features four solid half-swing doors, providing efficient storage for both refrigerated and frozen items.

Q: What are the key features of the True STR2DT-4HS?

• Dual-Temperature Design: Maintains temperatures between 33°F to 38°F (0.5°C to 3.3°C) in the refrigerator section and -10°F (-23.3°C) in the freezer section.

• Independent Refrigeration Systems: Equipped with two self-contained systems, each utilizing environmentally friendly refrigerants—R134A for refrigeration and R404A for freezing.

• Durable Construction: Built with a stainless steel front and sides, and a stainless steel interior, ensuring longevity and ease of cleaning.

• Ample Storage: Comes with six heavy-duty, adjustable chrome-plated wire shelves for organized storage.

• User-Friendly Features: Includes LED interior lighting for visibility, digital temperature controls for precise adjustments, and cam-lift hinges for smooth door operation.

• Mobility: Mounted on 5" diameter plate casters, with locks on the front set for stability and easy movement.

Q: How does the True STR2DT-4HS benefit my business?
This unit offers versatile storage solutions by combining refrigeration and freezing capabilities in one compact design. Its durable construction and efficient operation can help reduce energy consumption and maintenance costs, making it a reliable choice for commercial establishments.

Q: What are the dimensions of the True STR2DT-4HS?

• Width: 52.625 inches (1337 mm)

• Depth: 33.75 inches (858 mm)

• Height: 77.75 inches (1975 mm)

Q: What are the electrical specifications for the True STR2DT-4HS?

• Voltage: 115V/60Hz/1Ph

• Amperage: 11.6 Amps

• Refrigeration Horsepower: 1/3 HP for refrigeration; 1/2 HP for freezing

Q: Is the True STR2DT-4HS easy to maintain?
Yes, its stainless steel construction and thoughtful design make it straightforward to clean and maintain, ensuring consistent performance in a busy kitchen environment.

Maintenance Tips

• Clean Condenser Coils: Clean coils every 3-6 months to maintain efficiency and prevent overheating.

• Inspect Door Seals: Check gaskets for damage and ensure they seal tightly to preserve temperature control.

• Defrost Regularly: Periodically defrost to avoid ice buildup, ensuring smooth operation.

• Monitor Temperature: Regularly check the temperature to ensure food safety and optimal performance.

• Check Drain Lines: Ensure drain lines are clear to prevent water leaks and buildup.

• Clean Evaporator and Fan Blades: Dust-free fans and evaporators ensure optimal airflow and cooling efficiency.
