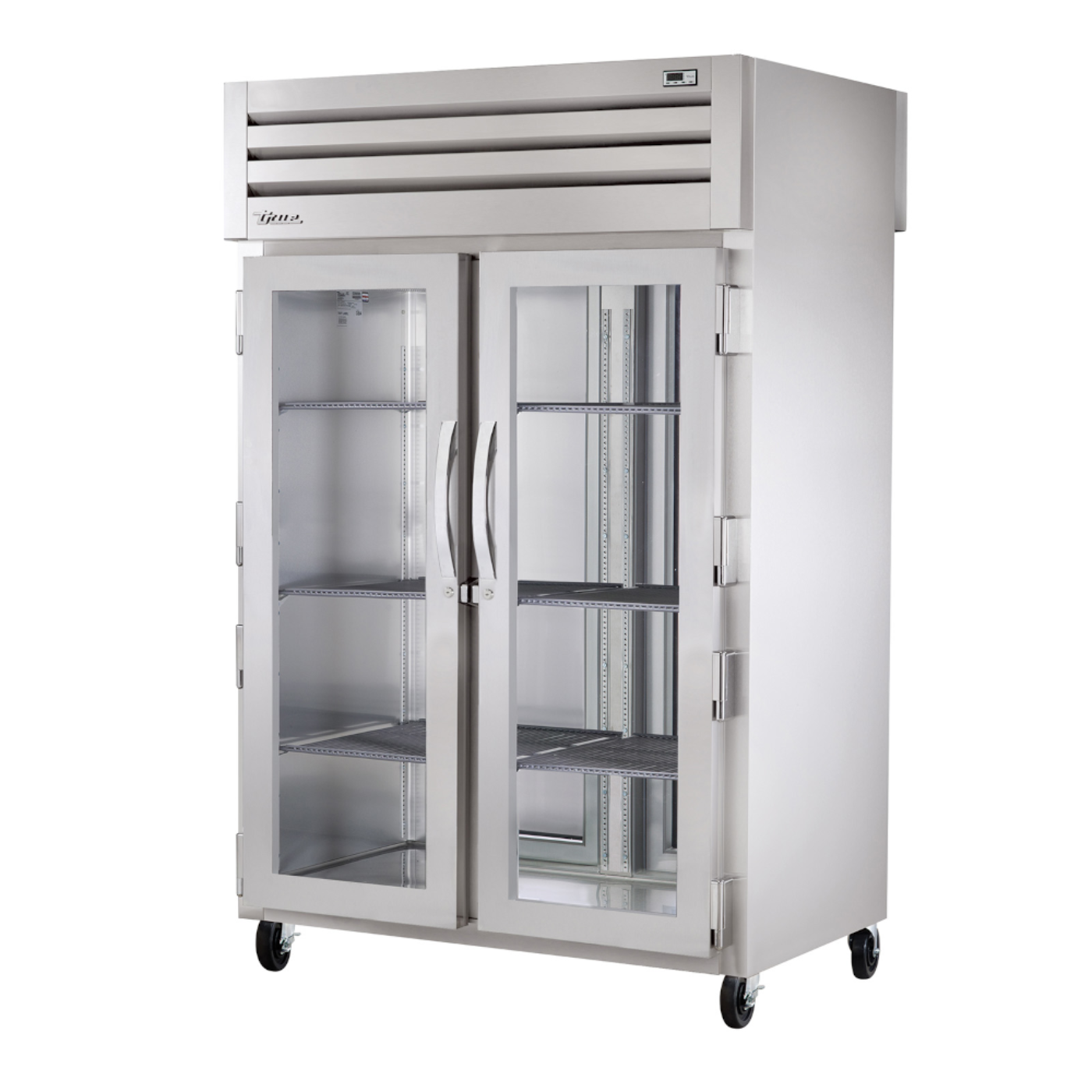

True STR2RPT-4HG-2G-HC Refrigerator, Pass-Thru - TRSTR2RPT4HG2G

True STR2RPT-4HG-2G-HC Refrigerator, Pass-Thru - TRSTR2RPT4HG2G

SPEC SERIES Refrigerator, pass-thru, two-section, (4) glass half doors front & (2) glass doors rear with locks, cam-lift hinges, digital temperature control, (2) interior kits, LED interior lights, stainless steel front & sides, stainless steel interior, 5" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 9.1 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA

What our Experts Think

• Dual-Sided Access: Equipped with four front glass half doors and two rear glass doors, this pass-thru refrigerator allows efficient access from both kitchen and service areas, streamlining operations.

• Durable Construction: Built with stainless steel on the front, sides, and interior, it ensures longevity and ease of maintenance, standing up to the demands of a commercial kitchen.

• Energy-Efficient Operation: Utilizes R290 hydrocarbon refrigerant and a top-mounted compressor, promoting energy savings and environmental friendliness while maintaining optimal cooling performance.

• Precise Temperature Control: Maintains temperatures between 33°F and 38°F, suitable for various food storage needs, with an external digital display for easy monitoring.

• Enhanced Visibility: LED interior lighting illuminates the storage area, aiding in quick identification and organization of stored items.

• Mobility and Stability: Mounted on 5-inch casters for easy movement, with front set locking for stability during use.

Q&A

Q: What is the True STR2RPT-4HG-2G-HC Refrigerator?
The True STR2RPT-4HG-2G-HC is a two-section, pass-thru commercial refrigerator featuring four glass half doors on the front and two glass full doors on the rear. Its pass-thru design allows for easy access from both sides, making it ideal for high-traffic kitchen environments.

Q: What are its dimensions and capacity?
The refrigerator measures 52.63" W x 36.13" D x 77.75" H and offers a storage capacity of approximately 56.0 cubic feet.

Q: What is the temperature range?
It maintains temperatures between 33°F and 38°F (0.5°C to 3.3°C), ensuring optimal preservation of perishable items.

Q: What type of doors does it have?
The unit features four glass half doors on the front and two glass full doors on the rear, all with locks and cam-lift hinges. The doors are self-closing with a 120° stay-open feature.

Q: What are the electrical requirements?
It operates on 115V/60Hz/1-phase power and comes with a NEMA 5-15P plug.

Q: Is it energy-efficient?
Yes, the refrigerator uses environmentally friendly R290 hydrocarbon refrigerant and features a top-mounted, self-contained refrigeration system for improved energy efficiency and durability.

Maintenance Tips

• Monthly Condenser Coil Cleaning:

• Disconnect the unit from power.

• Remove the louver grill to access the condenser coil.

• Use a stiff bristle brush or compressed air to remove dust and debris.

• Clean the condenser fan blades and vacuum the surrounding area before reassembling and reconnecting the unit.

• Weekly Exterior Cleaning:

• Clean stainless steel surfaces with a soft cloth and non-abrasive, non-chloride cleaners.

• Avoid using steel wool or wire brushes.

• Rinse and dry thoroughly to prevent corrosion.

• Monthly Door Seal Inspection:

• Check the magnetic door gaskets for wear or damage.

• Clean them regularly and replace if necessary to ensure a proper seal and energy efficiency.

• Quarterly Interior Cleaning:

• Remove shelves and clean the stainless steel interior, including side walls, back, floor, door liner, and ceiling with a mild detergent.

• Rinse and dry thoroughly to maintain hygiene.

• Biannual Fan Motor Check:

• Inspect the electronically commutated condenser and evaporator fan motors for proper operation.

• Ensure the fan motor reverses direction upon compressor startup to clean the condensing coil.

• Annual Professional Servicing:

• Schedule a comprehensive inspection by a certified technician to assess electrical components, verify temperature accuracy, and ensure overall system performance.
