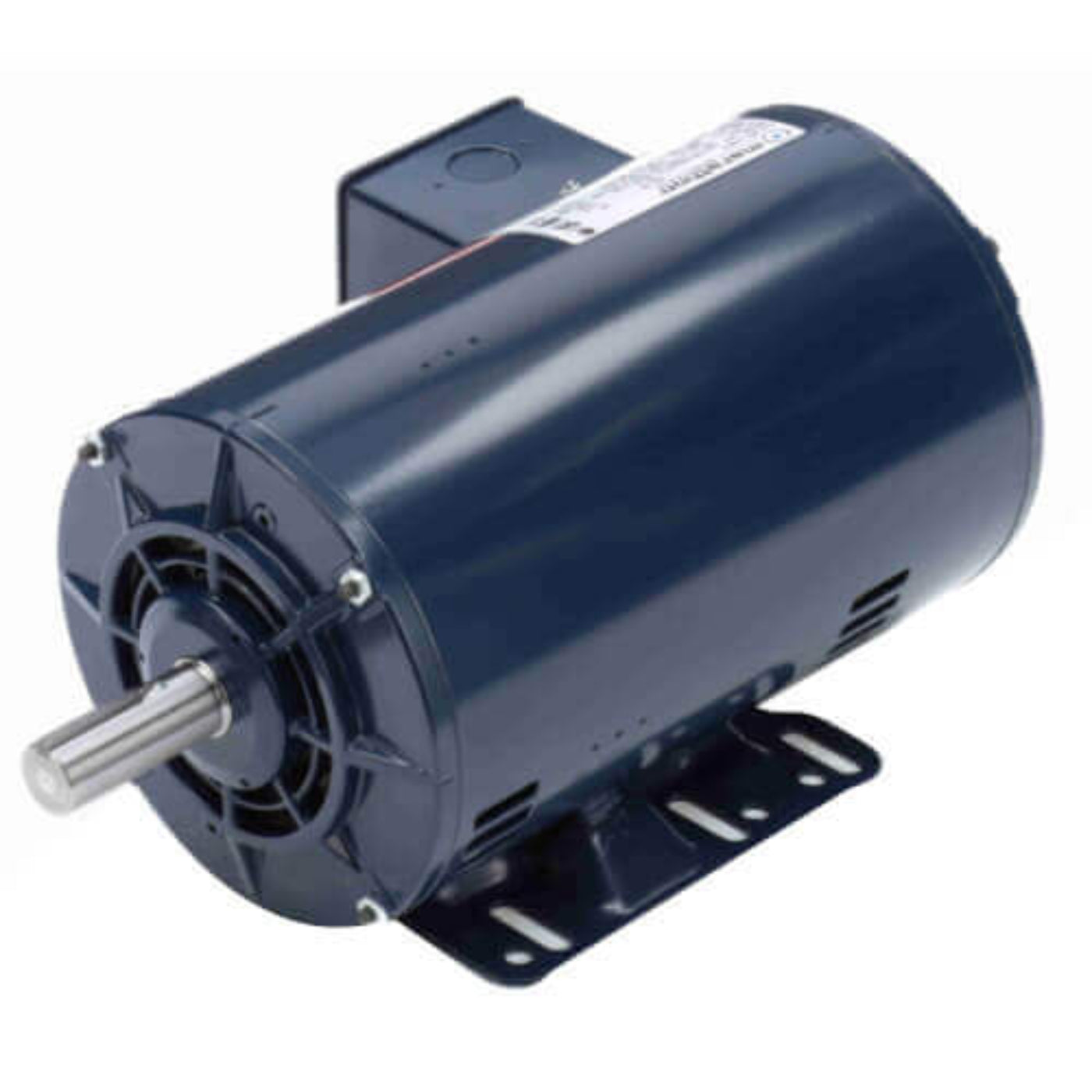

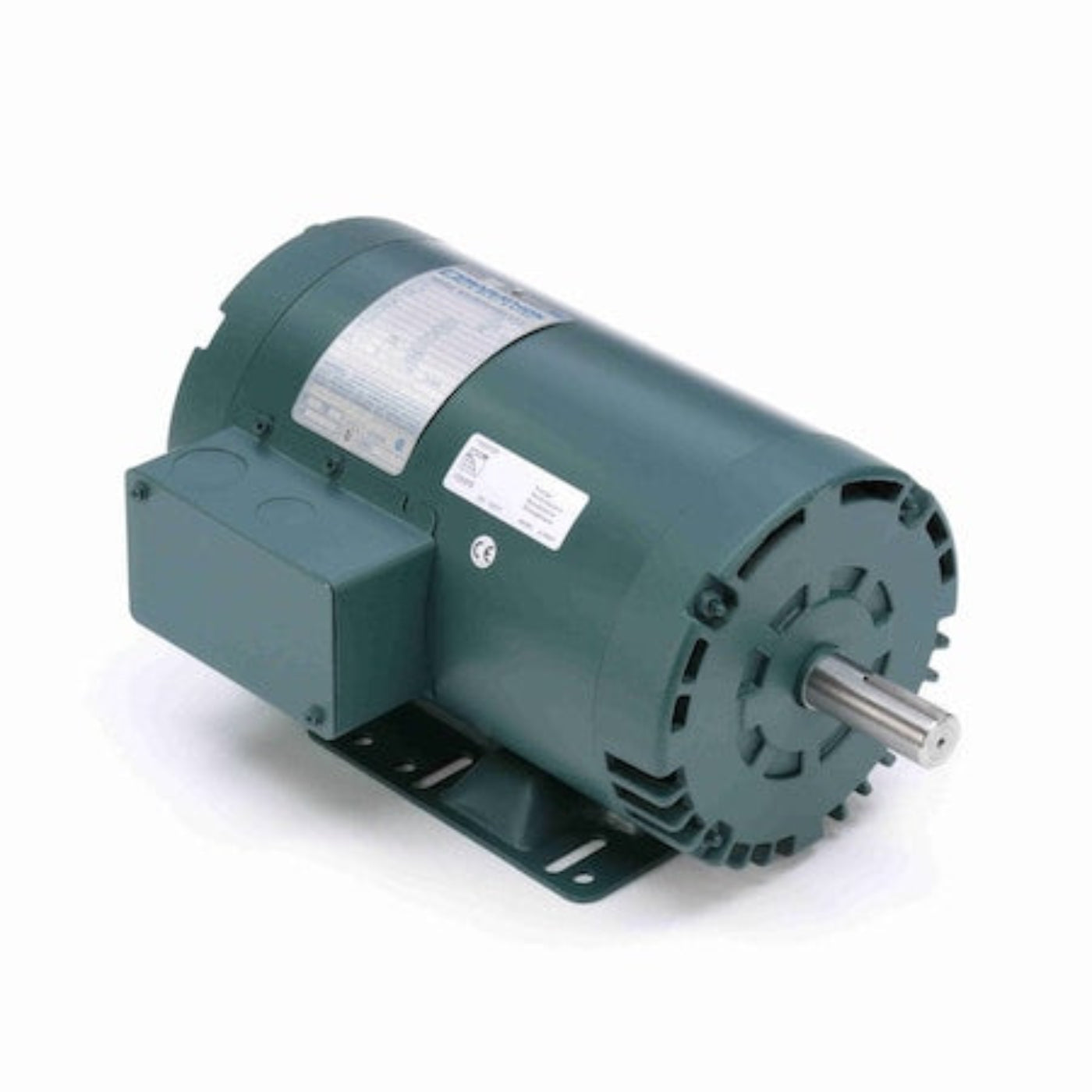

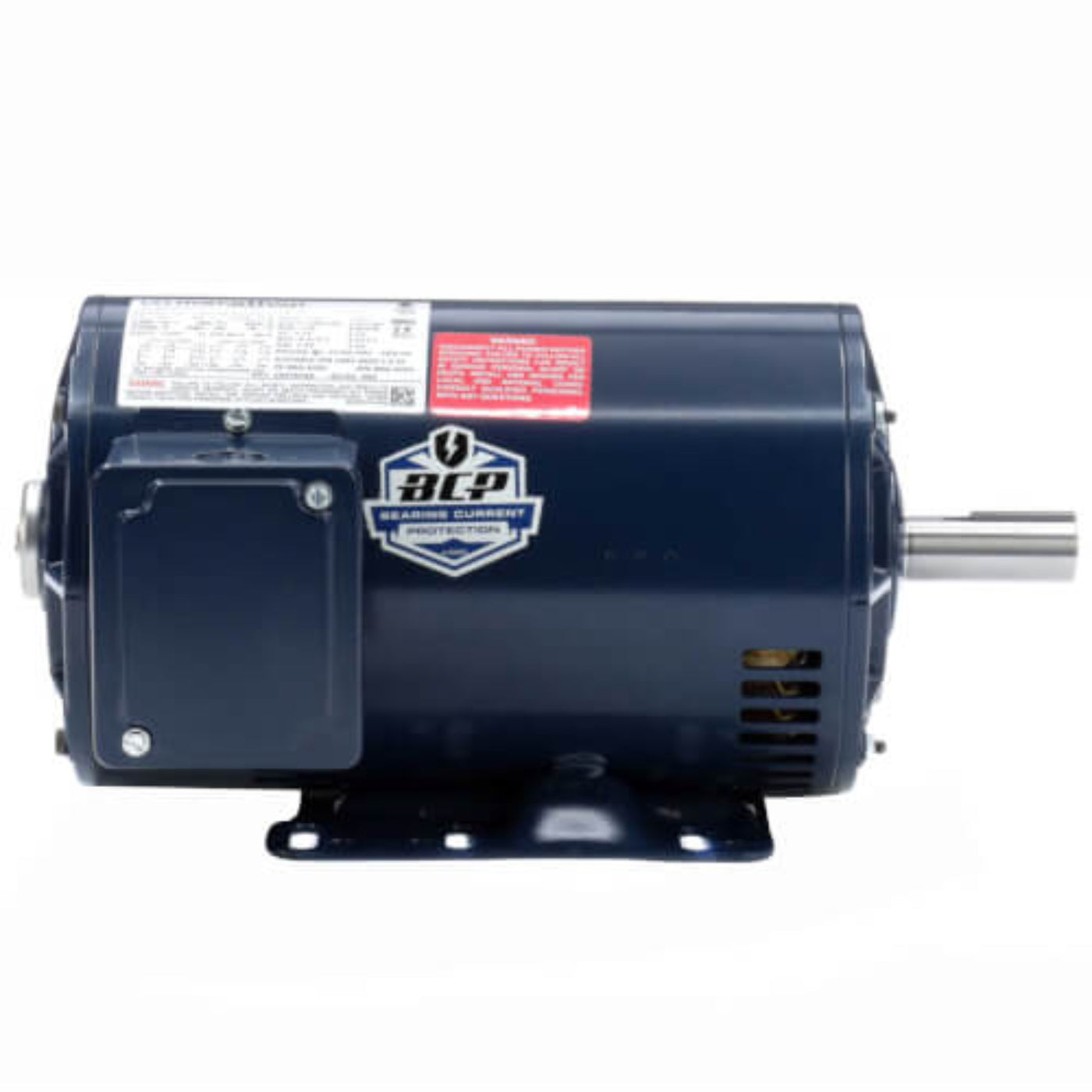

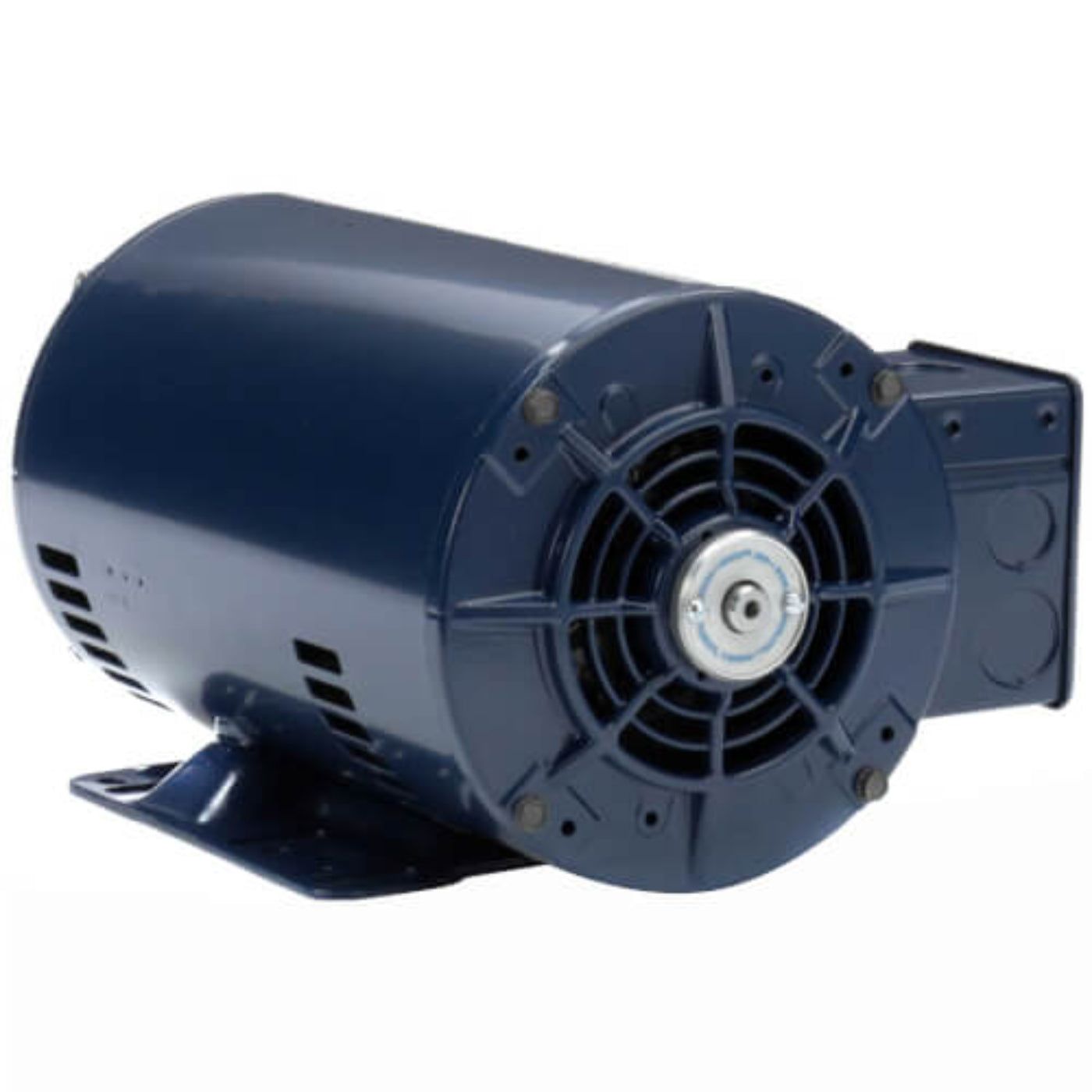

Marathon Motors U760 XRI General Purpose Motor 2 HP 1800 RPM 3 PH 208-230/460V - U760

Marathon Motors U760 XRI General Purpose Motor 2 HP 1800 RPM 3 PH 208-230/460V - U760

The Marathon Motors U760 XRI General Purpose Motor is designed for various general applications such as compressors, pumps, conveyors, and blowers. It is suitable for environments that are clean and dry. Using this high efficiency motor can result in substantial energy savings.

Product Highlights

This motor offers a 1.15 service factor and features class F insulation. It is recognized by UL, certified by CSA, and marked with CE, ensuring compliance with industry standards.

Features

• Meets or exceeds NEMA Premium efficiencies
• Suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame
• Includes normally closed thermostats

Specifications

What our Experts Think

• Powerful Performance: Delivers 2 HP at 1800 RPM, suitable for continuous-duty applications like compressors, pumps, and conveyors.

• Versatile Voltage: Operates on 208-230/460V, 60 Hz, three-phase power, accommodating various electrical systems.

• Durable Construction: Features a 145T frame with a rigid base mount, ensuring stability and compatibility with standard installations.

• Efficient Operation: Equipped with a service factor of 1.15, promoting reliable performance and longevity.

• Maintenance-Friendly: Includes ball bearings and Class F insulation, simplifying installation and reducing maintenance needs.

Q&A

Q: What is the Marathon U760 motor?
A: The U760 is a 2 horsepower, three-phase motor designed for general-purpose industrial applications. It operates at 1800 RPM and features an Open Drip Proof (ODP) enclosure.

Q: What applications is the U760 motor suitable for?
A: This motor is ideal for use in compressors, pumps, conveyors, and other machinery in dry, clean environments. It’s suitable for general industrial use with a focus on energy efficiency.

Q: What does ODP mean?
A: ODP stands for Open Drip Proof, meaning the motor is designed to allow air to circulate freely for cooling while protecting against water dripping onto the motor. It is not fully sealed, so it's best used in clean, dry environments.

Q: Can the U760 motor be used with a variable frequency drive (VFD)?
A: Yes, the U760 motor is inverter duty rated, meaning it can be used with a VFD to control the motor speed for applications that require variable speeds.

Maintenance Tips

• Routine Inspections: Regularly check for unusual vibrations, noises, or overheating to identify potential issues early.

• Clean Air Vents: Ensure the Open Drip Proof (ODP) enclosure remains free from debris to maintain proper airflow and cooling.

• Lubrication: Apply manufacturer-recommended lubricants to bearings as per guidelines to reduce friction and wear.

• Monitor Operating Conditions: Regularly monitor motor temperature, voltage, and current to ensure optimal performance.

• Check Alignment: Ensure proper alignment with driven equipment to avoid stress and premature wear.

• Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.

• Test Motor Rotation: Verify the motor rotation direction periodically to ensure proper operation.
