U. S. Motors Nidec-US Motors D32CP2PH Motor 115 / 230 V 1 1/2 HP 1725 RPM - D32CP2PH

U. S. Motors Nidec-US Motors D32CP2PH Motor 115 / 230 V 1 1/2 HP 1725 RPM - D32CP2PH

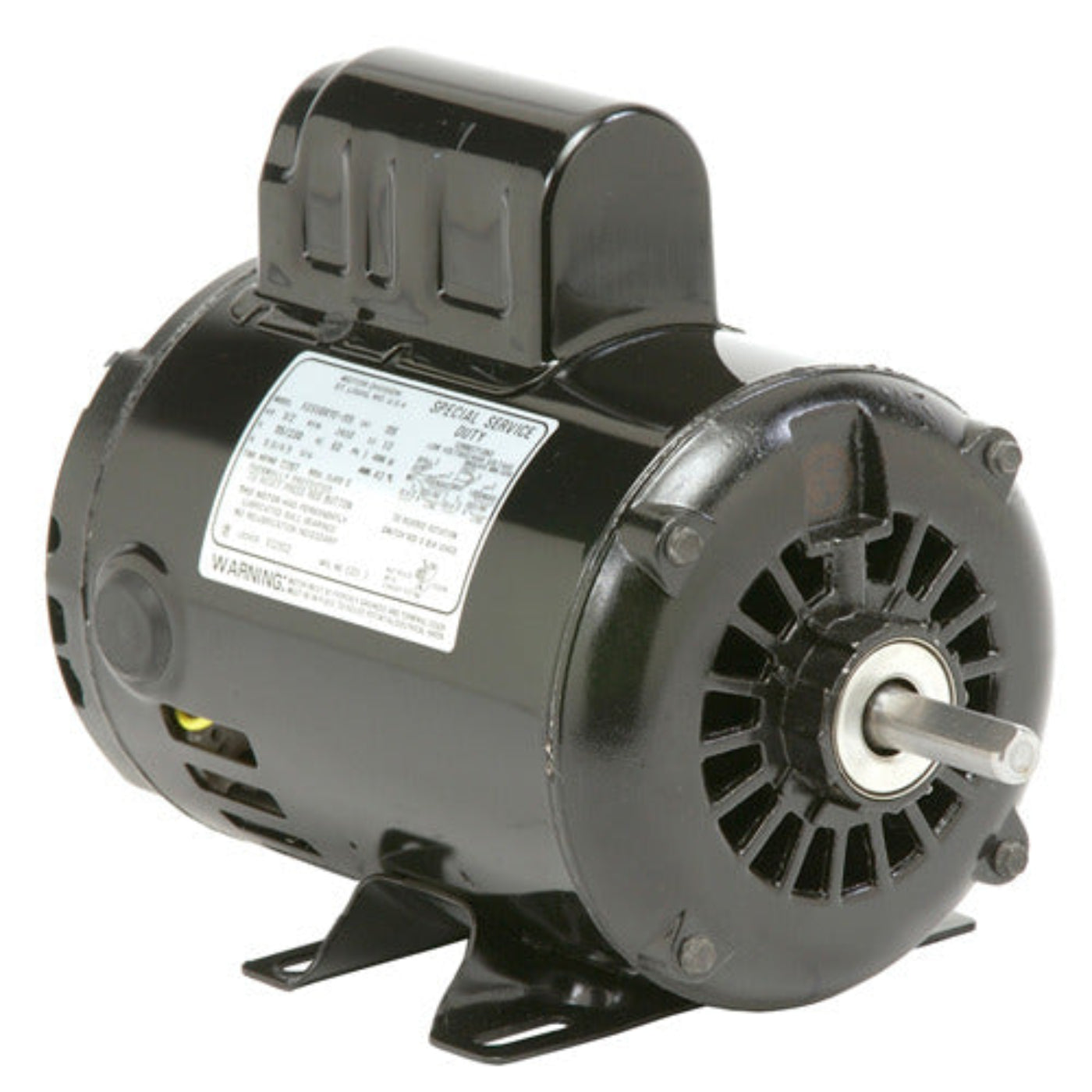

The Nidec-US Motors D32CP2PH is a single-phase electric motor designed to deliver reliable power for a variety of industrial and commercial applications. With 1 1/2 HP and a speed of 1725 RPM, this motor operates efficiently on both 115V and 230V.

Product Highlights

This motor is built to perform in demanding environments. It features a rugged design that ensures long-lasting durability. The TEFC (Totally Enclosed Fan-Cooled) enclosure protects the motor from dust, moisture, and other external contaminants, making it ideal for various applications.

Features

• Robust construction
• Efficient operation
• Durable design

Specifications

What our Experts Think

• Dependable General-Purpose Motor: The D32CP2PH delivers 1.5 HP at 1725 RPM—ideal for light industrial or commercial equipment where consistent, efficient power is needed.

• Dual Voltage Flexibility: Operates on both 115V and 230V single-phase power, offering installation flexibility in a range of environments.

• Durable Build: With its 56H frame and Open Drip Proof (ODP) enclosure, it’s best suited for dry indoor locations where ventilation is available.

• Energy Efficiency: Offers a respectable 83.8% efficiency, helping to reduce power consumption during long hours of use.

• Versatile Features: Includes a foot mount for easy setup and reversible rotation, making it adaptable for multiple applications.

Q&A

Q: What is the U.S. Motors D32CP2PH motor?
A: The D32CP2PH is a 1.5 horsepower, 1725 RPM, single-phase electric motor designed for general-purpose use. It features an Open Drip-Proof (ODP) enclosure and a 56H frame, suitable for various commercial and light industrial applications.

Q: What are the key specifications of the D32CP2PH motor?
A: This motor operates at 115/230V, 60Hz, with a full-load current of 13.4/6.7 amps. It includes Class B insulation, a 1.15 service factor, and is rated for continuous duty. It comes with a standard foot mount and rigid base.

Q: What is the weight of the D32CP2PH motor?
A: The motor weighs approximately 38 pounds, making it compact and manageable for installation.

Q: What are the applications of the D32CP2PH motor?
A: Ideal for use in pumps, fans, small compressors, and machinery that require consistent and efficient motor performance.

Q: What is the product code for the D32CP2PH motor?
A: The product code is D32CP2PH.

Maintenance Tips

• Regular Inspection: Periodically inspect the motor for signs of wear, corrosion, or damage.

• Cleanliness: Keep the motor clean and free from dust and debris to prevent overheating.

• Lubrication: Ensure bearings are properly lubricated as per the manufacturer's recommendations.

• Cooling: Verify that the motor's cooling system is functioning correctly to maintain proper operating temperatures.

• Electrical Connections: Inspect electrical connections for tightness and signs of wear to prevent electrical faults.

• Vibration Monitoring: Monitor vibration levels to detect any imbalances or misalignments.

• Alignment: Ensure the motor is properly aligned with the driven equipment to prevent undue stress.

• Avoid Overloading: Ensure that the motor is not overloaded to prevent overheating or damage.
