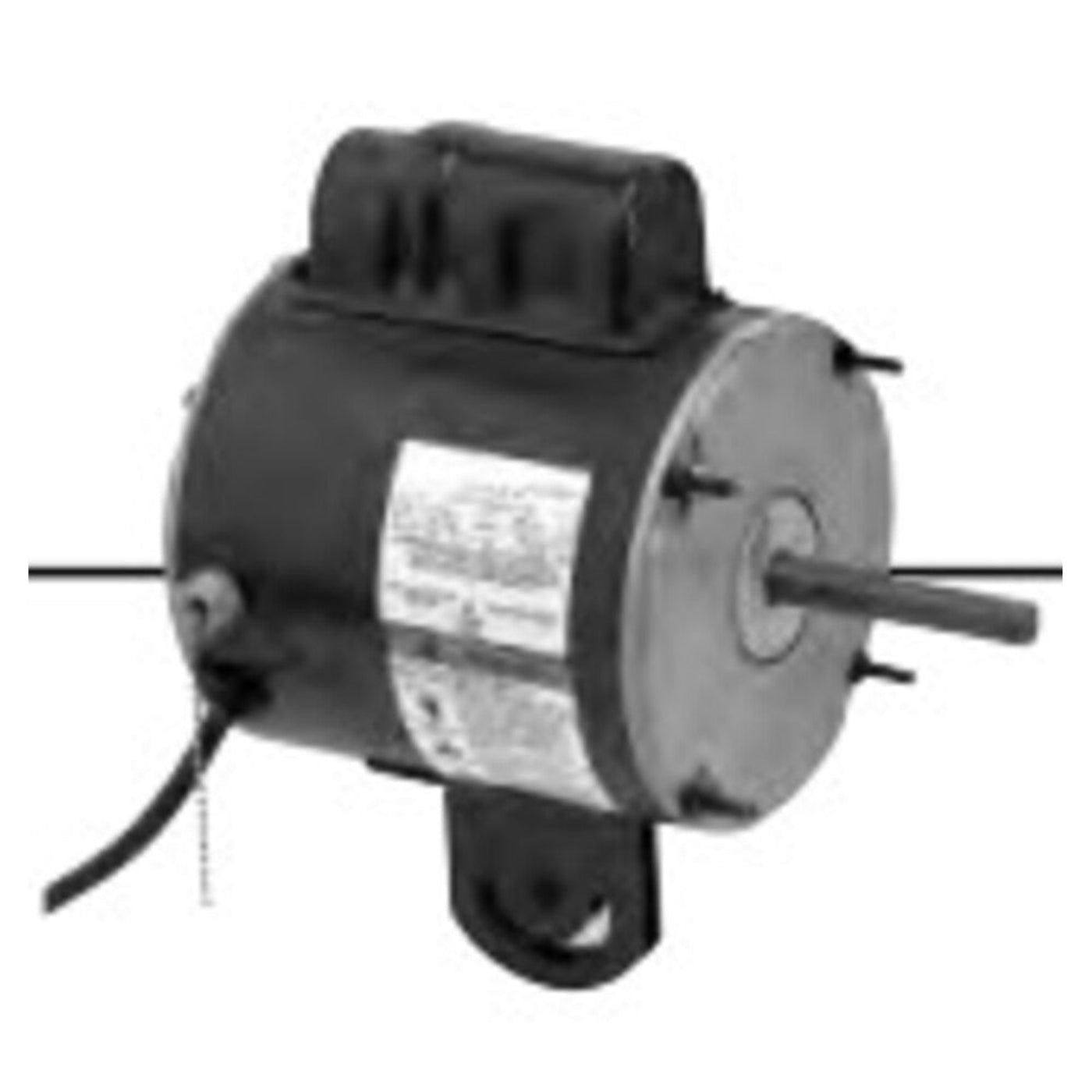

US-Nidec FD12EA4B4Z7 Pedestal Fan Motor 1/2 HP 825 RPM - FD12EA4B4Z7

US-Nidec FD12EA4B4Z7 Pedestal Fan Motor 1/2 HP 825 RPM - FD12EA4B4Z7

The US-Nidec FD12EA4B4Z7 is a pedestal fan motor designed for efficient operation. This three-phase motor operates at half horsepower and runs at eight hundred twenty-five RPM. It features a TEAO enclosure and fits within a frame size of forty-eight YZ.

Product Highlights

Ideal for various ventilation and cooling applications, this motor combines reliable performance with durability.

Features

• Type: Three Phase
• Voltage: Two hundred thirty to four hundred sixty
• Material: Rolled Stee

Specifications

What our Experts Think

• Designed for Agricultural Use

• Ideal for providing reliable ventilation in poultry and livestock environments, ensuring optimal airflow.

• Sturdy Construction

• Built with a 48YZ frame and rolled steel housing for durability in demanding conditions.

• Features a 1/2" diameter by 2 1/2" long keyed shaft for secure operation.

• Efficient Operation

• Operates at 825 RPM, delivering 1/2 horsepower to maintain effective airflow.

• Enhanced Protection and Reliability

• Equipped with automatic overload protection to safeguard against motor damage and ensure continuous, reliable performance.

Q&A

Q: What applications is the U.S. Motors Nidec FD12EA4B4Z7 motor suitable for?
A: This motor is designed for use in ventilation systems, such as exhaust and vent fans in poultry and livestock houses, and other similar air circulation applications.

Q: What are the key specifications of the FD12EA4B4Z7 motor?
A: The motor delivers 1/2 horsepower at 825 RPM, operates on 230/460V three-phase power, and features a 48YZ frame size. It has a yoke mount and is Totally Enclosed Air-Over (TEAO) for protection against dust and moisture.

Q: What are the mechanical specifications of the FD12EA4B4Z7 motor?
A: The motor features a 1/2" diameter x 2 1/2" long keyed shaft, ball bearings, and Class B insulation. It also has a service factor of 1.0 and includes automatic overload protection.

Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the FD12EA4B4Z7 motor is compatible with VFD applications, allowing for adjustable speed control to meet the demands of various ventilation needs.

Maintenance Tips

• Regular Inspections: Check for signs of wear or damage to the motor and its components.

• Cleanliness: Keep the motor and surrounding area free from dust and debris to maintain optimal airflow.

• Lubrication: Ensure bearings are properly lubricated as per manufacturer's guidelines.

• Electrical Connections: Inspect wiring and connections for signs of corrosion or loose connections.

• Overload Protection: Test the automatic overload protection to ensure it functions correctly.
