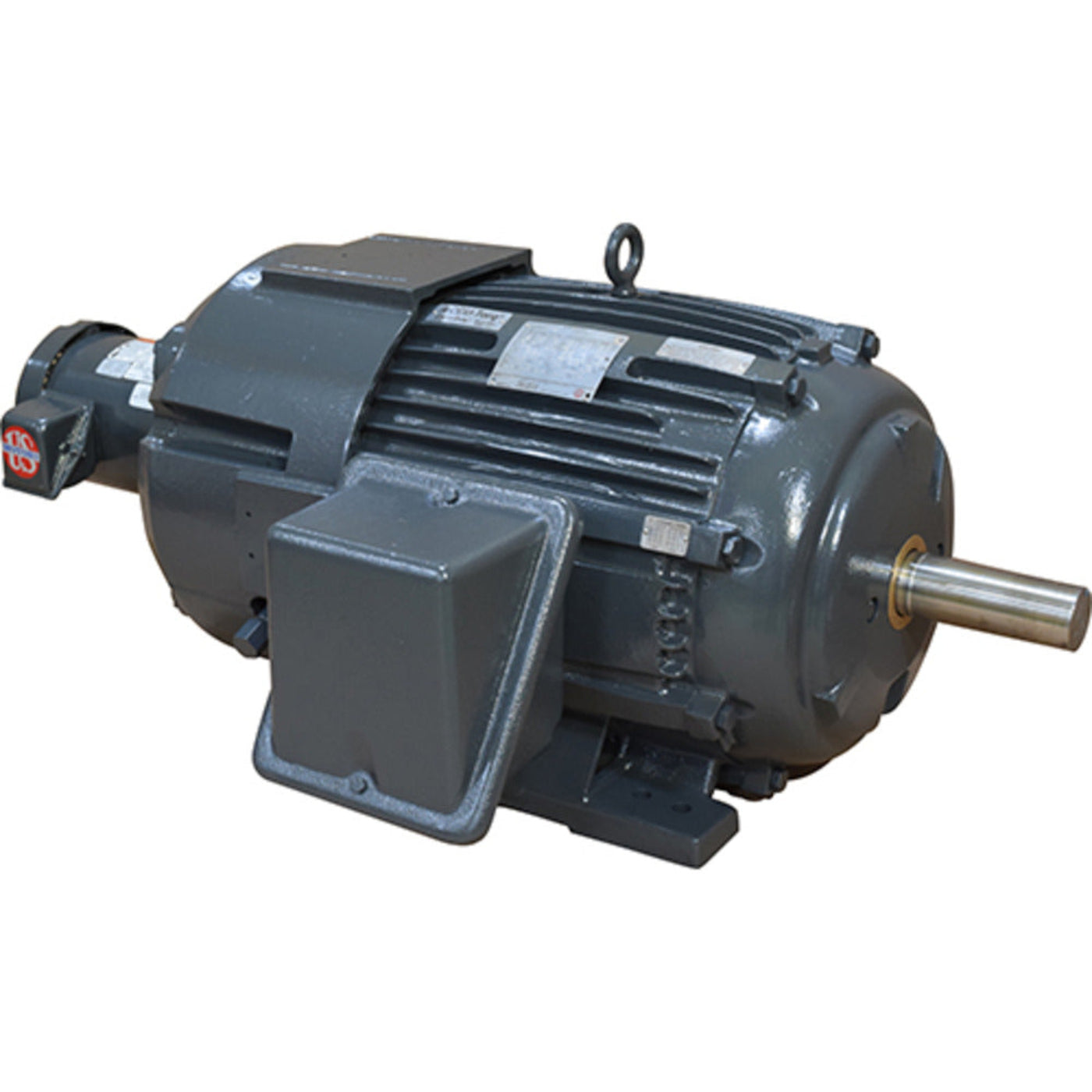

US-Nidec HD20V2B Inverter Duty Motor 20 HP 256T TEFC - HD20V2B

US-Nidec HD20V2B Inverter Duty Motor 20 HP 256T TEFC - HD20V2B

The US-Nidec HD20V2B is a three-phase inverter duty motor designed for various industrial applications. With a power rating of twenty horsepower, this motor is suitable for use in environments requiring reliable performance. It features a TEFC enclosure that protects it from environmental factors, making it ideal for outdoor use. The motor operates on a voltage of two hundred thirty to four hundred sixty volts and has a reversible rotation for flexible installation.

Product Highlights

This motor is engineered for durability and efficiency, making it suitable for a variety of applications in HVAC systems, conveyor systems, and industrial machinery.

Features

• Type: Inverter Duty Motor
• Horsepower: 20 HP
• Frame Size: 256T

Specifications

What our Experts Think

• Built for Demanding Applications: The US-Nidec HD20V2B is a powerful 20 HP motor that excels in environments requiring high performance, such as material handling and machine tools.

• VFD Compatibility: Designed to work seamlessly with variable frequency drives (VFDs), offering excellent adaptability for a wide range of industrial needs.

• Efficient Cooling: The Totally Enclosed Fan Cooled (TEFC) design ensures the motor remains cool, even during extended use in challenging conditions.

• Durability and Versatility: With a high service factor of 1.15, it’s built to handle overloads, making it reliable for continuous operation.

• Ease of Integration: The rigid base and C-face mounting make installation simple and suitable for most systems without additional modifications.

Q&A

Q: What is the US Motors HD20V2B motor?
A: The HD20V2B is a 20 horsepower, 1800 RPM, three-phase electric motor designed for applications that require variable and constant torque, especially in inverter-duty settings.

Q: What are the key specifications of the HD20V2B motor?
A: This motor operates at 230/460V, 60Hz, with a 256T frame size. It has a Totally Enclosed Fan Cooled (TEFC) design for enhanced durability and protection in harsh environments.

Q: What is the service factor of the HD20V2B motor?
A: The motor has a service factor of 1.15, meaning it can handle occasional overloads up to 15% above its rated capacity.

Q: What is the efficiency class of the HD20V2B motor?
A: It is a Premium Efficient motor, meeting or exceeding the NEMA efficiency standards.

Q: What is the weight of the HD20V2B motor?
A: The motor weighs approximately 320 pounds, making it suitable for various industrial applications.

Q: What are the applications of the HD20V2B motor?
A: This motor is ideal for use in HVAC systems, pumps, compressors, and other industrial machinery that requires reliable performance under varying loads.

Q: What is the product code for the HD20V2B motor?
A: The product code is HD20V2B.

Maintenance Tips

• Regular Inspection: Periodically check the motor for signs of wear, corrosion, or damage.

• Cleanliness: Keep the motor clean and free from dust and debris to prevent overheating.

• Lubrication: Ensure bearings are properly lubricated as per the manufacturer's recommendations.

• Cooling: Verify that the motor's cooling system is functioning correctly to maintain proper operating temperatures.

• Electrical Connections: Inspect electrical connections for tightness and signs of wear to prevent electrical faults.

• Vibration Monitoring: Monitor vibration levels to detect any imbalances or misalignments.

• Alignment: Ensure the motor is properly aligned with the driven equipment to prevent undue stress.

• Inverter Compatibility: Confirm that the motor is compatible with the inverter drive settings to prevent operational issues.
